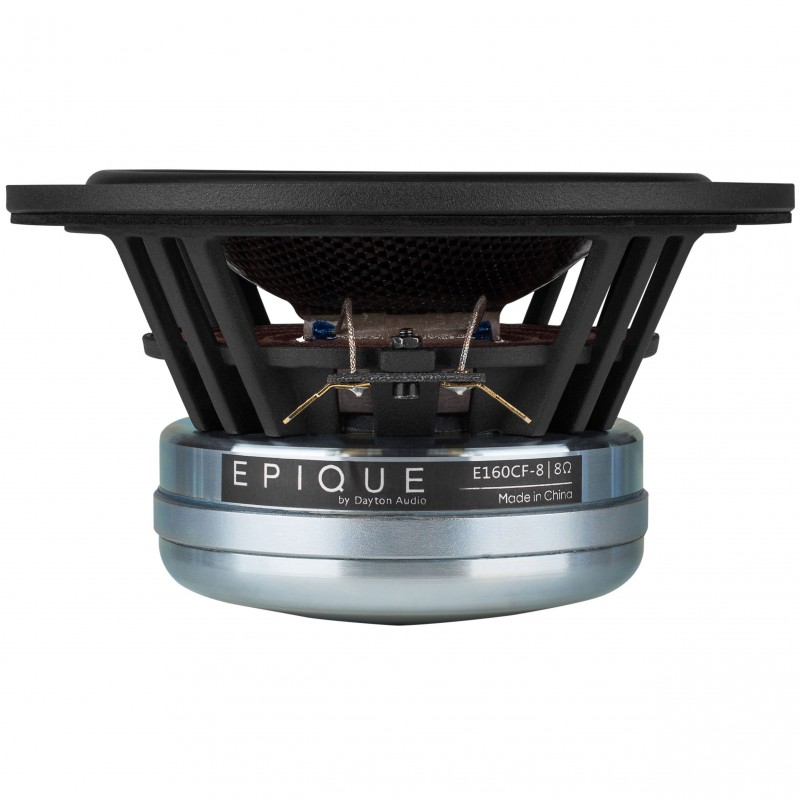

Dayton Audio E160CF-8
8Ω
| Nominal diameter | 5.25″ / 157 mm |
| Resonance | 52.5 Hz |
| Q factor | 0.46 |
| Sensitivity | 87.6 dB |
| Linear excursion | ± 4 mm |
| Program power | 200 W |
Discontinued
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87.6dB

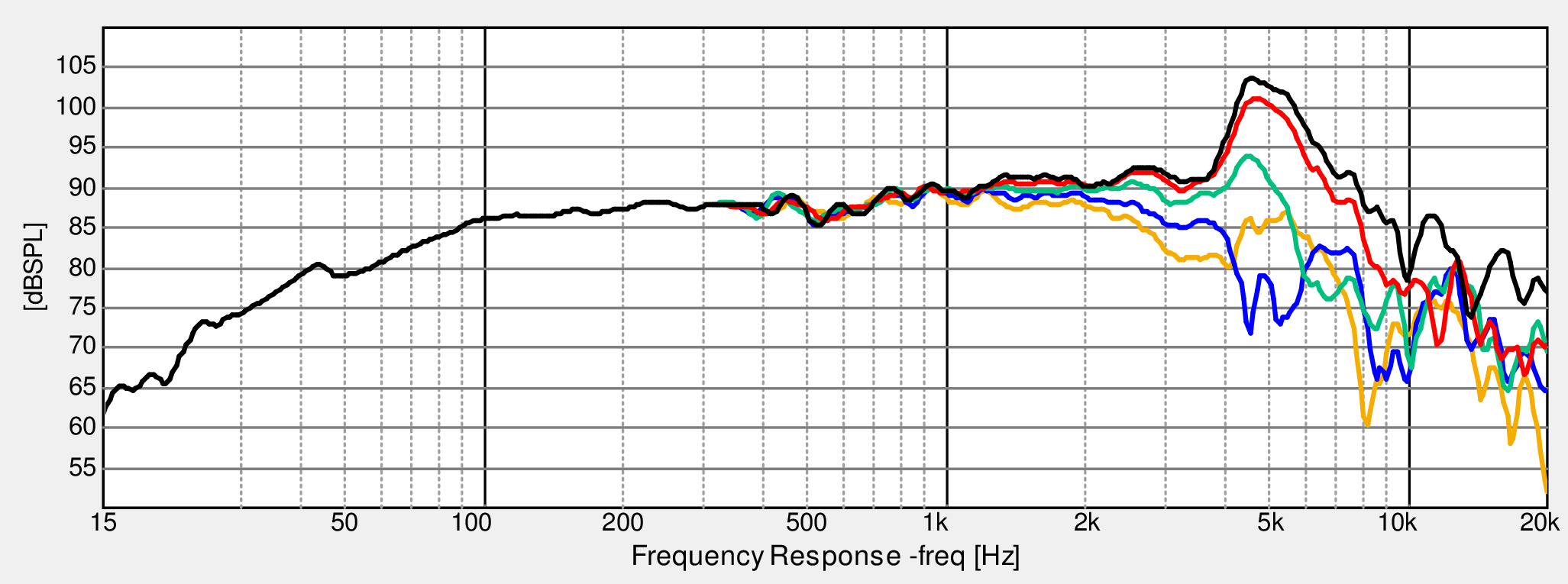

- Frequency response 50 - 8000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 52.5Hz
- Mechanical quality factor QMS 4.61
- Electrical quality factor QES 0.51
- Total quality factor QTS 0.46
Large signal parameters
- Maximum linear excursion (one way) xmax 4mm
- Air volume displaced at xmax VD 44cm³
- Power handling P 100W
- Program power Pmax 200W
Voice Coil

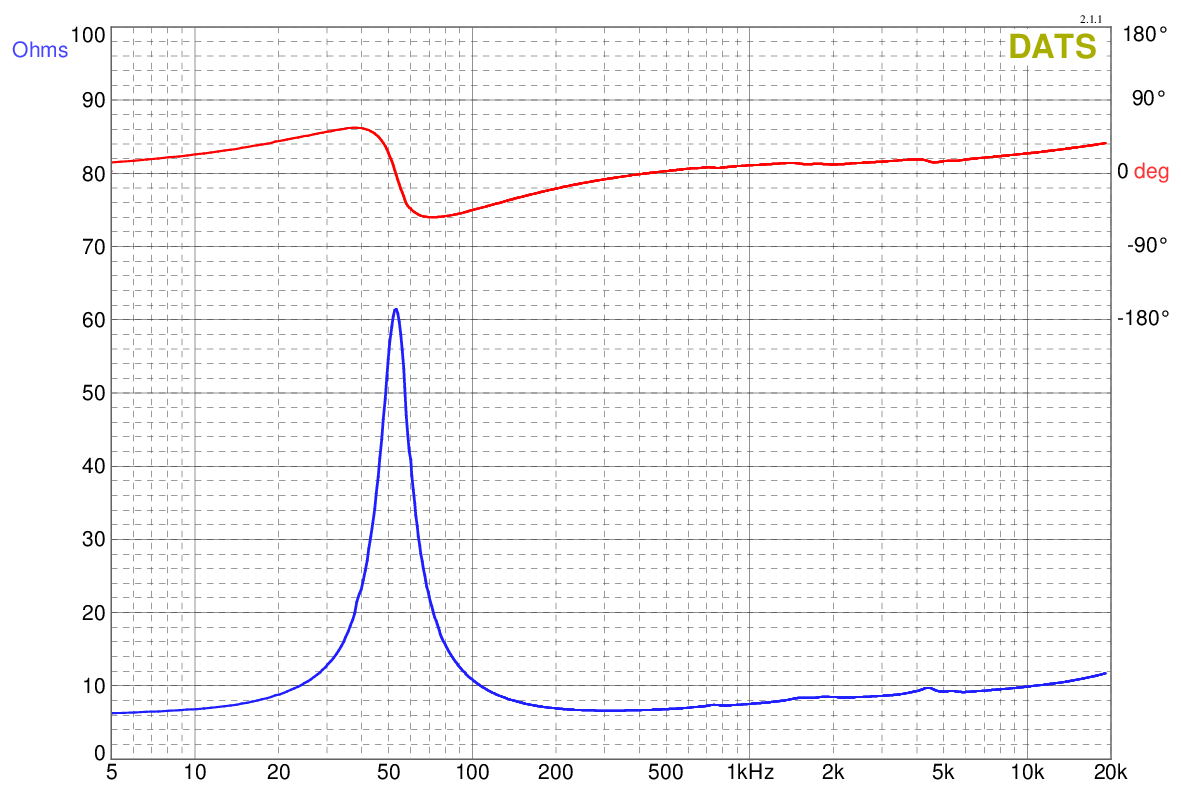

- Nominal impedance Z 8Ω
- DC resistance RE 6.1Ω
- Inductance (1kHz) LE 0.71mH
- VC Diameter 38.1mm
- Winding material Copper
- Former material Titanium
Magnet
- Force factor Bl 6.7N/A
- Motor constant Bl/√RE 2.71N/√W
- Material Neodymium
Diaphragm
- Effective diameter 118mm
- Effective area SD 109cm²
- Moving mass (including air load) MMS 11.3g
- Moving mass MMD 10.4g
- Material Carbon Fiber
Suspensions
- Stiffness KMS 1.22N/mm
- Compliance CMS 820µm/N
- Equivalent volume to the compliance VAS 13.7L
- Mechanical resistance RMS 0.81N·s/m
- Surround material Rubber
Dimensions
- Nominal diameter 5.25″
- 157mm
- Overall diameter 157mm
- Baffle cutout diameter 135mm
- Overall depth 37mm
- Volume occupied by the driver (estimated) 0.16L
- Frame material Cast Aluminium
.png)
.png)
.png)
.png)
