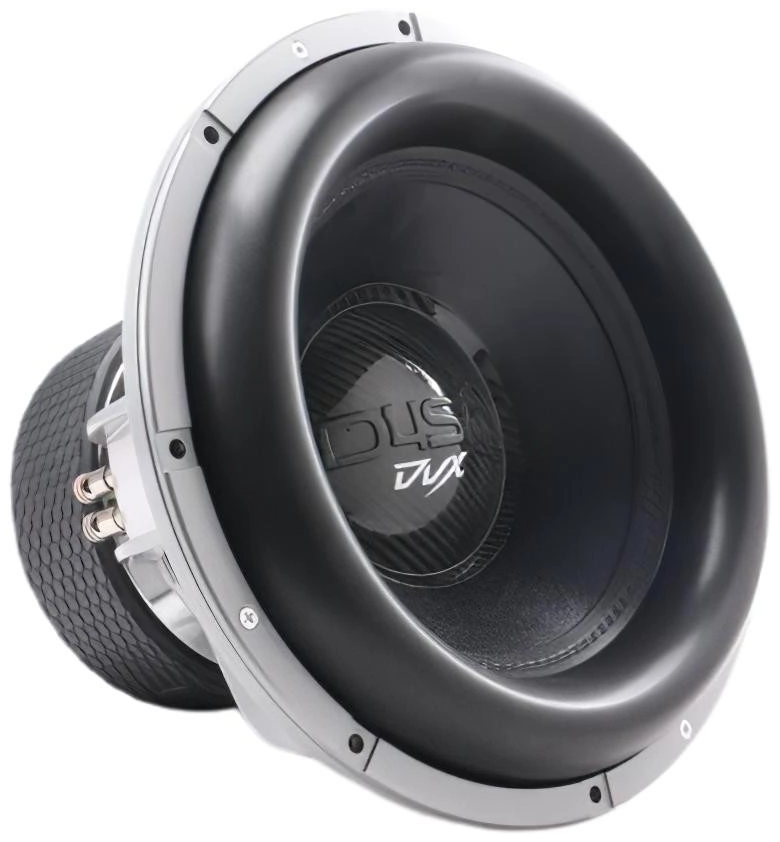

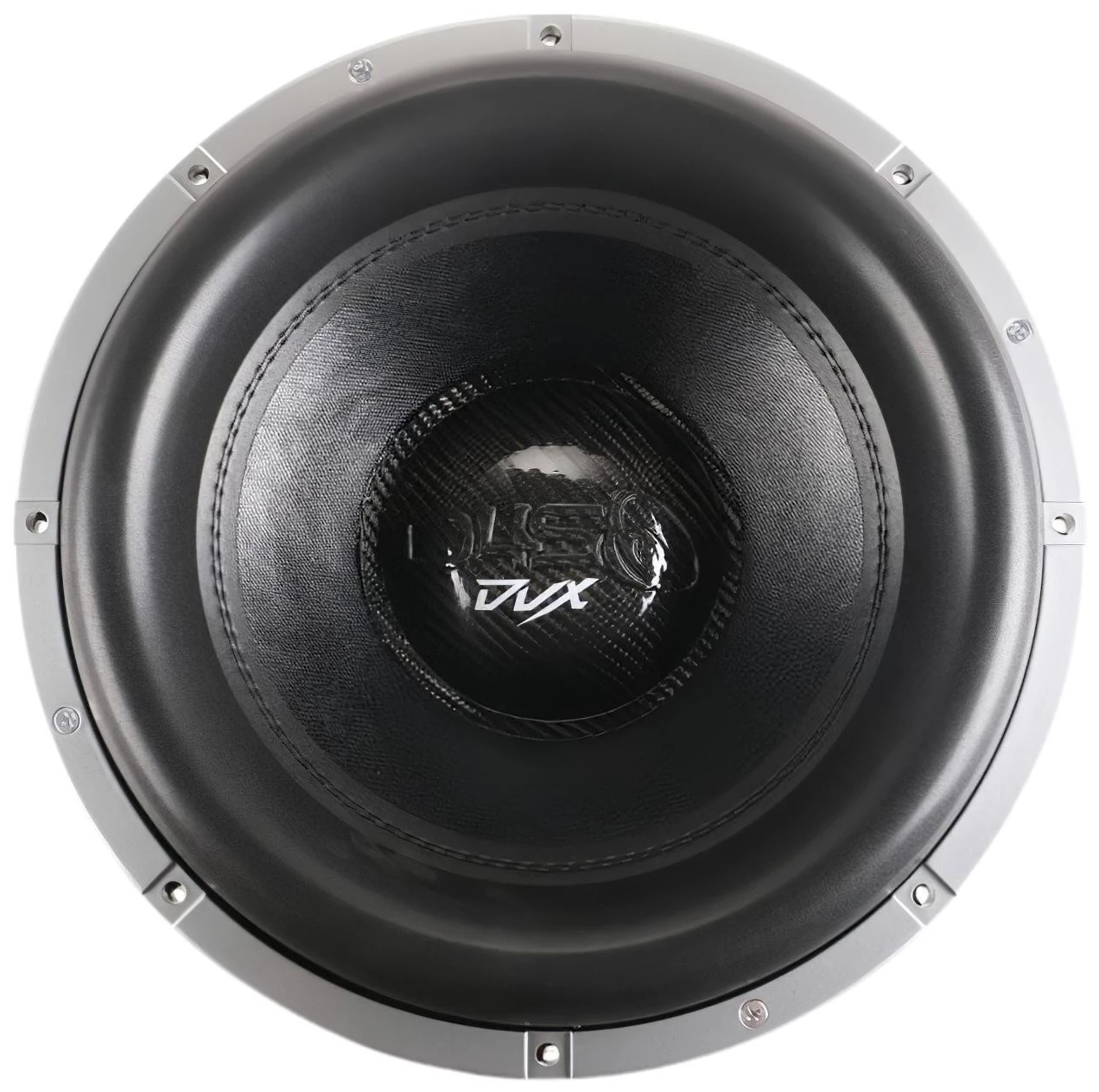

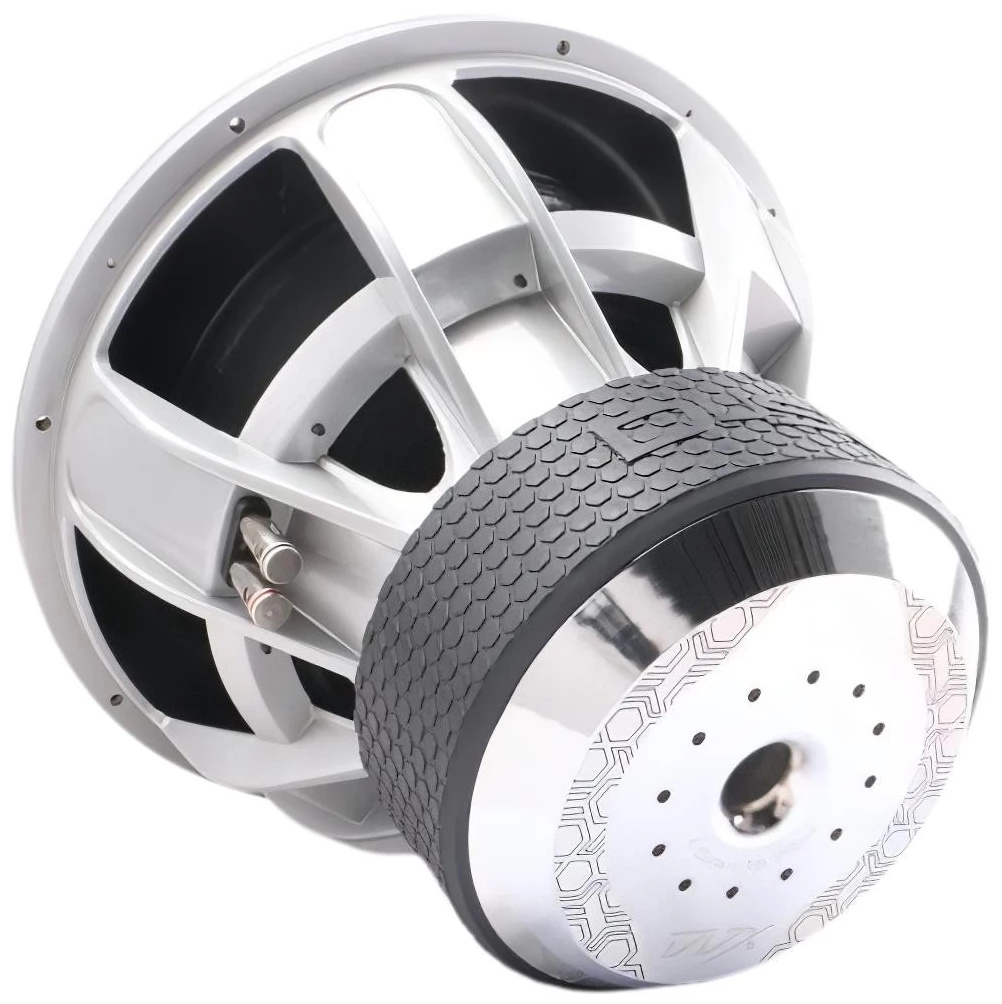

Down4Sound DVX15D2
2x2Ω
2x4ΩSubwoofer
| Nominal diameter | 15″ / 396 mm |
| Resonance | 30.4 Hz |
| Q factor | 0.45 |
| Sensitivity | 88.5 dB |
| Linear excursion | ± 33 mm |
| Program Power | 3400 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.5dB
Thiele & Small parameters
- Resonance frequency (free air) fS 30.4Hz
- Mechanical quality factor QMS 2.73
- Electrical quality factor QES 0.53
- Total quality factor QTS 0.45
Large signal parameters
- Maximum linear excursion (one way) xmax 33mm
- Air volume displaced at xmax VD 2411cm³
- Power handling P 1700W
- Program power Pmax 3400W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.1Ω
- Inductance (1kHz, in series, estimated) LE 4.8mH
- VC Diameter 76.2mm
Magnet
- Force factor (in series) Bl 28.9N/A
- Motor constant Bl/√RE 14.3N/√W
- Diameter 220mm
Diaphragm
- Effective diameter 305mm
- Effective area SD 731cm²
- Moving mass MMS 387g
- Moving mass (without air load) MMD 372g
Suspensions
- Stiffness KMS 14.1N/mm
- Compliance CMS 70.7µm/N
- Equivalent volume to the compliance VAS 53.6L
- Mechanical resistance RMS 0.803N·s/m
- Spider material Long-fiber
Dimensions
- Nominal diameter 15″
- 396mm
- Overall diameter 396mm
- Baffle cutout diameter 360mm
- Mounting depth 270mm
- Volume occupied by the driver 5.66L
- Net weight 29.48kg
