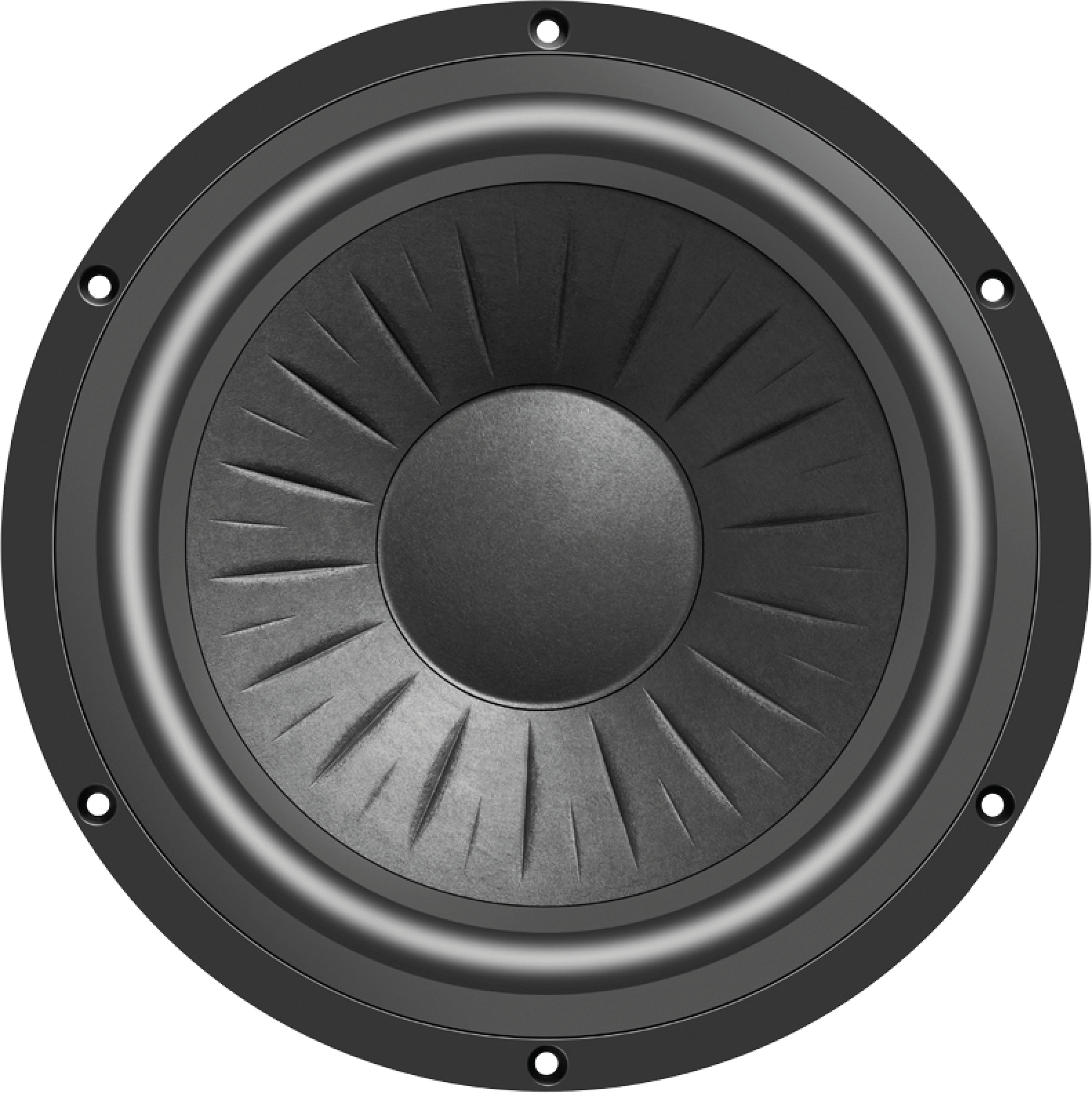

ETON 11-612C8/50RP

Woofer

11″ / 280 mm
Nominal diameter
23 Hz
Resonance
0.29
Q factor
90 dB
Sensitivity
± 5 mm
Linear excursion
240 W
Program Power
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply
Sensitivity (1W, 1m, infinite baffle)
SPL1W
89.6
dB
Frequency response
23 - 1000
Hz

Thiele & Small parameters

Resonance frequency (free air)
fS
23.0
Hz
Mechanical quality factor
QMS
7.87
Electrical quality factor
QES
0.30
Total quality factor
QTS
0.29

Large signal parameters

Maximum linear excursion
xmax
5.0
mm
Air volume displaced at xmax
VD
183
cm³
Power handling
P
120
W
Program power
Pmax
240
W

Voice Coil

Nominal impedance
Z
8
Ω
DC resistance
RE
5.3
Ω
Inductance (1kHz)
LE
1.03
mH
VC Diameter
50
mm
Winding material
Kapton

Magnet

Force factor
Bl
11.4
N/A
Motor constant
Bl/√RE
4.95
N/√W
Diameter
134
mm

Diaphragm

Effective diameter
216
mm
Effective area
SD
366
cm²
Moving mass
MMS
54
g
Moving mass (without air load)
MMD
48.7
g

Suspensions

Stiffness
KMS
1.24
N/mm
Compliance
CMS
810
µm/N
Equivalent volume to the compliance
VAS
152
L
Mechanical resistance
RMS
0.99
N·s/m

Dimensions

Nominal diameter
11
280
mm
Overall diameter
280
mm
Baffle cutout diameter
242
mm
Overall depth
111
mm
Flange thickness
8
mm
Mounting depth
103
mm
Volume occupied by the driver (estimated)
1.4
L
Net weight
3.25
kg
ETON 11-612C8/50RP Impedance

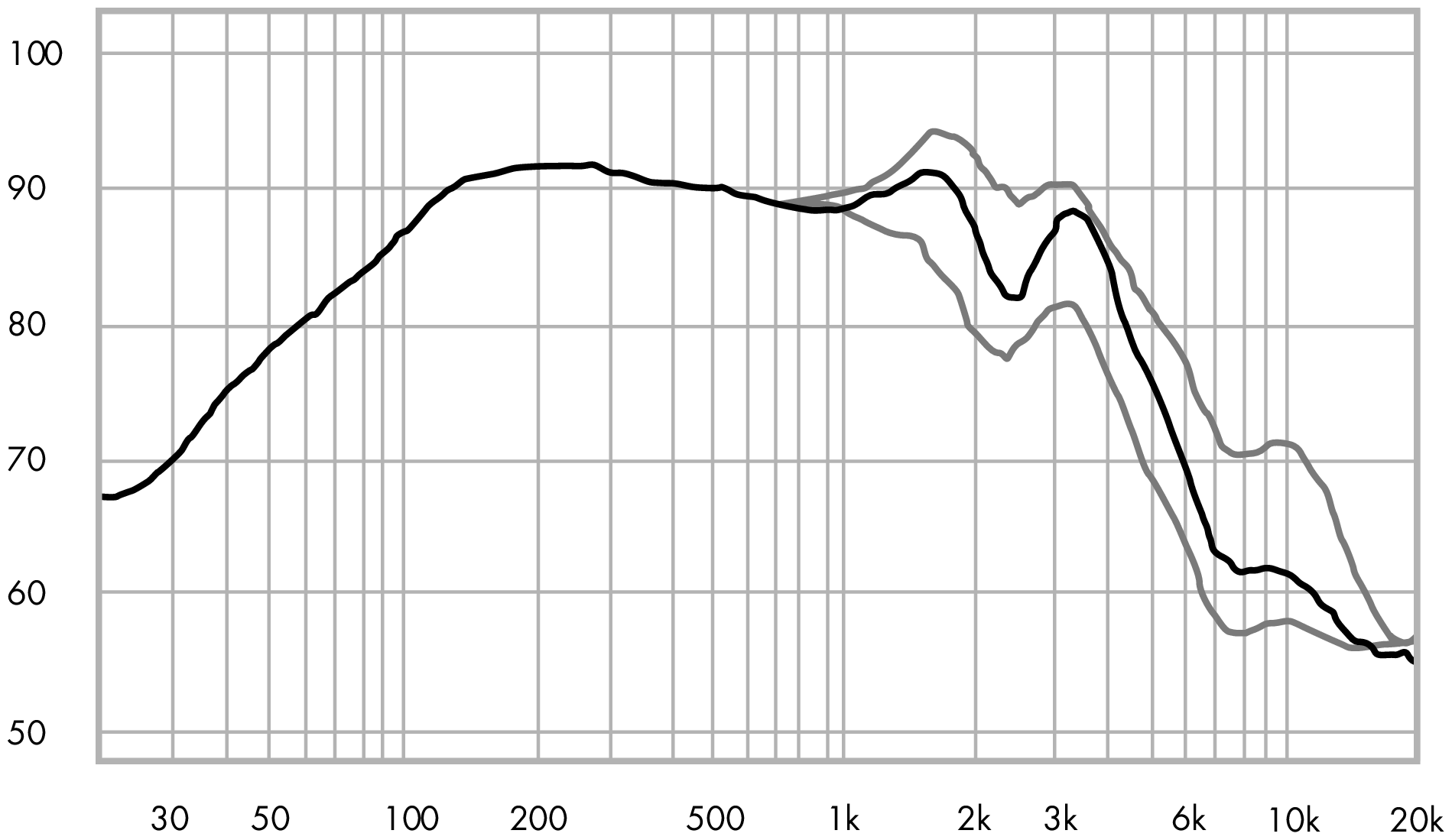

ETON 11-612C8/50RP SPL

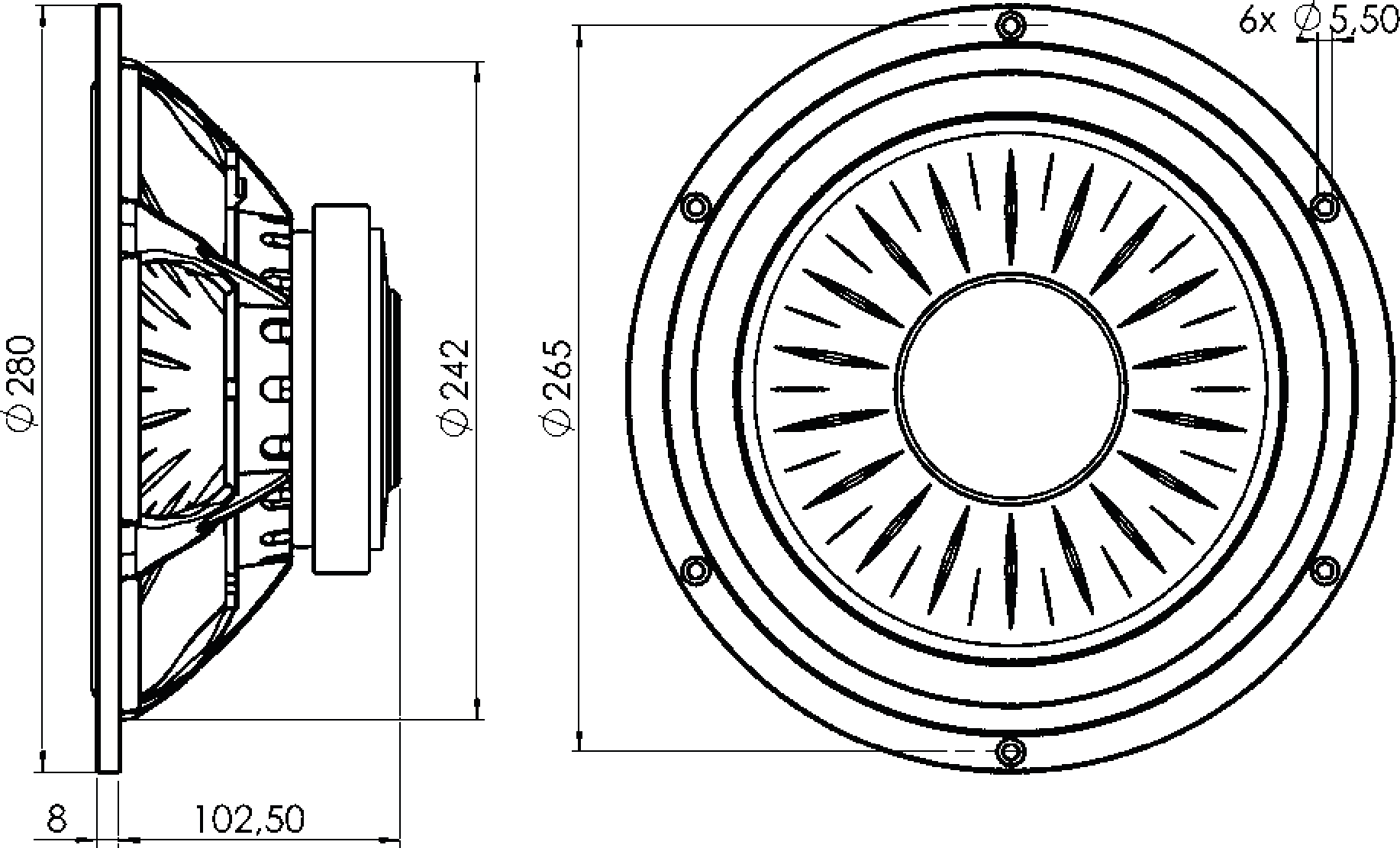

ETON 11-612C8/50RP Dimensions
