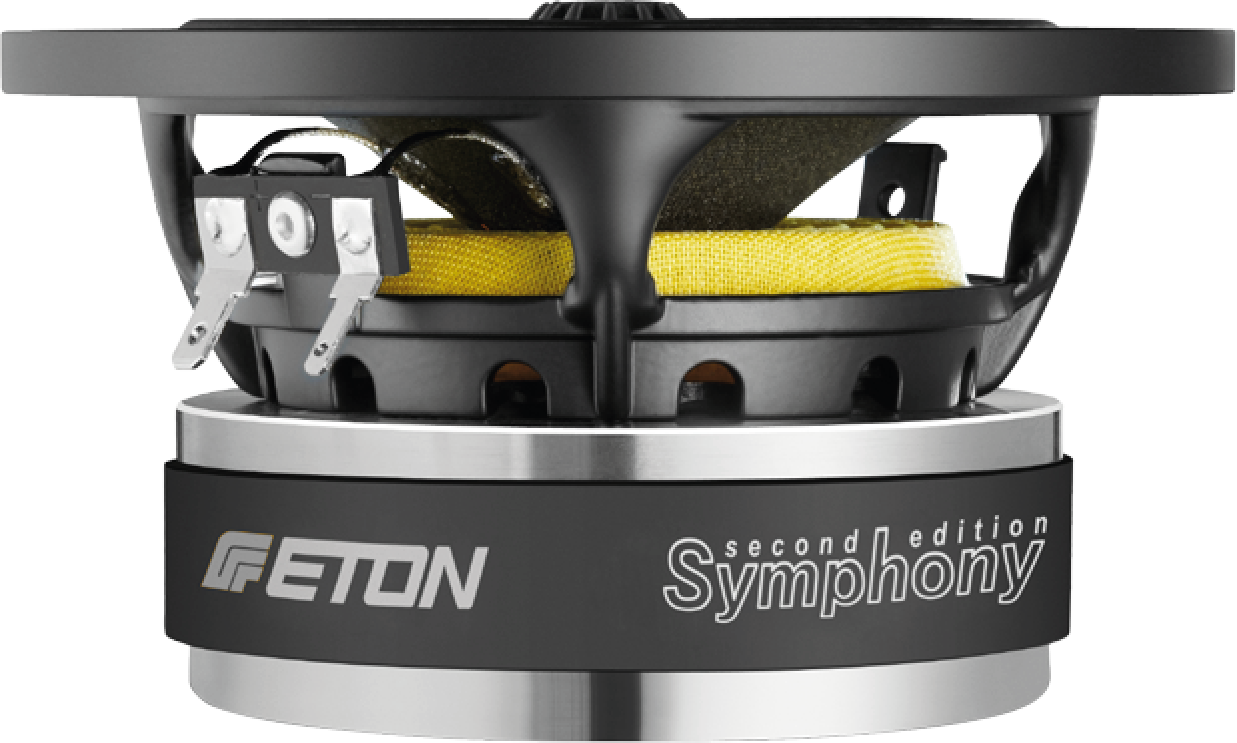

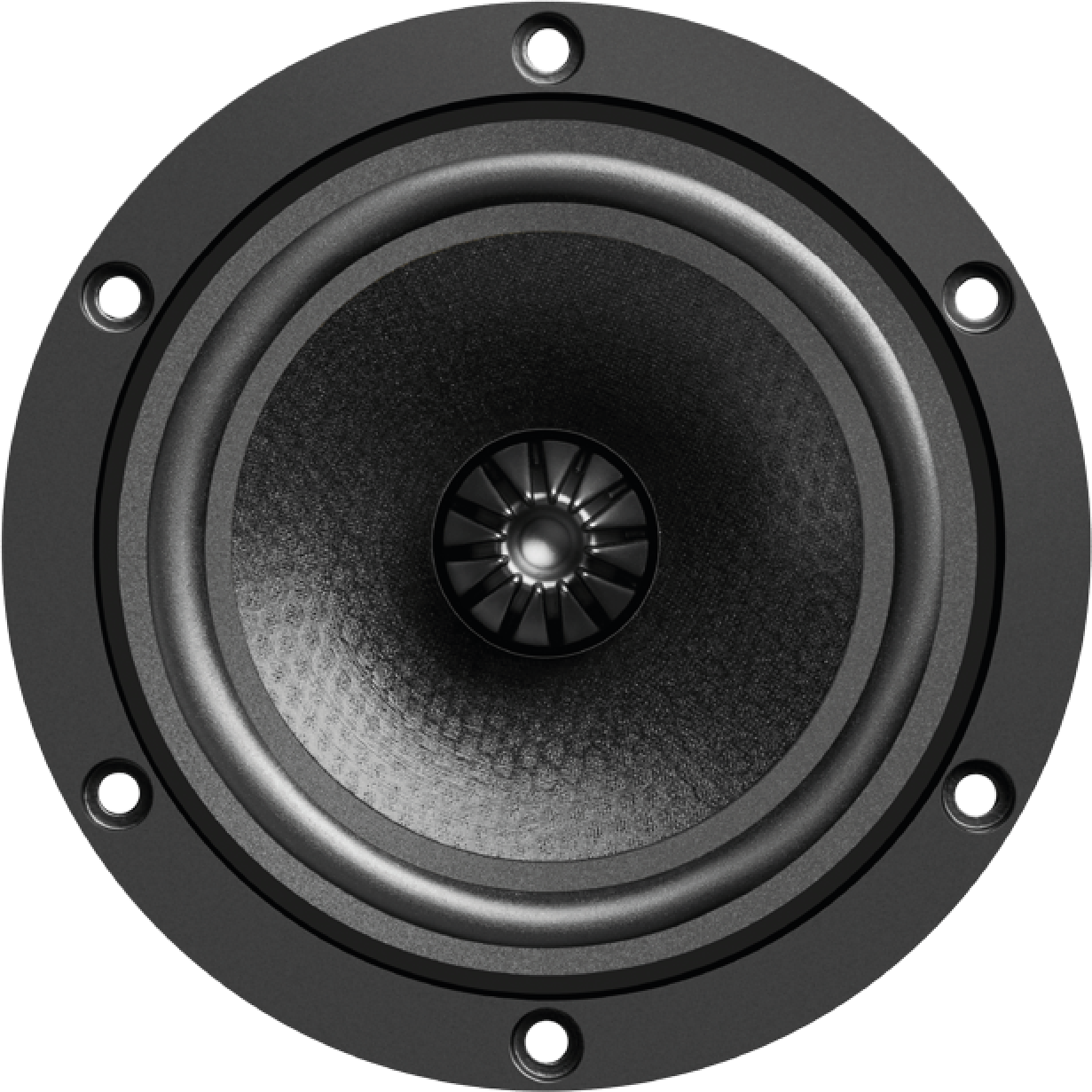

ETON Symphony II 4-312/C8/25 HEX
8Ω
Mid Bass
| Nominal diameter | 5″ / 122 mm |
| Resonance | 60 Hz |
| Q factor | 0.39 |
| Sensitivity | 86.4 dB |
| Linear excursion | ± 5.5 mm |
| Program Power | 100 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 86.4dB
- Frequency response 100 - 5400Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 60Hz
- Mechanical quality factor QMS 5.56
- Electrical quality factor QES 0.42
- Total quality factor QTS 0.39
Large signal parameters
- Maximum linear excursion xmax 5.5mm
- Air volume displaced at xmax VD 30cm³
- Power handling P 50W
- Program power Pmax 100W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.9Ω
- Inductance (1kHz) LE 0.38mH
- VC Diameter 25mm
- Winding material Copper
- Former material Kapton
Magnet
- Flux density B 1.15T
- Force factor Bl 5.8N/A
- Motor constant Bl/√RE 2.39N/√W
- Air gap height HAG 6mm
- Diameter 90mm
- Height 17mm
- Material Ferrite
Diaphragm
- Effective diameter 84mm
- Effective area SD 55cm²
- Moving mass MMS 5.8g
- Moving mass (without air load) MMD 5.5g
Suspensions
- Stiffness KMS 1.16N/mm
- Compliance CMS 860µm/N
- Equivalent volume to the compliance VAS 3.7L
- Mechanical resistance RMS 0.5N·s/m
Dimensions
- Nominal diameter 5″
- 122mm
- Overall diameter 122mm
- Baffle cutout diameter 96mm
- Overall depth 66mm
- Flange thickness 6mm
- Mounting depth 60mm
- Volume occupied by the driver (estimated) 0.32L
- Net weight 1.24kg
.png)
.png)
.png)
