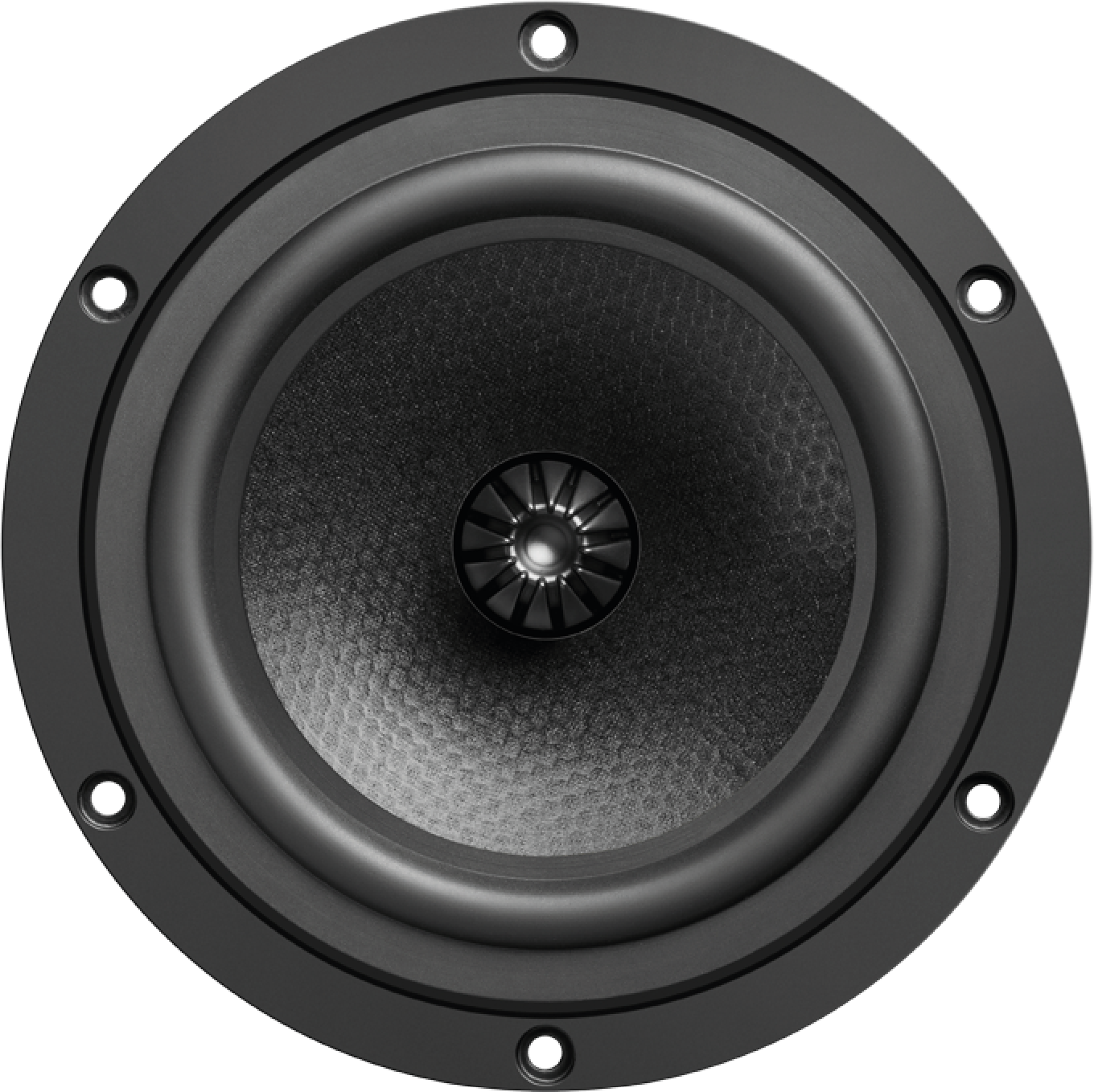

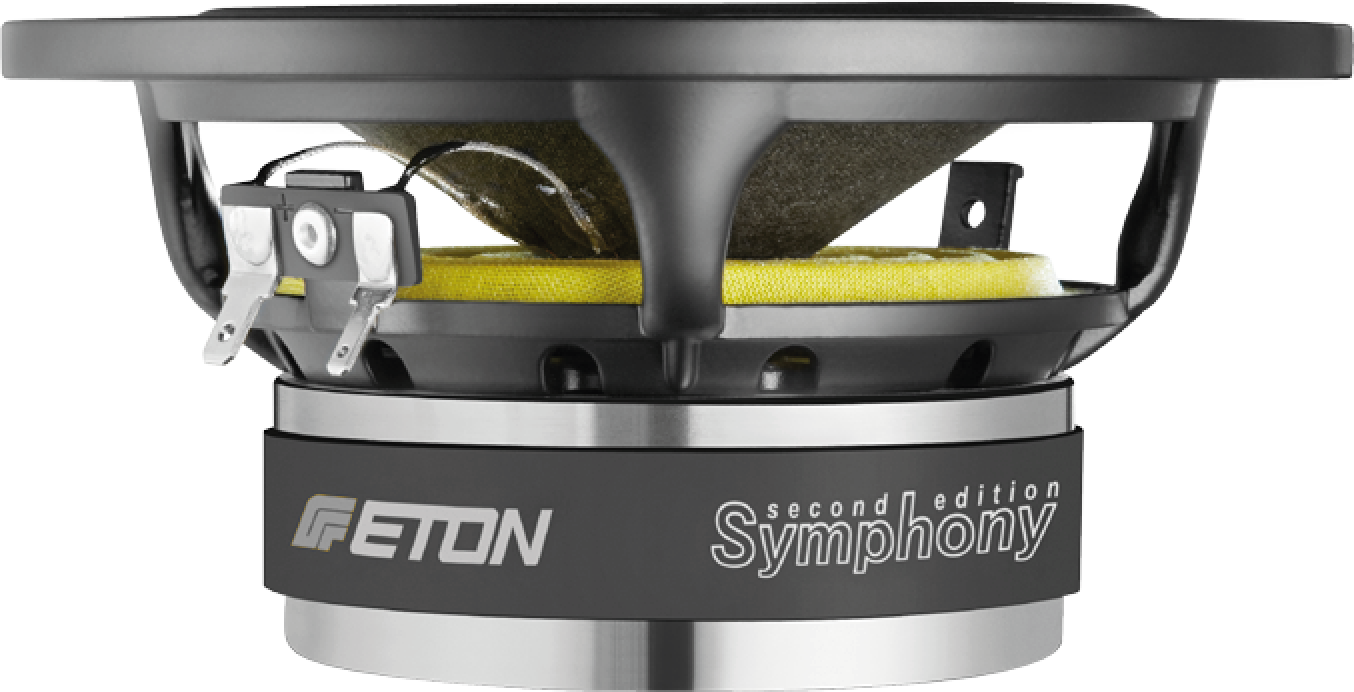

ETON Symphony II 5-312/C8/25 HEX
8Ω
Mid Bass
| Nominal diameter | 6″ / 148 mm |
| Resonance | 53 Hz |
| Q factor | 0.44 |
| Sensitivity | 85.7 dB |
| Linear excursion | ± 7.5 mm |
| Program Power | 100 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.7dB
- Frequency response 50 - 4000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 53Hz
- Mechanical quality factor QMS 7.56
- Electrical quality factor QES 0.47
- Total quality factor QTS 0.44
Large signal parameters
- Maximum linear excursion xmax 7.5mm
- Air volume displaced at xmax VD 60cm³
- Power handling P 50W
- Program power Pmax 100W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.4Ω
- Inductance (1kHz) LE 0.45mH
- VC Diameter 25mm
- Winding material Copper
- Former material Kapton
Magnet
- Flux density B 1.15T
- Force factor Bl 5.7N/A
- Motor constant Bl/√RE 2.45N/√W
- Air gap height HAG 6mm
- Diameter 90mm
- Height 11mm
- Material Ferrite
Diaphragm
- Effective diameter 101mm
- Effective area SD 80cm²
- Moving mass MMS 9.4g
- Moving mass (without air load) MMD 8.8g
Suspensions
- Stiffness KMS 1.06N/mm
- Compliance CMS 940µm/N
- Equivalent volume to the compliance VAS 8.4L
- Mechanical resistance RMS 0.45N·s/m
Dimensions
- Nominal diameter 6″
- 148mm
- Overall diameter 148mm
- Baffle cutout diameter 120mm
- Overall depth 68mm
- Flange thickness 6mm
- Mounting depth 62mm
- Volume occupied by the driver (estimated) 0.38L
- Net weight 1.28kg
.png)
.png)
.png)
