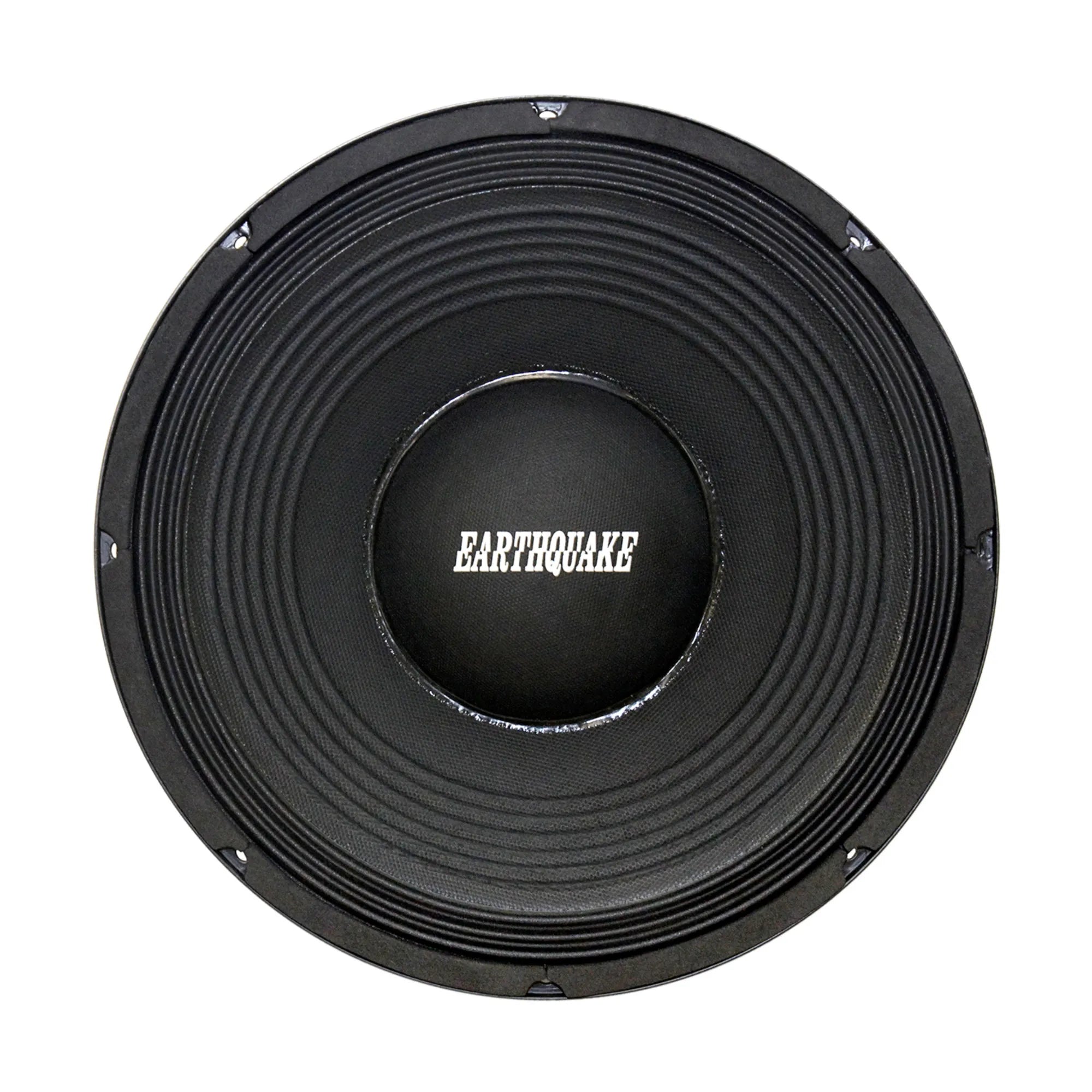

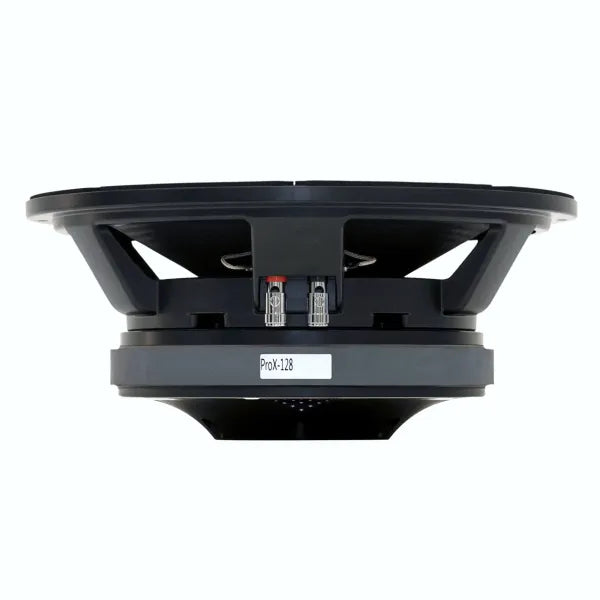

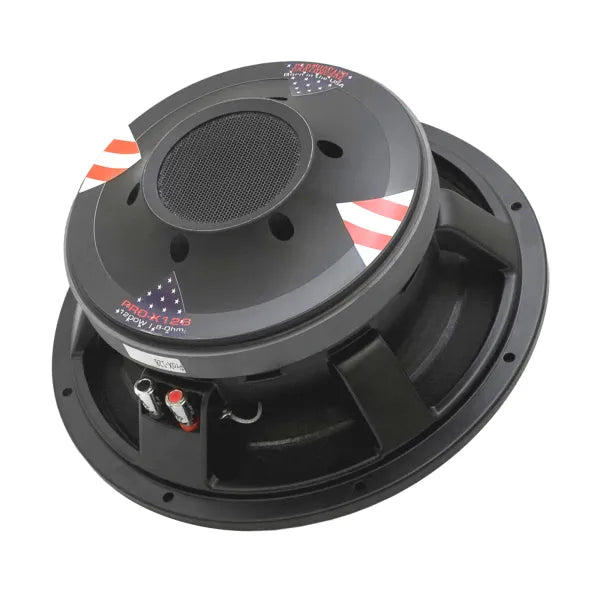

Earthquake PRO-X128
8Ω
Subwoofer
| Nominal diameter | 12″ / 312 mm |
| Resonance | 49 Hz |
| Q factor | 0.35 |
| Sensitivity | 94.5 dB |
| Program power | 1200 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94.5dB
Thiele & Small parameters
- Resonance frequency (free air) fS 49Hz
- Mechanical quality factor QMS 7.62
- Electrical quality factor QES 0.36
- Total quality factor QTS 0.35
Large signal parameters
- Maximum excursion before damage xlim 12.7mm
- Power handling P 600W
- Program power Pmax 1200W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.0Ω
- Inductance (1kHz, estimated) LE 2.34mH
- VC Diameter 100mm
Magnet
- Force factor Bl 19.5N/A
- Motor constant Bl/√RE 7.94N/√W
- Diameter 220mm
Diaphragm
- Effective diameter 270mm
- Effective area SD 572cm²
- Moving mass (including air load) MMS 74.3g
- Moving mass MMD 64.9g
Suspensions
- Stiffness KMS 7.04N/mm
- Compliance CMS 142µm/N
- Equivalent volume to the compliance VAS 66L
- Mechanical resistance RMS 3N·s/m

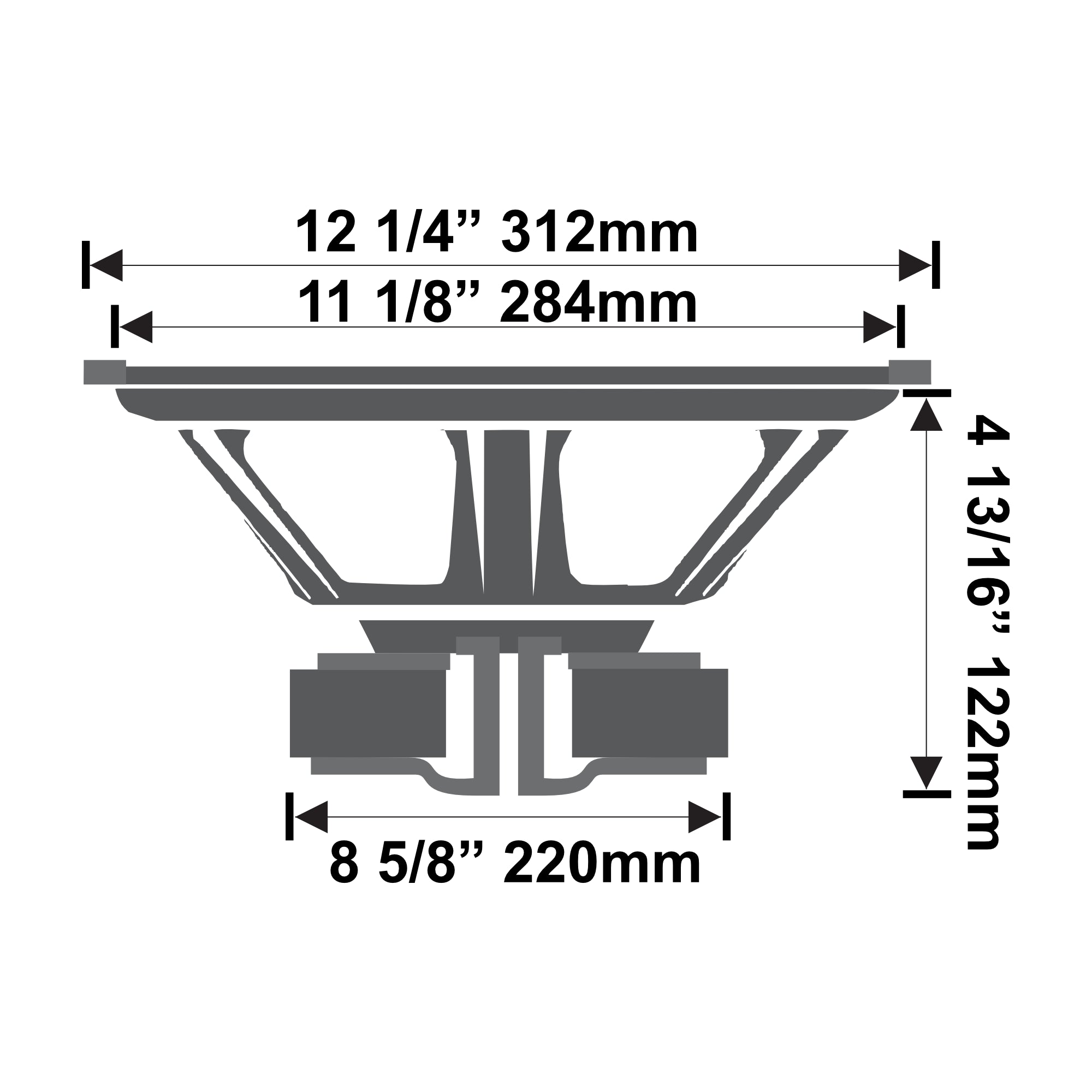

Dimensions
- Nominal diameter 12″
- 312mm
- Overall diameter 312mm
- Baffle cutout diameter 284mm
- Overall depth 122mm
- Flange thickness 0mm
- Mounting depth 122mm
- Volume occupied by the driver 4.59L
