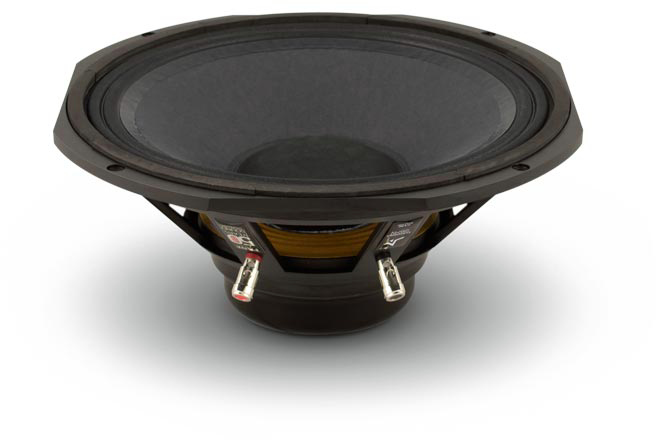

Fane COLOSSUS 12BMN
8Ω
Mid Bass
| Nominal diameter | 12″ / 305 mm |
| Resonance | 43 Hz |
| Q factor | 0.23 |
| Sensitivity | 95.8 dB |
| Linear excursion | ± 6 mm |
| Program Power | 900 W |
Discontinued
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.8dB
- Frequency response 40 - 3500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 43Hz
- Mechanical quality factor QMS 5.30
- Electrical quality factor QES 0.24
- Total quality factor QTS 0.23
Large signal parameters
- Maximum linear excursion xmax 6mm
- Air volume displaced at xmax VD 330cm³
- Power handling P 450W
- Program power Pmax 900W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.4Ω
- Inductance (1kHz) LE 2.1mH
- VC Diameter 76.2mm
- Winding height HVC 20mm
- Winding material Copper
- Former material Glass Fibre
Magnet
- Flux density B 1.16T
- Force factor Bl 20N/A
- Motor constant Bl/√RE 8.61N/√W
- Air gap height HAG 8mm
- Material Neodymium
Diaphragm
- Effective diameter 260mm
- Effective area SD 550cm²
- Moving mass MMS 65g
- Moving mass (without air load) MMD 55.6g
- Material Polycellulose
Suspensions
- Stiffness KMS 4.81N/mm
- Compliance CMS 208µm/N
- Equivalent volume to the compliance VAS 89L
- Mechanical resistance RMS 3.31N·s/m
- Surround material Polyvinyl damped Poly Cotton

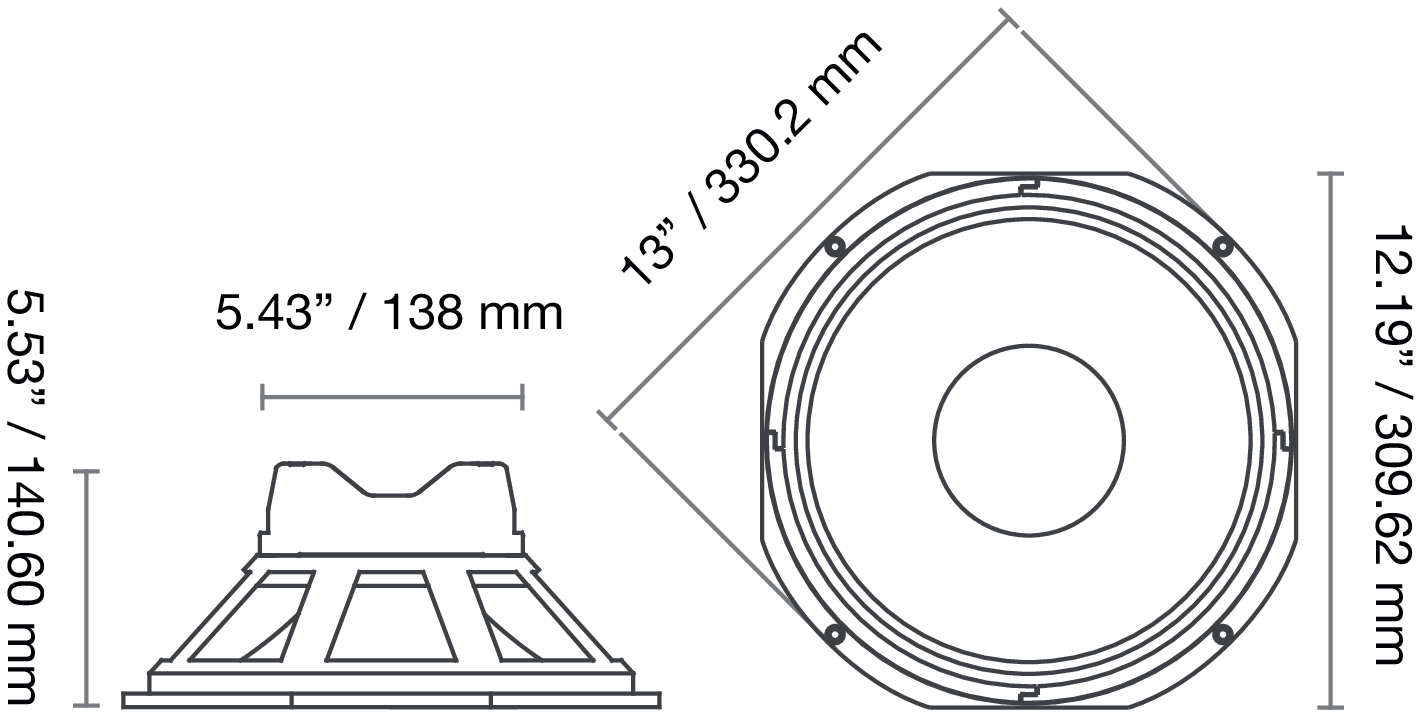

Dimensions
- Nominal diameter 12″
- 305mm
- Overall diameter 330mm
- Baffle cutout diameter 257mm
- Overall depth 141mm
- Flange thickness 8mm
- Mounting depth 133mm
- Volume occupied by the driver (estimated) 2.2L
- Net weight 4.2kg
- Frame material Die-cast Aluminium
.png)
.png)
.png)
