Discontinued
.jpg.webp)
Fane STUDIO 5HPM8 Ω | |
|---|---|
| 5″ Mid-range | |
| fS | 164 Hz |
| SD | 88 cm² |
| 90 - 7000 Hz | |
| QTS | 0.54 |
| xmax | 4.5 mm |
| SPL1W | 91.6 dB |
| Bl/√RE | 3.08 |
| Pmax | 200 W |
67 results
Brand
Type
Available on
•
Nominal diameter
″
•
SensitivitySPL1W
dB
Thiele & Small parameters
•
Resonance frequencyfS
Hz
•
Mechanical quality factorQMS
•
Electrical quality factorQES
•
Total quality factorQTS
Large signal parameters
•
Maximum linear excursionxmax
mm
•
Air volume displaced at xmaxVD
cm³
•
Program powerPmax
W
Voice Coil & Magnet
•
Nominal impedanceZ
Ω
•
DC resistanceRE
Ω
•
Force factorBl
N/A
•
Motor constantBl/√RE
N/√W
•
InductanceLE
mH
•
VC Diameter
mm
Diaphragm
•
Effective diameter
mm
•
Effective areaSD
cm²
•
Moving massMMS
g
Suspensions
•
StiffnessKMS
N/mm
•
ComplianceCMS
µm/N
•
Equivalent volume to CMSVAS
L
•
Mechanical resistanceRMS
N·s/m
Dimensions
•
Overall size
mm
•
Baffle cutout diameter
mm
•
Overall depth
mm
•
Mounting depth
mm
•
Volume occupied
L
•
Net weight
kg
.jpg.webp)
Fane STUDIO 5FRK8 Ω | |
|---|---|
| 5″ | |
| fS | 58 Hz |
| SD | 89.7 cm² |
| 65 - 7000 Hz | |
| QTS | 0.36 |
| xmax | 2.4 mm |
| SPL1W | 89.1 dB |
| Bl/√RE | 2.75 |
| Pmax | 100 W |
Discontinued
.jpg.webp)
Fane SOVEREIGN PRO 8MN8 Ω | |
|---|---|
| 8″ Mid-range | |
| fS | 80 Hz |
| SD | 226 cm² |
| 90 - 5000 Hz | |
| QTS | 0.40 |
| xmax | 3.5 mm |
| SPL1W | 94 dB |
| Bl/√RE | 5.33 |
| Pmax | 500 W |
Discontinued
.jpg.webp)

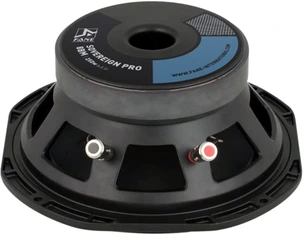

Fane SOVEREIGN PRO 8BM8 Ω | |
|---|---|
| 8″ Mid Bass | |
| fS | 52 Hz |
| SD | 227 cm² |
| 50 - 4500 Hz | |
| QTS | 0.31 |
| xmax | 4.5 mm |
| SPL1W | 91.8 dB |
| Bl/√RE | 5.4 |
| Pmax | 500 W |
.jpg.webp)
Fane SOVEREIGN PRO 8-2258 Ω | |
|---|---|
| 8″ Mid Bass | |
| fS | 62 Hz |
| SD | 220 cm² |
| 55 - 5000 Hz | |
| QTS | 0.38 |
| xmax | 5.5 mm |
| SPL1W | 92.5 dB |
| Bl/√RE | 4.45 |
| Pmax | 450 W |
Discontinued
.jpg.webp)
Fane SOVEREIGN PRO 18-800P8 Ω | |
|---|---|
| 18″ Woofer | |
| fS | 34 Hz |
| SD | 1131 cm² |
| 35 - 1000 Hz | |
| QTS | 0.34 |
| xmax | 7.5 mm |
| SPL1W | 95.1 dB |
| Bl/√RE | 9.93 |
| Pmax | 1600 W |
Discontinued
.jpg.webp)

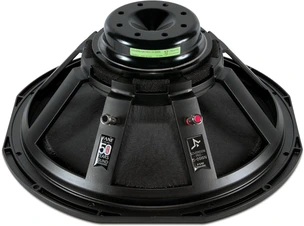

Fane SOVEREIGN PRO 15-600N8 Ω | |
|---|---|
| 15″ Woofer | |
| fS | 33 Hz |
| SD | 855 cm² |
| 40 - 4500 Hz | |
| QTS | 0.22 |
| xmax | 6.5 mm |
| SPL1W | 97.8 dB |
| Bl/√RE | 9.42 |
| Pmax | 1200 W |
.jpg.webp)
Fane SOVEREIGN PRO 15-600LF8 Ω | |
|---|---|
| 15″ Woofer | |
| fS | 40 Hz |
| SD | 856 cm² |
| 35 - 3500 Hz | |
| QTS | 0.37 |
| xmax | 6.9 mm |
| SPL1W | 95.9 dB |
| Bl/√RE | 7.73 |
| Pmax | 1200 W |
.jpg.webp)
Fane SOVEREIGN PRO 15-6008 Ω | |
|---|---|
| 15″ Subwoofer | |
| fS | 38 Hz |
| SD | 850 cm² |
| 38 - 3500 Hz | |
| QTS | 0.35 |
| xmax | 6 mm |
| SPL1W | 95.5 dB |
| Bl/√RE | 7.53 |
| Pmax | 1200 W |
Discontinued
.jpg.webp)

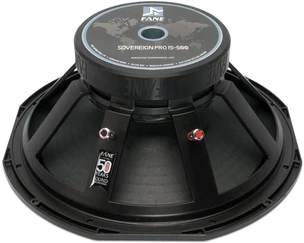

Fane SOVEREIGN PRO 15-5008 Ω | |
|---|---|
| 15″ Woofer | |
| fS | 40 Hz |
| SD | 855 cm² |
| 42 - 3500 Hz | |
| QTS | 0.32 |
| xmax | 6 mm |
| SPL1W | 96.6 dB |
| Bl/√RE | 8.13 |
| Pmax | 1000 W |
Discontinued
.jpg.webp)
Fane SOVEREIGN PRO 12BM8 Ω | |
|---|---|
| 12″ Subwoofer | |
| fS | 41 Hz |
| SD | 511 cm² |
| 40 - 3500 Hz | |
| QTS | 0.21 |
| xmax | 7.7 mm |
| SPL1W | 93.8 dB |
| Bl/√RE | 9.76 |
| Pmax | 1000 W |
.jpg.webp)
Fane SOVEREIGN PRO 12-5008 Ω | |
|---|---|
| 12″ Woofer | |
| fS | 43 Hz |
| SD | 565 cm² |
| 45 - 4500 Hz | |
| QTS | 0.31 |
| xmax | 6 mm |
| SPL1W | 94.8 dB |
| Bl/√RE | 6.76 |
| Pmax | 1000 W |
Discontinued
.jpg.webp)

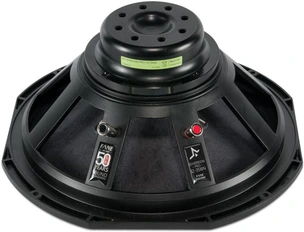

Fane SOVEREIGN PRO 12-350N8 Ω | |
|---|---|
| 12″ Mid Bass | |
| fS | 55 Hz |
| SD | 540 cm² |
| 50 - 4500 Hz | |
| QTS | 0.60 |
| xmax | 4.5 mm |
| SPL1W | 93.9 dB |
| Bl/√RE | 4.8 |
| Pmax | 700 W |
Discontinued
.jpg.webp)

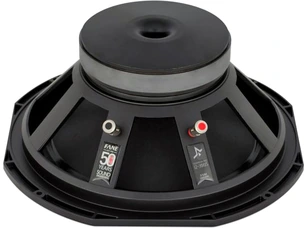

Fane SOVEREIGN PRO 12-300S8 Ω | |
|---|---|
| 12″ Woofer | |
| fS | 40 Hz |
| SD | 528 cm² |
| 45 - 2500 Hz | |
| QTS | 0.32 |
| xmax | 5.3 mm |
| SPL1W | 94.3 dB |
| Bl/√RE | 6.83 |
| Pmax | 600 W |
Discontinued
.jpg.webp)

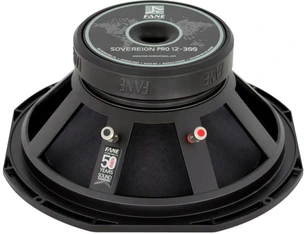

Fane SOVEREIGN PRO 12-3008 Ω | |
|---|---|
| 12″ Woofer | |
| fS | 46 Hz |
| SD | 540 cm² |
| 45 - 4500 Hz | |
| QTS | 0.35 |
| xmax | 4.5 mm |
| SPL1W | 96.2 dB |
| Bl/√RE | 6.17 |
| Pmax | 600 W |
Discontinued
.jpg.webp)
Fane SOVEREIGN PRO 10M8 Ω | |
|---|---|
| 10″ Mid-range | |
| fS | 56 Hz |
| SD | 340 cm² |
| 200 - 3500 Hz | |
| QTS | 0.27 |
| xmax | 2 mm |
| SPL1W | 95 dB |
| Bl/√RE | 6.68 |
| Pmax | 600 W |
Discontinued
.jpg.webp)
Fane SOVEREIGN PRO 10BM8 Ω | |
|---|---|
| 10″ Woofer | |
| fS | 41 Hz |
| SD | 363 cm² |
| 40 - 3000 Hz | |
| QTS | 0.17 |
| xmax | 7.7 mm |
| SPL1W | 92.9 dB |
| Bl/√RE | 9.22 |
| Pmax | 800 W |
.jpg.webp)
Fane SOVEREIGN PRO 10-300SC8 Ω | |
|---|---|
| 10″ Woofer | |
| fS | 47 Hz |
| SD | 361 cm² |
| 45 - 4000 Hz | |
| QTS | 0.33 |
| xmax | 4.8 mm |
| SPL1W | 92.8 dB |
| Bl/√RE | 6.31 |
| Pmax | 600 W |
.jpg.webp)
Fane SOVEREIGN PRO 10-3008 Ω | |
|---|---|
| 10″ Woofer | |
| fS | 58 Hz |
| SD | 378 cm² |
| 45 - 4000 Hz | |
| QTS | 0.32 |
| xmax | 5.5 mm |
| SPL1W | 95.1 dB |
| Bl/√RE | 6.41 |
| Pmax | 600 W |
.jpg.webp)
Fane SOVEREIGN 8-2258 Ω | |
|---|---|
| 8″ Mid Bass | |
| fS | 62 Hz |
| SD | 213 cm² |
| 55 - 5000 Hz | |
| QTS | 0.38 |
| xmax | 5.5 mm |
| SPL1W | 92.2 dB |
| Bl/√RE | 4.45 |
| Pmax | 450 W |
Discontinued
.jpg.webp)
Fane SOVEREIGN 8-1258 Ω | |
|---|---|
| 8″ Mid Bass | |
| fS | 65 Hz |
| SD | 213 cm² |
| 60 - 7000 Hz | |
| QTS | 0.68 |
| xmax | 3.5 mm |
| SPL1W | 90.6 dB |
| Bl/√RE | 3.28 |
| Pmax | 250 W |
.jpg.webp)
Fane SOVEREIGN 6-1008 Ω | |
|---|---|
| 6″ Mid Bass | |
| fS | 115 Hz |
| SD | 139 cm² |
| 60 - 7000 Hz | |
| QTS | 0.64 |
| xmax | 2.5 mm |
| SPL1W | 89.3 dB |
| Bl/√RE | 5.04 |
| Pmax | 200 W |
Discontinued
.jpg.webp)
Fane SOVEREIGN 18-5008 Ω | |
|---|---|
| 18″ Woofer | |
| fS | 33 Hz |
| SD | 1178 cm² |
| 42 - 1500 Hz | |
| QTS | 0.56 |
| xmax | 6.3 mm |
| SPL1W | 94.2 dB |
| Bl/√RE | 6.7 |
| Pmax | 1000 W |
.jpg.webp)
Fane SOVEREIGN 15-600LF8 Ω | |
|---|---|
| 15″ Woofer | |
| fS | 37 Hz |
| SD | 855 cm² |
| 38 - 3500 Hz | |
| QTS | 0.39 |
| xmax | 6.5 mm |
| SPL1W | 95.5 dB |
| Bl/√RE | 6.84 |
| Pmax | 1200 W |
Discontinued
.jpg.webp)
Fane SOVEREIGN 15-5008 Ω | |
|---|---|
| 15″ Woofer | |
| fS | 35 Hz |
| SD | 855 cm² |
| 40 - 4000 Hz | |
| QTS | 0.34 |
| xmax | 3.5 mm |
| SPL1W | 95.2 dB |
| Bl/√RE | 7.83 |
| Pmax | 1000 W |
Discontinued
.jpg.webp)

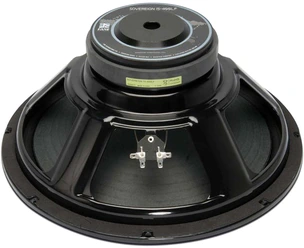

Fane SOVEREIGN 15-400LF8 Ω | |
|---|---|
| 15″ Woofer | |
| fS | 41 Hz |
| SD | 855 cm² |
| 40 - 4000 Hz | |
| QTS | 0.57 |
| xmax | 4.6 mm |
| SPL1W | 94.6 dB |
| Bl/√RE | 5.61 |
| Pmax | 800 W |
Discontinued
.jpg.webp)

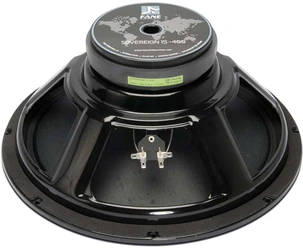

Fane SOVEREIGN 15-4008 Ω | |
|---|---|
| 15″ Mid Bass | |
| fS | 37 Hz |
| SD | 855 cm² |
| 40 - 4000 Hz | |
| QTS | 0.31 |
| xmax | 5 mm |
| SPL1W | 97.5 dB |
| Bl/√RE | 7.72 |
| Pmax | 800 W |
.jpg.webp)
Fane SOVEREIGN 15-300TC8 Ω | |
|---|---|
| 15″ Full-range | |
| fS | 48 Hz |
| SD | 855 cm² |
| 50 - 15000 Hz | |
| QTS | 0.70 |
| xmax | 3.5 mm |
| SPL1W | 99.3 dB |
| Bl/√RE | 4.82 |
| Pmax | 600 W |
Discontinued
.jpg.webp)
Fane SOVEREIGN 15-2508 Ω | |
|---|---|
| 15″ Woofer | |
| fS | 43 Hz |
| SD | 853 cm² |
| 40 - 3000 Hz | |
| QTS | 0.73 |
| xmax | 4.4 mm |
| SPL1W | 93.4 dB |
| Bl/√RE | 5.51 |
| Pmax | 500 W |
.jpg.webp)
Fane SOVEREIGN 12-500LF8 Ω | |
|---|---|
| 12″ Woofer | |
| fS | 50 Hz |
| SD | 576 cm² |
| 38 - 5000 Hz | |
| QTS | 0.51 |
| xmax | 5.5 mm |
| SPL1W | 93.3 dB |
| Bl/√RE | 6.74 |
| Pmax | 1000 W |
.jpg.webp)
Fane SOVEREIGN 12-3008 Ω | |
|---|---|
| 12″ Mid Bass | |
| fS | 46 Hz |
| SD | 530 cm² |
| 45 - 4500 Hz | |
| QTS | 0.35 |
| xmax | 4.5 mm |
| SPL1W | 95.5 dB |
| Bl/√RE | 5.84 |
| Pmax | 600 W |
.jpg.webp)
Fane SOVEREIGN 12-250TC8 Ω | |
|---|---|
| 12″ Full-range | |
| fS | 50 Hz |
| SD | 531 cm² |
| 45 - 17000 Hz | |
| QTS | 0.64 |
| xmax | 3.5 mm |
| SPL1W | 92.8 dB |
| Bl/√RE | 4.84 |
| Pmax | 500 W |
Discontinued
.jpg.webp)

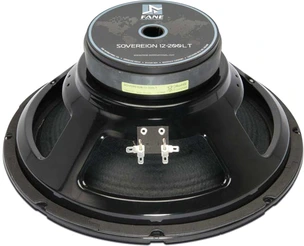

Fane SOVEREIGN 12-200LT8 Ω | |
|---|---|
| 12″ Full-range | |
| fS | 50 Hz |
| SD | 531 cm² |
| 45 - 10000 Hz | |
| QTS | 0.64 |
| xmax | 5.3 mm |
| SPL1W | 92.8 dB |
| Bl/√RE | 4.84 |
| Pmax | 400 W |
Discontinued
.jpg.webp)

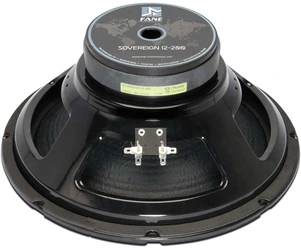

Fane SOVEREIGN 12-2008 Ω | |
|---|---|
| 12″ Mid Bass | |
| fS | 45 Hz |
| SD | 530 cm² |
| 45 - 4000 Hz | |
| QTS | 0.44 |
| xmax | 5.5 mm |
| SPL1W | 94.9 dB |
| Bl/√RE | 5.45 |
| Pmax | 400 W |
.jpg.webp)
Fane SOVEREIGN 10-3008 Ω | |
|---|---|
| 10″ Mid Bass | |
| fS | 58 Hz |
| SD | 378 cm² |
| 45 - 5000 Hz | |
| QTS | 0.31 |
| xmax | 5.5 mm |
| SPL1W | 95 dB |
| Bl/√RE | 6.41 |
| Pmax | 600 W |
Discontinued
.jpg.webp)

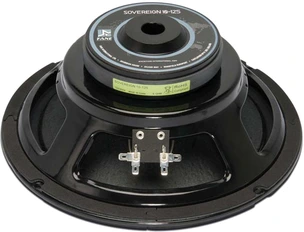

Fane SOVEREIGN 10-1258 Ω | |
|---|---|
| 10″ Woofer | |
| fS | 55 Hz |
| SD | 364 cm² |
| 50 - 4000 Hz | |
| QTS | 0.65 |
| xmax | 5 mm |
| SPL1W | 92.2 dB |
| Bl/√RE | 3.89 |
| Pmax | 250 W |
.jpg.webp)
Fane IMPERIUM 18XL8 Ω | |
|---|---|
| 18″ Subwoofer | |
| fS | 36 Hz |
| SD | 1134 cm² |
| 30 - 2000 Hz | |
| QTS | 0.53 |
| xmax | 10.5 mm |
| SPL1W | 93.8 dB |
| Bl/√RE | 8.38 |
| Pmax | 2600 W |
.jpg.webp)
Fane IMPERIUM 18NDXL8 Ω | |
|---|---|
| 18″ Subwoofer | |
| fS | 33 Hz |
| SD | 1164 cm² |
| 30 - 2000 Hz | |
| QTS | 0.30 |
| xmax | 12 mm |
| SPL1W | 95.2 dB |
| Bl/√RE | 12.4 |
| Pmax | 2400 W |
.jpg.webp)
Fane FC820N-18 Ω | |
|---|---|
| 8″ Mid-range | |
| fS | 76 Hz |
| SD | 213 cm² |
| 90 - 5500 Hz | |
| QTS | 0.38 |
| xmax | 3.8 mm |
| SPL1W | 94.7 dB |
| Bl/√RE | 4.26 |
| Pmax | 500 W |
.jpg.webp)
Fane FC65175-18 Ω | |
|---|---|
| 6.5″ Mid Bass | |
| fS | 63 Hz |
| SD | 135 cm² |
| 75 - 6000 Hz | |
| QTS | 0.45 |
| xmax | 5 mm |
| SPL1W | 90.2 dB |
| Bl/√RE | 3.69 |
| Pmax | 300 W |
