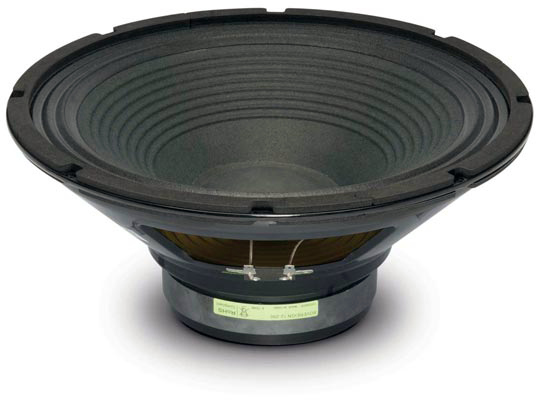

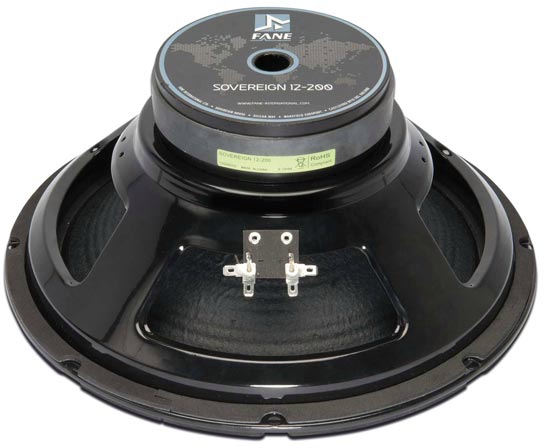

Fane SOVEREIGN 12-200

Mid Bass

Nominal diameter12″ / 305 mm
Resonance45 Hz
Q factor0.44
Sensitivity94.9 dB
Linear excursion± 5.5 mm
Program Power400 W
Discontinued
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply

Specifications

  • Sensitivity (1W, 1m, infinite baffle) SPL1W 94.9dB
  • Frequency response 45 - 4000Hz

Thiele & Small parameters

  • Resonance frequency (free air) fS 45Hz
  • Mechanical quality factor QMS 7.10
  • Electrical quality factor QES 0.47
  • Total quality factor QTS 0.44

Large signal parameters

  • Maximum linear excursion xmax 5.5mm
  • Air volume displaced at xmax VD 292cm³
  • Power handling P 200W
  • Program power Pmax 400W

Voice Coil

  • Nominal impedance Z 8Ω
  • DC resistance RE 5.1Ω
  • Inductance (1kHz) LE 1.56mH
  • VC Diameter 50.8mm
  • Winding height HVC 15mm
  • Winding material Copper
  • Former material Glass Fibre

Magnet

  • Flux density B 1T
  • Force factor Bl 12.3N/A
  • Motor constant Bl/√RE 5.45N/√W
  • Air gap height HAG 7.9mm
  • Weight 1.077kg
  • Material Ferrite

Diaphragm

  • Effective diameter 262mm
  • Effective area SD 530cm²
  • Moving mass MMS 44g
  • Moving mass (without air load) MMD 35.5g
  • Material Paper

Suspensions

  • Stiffness KMS 4N/mm
  • Compliance CMS 250µm/N
  • Equivalent volume to the compliance VAS 103L
  • Mechanical resistance RMS 1.75N·s/m
  • Surround material Polyvinyl damped Linen

Dimensions

  • Nominal diameter 12
  • 305mm
  • Overall diameter 305mm
  • Baffle cutout diameter 286mm
  • Overall depth 138mm
  • Flange thickness 7mm
  • Mounting depth 131mm
  • Volume occupied by the driver (estimated) 1.8L
  • Net weight 3.5kg
  • Frame material Pressed Steel

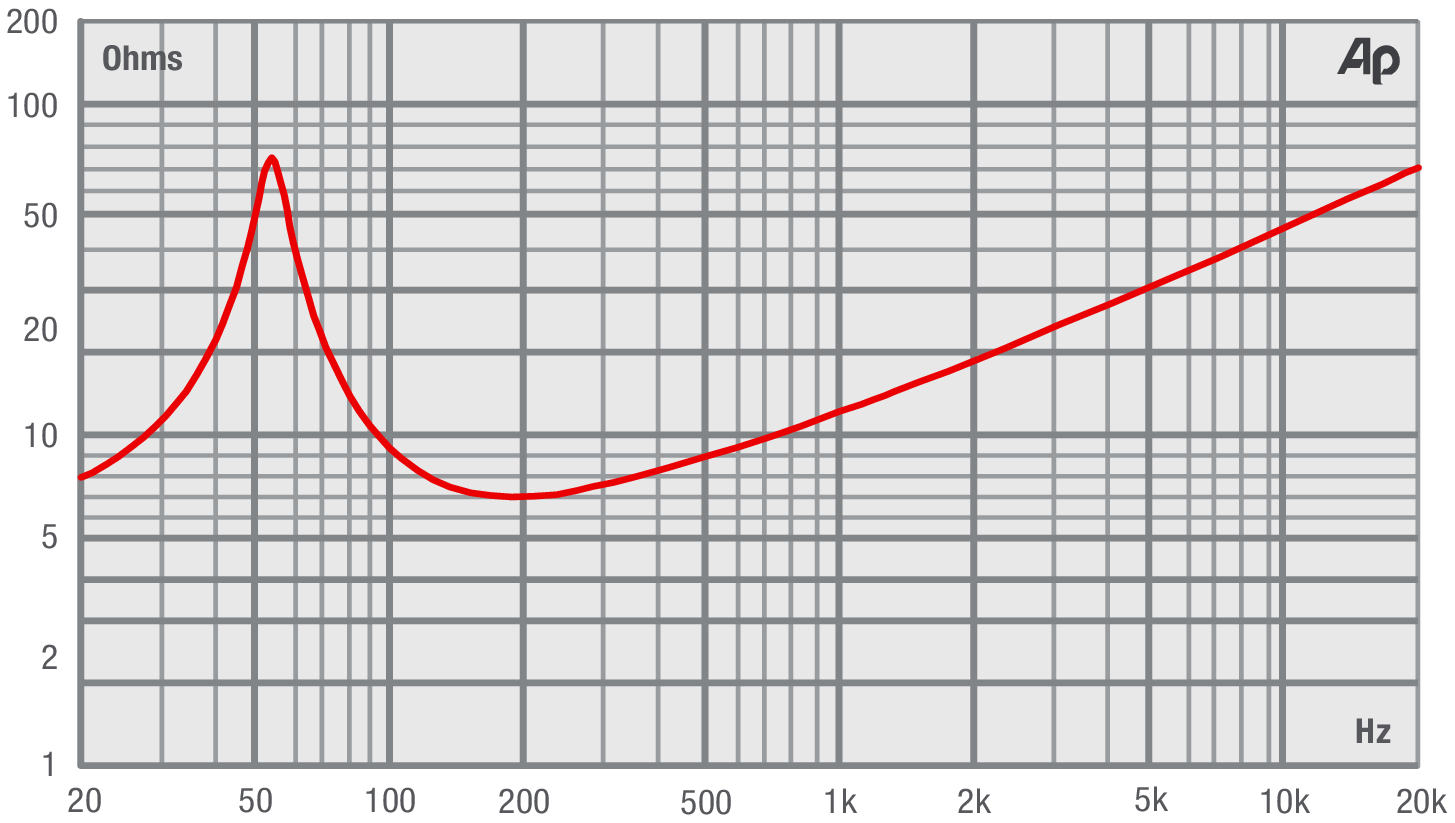

Fane SOVEREIGN 12-200 Impedance

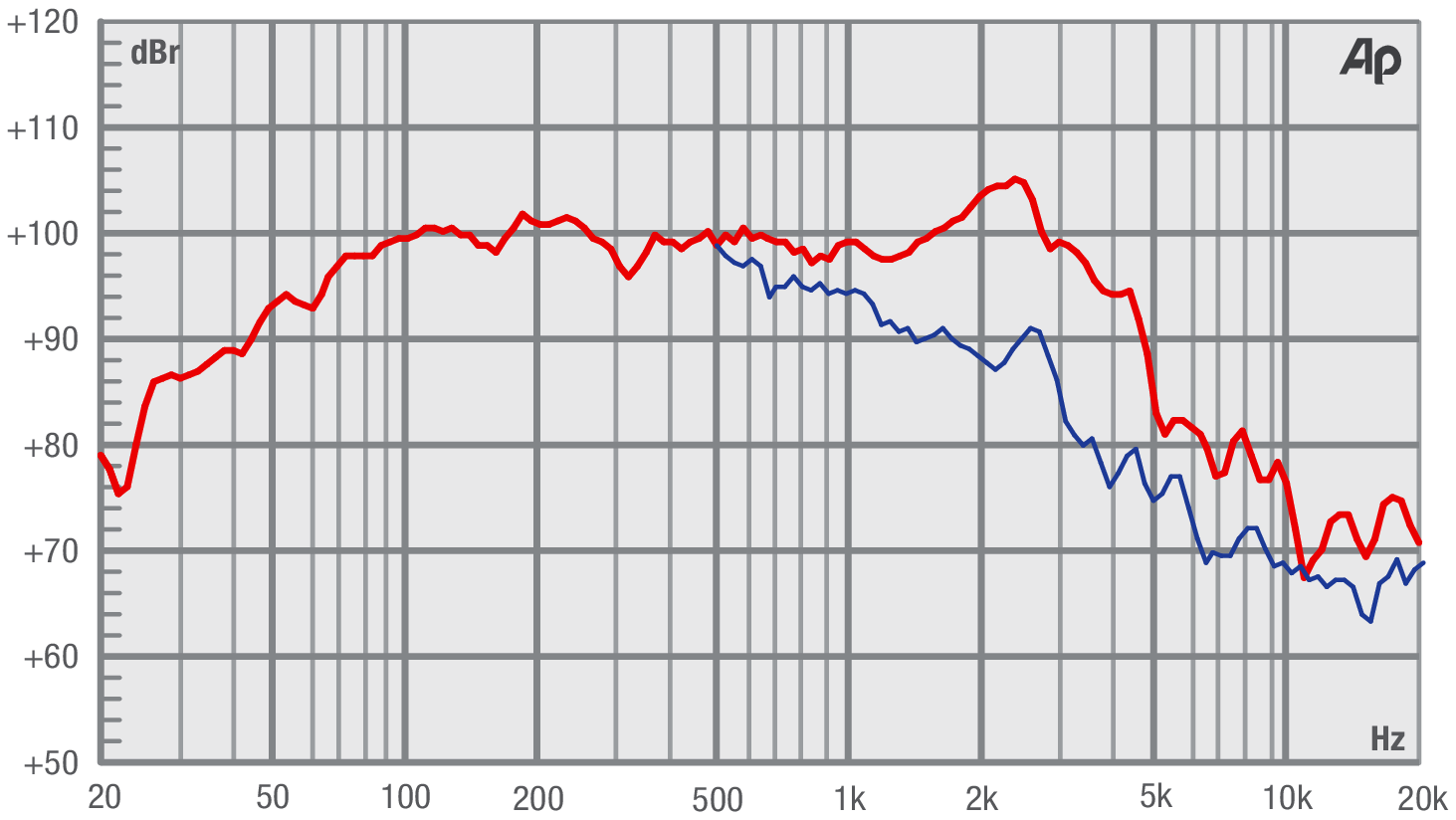

Fane SOVEREIGN 12-200 SPL

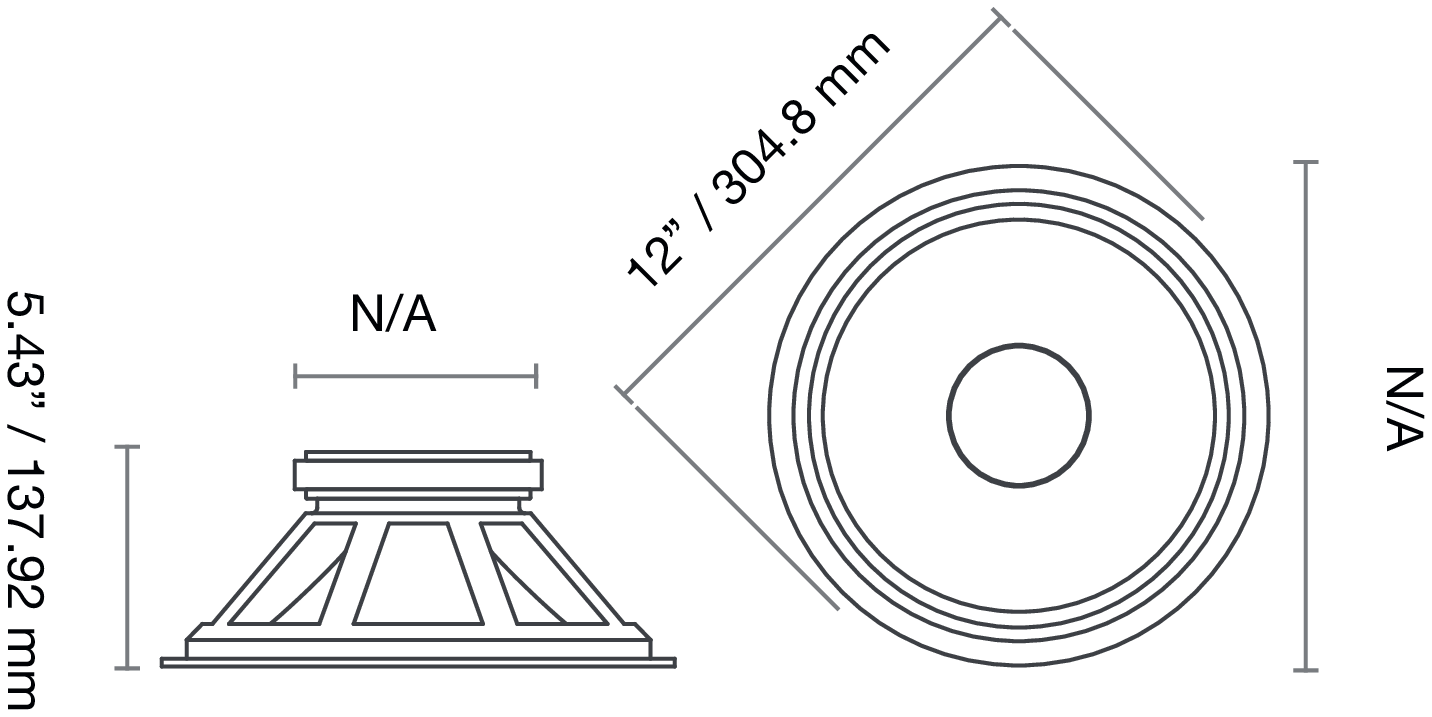

Fane SOVEREIGN 12-200 Dimensions
