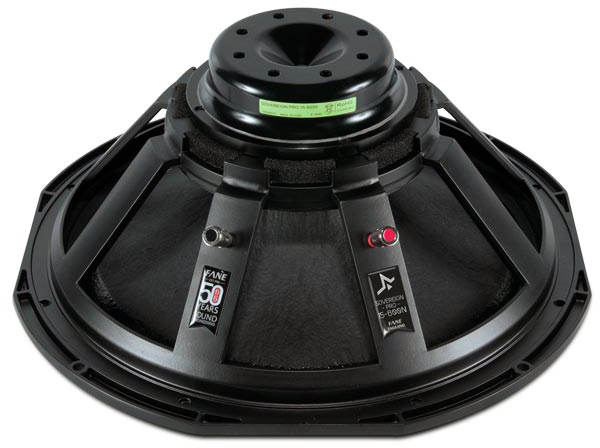

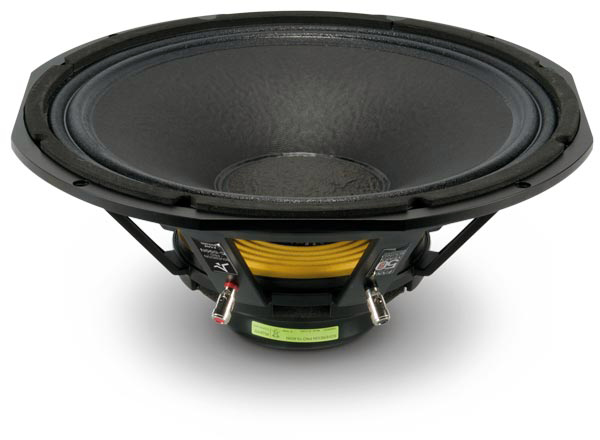

Fane SOVEREIGN PRO 15-600N

• Sensitivity (1W, 1m, infinite baffle) SPL1W 97.8dB

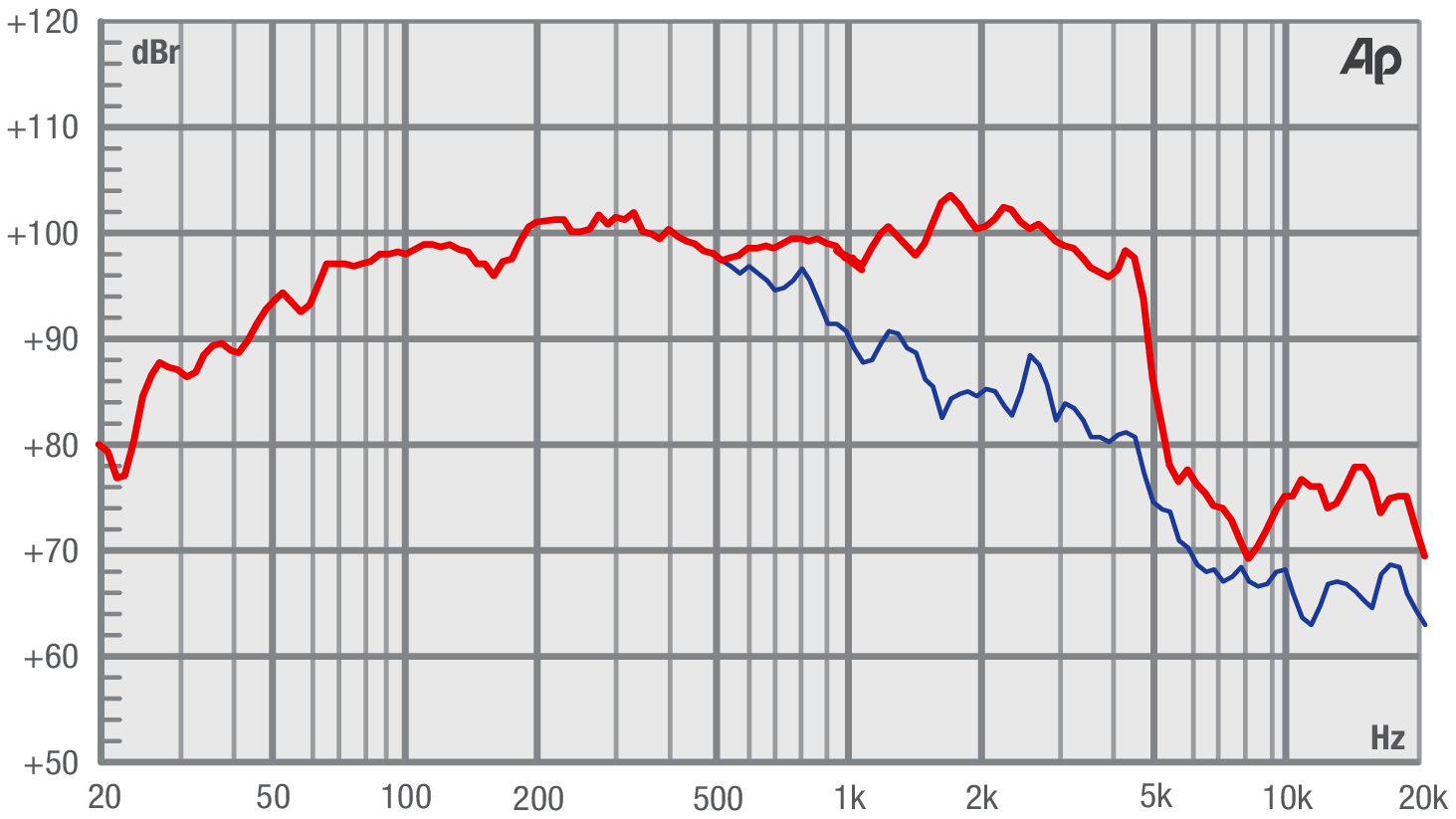

• Frequency response 40 - 4500Hz

Thiele & Small parameters

• Resonance frequency (free air) fS 33Hz
• Mechanical quality factor QMS 4.33
• Electrical quality factor QES 0.23
• Total quality factor QTS 0.22

Large signal parameters

• Maximum linear excursion xmax 6.5mm
• Air volume displaced at xmax VD 556cm³
• Power handling P 600W
• Program power Pmax 1200W

Voice Coil

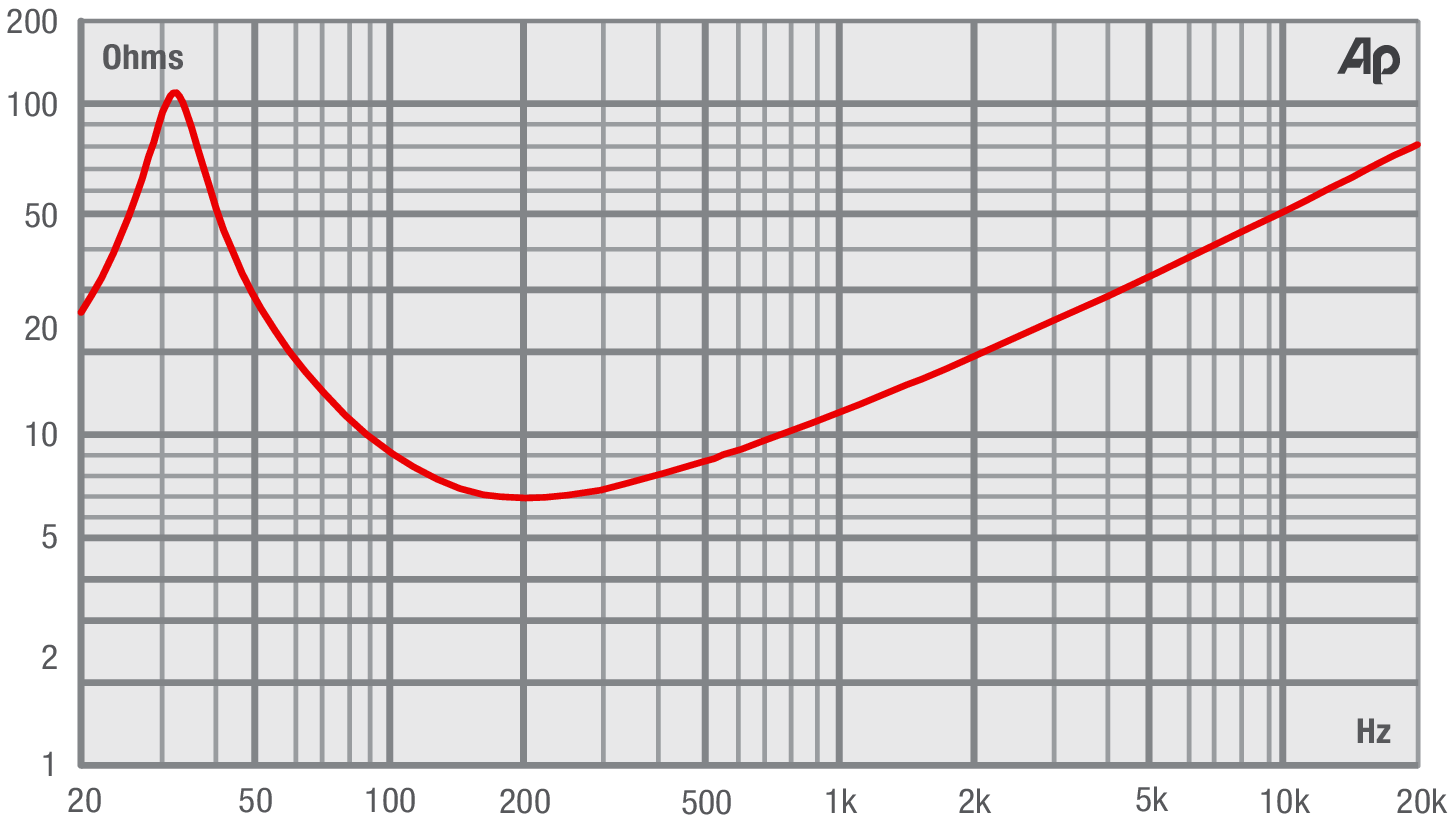

• Nominal impedance Z 8Ω
• DC resistance RE 5.4Ω
• Inductance (1kHz) LE 2.56mH
• VC Diameter 76.2mm
• Winding height HVC 17mm
• Winding material Copper Clad Aluminium
• Former material Glass Fibre

Magnet

• Flux density B 1.1T
• Force factor Bl 21.9N/A
• Motor constant Bl/√RE 9.42N/√W
• Air gap height HAG 10mm
• Material Neodymium

Diaphragm

• Effective diameter 331mm
• Effective area SD 855cm²
• Moving mass MMS 82g
• Moving mass (without air load) MMD 63.9g
• Material Polycellulose

Suspensions

• Stiffness KMS 3.52N/mm
• Compliance CMS 284µm/N
• Equivalent volume to the compliance VAS 310L
• Mechanical resistance RMS 3.93N·s/m
• Surround material Polyvinyl damped Poly Cotton

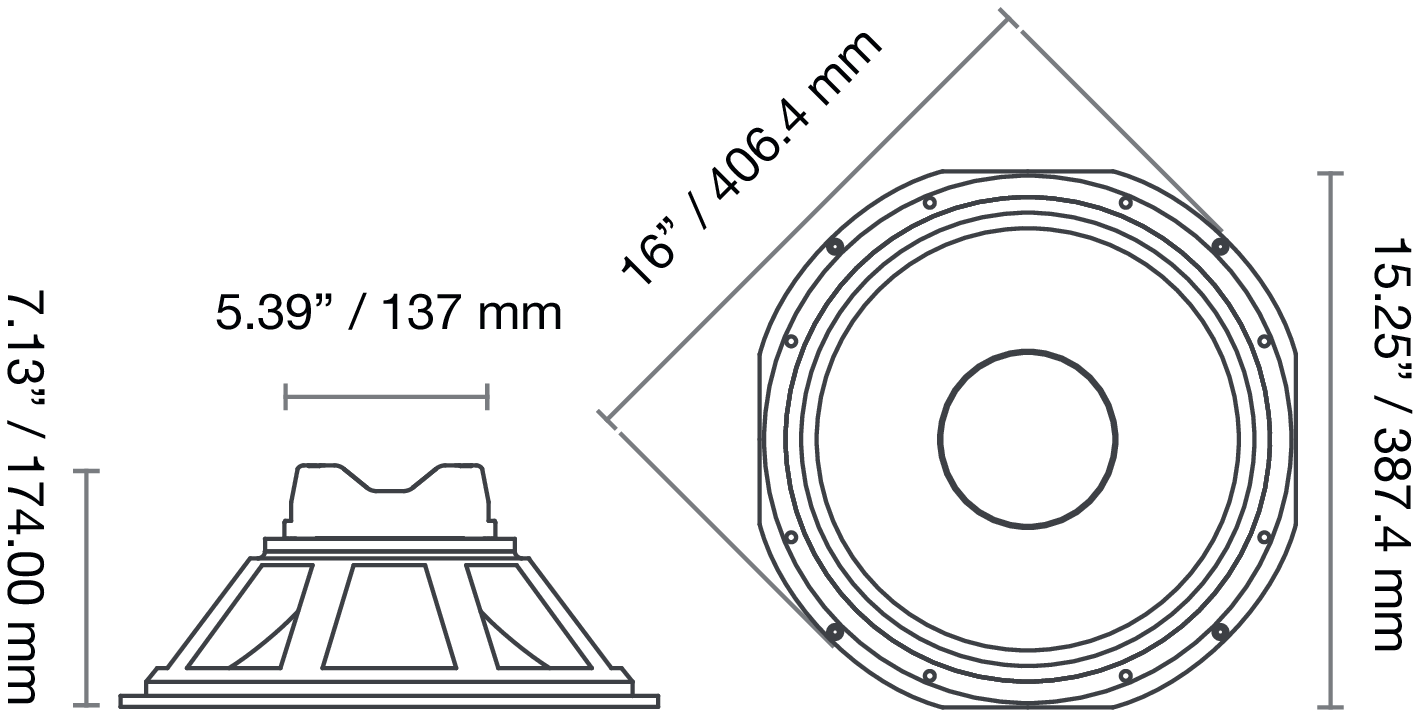

Dimensions

• Nominal diameter 15″
• 381mm
• Overall diameter 406mm
• Baffle cutout diameter 356mm
• Overall depth 174mm
• Flange thickness 8mm
• Mounting depth 166mm
• Volume occupied by the driver (estimated) 3.3L
• Net weight 5.2kg
• Frame material Die-cast Aluminium
