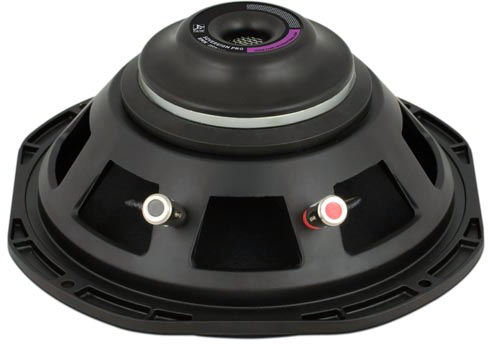

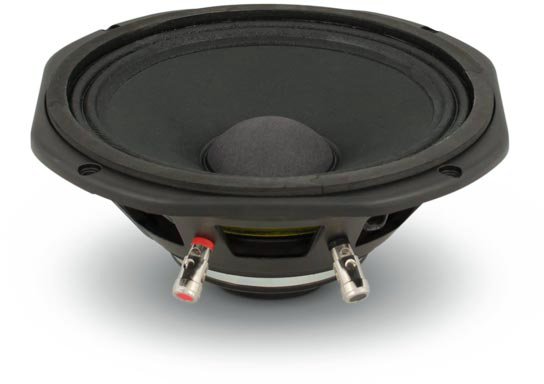

Fane SOVEREIGN PRO 8MN

Mid-range

Nominal diameter8″ / 203 mm
Resonance80 Hz
Q factor0.40
Sensitivity94 dB
Linear excursion± 3.5 mm
Program Power500 W
Discontinued
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply

Specifications

  • Sensitivity (1W, 1m, infinite baffle) SPL1W 94dB
  • Frequency response 90 - 5000Hz

Thiele & Small parameters

  • Resonance frequency (free air) fS 80Hz
  • Mechanical quality factor QMS 8.86
  • Electrical quality factor QES 0.41
  • Total quality factor QTS 0.40

Large signal parameters

  • Maximum linear excursion xmax 3.5mm
  • Air volume displaced at xmax VD 79cm³
  • Power handling P 250W
  • Program power Pmax 500W

Voice Coil

  • Nominal impedance Z 8Ω
  • DC resistance RE 5.5Ω
  • Inductance (1kHz) LE 1.13mH
  • VC Diameter 50.8mm
  • Winding height HVC 12mm
  • Winding material Copper Clad Aluminium
  • Former material Glass Fibre

Magnet

  • Flux density B 1.1T
  • Force factor Bl 12.5N/A
  • Motor constant Bl/√RE 5.33N/√W
  • Air gap height HAG 9mm
  • Material Neodymium

Diaphragm

  • Effective diameter 164mm
  • Effective area SD 226cm²
  • Moving mass MMS 21.6g
  • Moving mass (without air load) MMD 19g
  • Material Paper

Suspensions

  • Stiffness KMS 5.32N/mm
  • Compliance CMS 188µm/N
  • Equivalent volume to the compliance VAS 13.6L
  • Mechanical resistance RMS 1.22N·s/m
  • Surround material Polyvinyl damped Linen

Dimensions

  • Nominal diameter 8
  • 203mm
  • Overall diameter 226mm
  • Baffle cutout diameter 186mm
  • Overall depth 91mm
  • Flange thickness 7mm
  • Mounting depth 84mm
  • Volume occupied by the driver (estimated) 0.78L
  • Net weight 1.95kg
  • Frame material Die-cast Aluminium

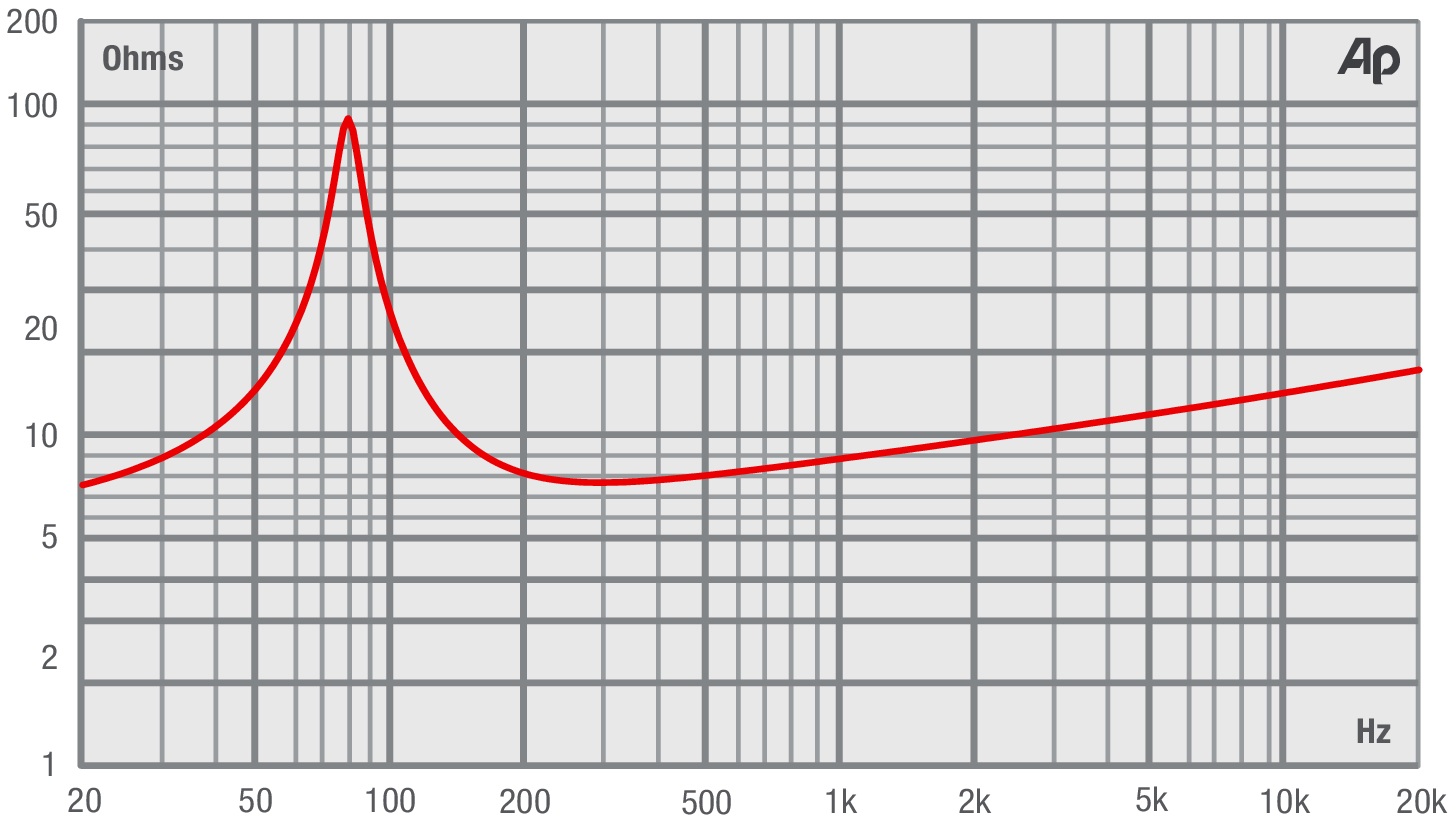

Fane SOVEREIGN PRO 8MN Impedance

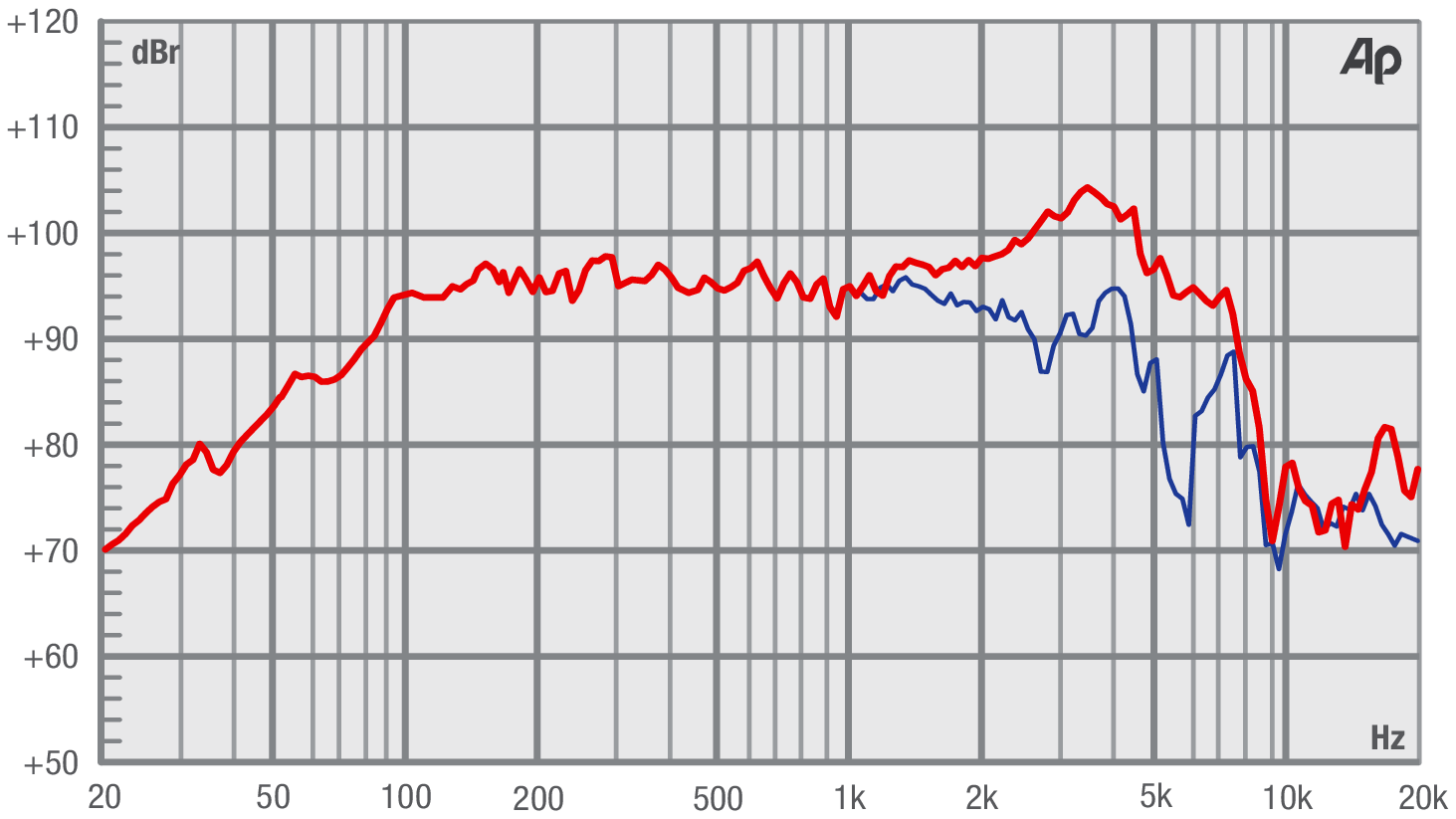

Fane SOVEREIGN PRO 8MN SPL

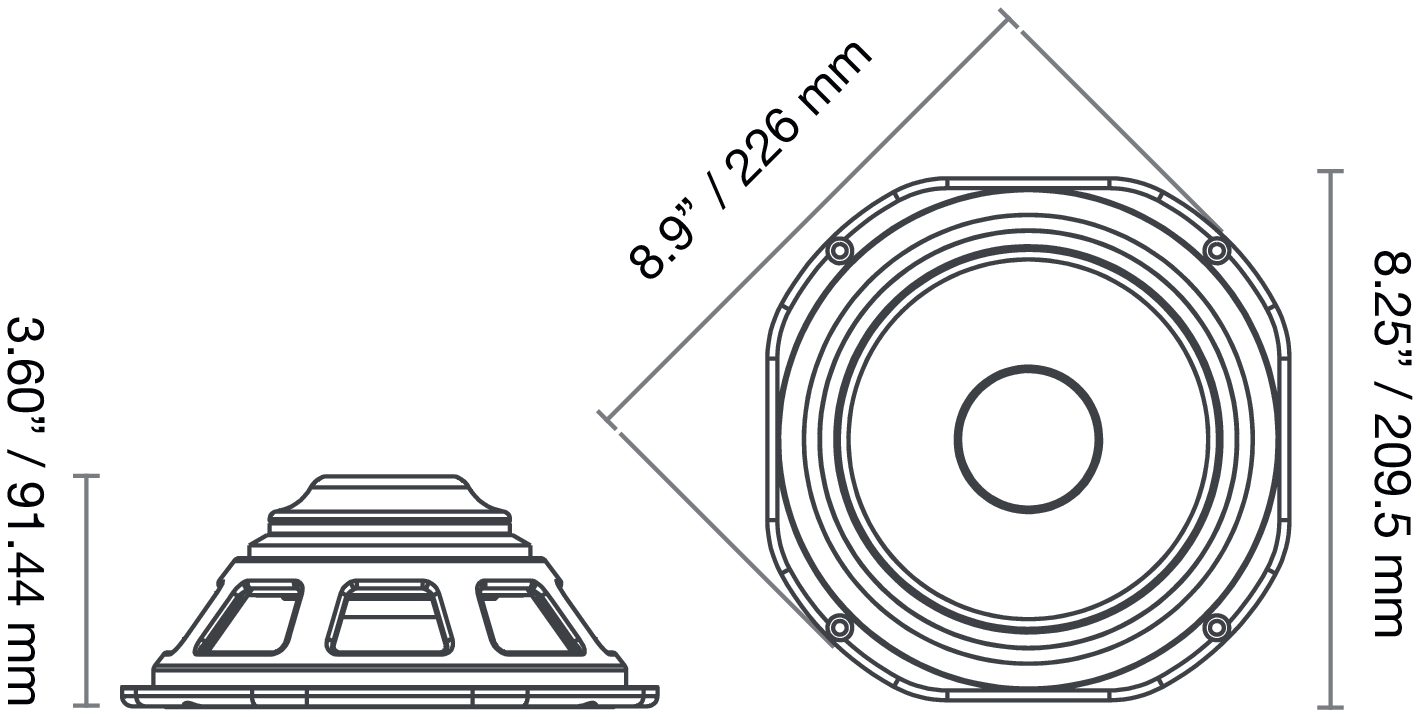

Fane SOVEREIGN PRO 8MN Dimensions
