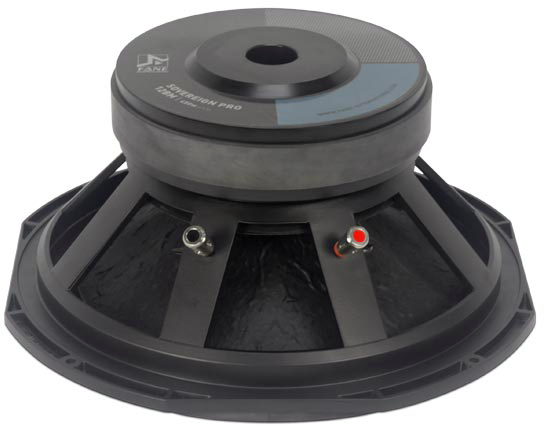

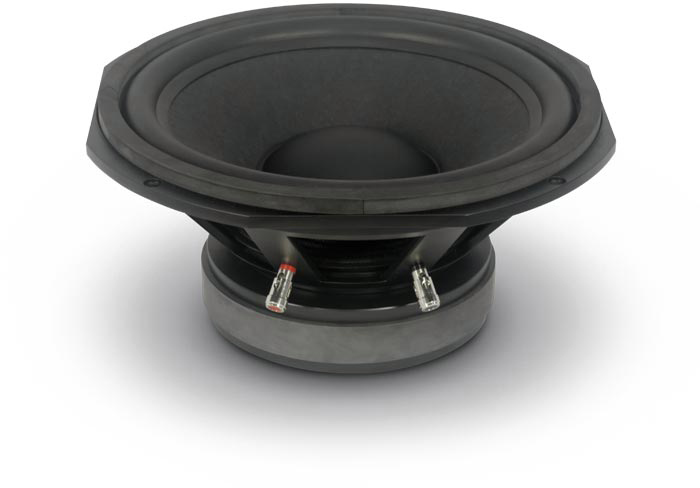

Fane SOVEREIGN PRO 12BM
8Ω
Subwoofer
| Nominal diameter | 12″ / 305 mm |
| Resonance | 41 Hz |
| Q factor | 0.21 |
| Sensitivity | 93.8 dB |
| Linear excursion | ± 7.7 mm |
| Program Power | 1000 W |
Discontinued
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 93.8dB

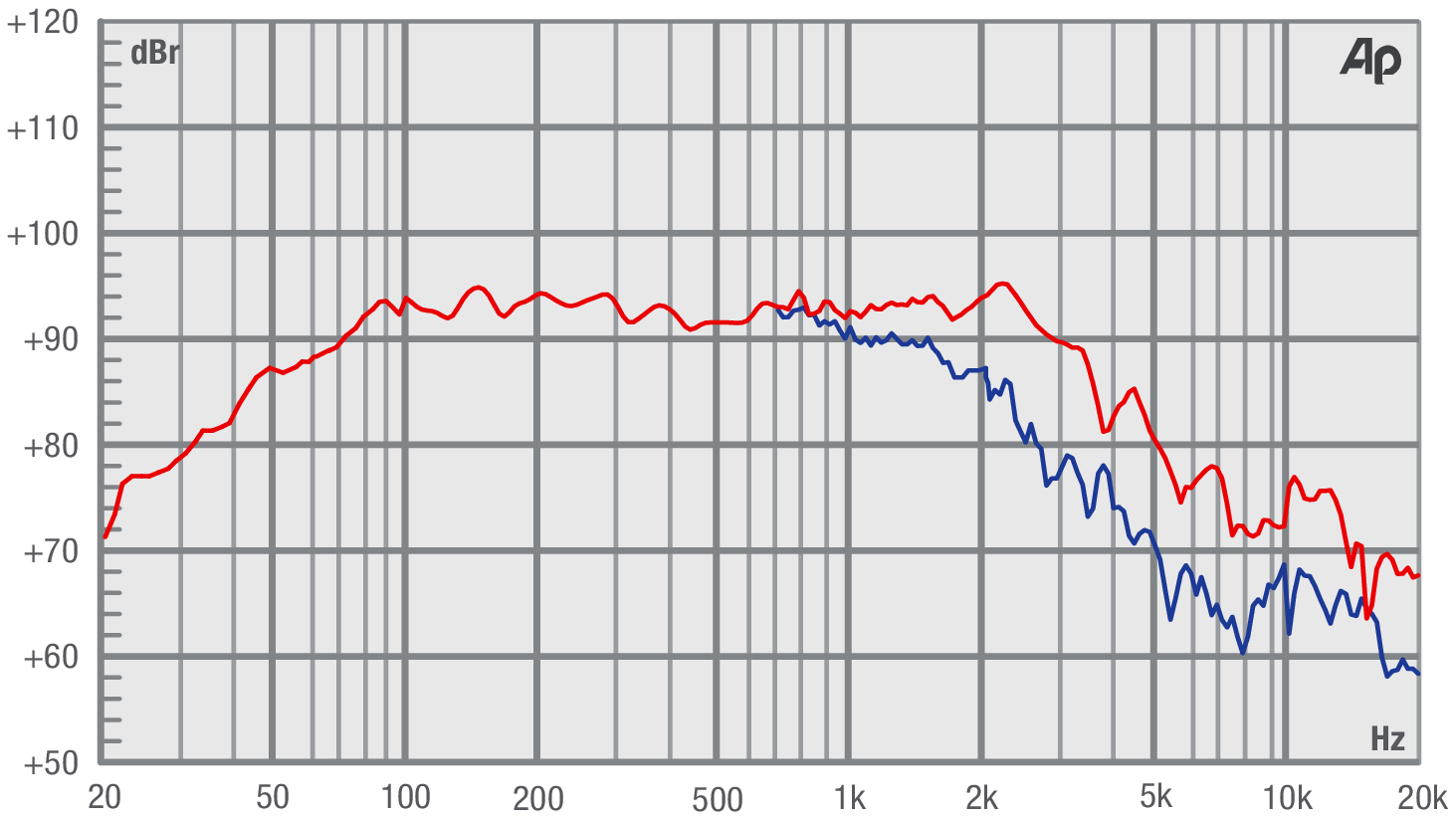

- Frequency response 40 - 3500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 41Hz
- Mechanical quality factor QMS 1.90
- Electrical quality factor QES 0.23
- Total quality factor QTS 0.21
Large signal parameters
- Maximum linear excursion xmax 7.7mm
- Air volume displaced at xmax VD 393cm³
- Power handling P 500W
- Program power Pmax 1000W
Voice Coil

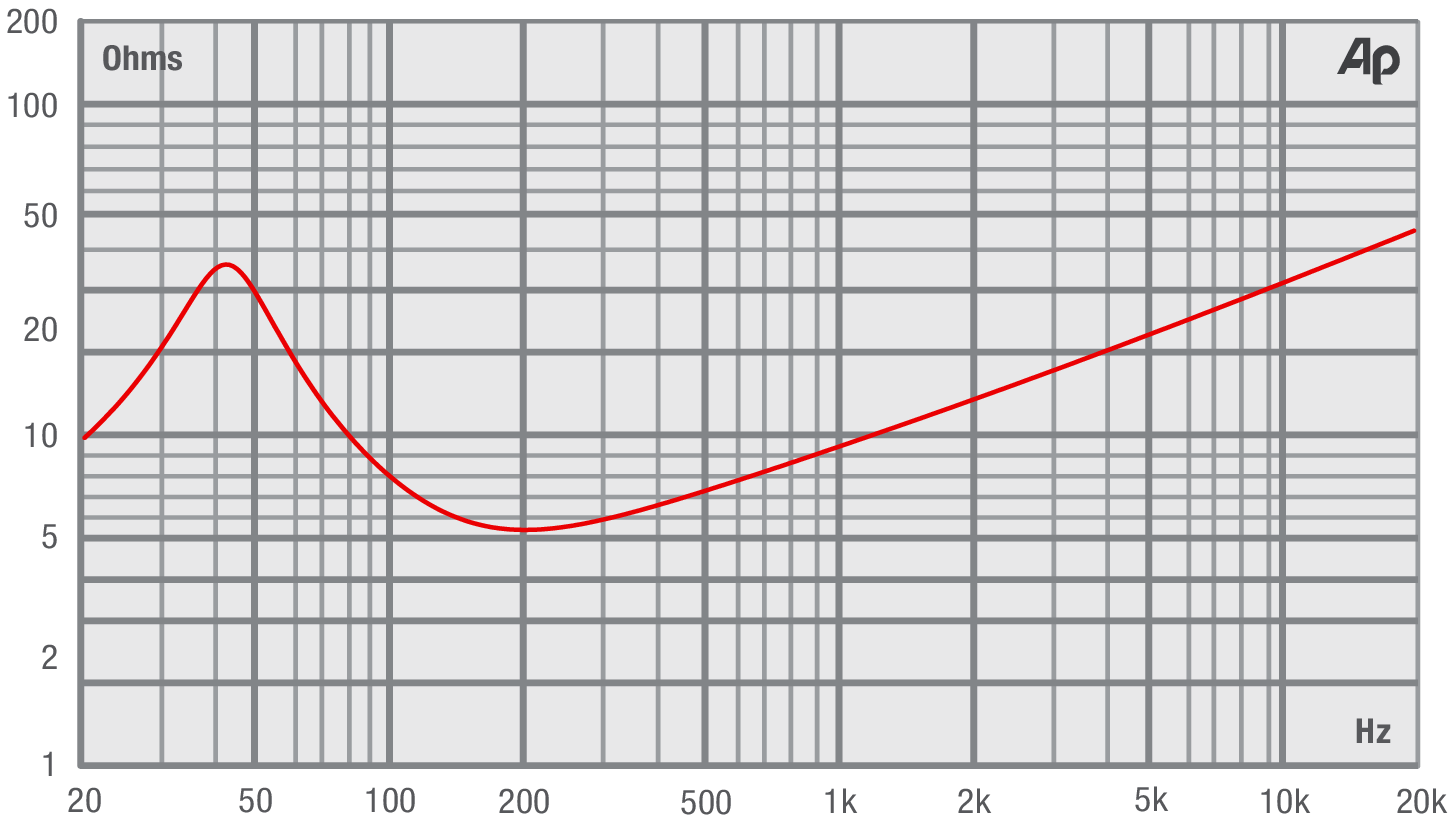

- Nominal impedance Z 8Ω
- DC resistance RE 3.4Ω
- Inductance (1kHz) LE 1.89mH
- VC Diameter 76.2mm
- Winding height HVC 18.5mm
- Winding material Copper
- Former material Glass Fibre
Magnet
- Flux density B 1.15T
- Force factor Bl 18N/A
- Motor constant Bl/√RE 9.76N/√W
- Air gap height HAG 9.9mm
- Weight 2.495kg
- Material Ferrite
Diaphragm
- Effective diameter 254mm
- Effective area SD 511cm²
- Moving mass MMS 85g
- Moving mass (without air load) MMD 76.3g
- Material Paper
Suspensions
- Stiffness KMS 5.68N/mm
- Compliance CMS 176µm/N
- Equivalent volume to the compliance VAS 65.3L
- Mechanical resistance RMS 11.5N·s/m
- Surround material Rubber

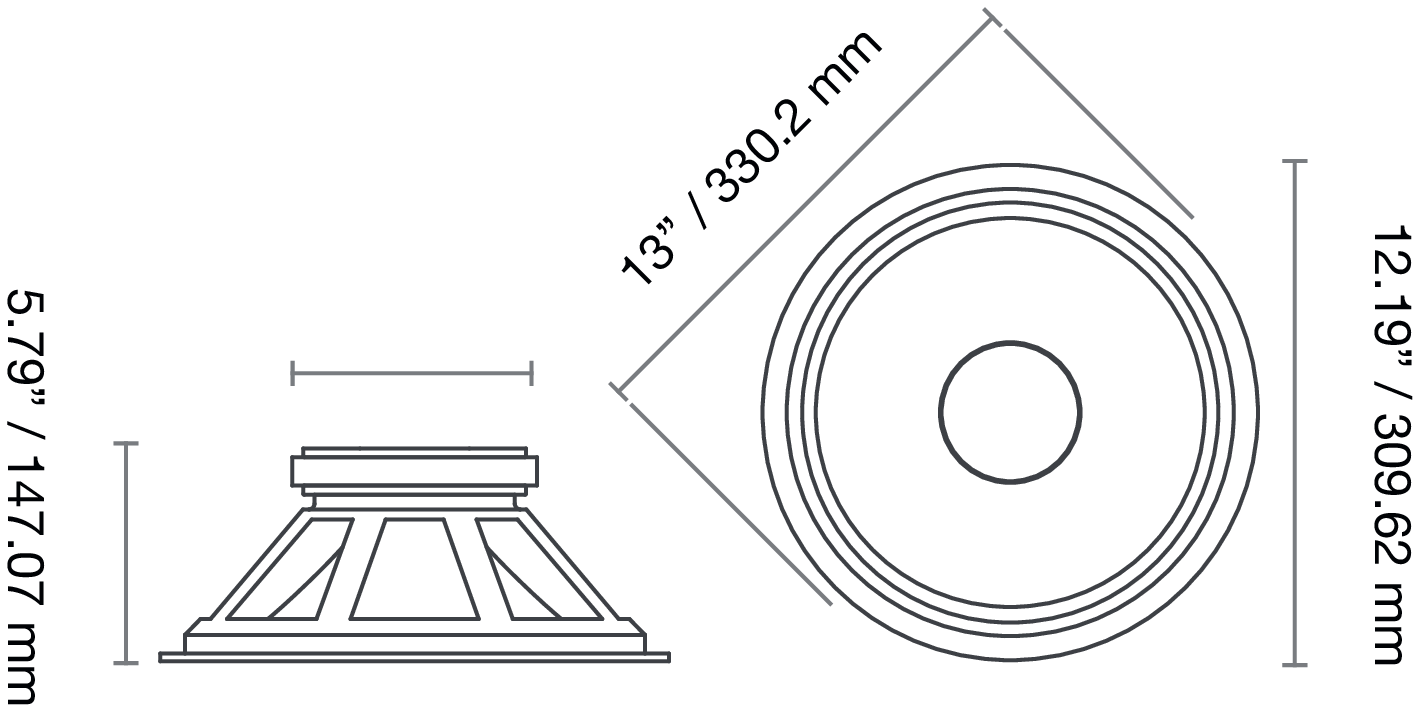

Dimensions
- Nominal diameter 12″
- 305mm
- Overall diameter 330mm
- Baffle cutout diameter 257mm
- Overall depth 147mm
- Flange thickness 8mm
- Mounting depth 139mm
- Volume occupied by the driver (estimated) 3.6L
- Net weight 8.7kg
- Frame material Die-cast Aluminium
.png)
.png)
.png)
