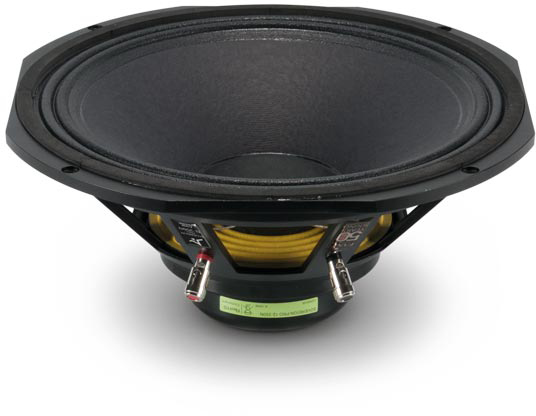

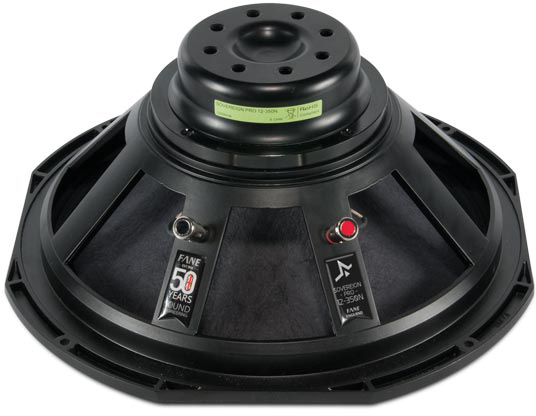

Fane SOVEREIGN PRO 12-350N

• Sensitivity (1W, 1m, infinite baffle) SPL1W 93.9dB

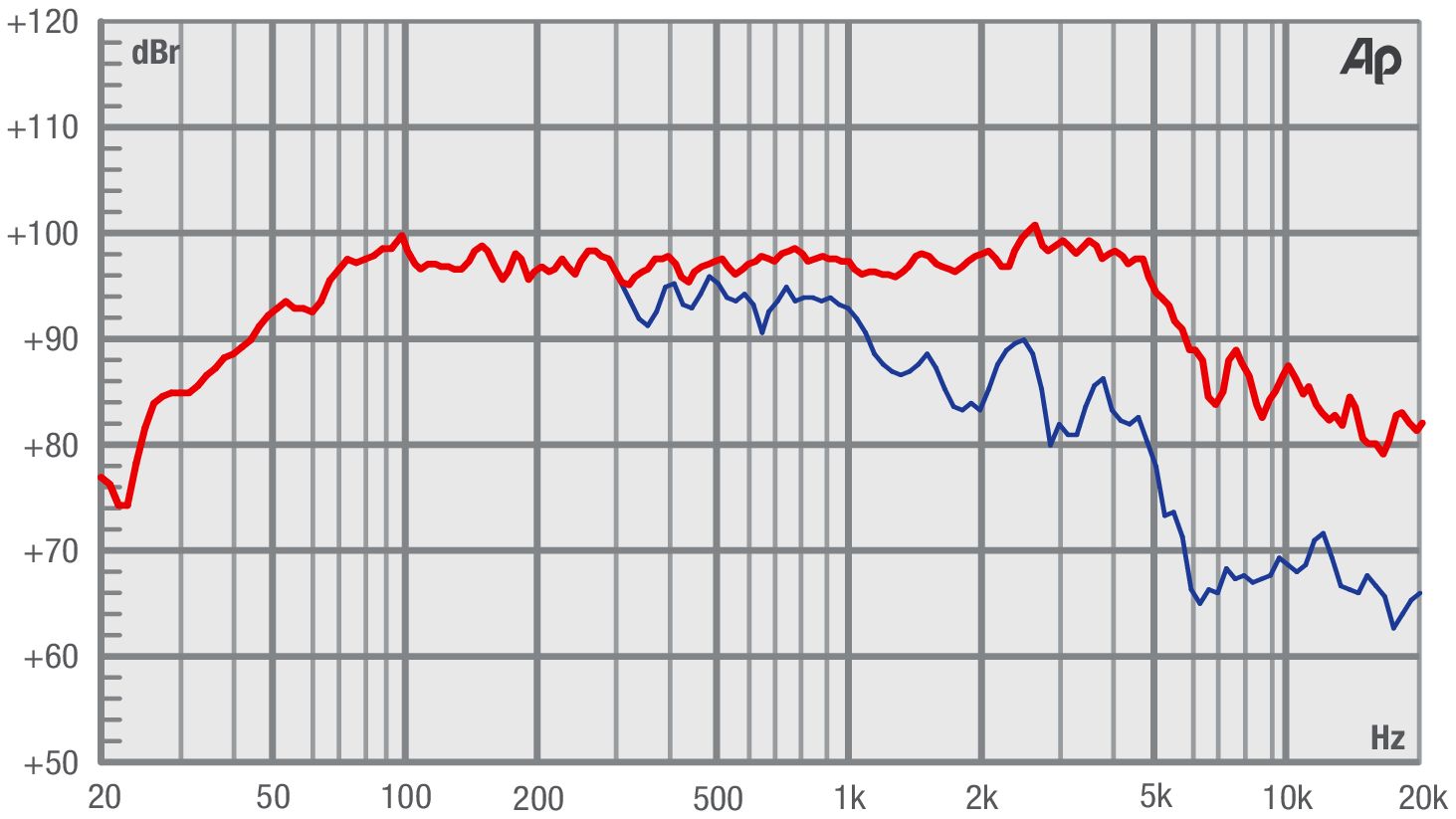

• Frequency response 50 - 4500Hz

Thiele & Small parameters

• Resonance frequency (free air) fS 55Hz
• Mechanical quality factor QMS 3.90
• Electrical quality factor QES 0.71
• Total quality factor QTS 0.60

Large signal parameters

• Maximum linear excursion xmax 4.5mm
• Air volume displaced at xmax VD 243cm³
• Power handling P 350W
• Program power Pmax 700W

Voice Coil

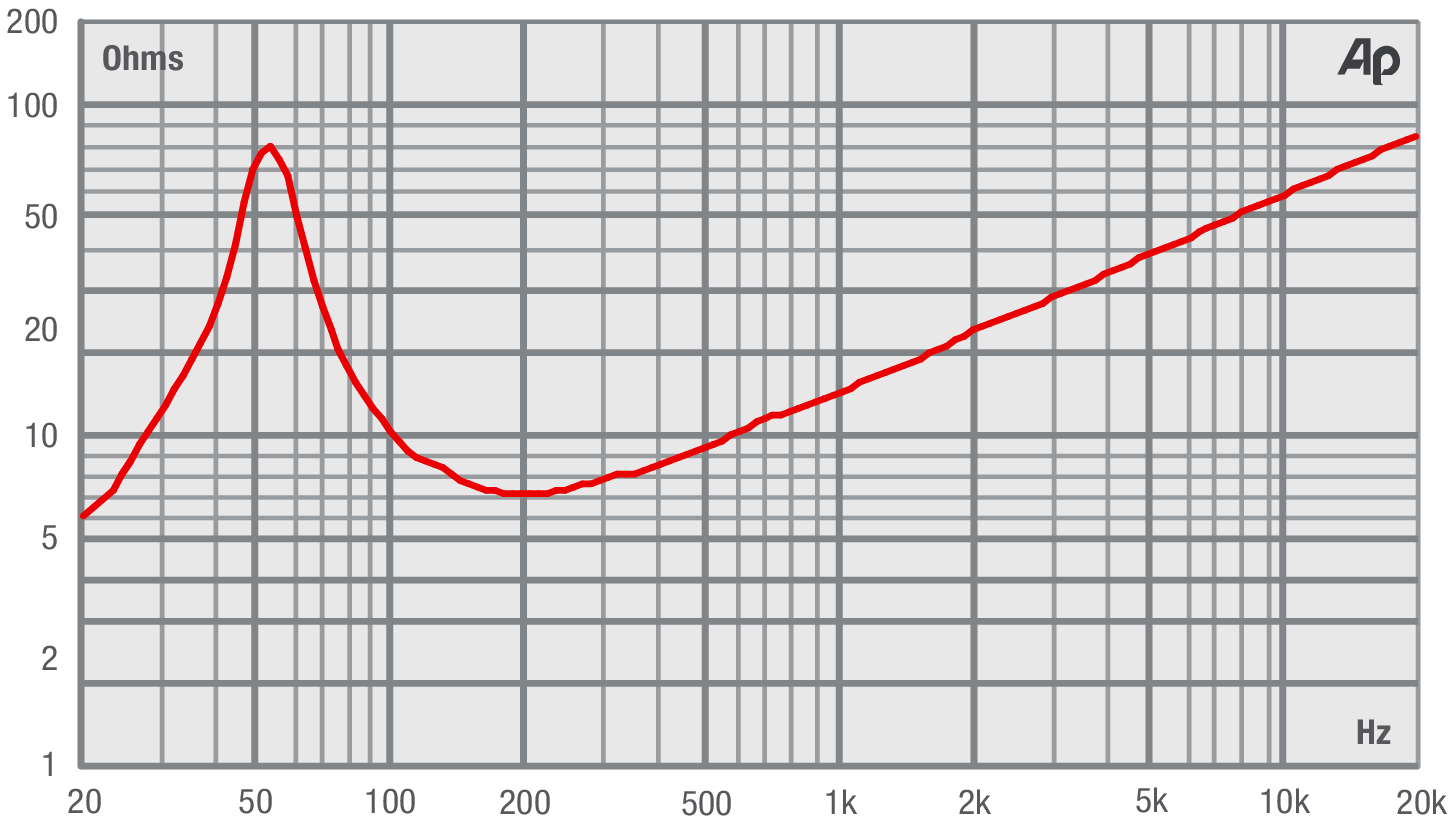

• Nominal impedance Z 8Ω
• DC resistance RE 5.8Ω
• Inductance (1kHz) LE 1.64mH
• VC Diameter 63.5mm
• Winding height HVC 18mm
• Winding material Aluminium
• Former material Glass Fibre

Magnet

• Flux density B 1T
• Force factor Bl 11.5N/A
• Motor constant Bl/√RE 4.8N/√W
• Air gap height HAG 10mm
• Material Neodymium

Diaphragm

• Effective diameter 262mm
• Effective area SD 540cm²
• Moving mass MMS 45g
• Moving mass (without air load) MMD 35.7g
• Material Paper

Suspensions

• Stiffness KMS 5.38N/mm
• Compliance CMS 186µm/N
• Equivalent volume to the compliance VAS 77L
• Mechanical resistance RMS 3.99N·s/m
• Surround material Polyvinyl damped Poly Cotton

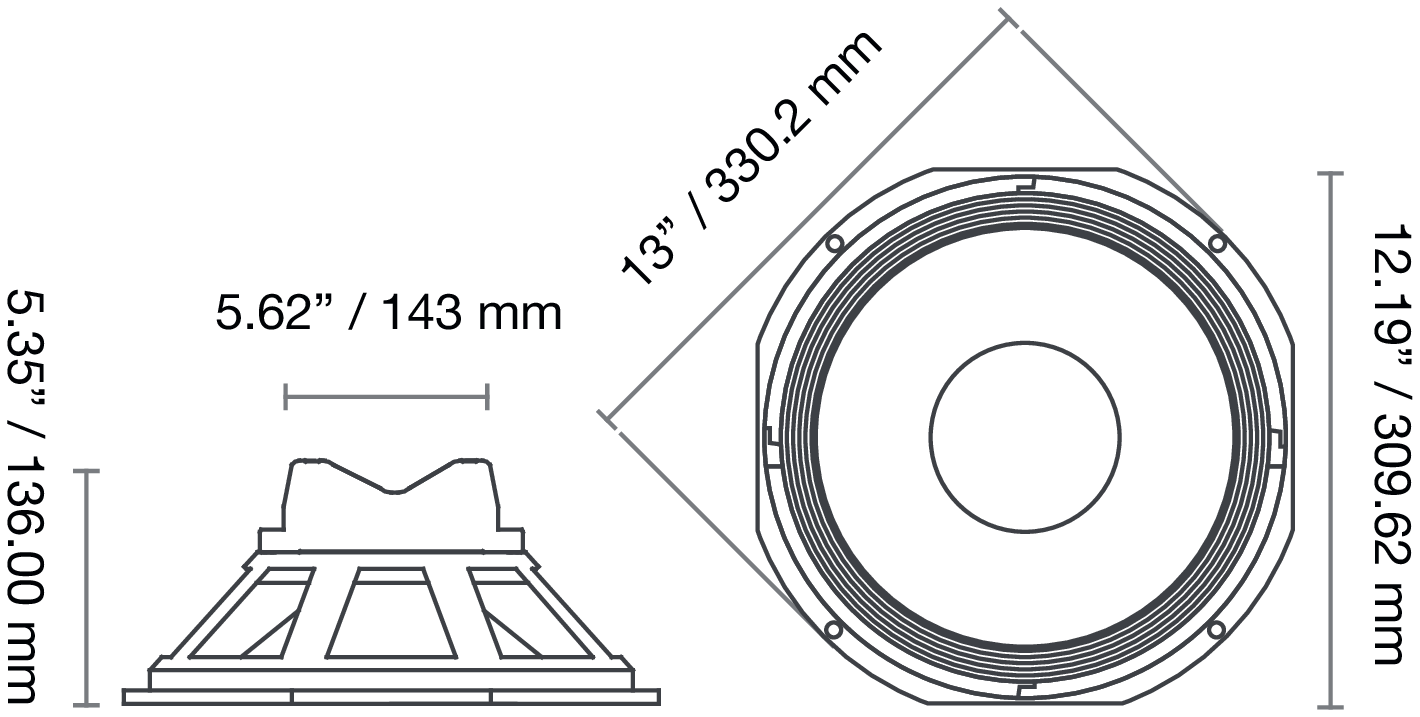

Dimensions

• Nominal diameter 12″
• 305mm
• Overall diameter 330mm
• Baffle cutout diameter 257mm
• Overall depth 136mm
• Flange thickness 8mm
• Mounting depth 128mm
• Volume occupied by the driver (estimated) 2L
• Net weight 3.7kg
• Frame material Die-cast Aluminium
