Fane SOVEREIGN PRO 12-300S
8Ω
Woofer
| Nominal diameter | 12″ / 305 mm |
| Resonance | 40 Hz |
| Q factor | 0.32 |
| Sensitivity | 94.3 dB |
| Linear excursion | ± 5.3 mm |
| Program Power | 600 W |
Discontinued
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94.3dB

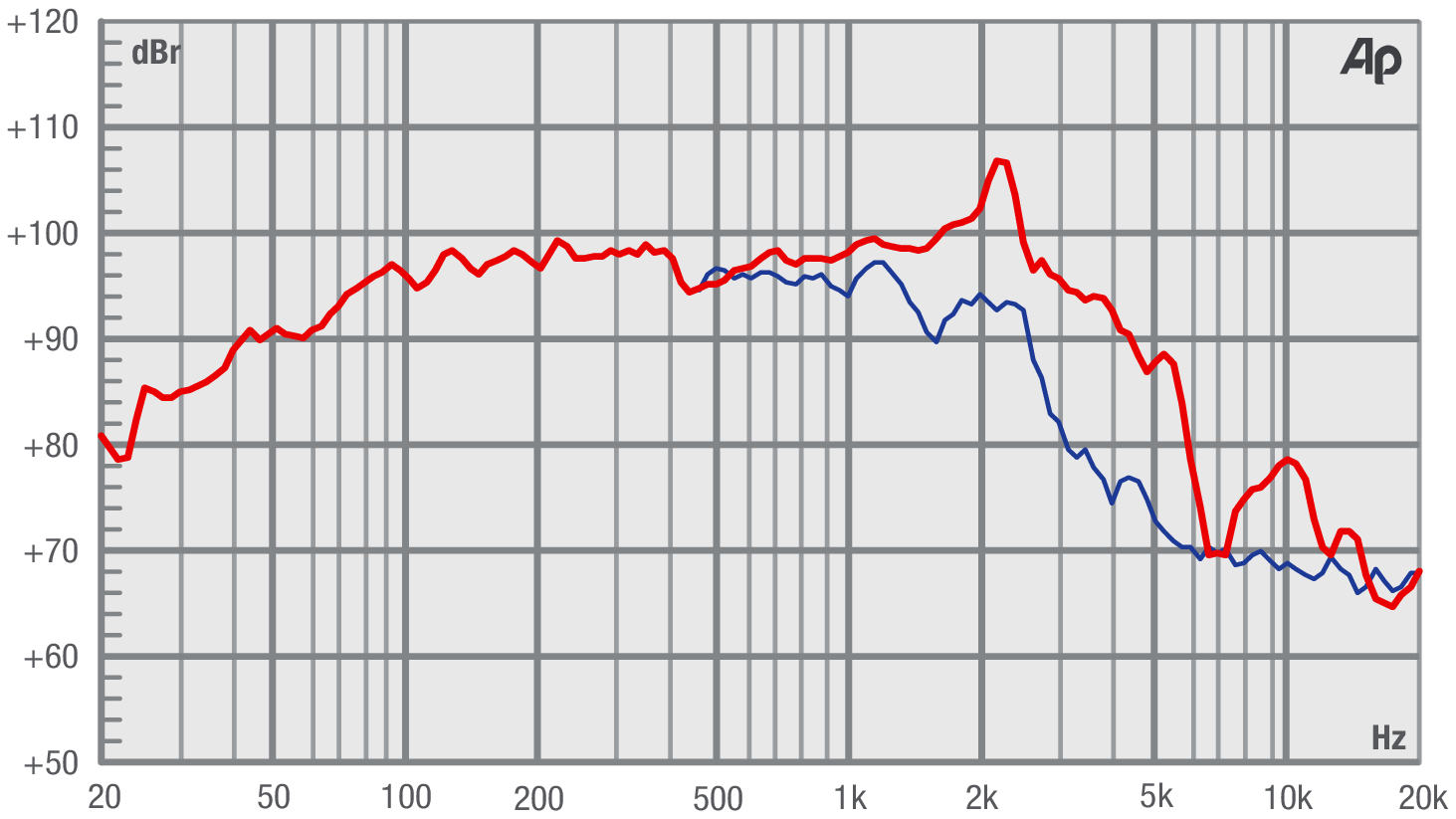

- Frequency response 45 - 2500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 40Hz
- Mechanical quality factor QMS 11.68
- Electrical quality factor QES 0.33
- Total quality factor QTS 0.32
Large signal parameters
- Maximum linear excursion (one way) xmax 5.3mm
- Air volume displaced at xmax VD 277cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil

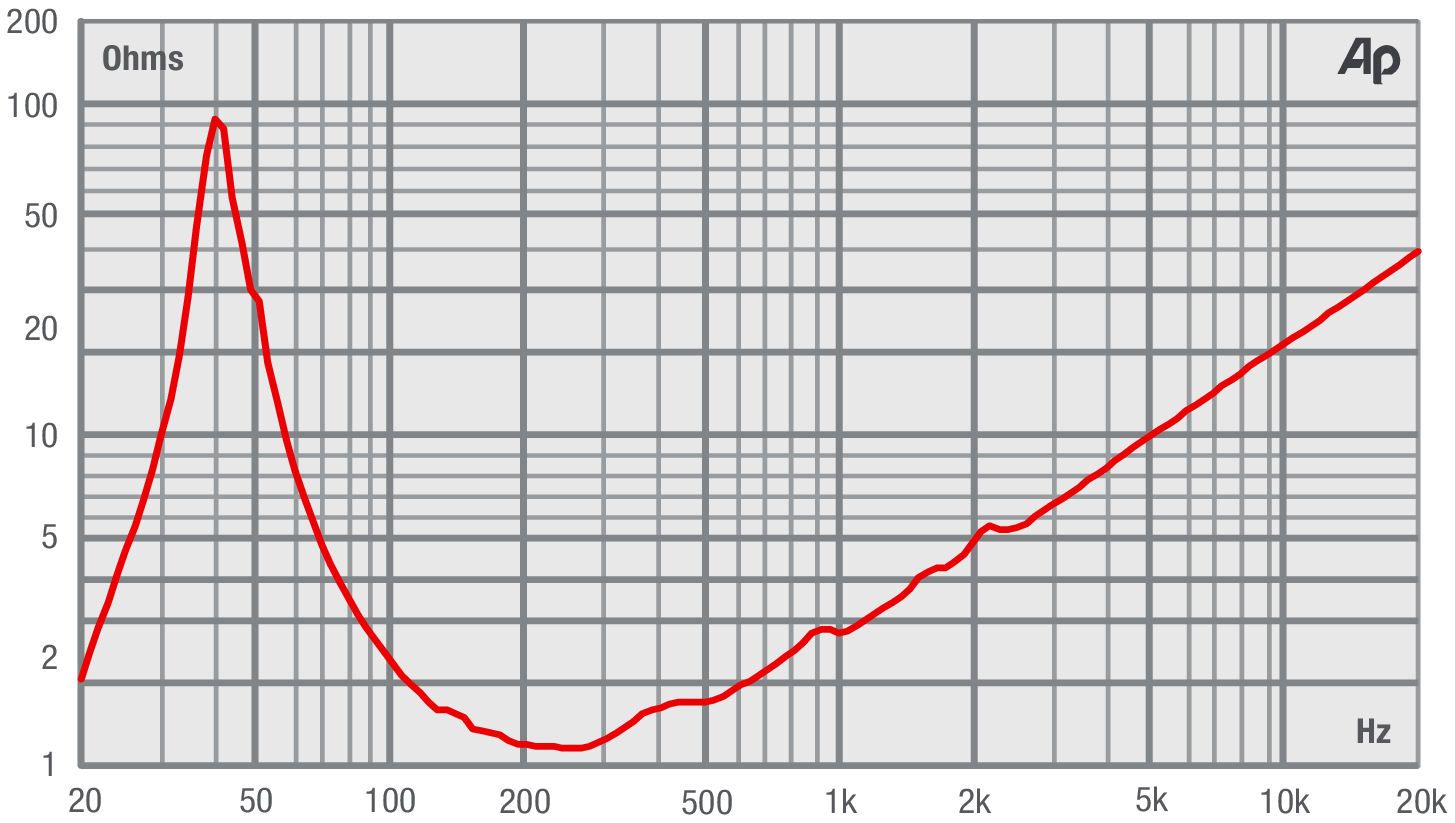

- Nominal impedance Z 8Ω
- DC resistance RE 5.5Ω
- Inductance (1kHz) LE 1.56mH
- VC Diameter 63.5mm
- Winding height HVC 14.5mm
- Winding material Copper
- Former material Kapton
Magnet
- Flux density B 1.1T
- Force factor Bl 16N/A
- Motor constant Bl/√RE 6.83N/√W
- Air gap height HAG 7.9mm
- Weight 1.588kg
- Material Ferrite
Diaphragm
- Effective diameter 262mm
- Effective area SD 528cm²
- Moving mass MMS 60.7g
- Moving mass (without air load) MMD 51.7g
- Material Paper
Suspensions
- Stiffness KMS 3.91N/mm
- Compliance CMS 256µm/N
- Equivalent volume to the compliance VAS 101L
- Mechanical resistance RMS 1.31N·s/m
- Surround material Polyvinyl damped Linen

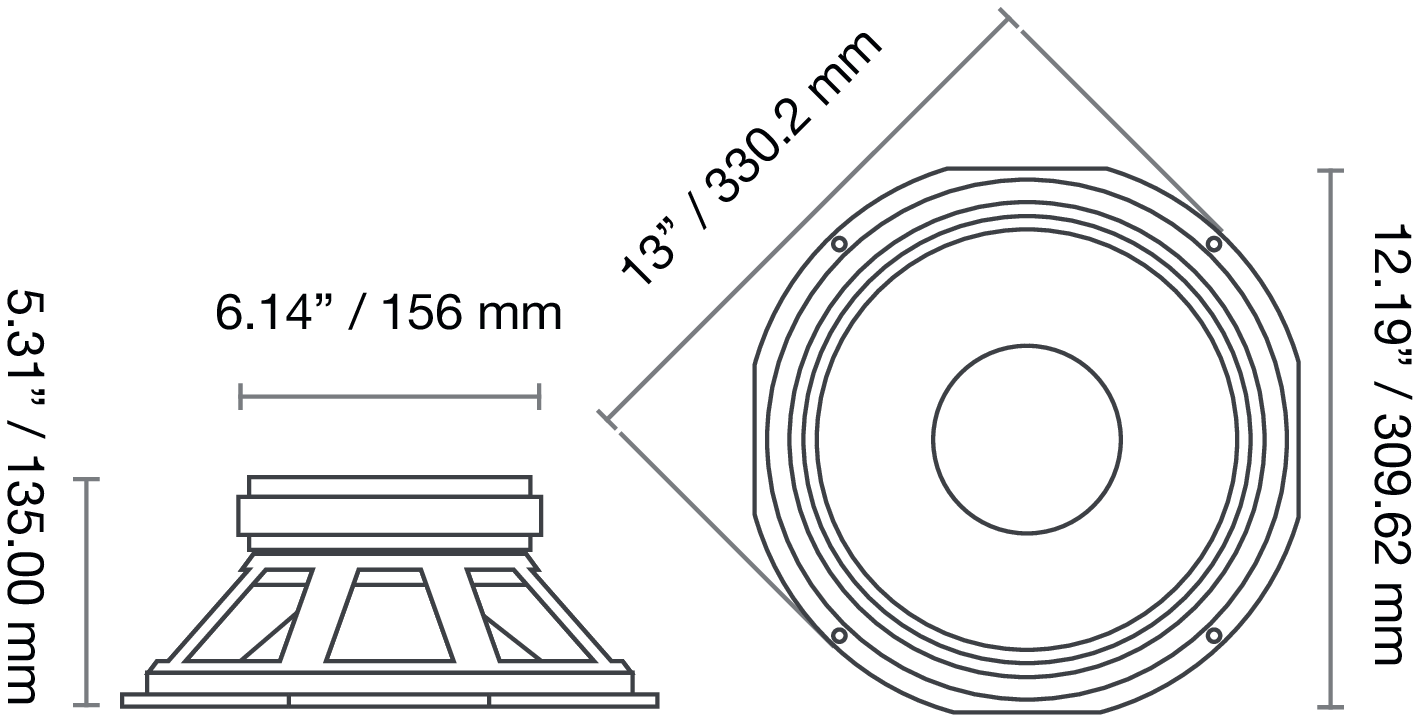

Dimensions
- Nominal diameter 12″
- 305mm
- Overall diameter 330mm
- Baffle cutout diameter 257mm
- Overall depth 135mm
- Flange thickness 8mm
- Mounting depth 127mm
- Volume occupied by the driver (estimated) 2.3L
- Net weight 4.65kg
- Frame material Die-cast Aluminium
.png)
.png)
.png)
