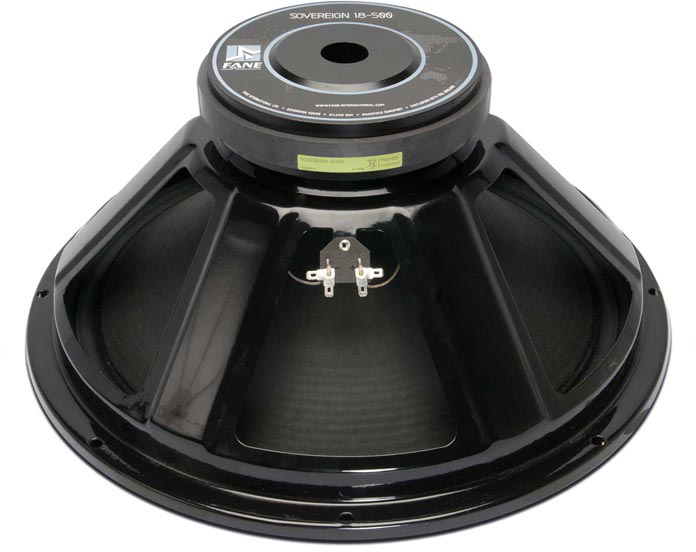

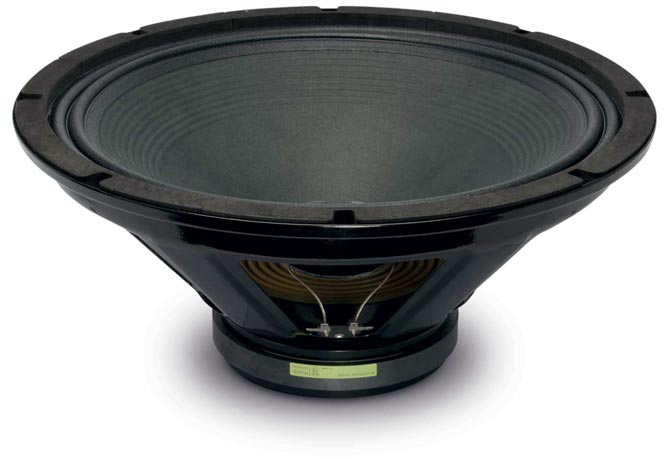

Fane SOVEREIGN 18-500
8Ω
Woofer
| Nominal diameter | 18″ / 457 mm |
| Resonance | 33 Hz |
| Q factor | 0.56 |
| Sensitivity | 94.2 dB |
| Linear excursion | ± 6.3 mm |
| Program Power | 1000 W |
Discontinued
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94.2dB

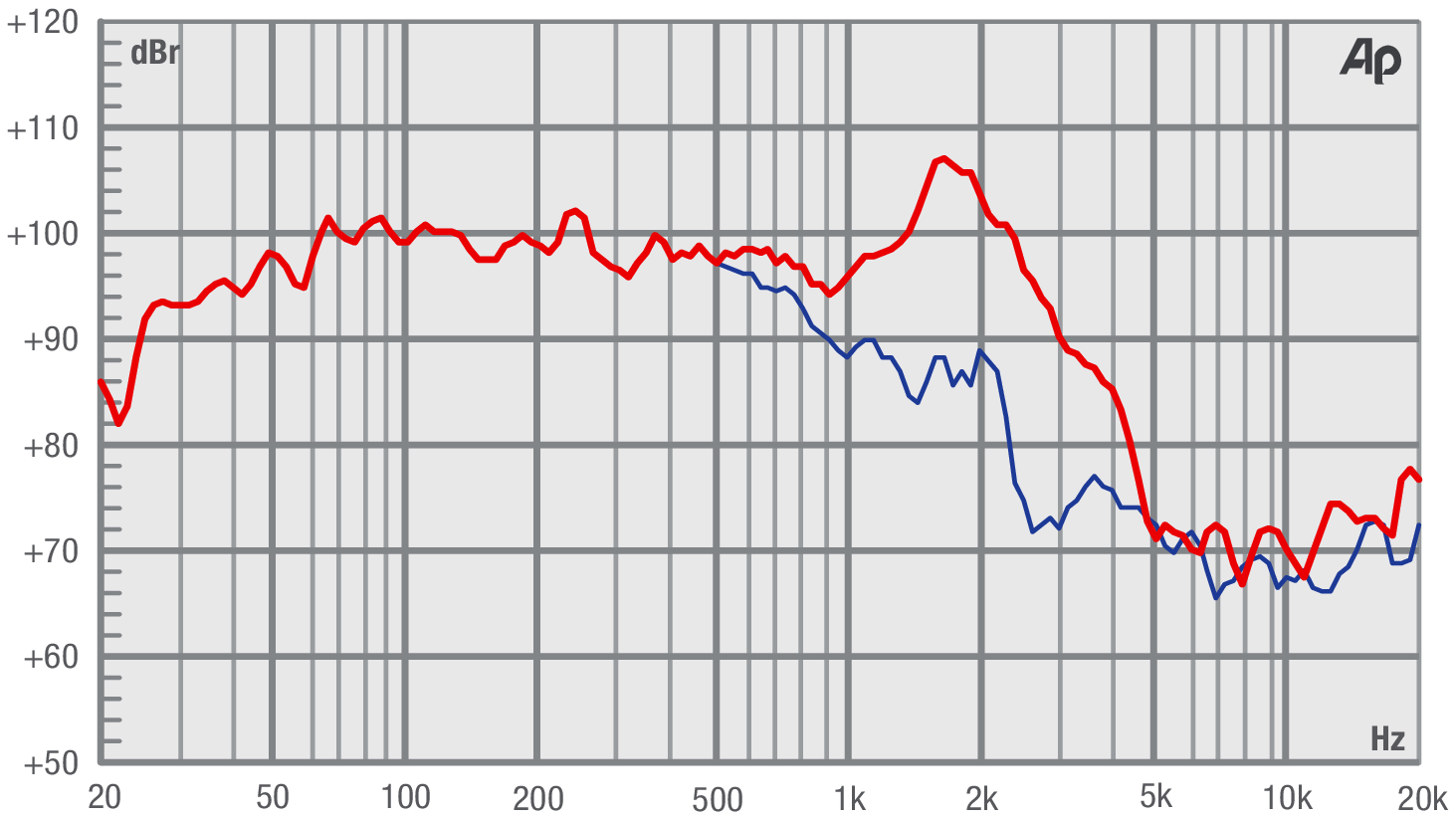

- Frequency response 42 - 1500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 33Hz
- Mechanical quality factor QMS 9.20
- Electrical quality factor QES 0.60
- Total quality factor QTS 0.56
Large signal parameters
- Maximum linear excursion (one way) xmax 6.3mm
- Air volume displaced at xmax VD 742cm³
- Power handling P 500W
- Program power Pmax 1000W

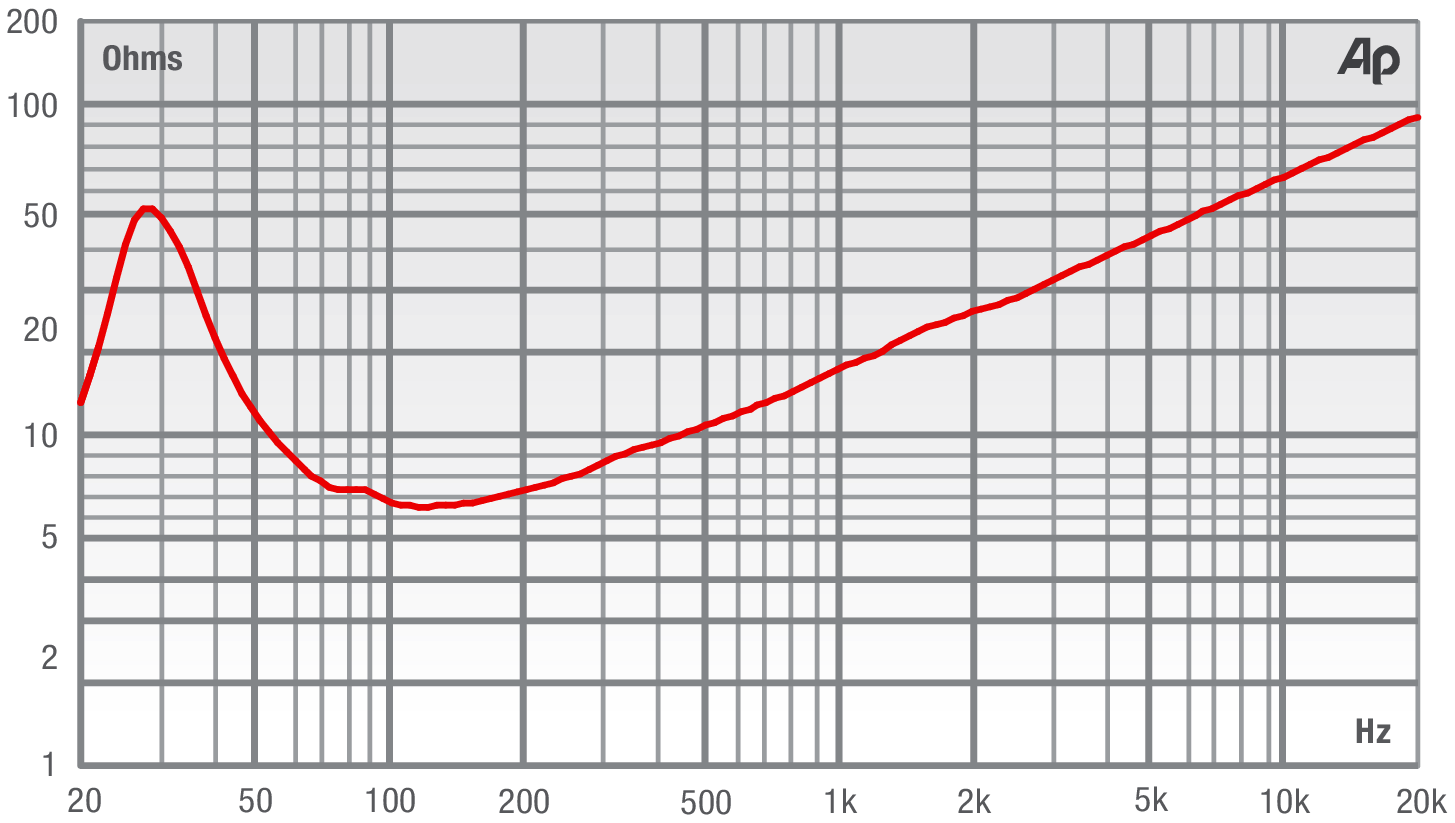

Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.3Ω
- Inductance (1kHz) LE 1.95mH
- VC Diameter 76.2mm
- Winding height HVC 20.8mm
- Winding material Copper
- Former material Glass Fibre
Magnet
- Flux density B 1T
- Force factor Bl 15.4N/A
- Motor constant Bl/√RE 6.7N/√W
- Air gap height HAG 9.9mm
- Weight 3.402kg
- Material Ferrite
Diaphragm
- Effective diameter 355mm
- Effective area SD 1178cm²
- Moving mass MMS 130g
- Moving mass (without air load) MMD 102g
- Material Paper
Suspensions
- Stiffness KMS 5.56N/mm
- Compliance CMS 180µm/N
- Equivalent volume to the compliance VAS 346L
- Mechanical resistance RMS 2.93N·s/m
- Surround material Polyvinyl damped Linen

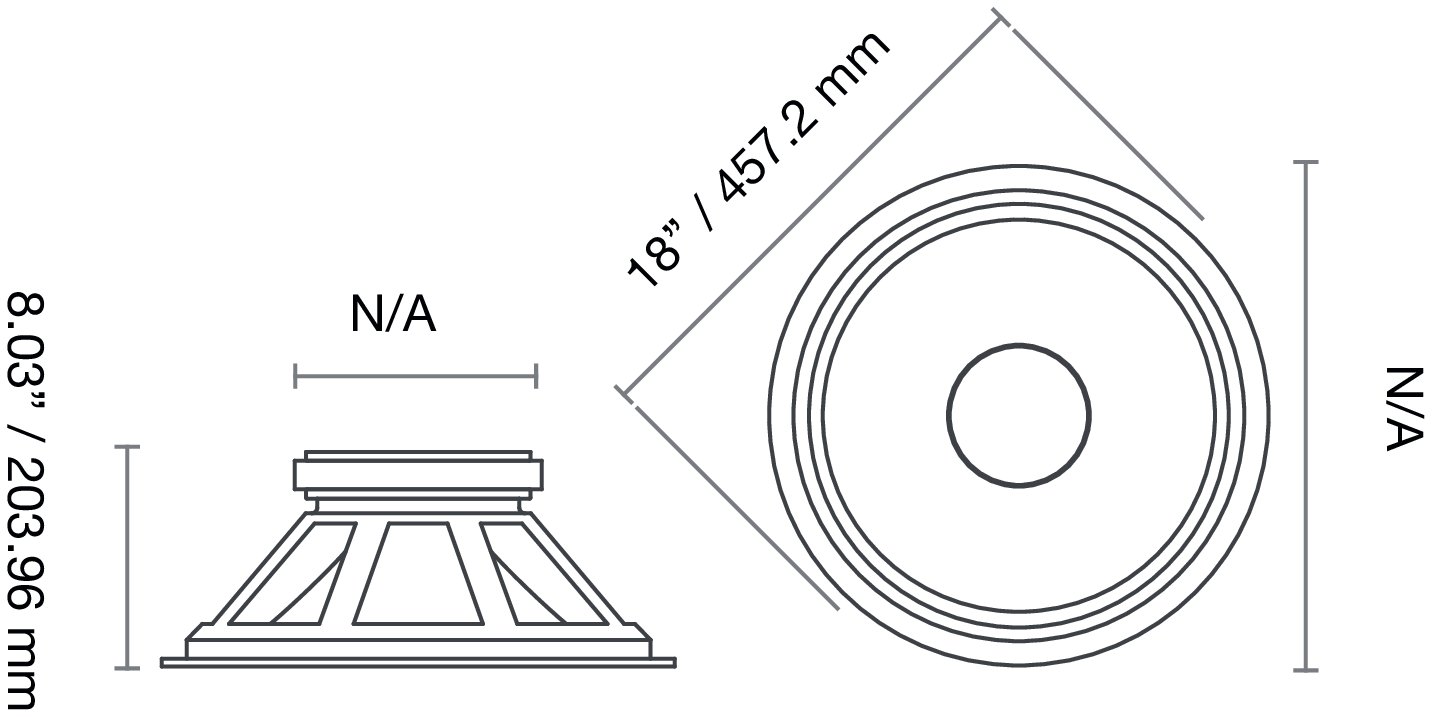

Dimensions
- Nominal diameter 18″
- 457mm
- Overall diameter 457mm
- Baffle cutout diameter 424mm
- Overall depth 204mm
- Flange thickness 12mm
- Mounting depth 192mm
- Volume occupied by the driver (estimated) 5.2L
- Net weight 8.09kg
- Frame material Pressed Steel
.png)
.png)
.png)
