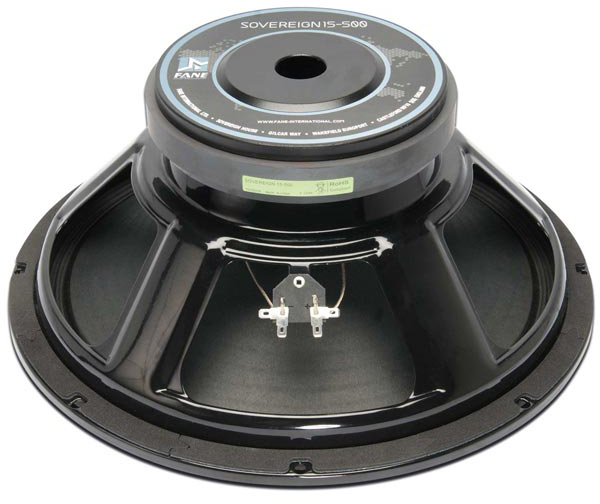

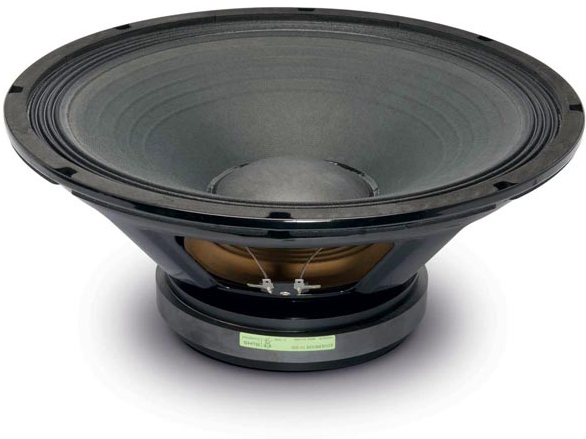

Fane SOVEREIGN 15-500
8Ω
Woofer
| Nominal diameter | 15″ / 381 mm |
| Resonance | 35 Hz |
| Q factor | 0.34 |
| Sensitivity | 95.2 dB |
| Linear excursion | ± 3.5 mm |
| Program Power | 1000 W |
Discontinued
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.2dB

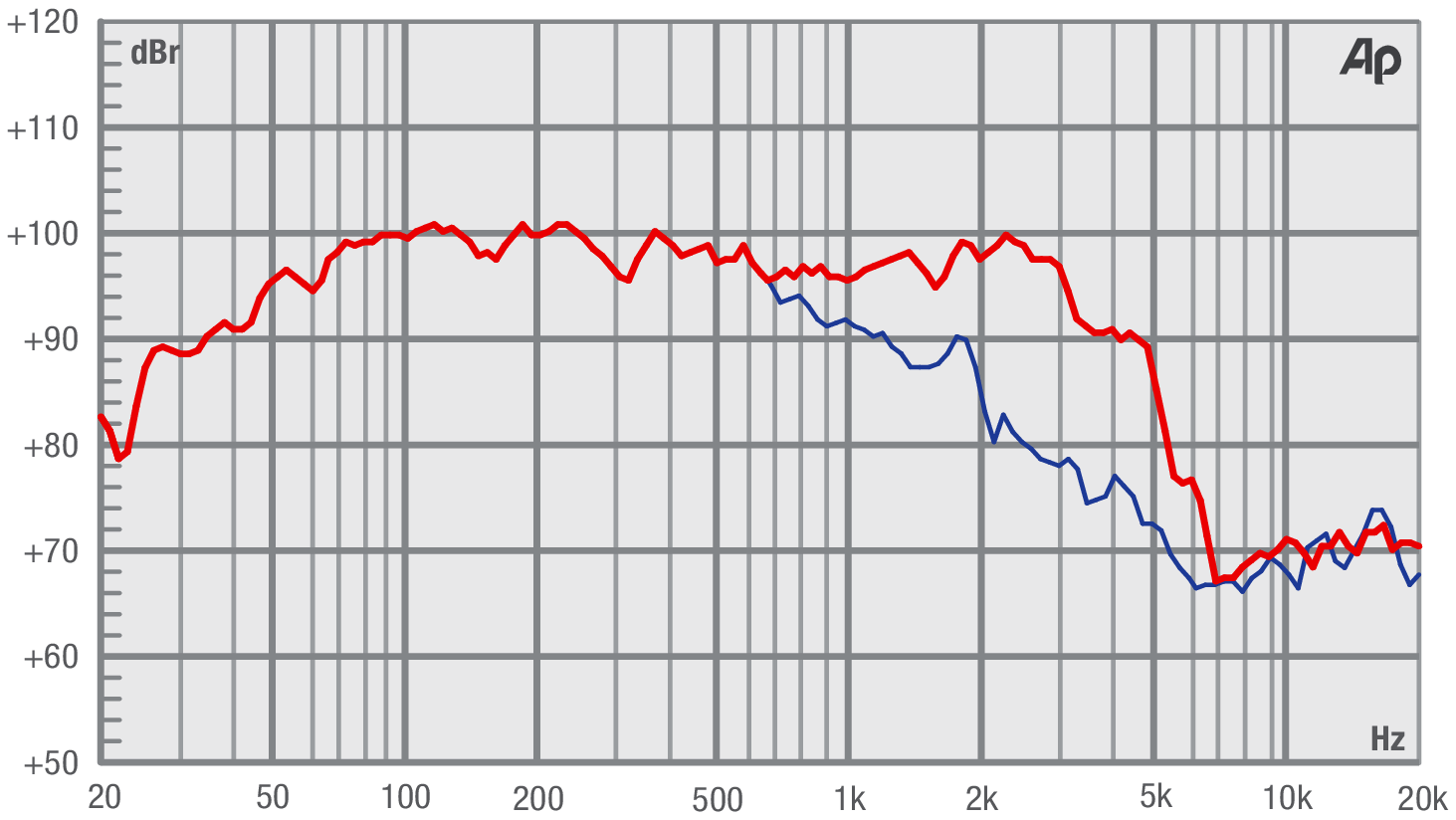

- Frequency response 40 - 4000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 35Hz
- Mechanical quality factor QMS 7.70
- Electrical quality factor QES 0.35
- Total quality factor QTS 0.34
Large signal parameters
- Maximum linear excursion (one way) xmax 3.5mm
- Air volume displaced at xmax VD 295cm³
- Power handling P 500W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.2Ω
- Inductance (1kHz) LE 2.19mH
- VC Diameter 76.2mm
- Winding height HVC 17.8mm
- Winding material Copper
- Former material Glass Fibre
Magnet
- Flux density B 1.1T
- Force factor Bl 17.9N/A
- Motor constant Bl/√RE 7.83N/√W
- Air gap height HAG 9.9mm
- Weight 2.268kg
- Material Ferrite
Diaphragm
- Effective diameter 382mm
- Effective area SD 855cm²
- Moving mass MMS 97.7g
- Moving mass (without air load) MMD 80.5g
- Material Paper
Suspensions
- Stiffness KMS 4.72N/mm
- Compliance CMS 212µm/N
- Equivalent volume to the compliance VAS 220L
- Mechanical resistance RMS 2.79N·s/m
- Surround material Polyvinyl damped Linen
Dimensions
- Nominal diameter 15″
- 381mm
- Overall diameter 381mm
- Baffle cutout diameter 352mm
- Overall depth 163mm
- Flange thickness 9mm
- Mounting depth 154mm
- Volume occupied by the driver (estimated) 3.9L
- Net weight 7.7kg
- Frame material Pressed Steel
.png)
.png)
.png)
