Fane SOVEREIGN 8-125

Mid Bass

Nominal diameter8″ / 203 mm
Resonance65 Hz
Q factor0.68
Sensitivity90.6 dB
Linear excursion± 3.5 mm
Program Power250 W
Discontinued
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply
  • Sensitivity (1W, 1m, infinite baffle) SPL1W 90.6dB
  • Frequency response 60 - 7000Hz

Thiele & Small parameters

  • Resonance frequency (free air) fS 65Hz
  • Mechanical quality factor QMS 6.60
  • Electrical quality factor QES 0.75
  • Total quality factor QTS 0.68

Large signal parameters

  • Maximum linear excursion xmax 3.5mm
  • Air volume displaced at xmax VD 74cm³
  • Power handling P 125W
  • Program power Pmax 250W

Voice Coil

  • Nominal impedance Z 8Ω
  • DC resistance RE 6.7Ω
  • Inductance (1kHz) LE 1.28mH
  • VC Diameter 38.1mm
  • Winding height HVC 13mm
  • Winding material Copper
  • Former material Glass Fibre

Magnet

  • Flux density B 1.1T
  • Force factor Bl 8.5N/A
  • Motor constant Bl/√RE 3.28N/√W
  • Air gap height HAG 5.8mm
  • Weight 0.567kg
  • Material Ferrite

Diaphragm

  • Effective diameter 165mm
  • Effective area SD 213cm²
  • Moving mass MMS 19g
  • Moving mass (without air load) MMD 16.7g
  • Material Paper

Suspensions

  • Stiffness KMS 3.33N/mm
  • Compliance CMS 300µm/N
  • Equivalent volume to the compliance VAS 19.5L
  • Mechanical resistance RMS 1.18N·s/m
  • Surround material Polyvinyl damped Linen

Dimensions

  • Nominal diameter 8
  • 203mm
  • Overall diameter 208mm
  • Baffle cutout diameter 184mm
  • Overall depth 94mm
  • Flange thickness 7mm
  • Mounting depth 87mm
  • Volume occupied by the driver (estimated) 0.71L
  • Net weight 1.75kg
  • Frame material Pressed Steel

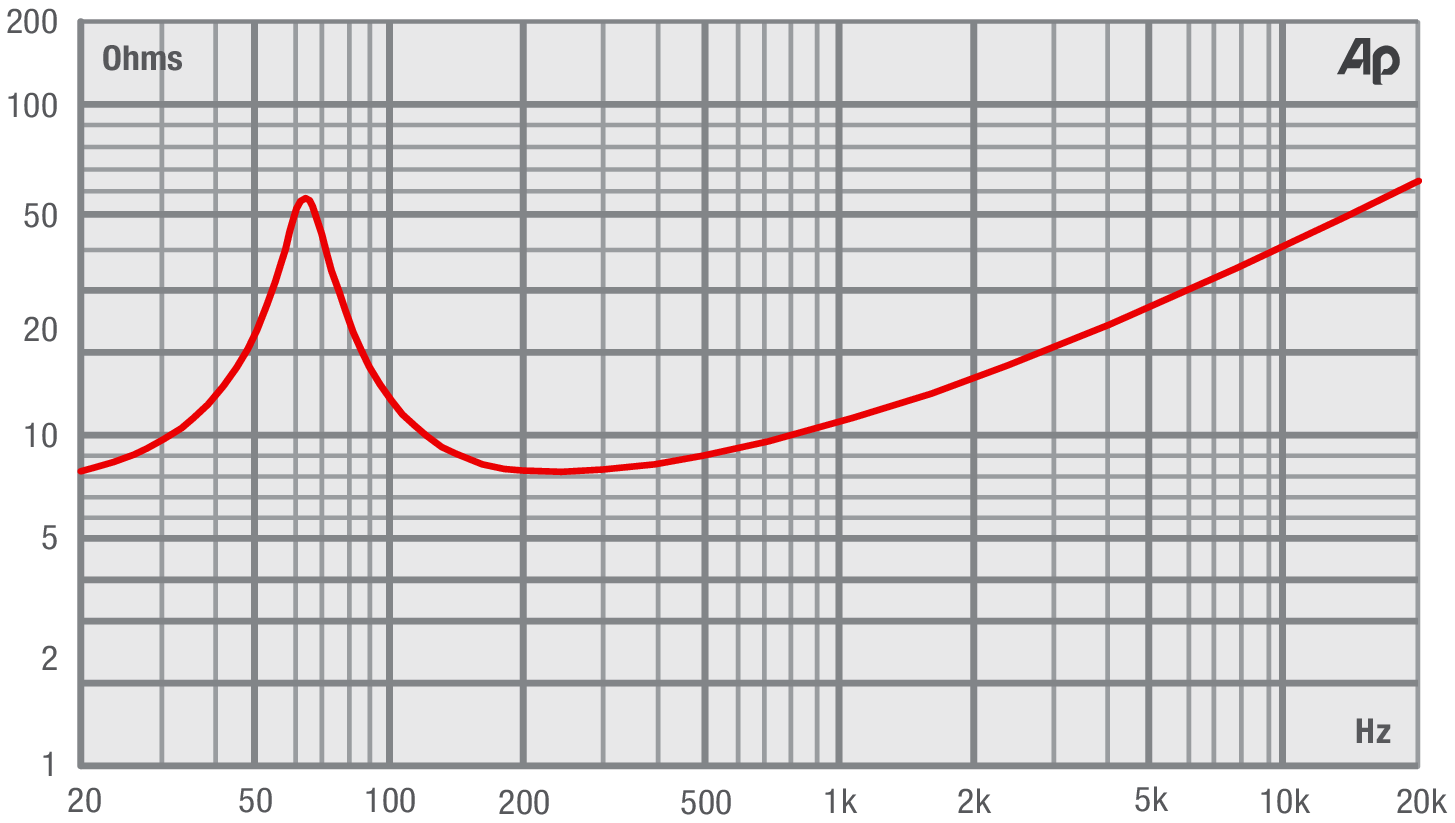

Fane SOVEREIGN 8-125 Impedance
Fane SOVEREIGN 8-125 SPL

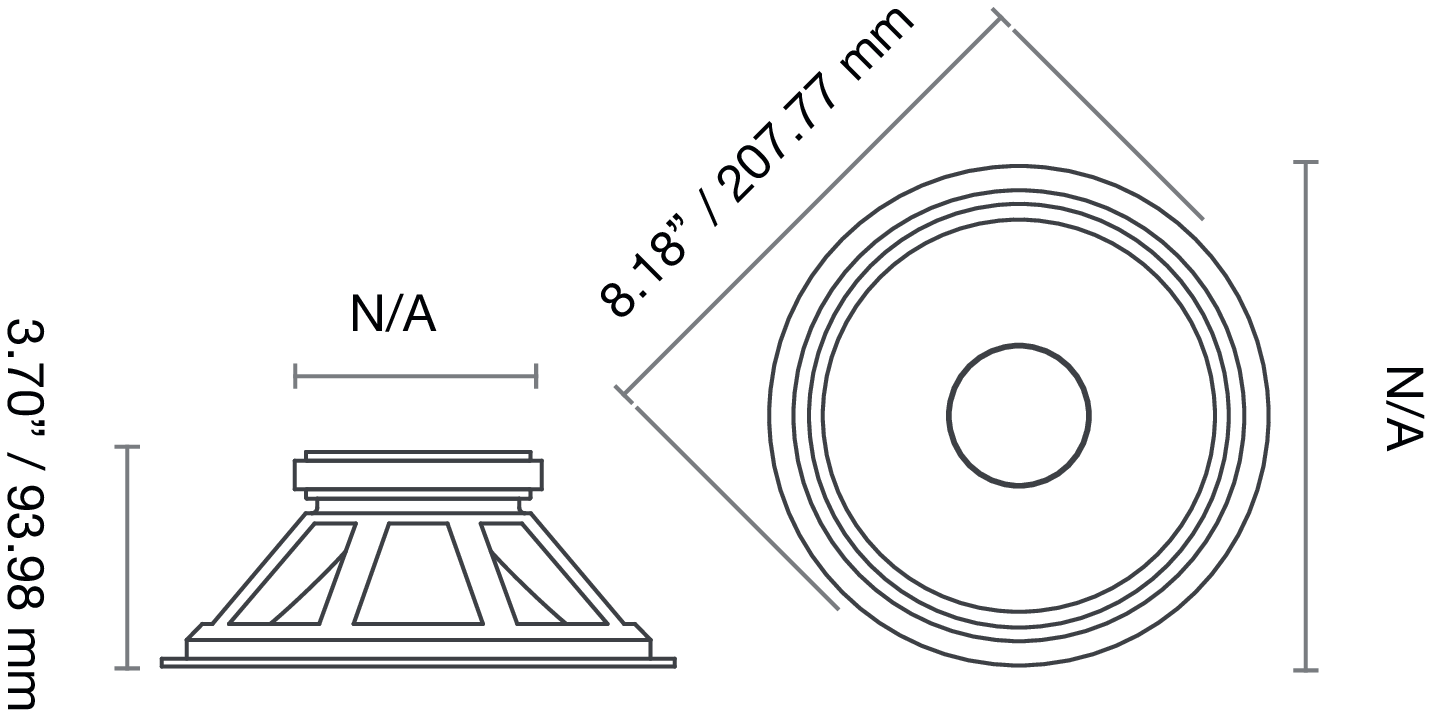

Fane SOVEREIGN 8-125 Dimensions
