Fane SOVEREIGN PRO 10BM
8Ω
Woofer
| Nominal diameter | 10″ / 254 mm |
| Resonance | 41 Hz |
| Q factor | 0.17 |
| Sensitivity | 92.9 dB |
| Linear excursion | ± 7.7 mm |
| Program power | 800 W |
Discontinued
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 92.9dB

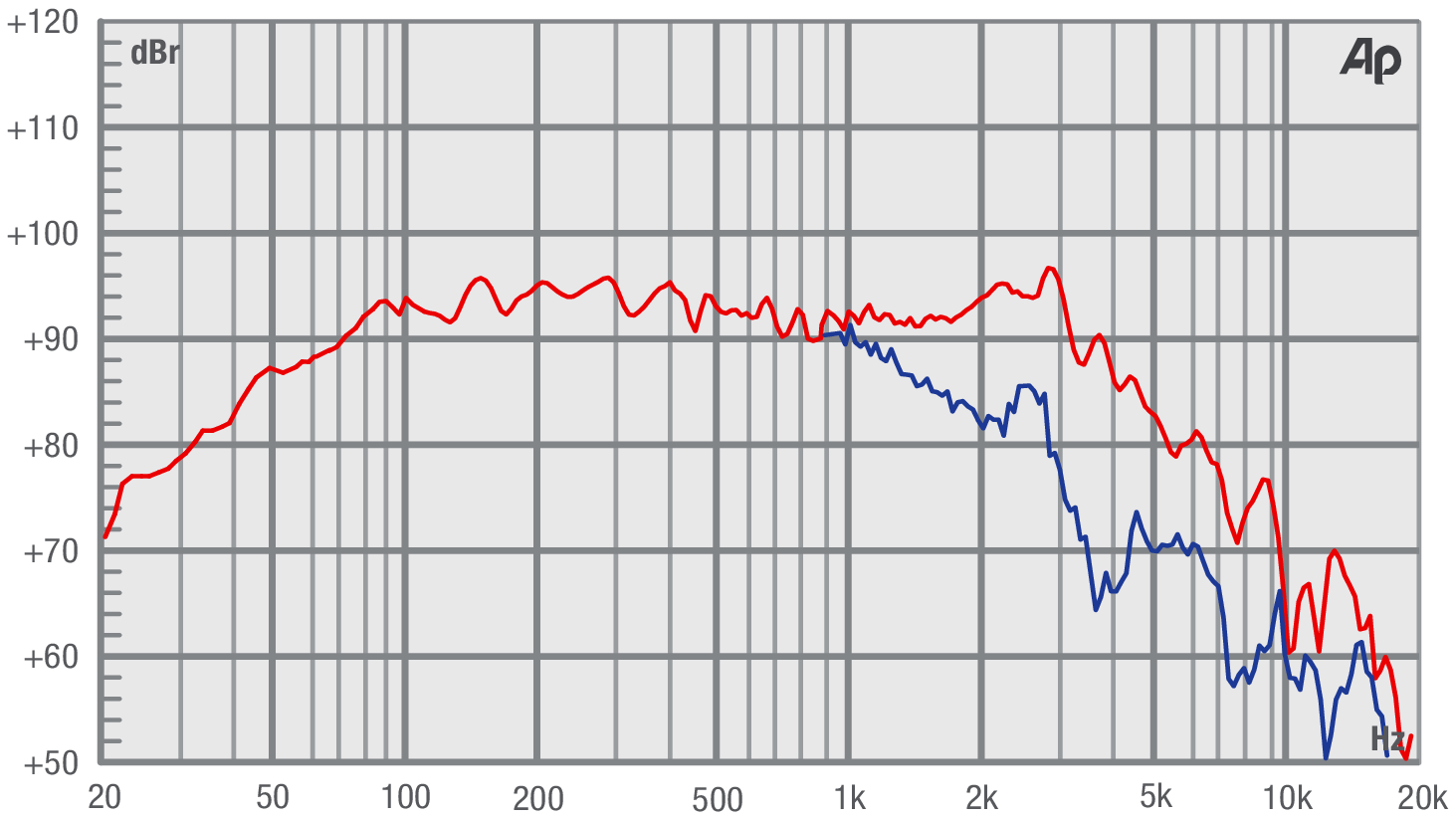

- Frequency response 40 - 3000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 41Hz
- Mechanical quality factor QMS 1.51
- Electrical quality factor QES 0.19
- Total quality factor QTS 0.17
Large signal parameters
- Maximum linear excursion (one way) xmax 7.7mm
- Air volume displaced at xmax VD 280cm³
- Power handling P 400W
- Program power Pmax 800W
Voice Coil

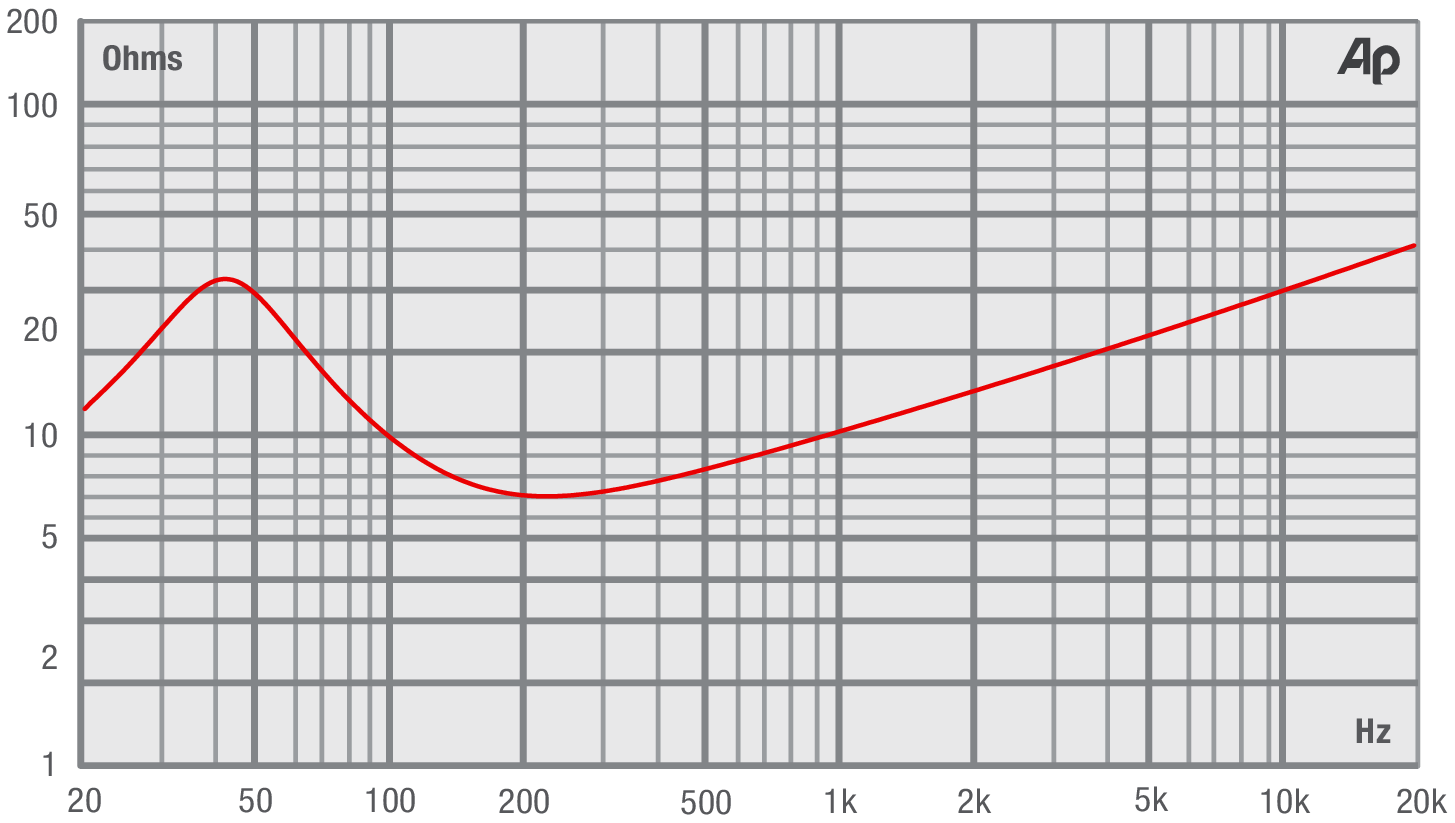

- Nominal impedance Z 8Ω
- DC resistance RE 3.4Ω
- Inductance (1kHz) LE 1.65mH
- VC Diameter 63.5mm
- Winding height HVC 18.5mm
- Winding material Copper
- Former material Glass Fibre
Magnet
- Flux density B 1.15T
- Force factor Bl 17N/A
- Motor constant Bl/√RE 9.22N/√W
- Air gap height HAG 9.9mm
- Weight 2.296kg
- Material Ferrite
Diaphragm
- Effective diameter 216mm
- Effective area SD 363cm²
- Moving mass (including air load) MMS 63g
- Moving mass MMD 57.7g
- Material Paper
Suspensions
- Stiffness KMS 4.17N/mm
- Compliance CMS 240µm/N
- Equivalent volume to the compliance VAS 45L
- Mechanical resistance RMS 10.8N·s/m
- Surround material Rubber

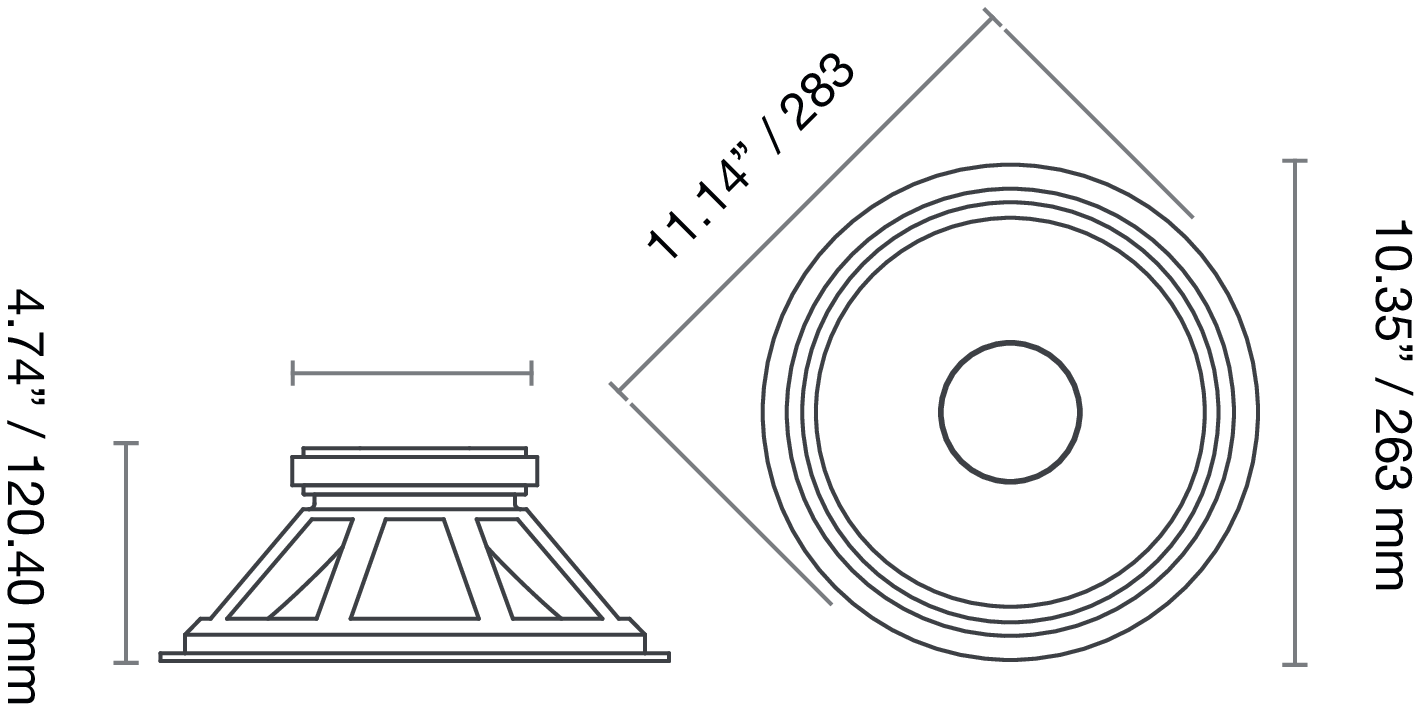

Dimensions
- Nominal diameter 10″
- 254mm
- Overall diameter 283mm
- Baffle cutout diameter 257mm
- Overall depth 120mm
- Flange thickness 8mm
- Mounting depth 112mm
- Volume occupied by the driver (estimated) 2.5L
- Net weight 7.1kg
- Frame material Die-cast Aluminium
