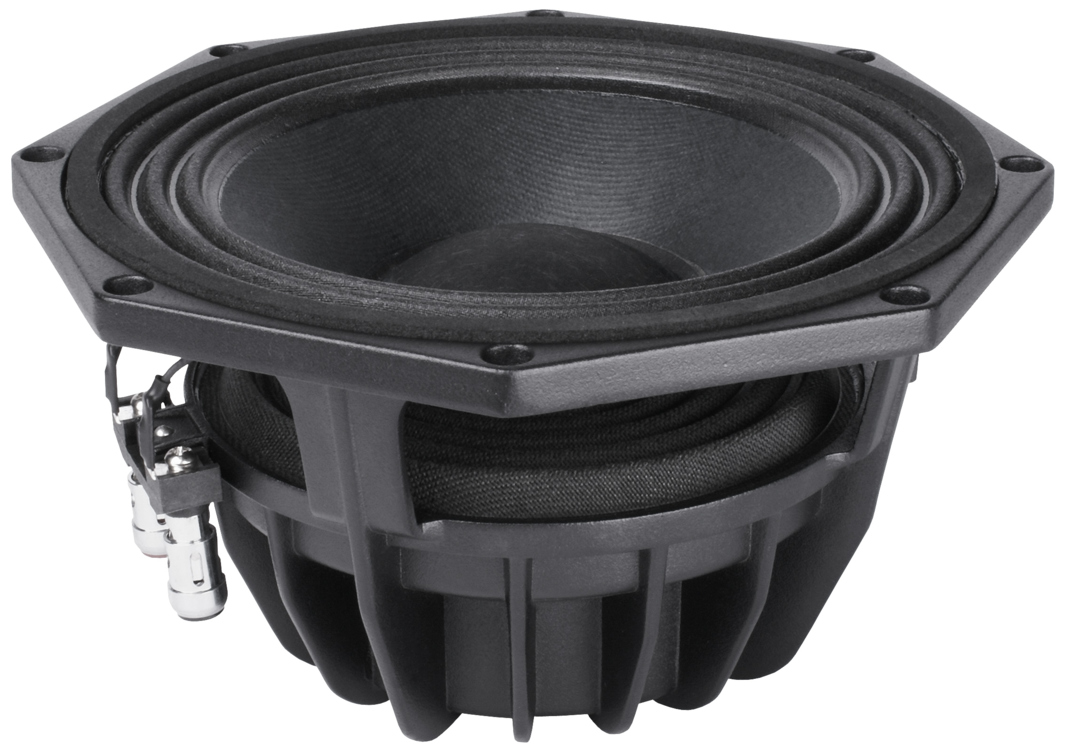

FaitalPRO W8N8-200 8Ω

• Sensitivity (1W, 1m, infinite baffle) SPL1W 89dB

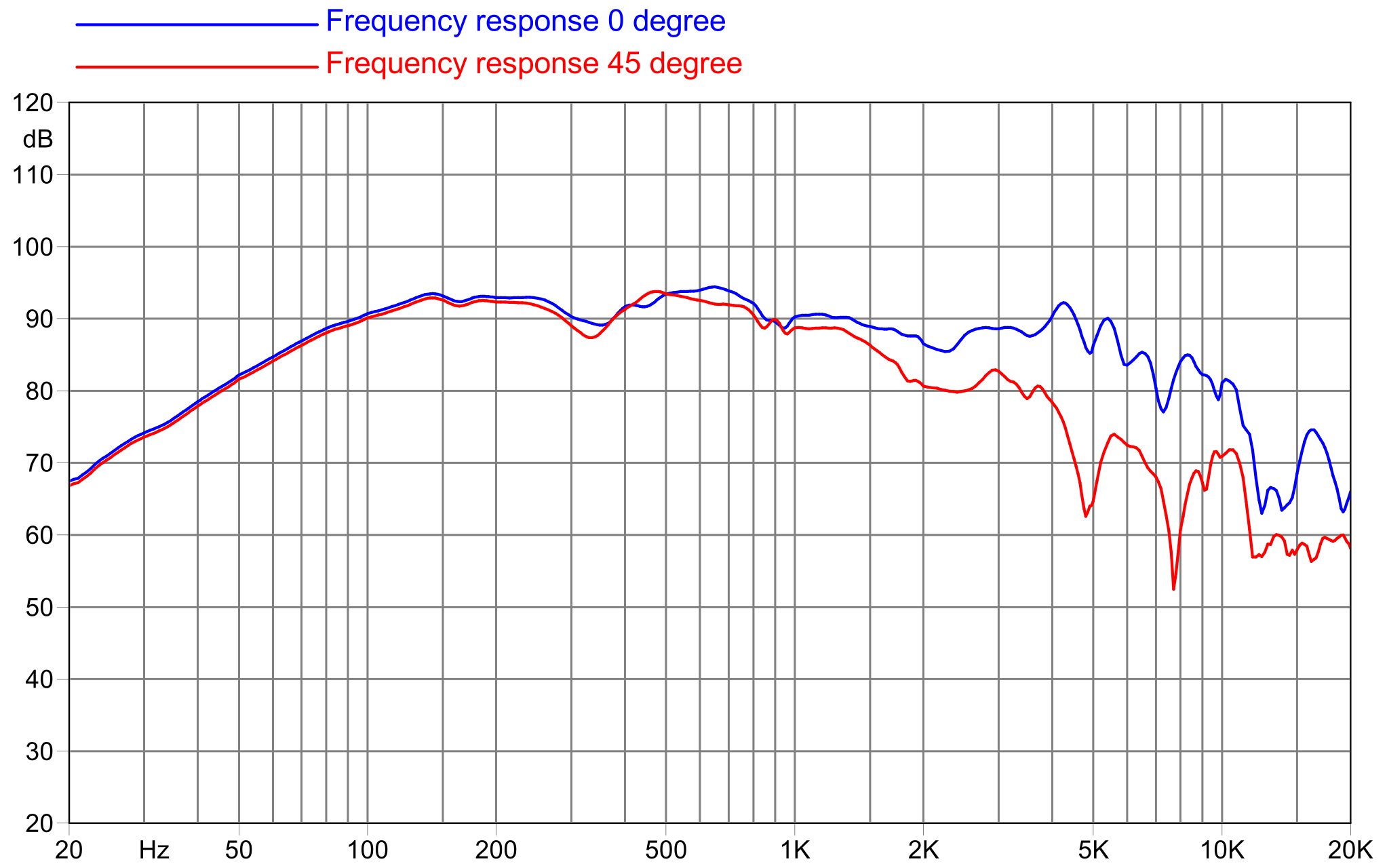

• Frequency response 80 - 5000Hz

Thiele & Small parameters

• Resonance frequency (free air) fS 74Hz
• Mechanical quality factor QMS 5.30
• Electrical quality factor QES 0.69
• Total quality factor QTS 0.61

Large signal parameters

• Maximum linear excursion xmax 8.5mm
• Maximum excursion before damage xlim 12.9mm
• Air volume displaced at xmax VD 150cm³
• Power handling P 200W
• Program power Pmax 400W

Voice Coil

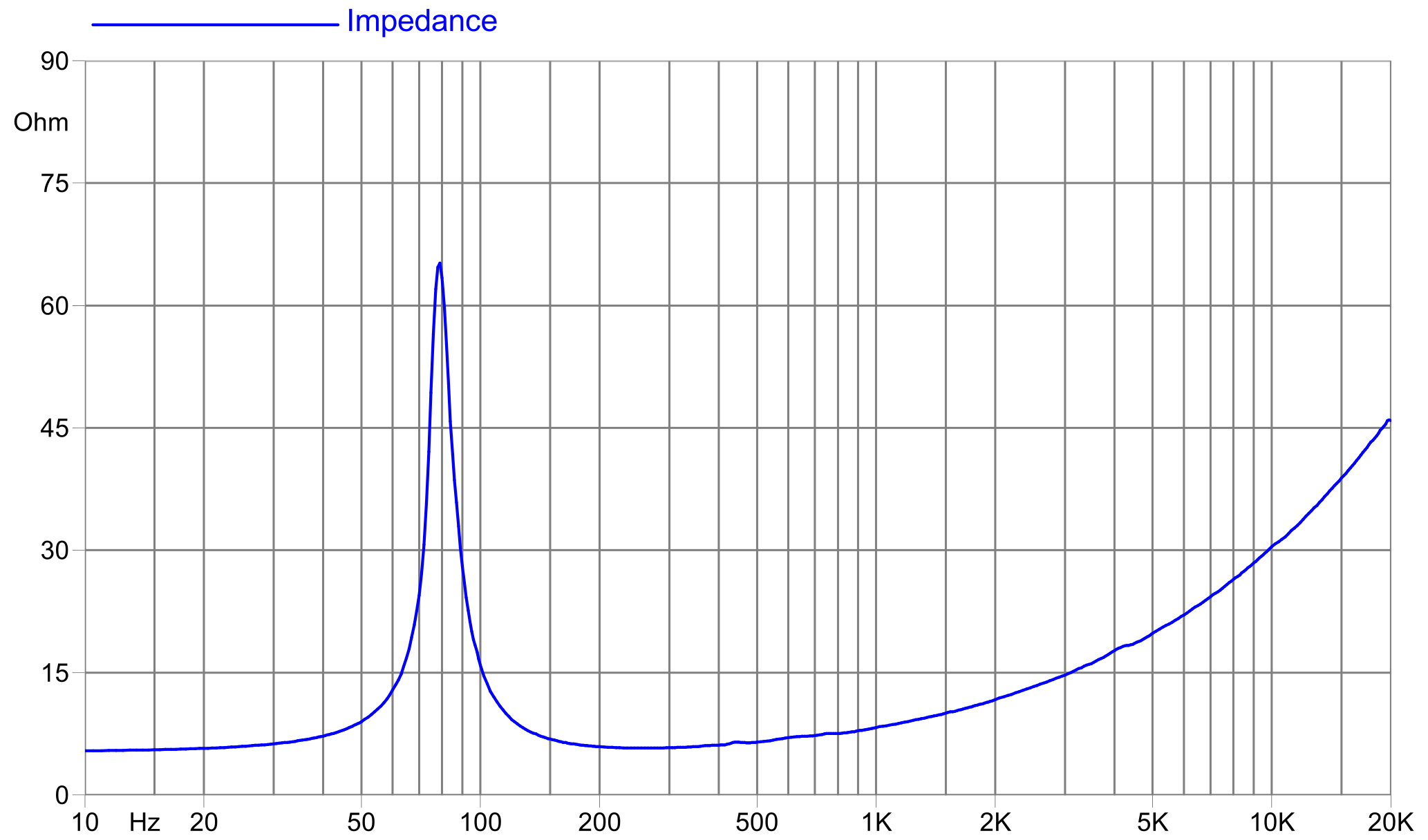

• Nominal impedance Z 8Ω
• DC resistance RE 5.1Ω
• Inductance (1kHz) LE 0.6mH
• VC Diameter 52mm
• Winding height HVC 19.3mm
• Winding material Aluminium
• Former material Glass Fiber

Magnet

• Flux density B 1.05T
• Force factor Bl 8.9N/A
• Motor constant Bl/√RE 3.94N/√W
• Air gap height HAG 7mm
• Material Neodymium Slug

Diaphragm

• Effective diameter 150mm
• Effective area SD 177cm²
• Moving mass MMS 23g
• Moving mass (without air load) MMD 21.1g

Suspensions

• Stiffness KMS 5N/mm
• Compliance CMS 200µm/N
• Equivalent volume to the compliance VAS 9L
• Mechanical resistance RMS 2N·s/m
• Surround material Triple Roll

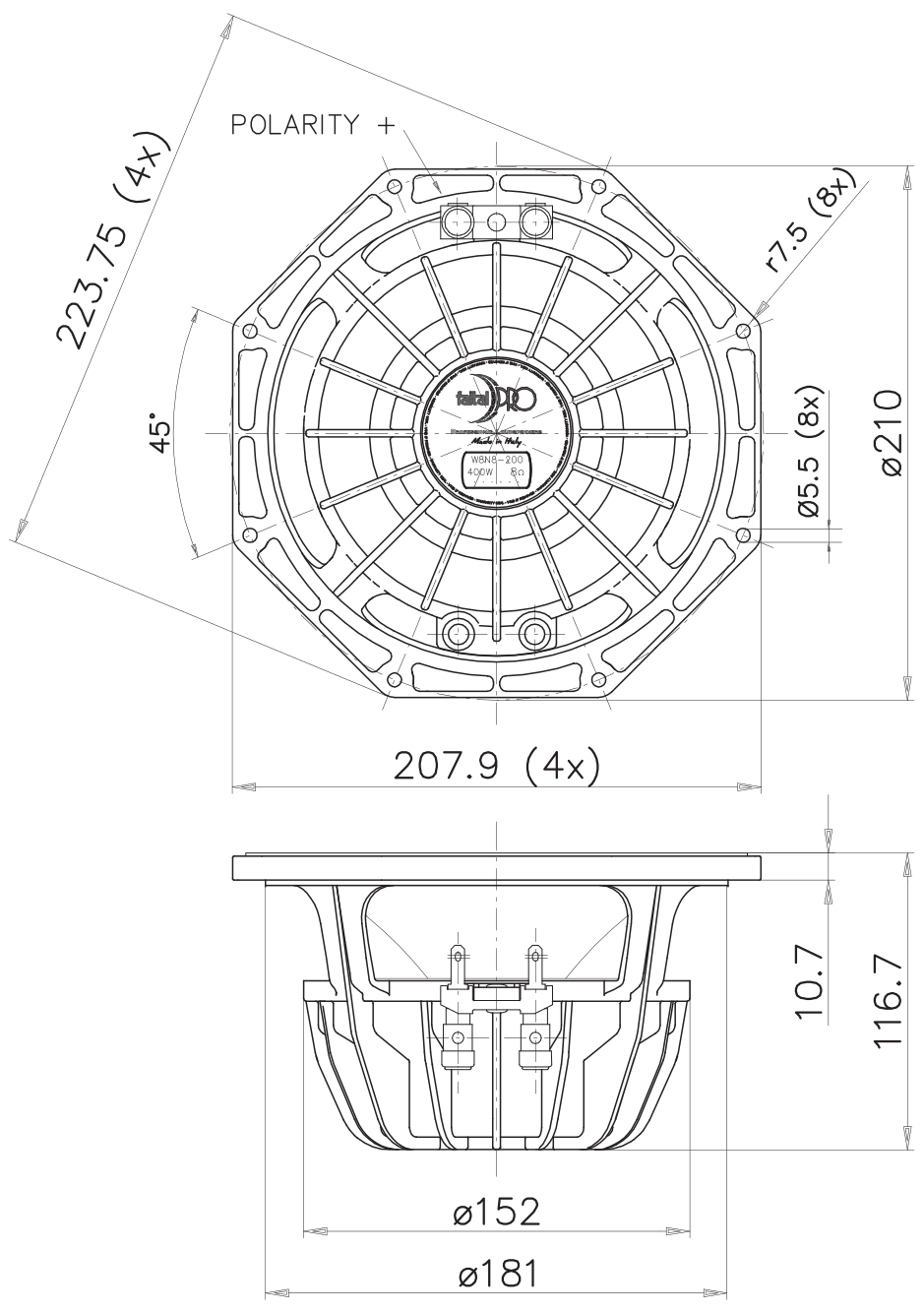

Dimensions

• Nominal diameter 8″
• 200mm
• Overall size 208 x 224mm
• Baffle cutout diameter 183mm
• Overall depth 117mm
• Flange thickness 11mm
• Mounting depth 106mm
• Volume occupied by the driver 1L
• Net weight 1.8kg
• Frame material Aluminum
