Focal SLATEFIBER C 165 SF
4Ω
2 Way
| Nominal diameter | 6.5″ / 165 mm |
| Resonance | 67 Hz |
| Q factor | 0.58 |
| Sensitivity | 89.4 dB |
| Linear excursion | ± 4 mm |
| Program power | 160 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 89.4dB
- Frequency response 60 - 21000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 67Hz
- Mechanical quality factor QMS 9.42
- Electrical quality factor QES 0.62
- Total quality factor QTS 0.58
Large signal parameters
- Maximum linear excursion (one way) xmax 4mm
- Air volume displaced at xmax VD 53cm³
- Power handling P 80W
- Program power Pmax 160W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 2.8Ω
- Inductance (1kHz, estimated) LE 0.32mH
- VC Diameter 25mm
- Winding material Copper
- Former material Kapton
Magnet
- Force factor Bl 4.8N/A
- Motor constant Bl/√RE 2.87N/√W
- Diameter 85mm
- Material Ferrite
Diaphragm
- Effective diameter 130mm
- Effective area SD 132cm²
- Moving mass (including air load) MMS 11.9g
- Moving mass MMD 10.7g
- Material Slate fiber
Suspensions
- Stiffness KMS 2.38N/mm
- Compliance CMS 420µm/N
- Equivalent volume to the compliance VAS 11.8L
- Mechanical resistance RMS 0.53N·s/m
- Surround material Butyl Rubber

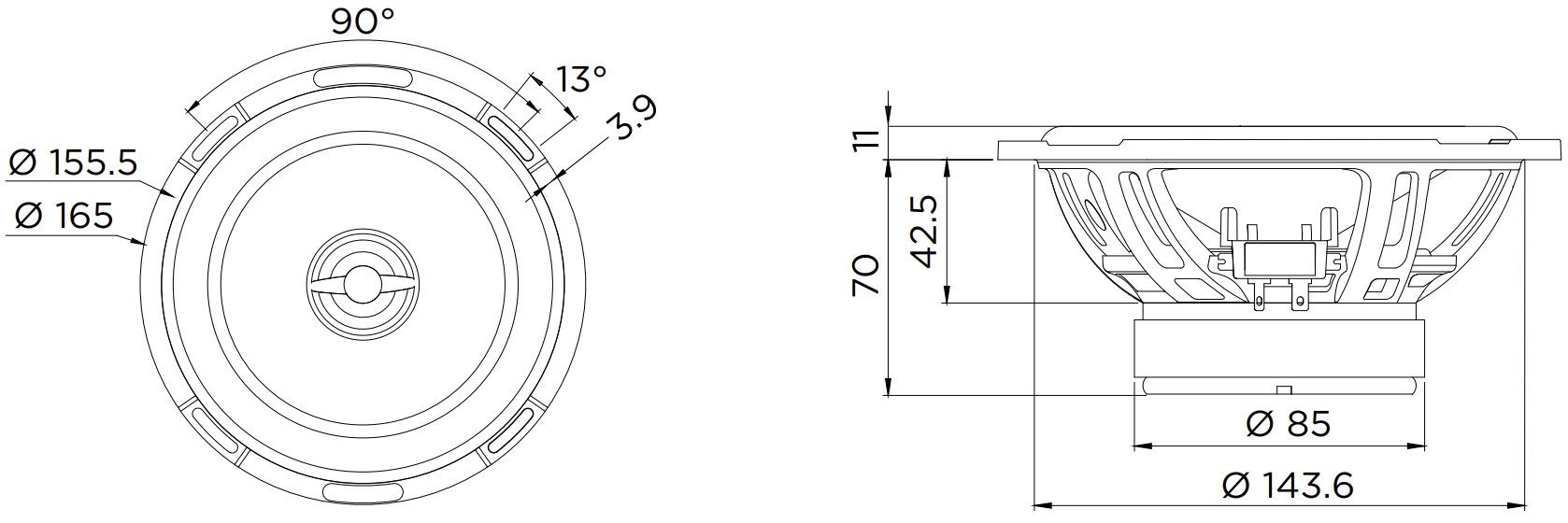

Dimensions
- Nominal diameter 6.5″
- 165mm
- Overall diameter 165mm
- Baffle cutout diameter 144mm
- Overall depth 81mm
- Flange thickness 11mm
- Mounting depth 70mm
- Volume occupied by the driver (estimated) 0.4L
- Net weight 1.05kg
