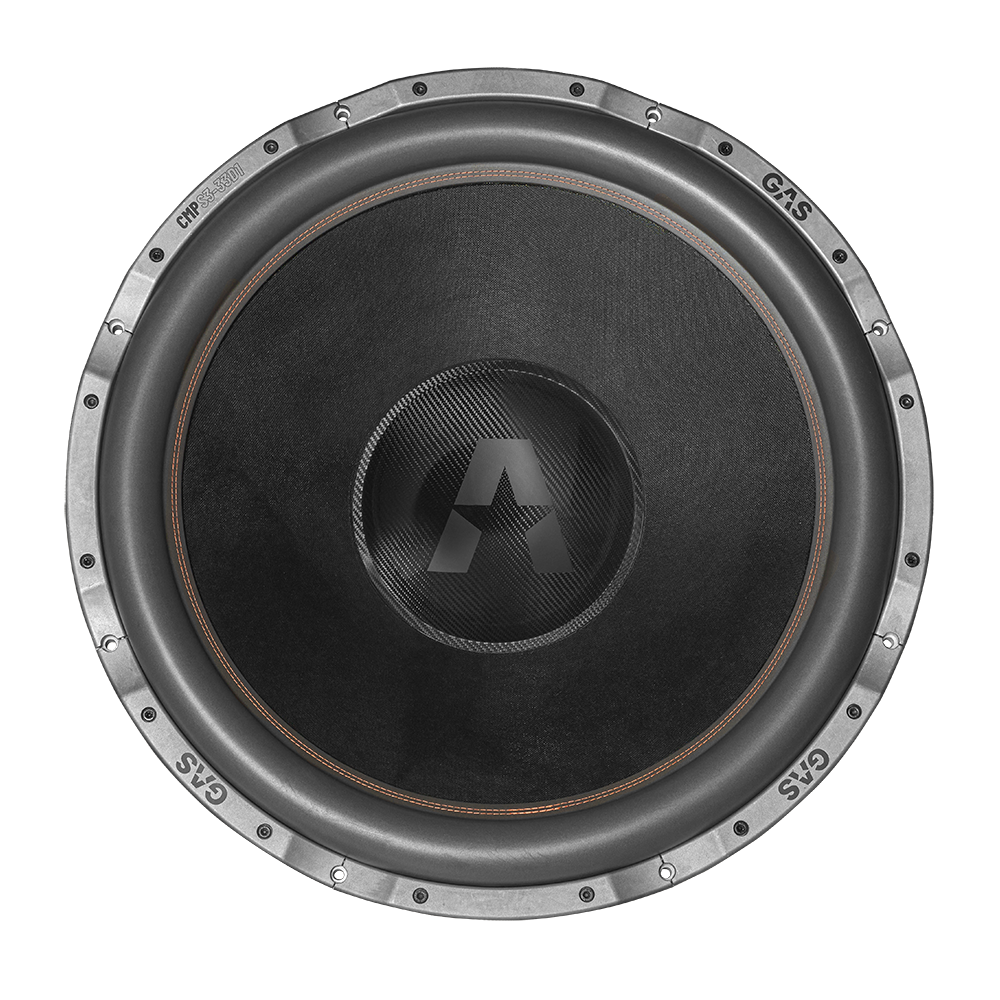

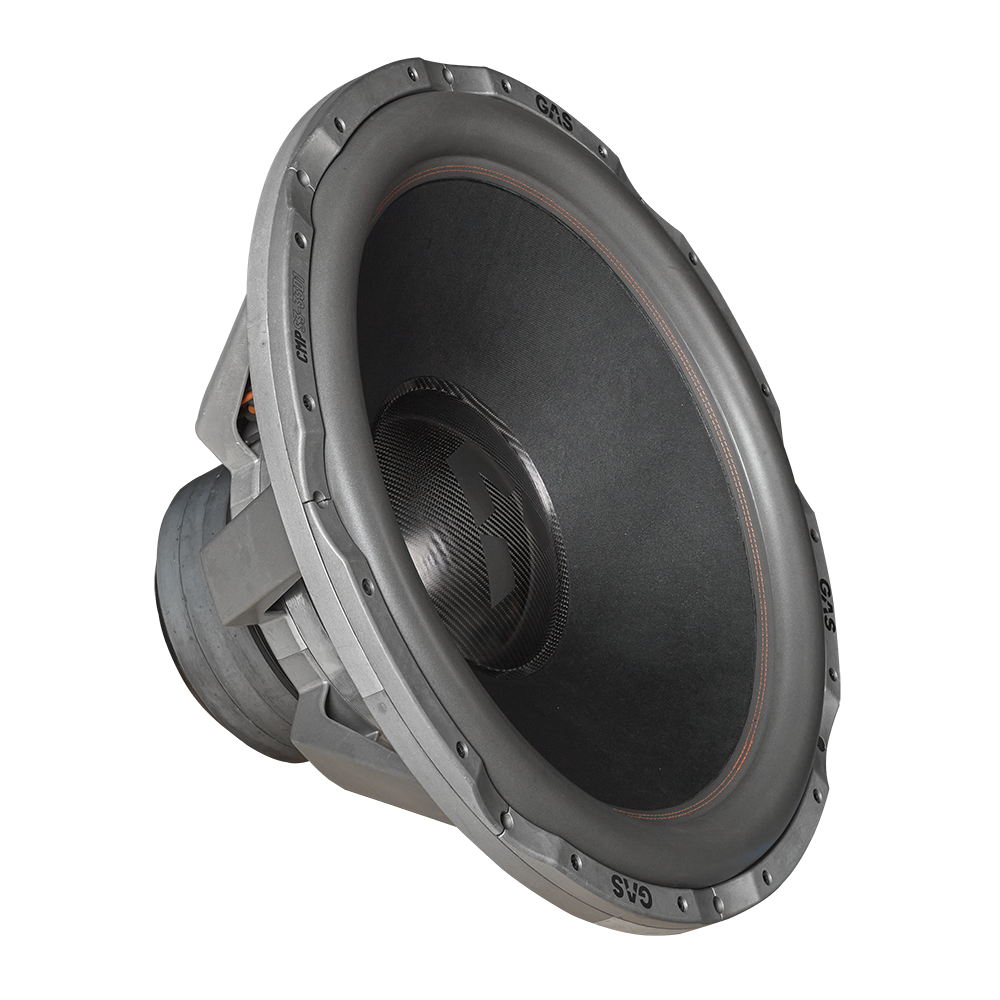

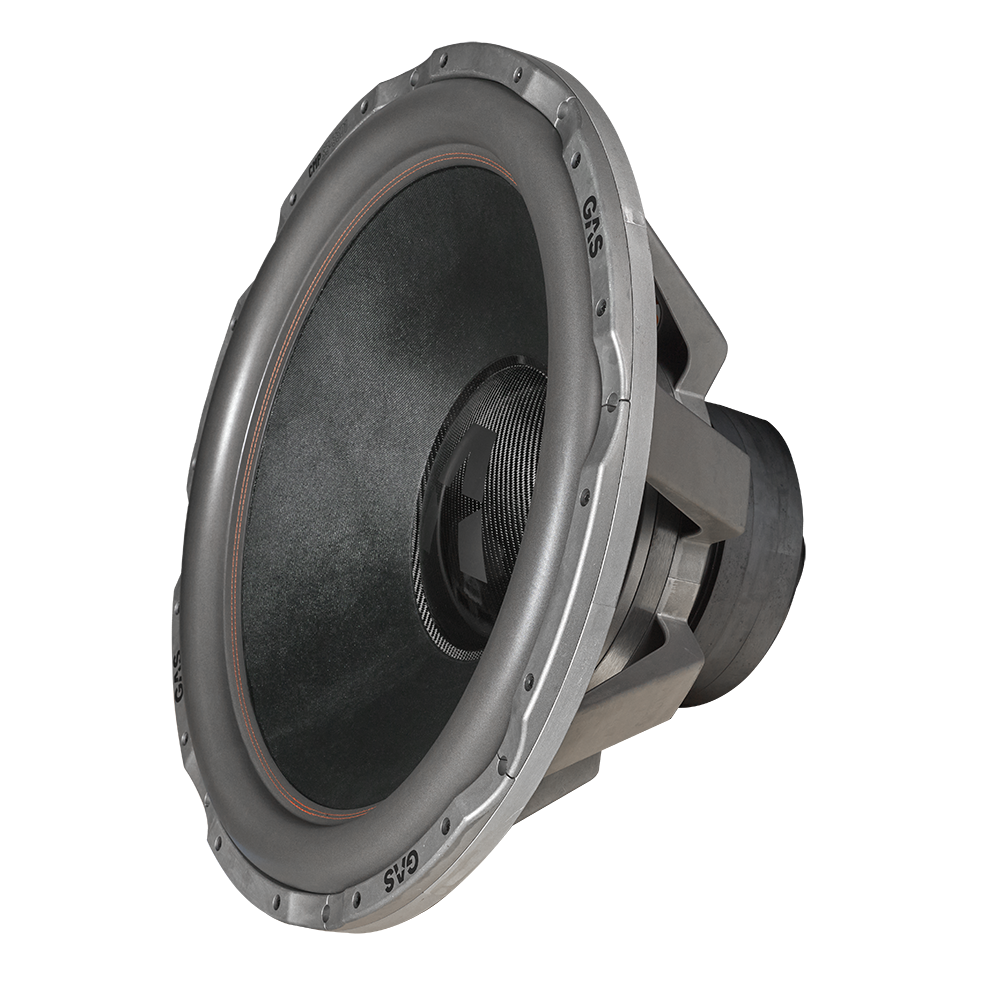

GAS Audio Power CMP S3-33D1
2x1Ω
Subwoofer
| Nominal diameter | 33″ / 840 mm |
| Resonance | 24 Hz |
| Q factor | 0.51 |
| Sensitivity | 92 dB |
| Linear excursion | ± 20 mm |
| Program Power | 22000 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 92dB
- Frequency response 18 - 70Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 24Hz
- Mechanical quality factor QMS 5.11
- Electrical quality factor QES 0.55
- Total quality factor QTS 0.51
Large signal parameters
- Maximum linear excursion (one way) xmax 20mm
- Air volume displaced at xmax VD 7914cm³
- Power handling P 11000W
- Program power Pmax 22000W
Voice Coil
- Nominal impedance Z 2 x 1Ω
- DC resistance (in series) RE 2.2Ω
- Inductance (1kHz, in series) LE 1.6mH
- VC Diameter 152.4mm
- Winding material Aluminum
Magnet
- Force factor (in series) Bl 30.5N/A
- Motor constant Bl/√RE 20.6N/√W
- Diameter 312mm
- Height 90mm
- Material Ferrite
Diaphragm
- Effective diameter 710mm
- Effective area SD 3957cm²
- Moving mass MMS 1860g
- Moving mass (without air load) MMD 1686g
- Material Reinforced Mica pulp
Suspensions
- Stiffness KMS 34.5N/mm
- Compliance CMS 29µm/N
- Equivalent volume to the compliance VAS 530L
- Mechanical resistance RMS 54.9N·s/m
- Surround material Foam
- Spider material Nomex
Dimensions
- Nominal diameter 33″
- 840mm
- Overall diameter 838mm
- Baffle cutout diameter 766mm
- Overall depth 388mm
- Volume occupied by the driver 31.2L
- Net weight 98.0kg
- Frame material Aluminium
