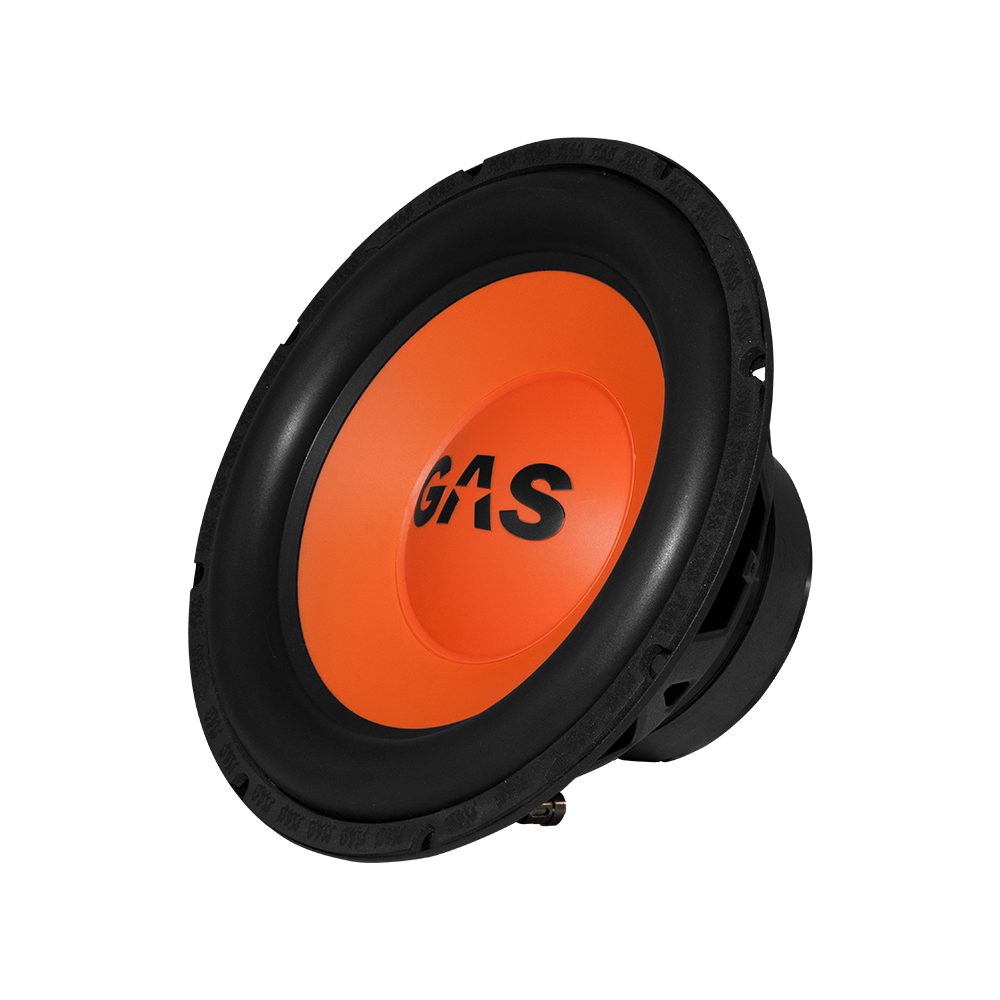

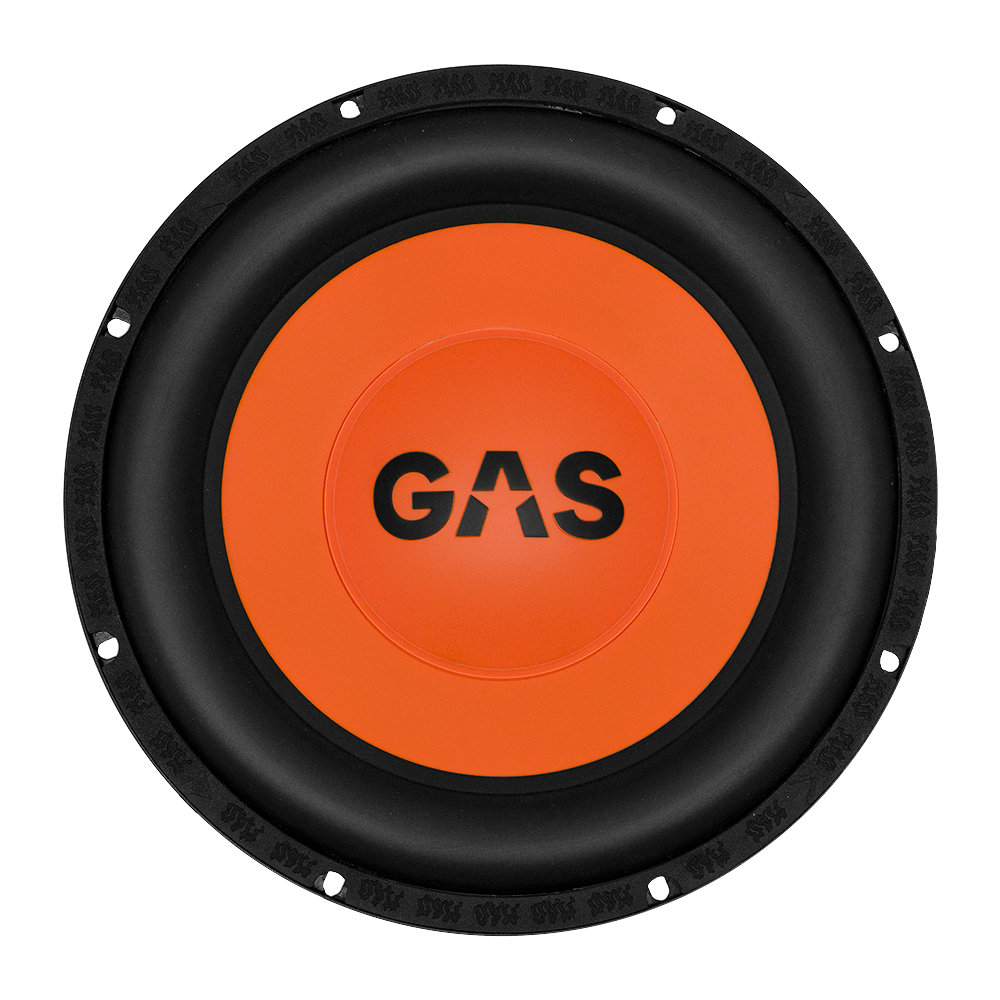

GAS Audio Power MAD S1-104
4Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 31 Hz |
| Q factor | 0.48 |
| Sensitivity | 88.6 dB |
| Linear excursion | ± 8.5 mm |
| Program Power | 500 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.6dB
- Frequency response 27 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 31Hz
- Mechanical quality factor QMS 4.27
- Electrical quality factor QES 0.53
- Total quality factor QTS 0.48
Large signal parameters
- Maximum linear excursion (one way) xmax 8.5mm
- Air volume displaced at xmax VD 347cm³
- Power handling P 250W
- Program power Pmax 500W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.1Ω
- Inductance (1kHz) LE 2.22mH
- VC Diameter 51mm
- Winding material Copper
Magnet
- Force factor Bl 10.5N/A
- Motor constant Bl/√RE 5.96N/√W
- Diameter 130mm
- Material Ferrite
Diaphragm
- Effective diameter 228mm
- Effective area SD 408cm²
- Moving mass MMS 84.1g
- Moving mass (without air load) MMD 78.6g
- Material Polypropylene
Suspensions
- Stiffness KMS 3.85N/mm
- Compliance CMS 260µm/N
- Equivalent volume to the compliance VAS 61.5L
- Mechanical resistance RMS 3.84N·s/m
- Surround material Rubber
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 257mm
- Baffle cutout diameter 231mm
- Overall depth 126mm
- Flange thickness 7mm
- Mounting depth 119mm
- Volume occupied by the driver 1L
- Net weight 3.25kg
- Frame material Steel
