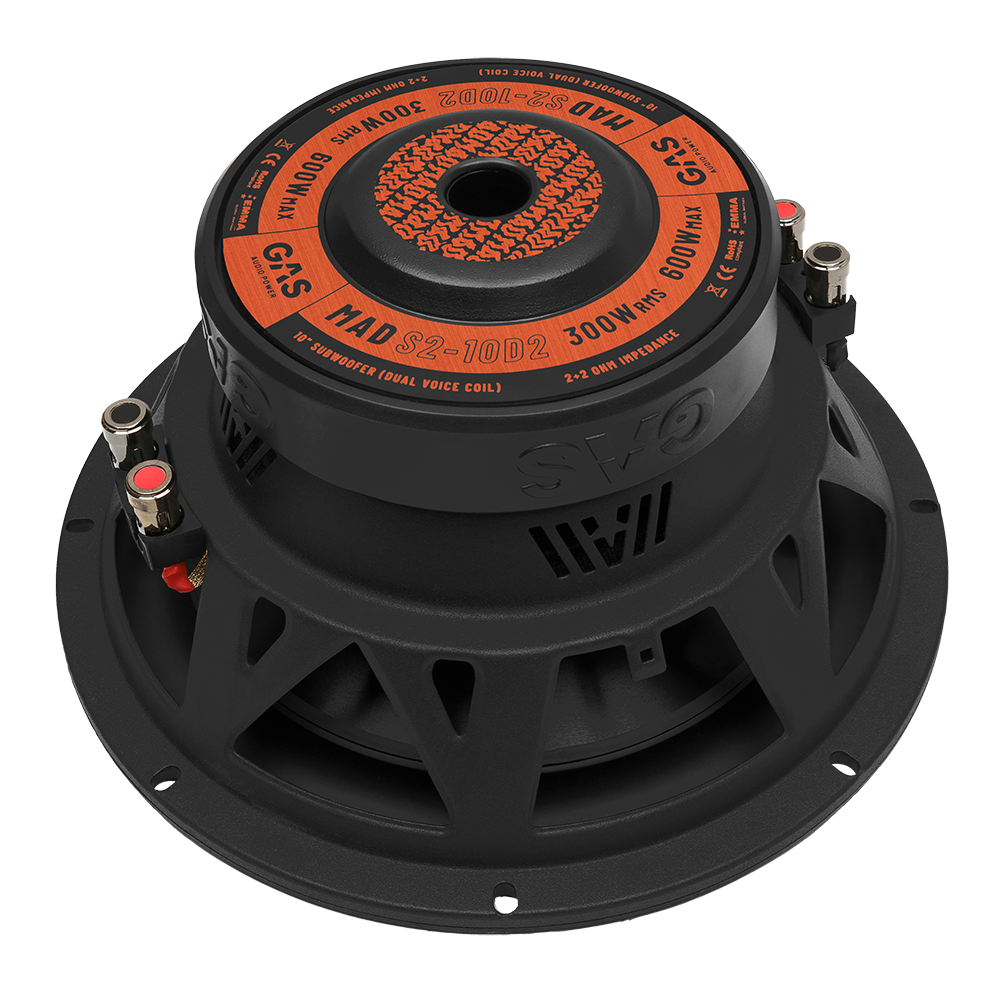

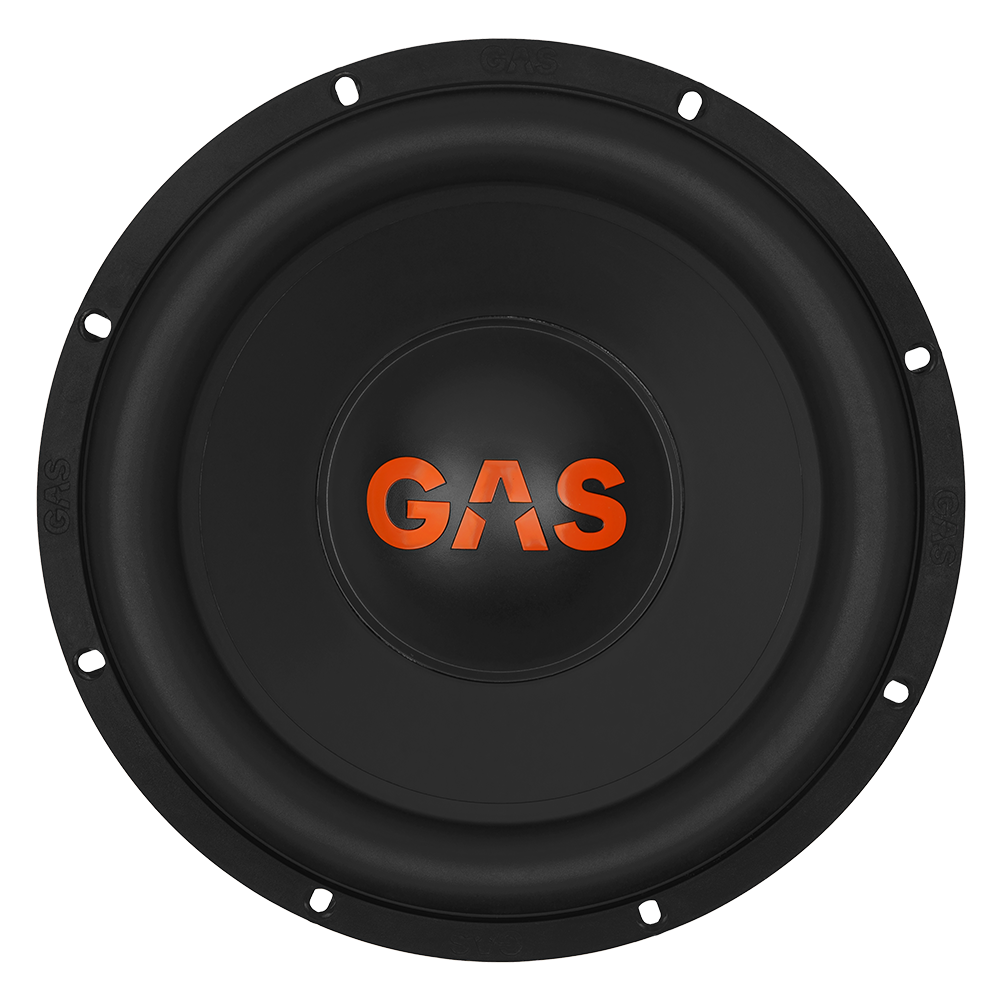

GAS Audio Power MAD S2-10D2
2x2Ω
4ΩSubwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 30 Hz |
| Q factor | 0.44 |
| Sensitivity | 85.1 dB |
| Linear excursion | ± 8.5 mm |
| Program Power | 600 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.1dB
- Frequency response 25 - 250Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 30Hz
- Mechanical quality factor QMS 4.21
- Electrical quality factor QES 0.47
- Total quality factor QTS 0.44
Large signal parameters
- Maximum linear excursion (one way) xmax 8.5mm
- Air volume displaced at xmax VD 284cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.6Ω
- Inductance (1kHz, in series) LE 2.64mH
- VC Diameter 51mm
- Winding material Pure Copper Wire
Magnet
- Force factor (in series) Bl 11.4N/A
- Motor constant Bl/√RE 6.01N/√W
- Material Ferrite
Diaphragm
- Effective diameter 206mm
- Effective area SD 334cm²
- Moving mass MMS 105g
- Moving mass (without air load) MMD 101g
- Material IMPP
Suspensions
- Stiffness KMS 3.2N/mm
- Compliance CMS 313µm/N
- Equivalent volume to the compliance VAS 39.5L
- Mechanical resistance RMS 4.7N·s/m
- Surround material Rubber
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 257mm
- Baffle cutout diameter 231mm
- Mounting depth 119mm
- Volume occupied by the driver 1.2L
- Net weight 3.8kg
- Frame material Steel
