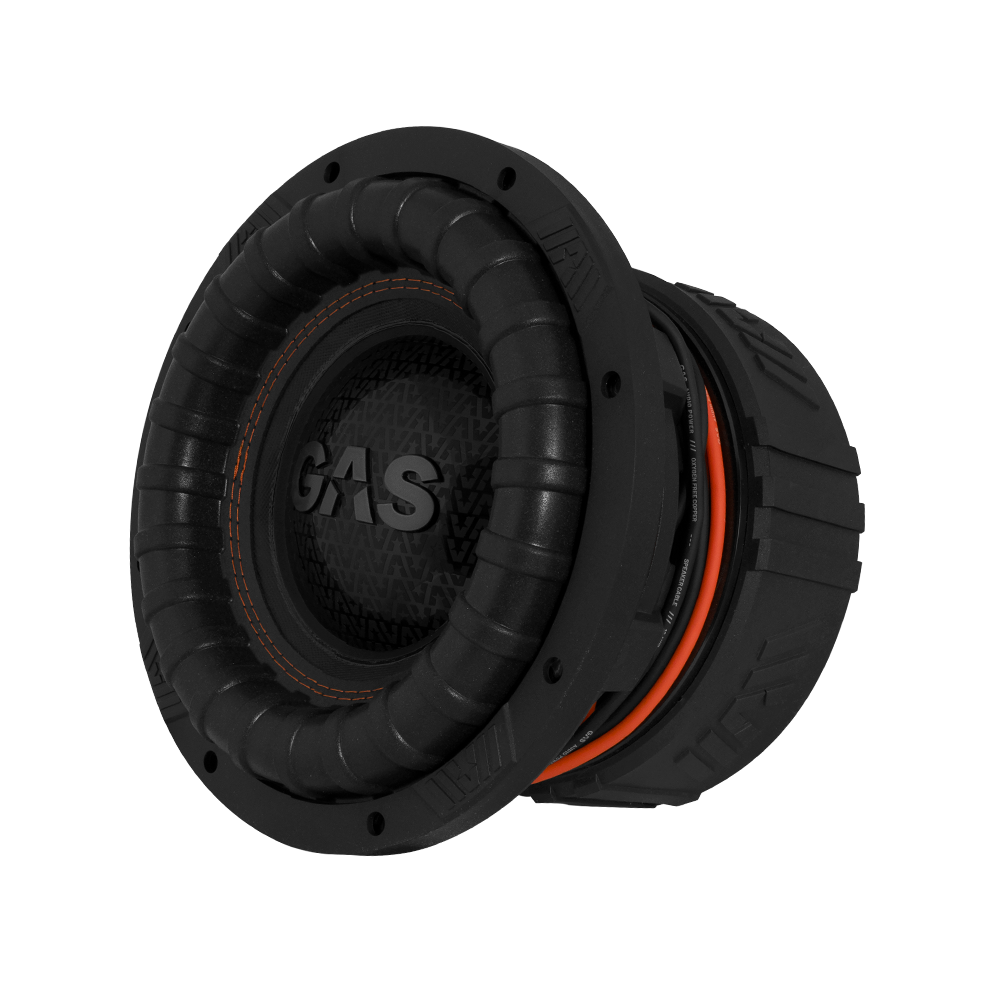

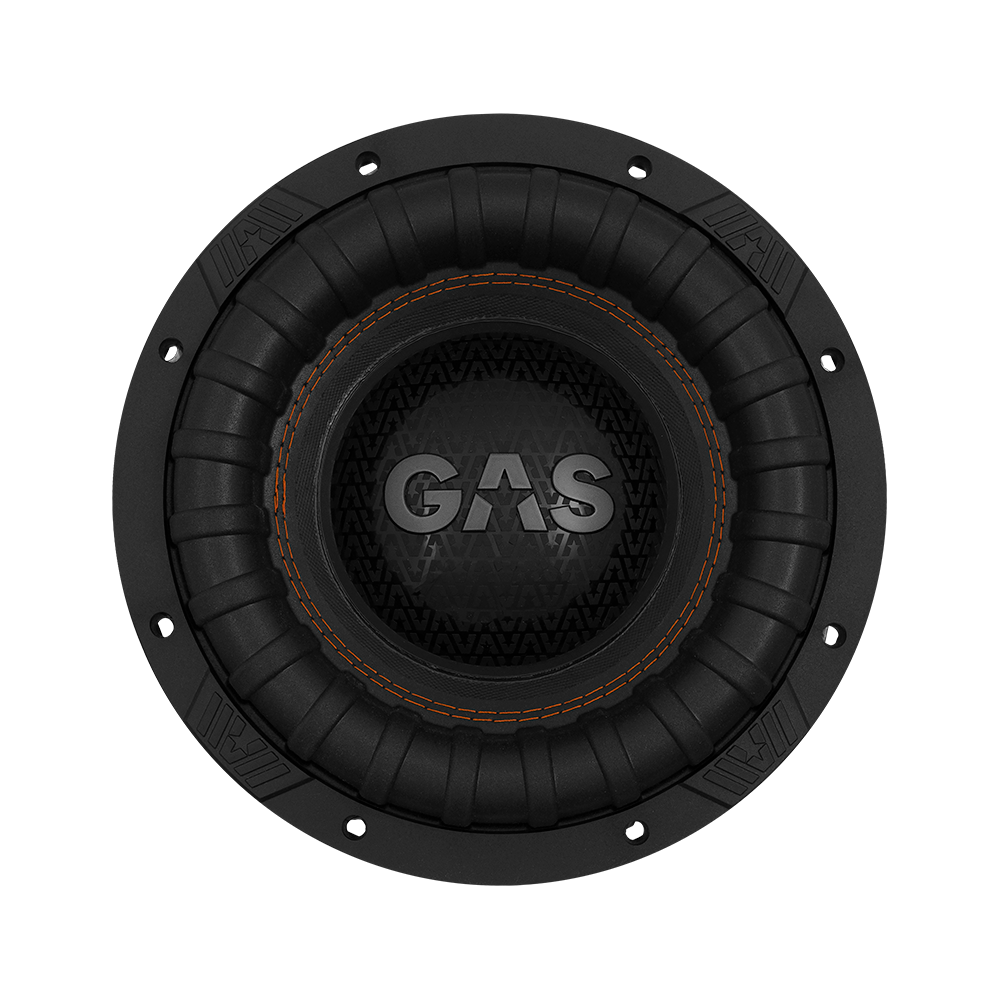

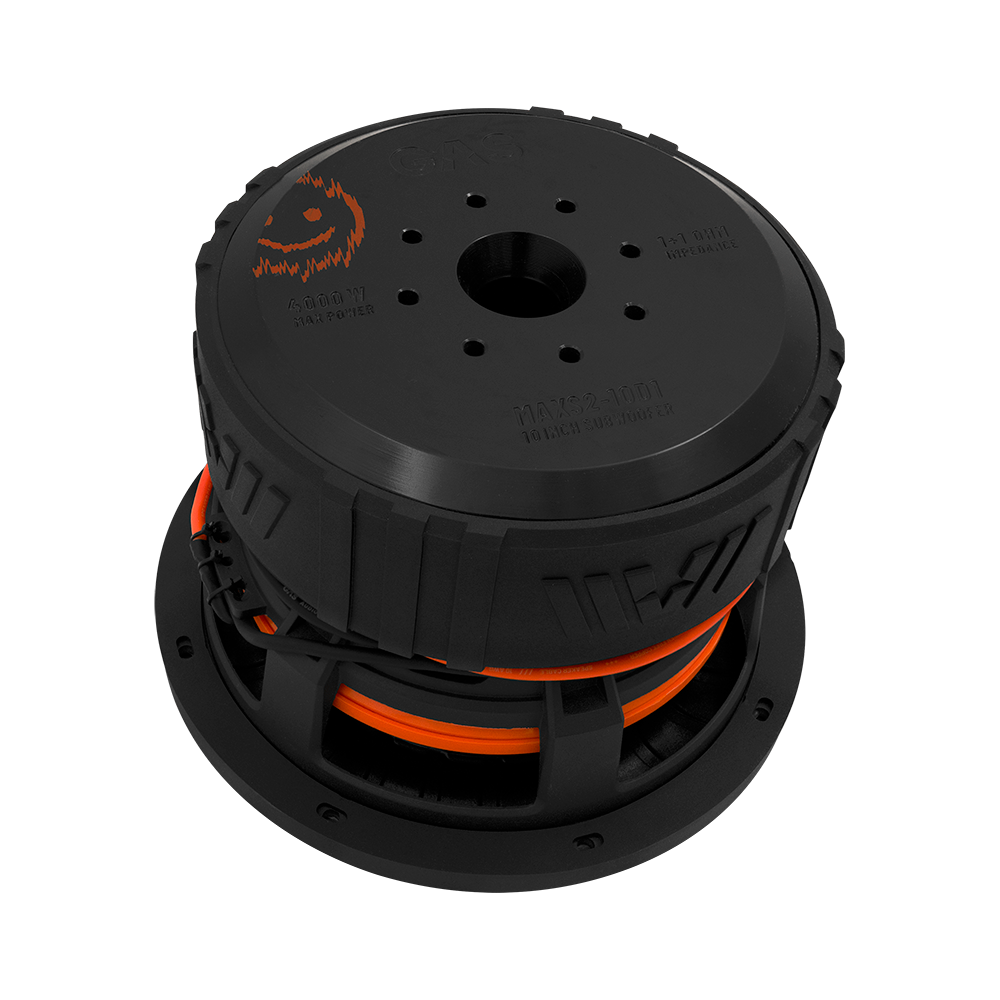

GAS Audio Power MAX S2-10D1
2x1Ω
2x2ΩSubwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 37.8 Hz |
| Q factor | 0.35 |
| Sensitivity | 82.6 dB |
| Linear excursion | ± 20 mm |
| Program Power | 4000 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.6dB
- Frequency response 25 - 200Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 37.8Hz
- Mechanical quality factor QMS 5.54
- Electrical quality factor QES 0.37
- Total quality factor QTS 0.35
Large signal parameters
- Maximum linear excursion (one way) xmax 20mm
- Air volume displaced at xmax VD 596cm³
- Power handling P 2000W
- Program power Pmax 4000W
Voice Coil
- Nominal impedance Z 2 x 1Ω
- DC resistance (in series) RE 1.8Ω
- Inductance (1kHz, in series) LE 1.3mH
- VC Diameter 76.2mm
- Winding material Copper
- Former material BASV
Magnet
- Force factor (in series) Bl 18.1N/A
- Motor constant Bl/√RE 13.5N/√W
- Diameter 230mm
- Weight 9.18kg
- Material Ferrite
Diaphragm
- Effective diameter 195mm
- Effective area SD 298cm²
- Moving mass MMS 286g
- Moving mass (without air load) MMD 282g
- Material Reinforced Mica Pulp
Suspensions
- Stiffness KMS 15.9N/mm
- Compliance CMS 63µm/N
- Equivalent volume to the compliance VAS 9.1L
- Mechanical resistance RMS 12.3N·s/m
- Surround material Foam
- Spider material Nomex
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 275mm
- Baffle cutout diameter 235mm
- Overall depth 190mm
- Flange thickness 15mm
- Mounting depth 175mm
- Volume occupied by the driver 4.5L
- Net weight 19.0kg
- Frame material Aluminium
