GRS 12SMP-8

4Ω
8Ω

Woofer

Nominal diameter12″ / 332 mm
Resonance28 Hz
Q factor0.56
Sensitivity87.7 dB
Linear excursion± 5.5 mm
Program power180 W

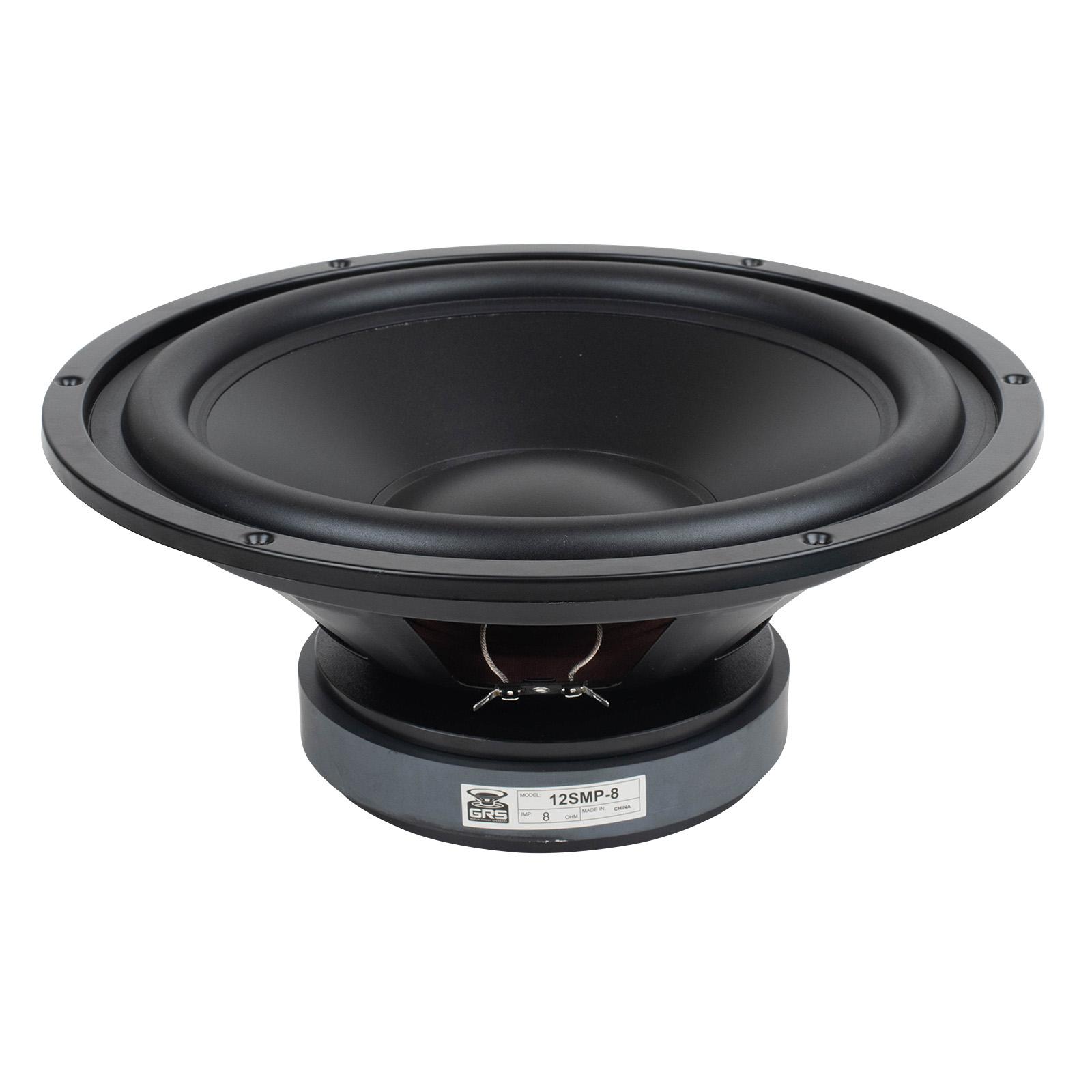

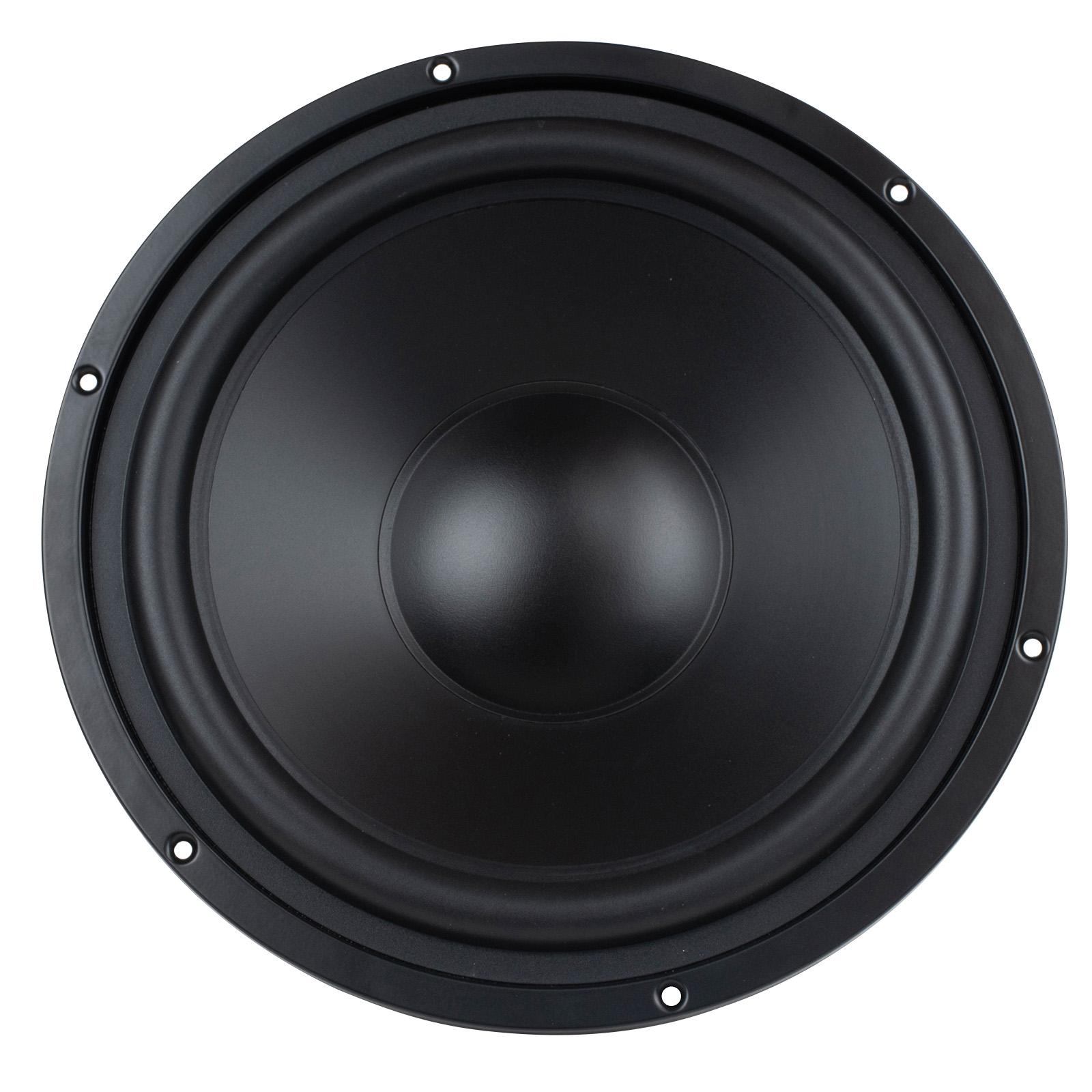

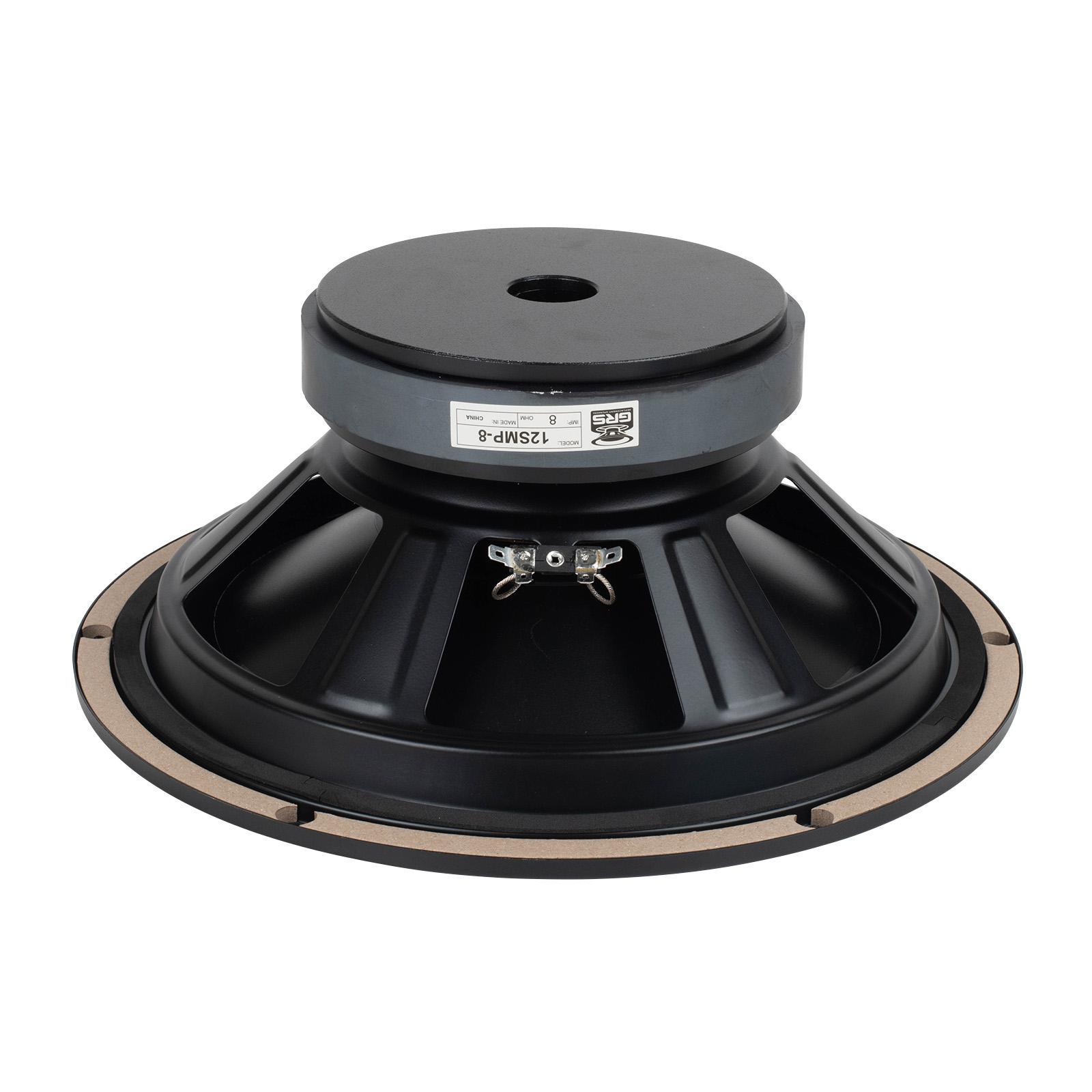

GRS 12SMP-8 WooferGRS 12SMP-8 WooferGRS 12SMP-8 Woofer
Impedance
Excursion
Velocity
SPL
Phase
Group delay
Step response
Tone Burst
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply

Specifications

  • Sensitivity (1W, 1m, infinite baffle) SPL1W 87.7dB
  • Frequency response 20 - 1500Hz

Thiele & Small parameters

  • Resonance frequency (free air) fS 28Hz
  • Mechanical quality factor QMS 3.00
  • Electrical quality factor QES 0.68
  • Total quality factor QTS 0.56

Large signal parameters

  • Maximum linear excursion (one way) xmax 5.5mm
  • Air volume displaced at xmax VD 284cm³
  • Power handling P 90W
  • Program power Pmax 180W

Voice Coil

  • Nominal impedance Z 8Ω
  • DC resistance RE 5.8Ω
  • Inductance (1kHz) LE 0.54mH
  • VC Diameter 50mm
  • Former material Aluminum

Magnet

  • Force factor Bl 12N/A
  • Motor constant Bl/√RE 4.98N/√W
  • Diameter 170mm
  • Height 25mm

Diaphragm

  • Effective diameter 256mm
  • Effective area SD 516cm²
  • Moving mass (including air load) MMS 96g
  • Moving mass MMD 87.2g
  • Material Poly

Suspensions

  • Stiffness KMS 2.94N/mm
  • Compliance CMS 340µm/N
  • Equivalent volume to the compliance VAS 127L
  • Mechanical resistance RMS 5.63N·s/m
  • Surround material Rubber

Dimensions

  • Nominal diameter 12″
  • 332mm
  • Overall diameter 332mm
  • Baffle cutout diameter 284mm
  • Overall depth 136mm
  • Flange thickness 8mm
  • Mounting depth 129mm
  • Volume occupied by the driver (estimated) 2.5L
Impedance
SPL

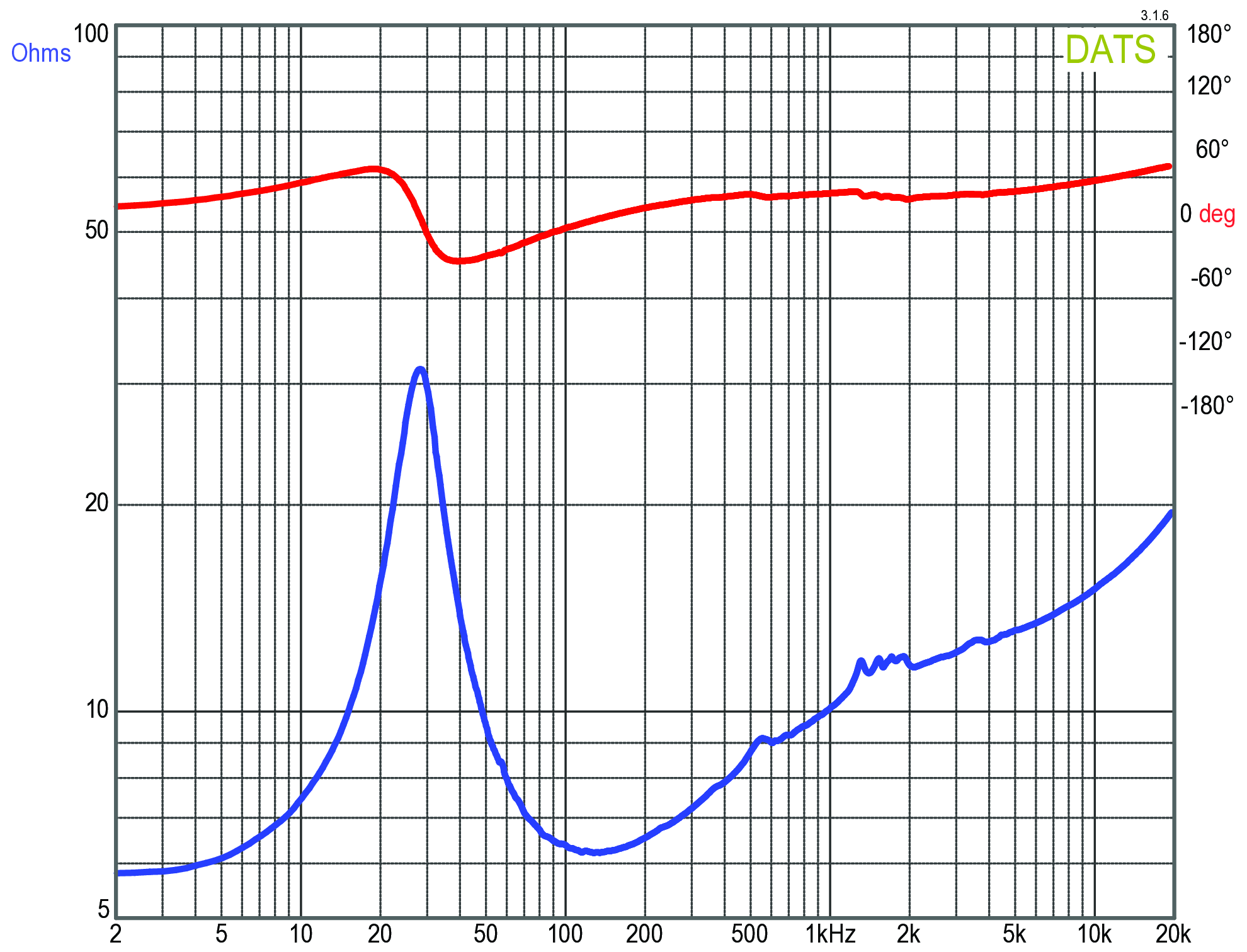

GRS 12SMP-8 Impedance

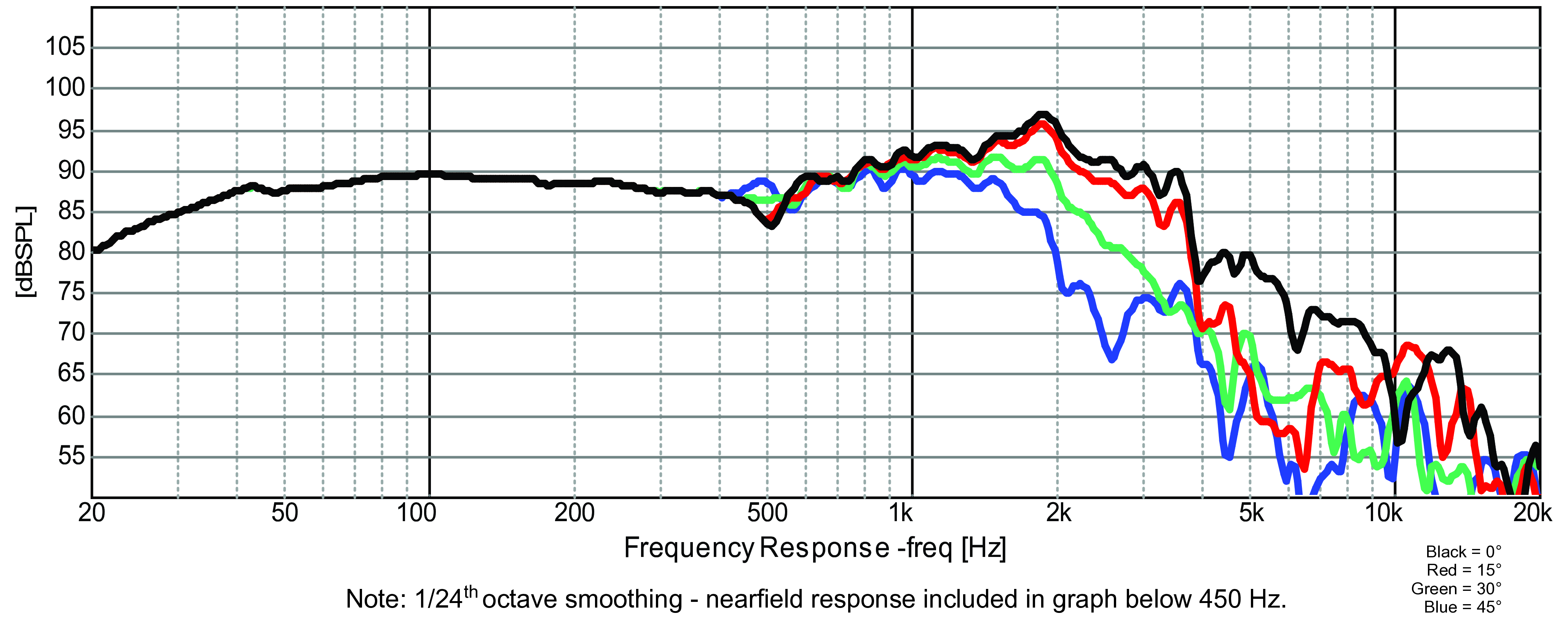

GRS 12SMP-8 SPL

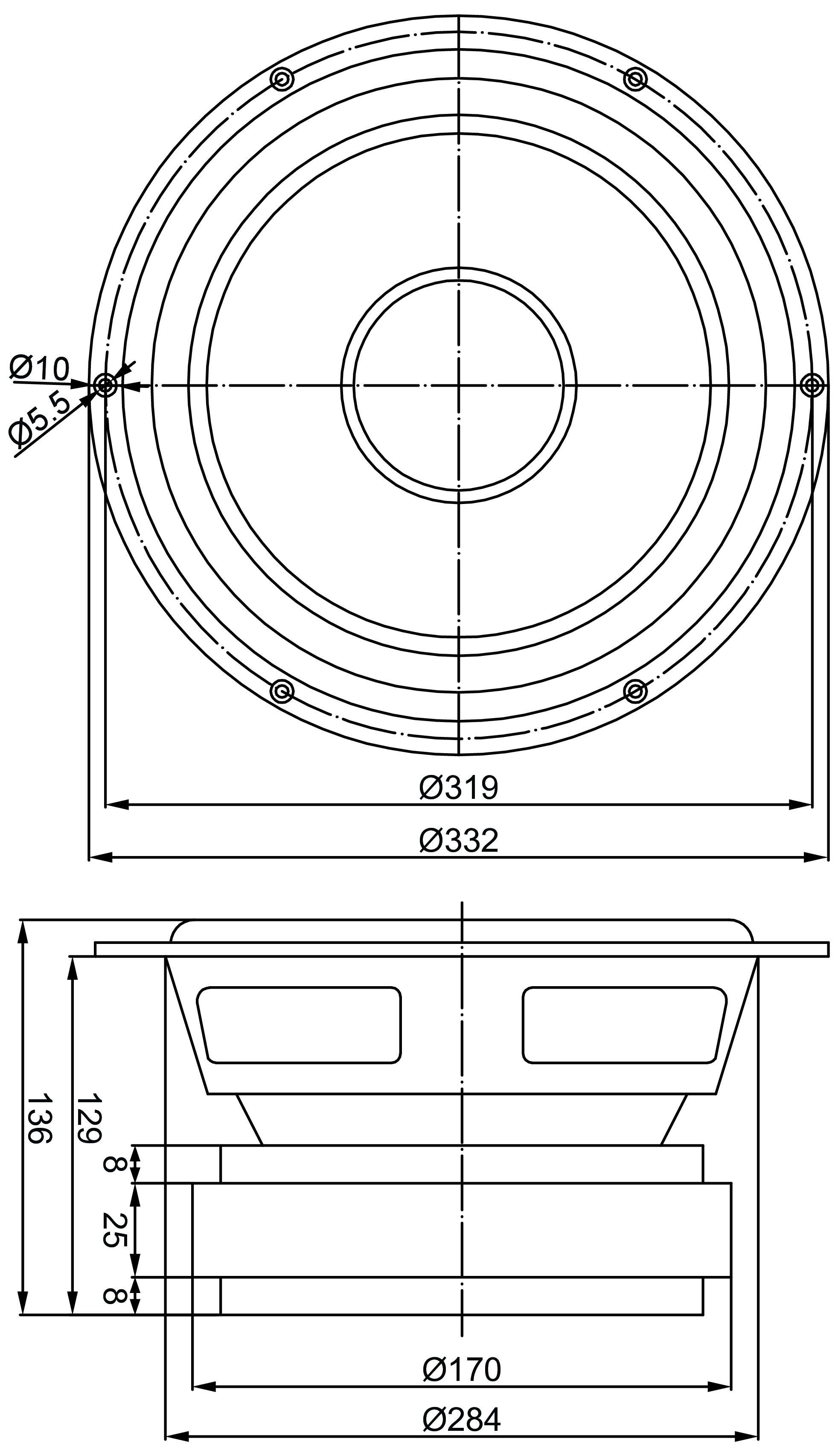

GRS 12SMP-8 Dimensions
PDF fileDatasheet
