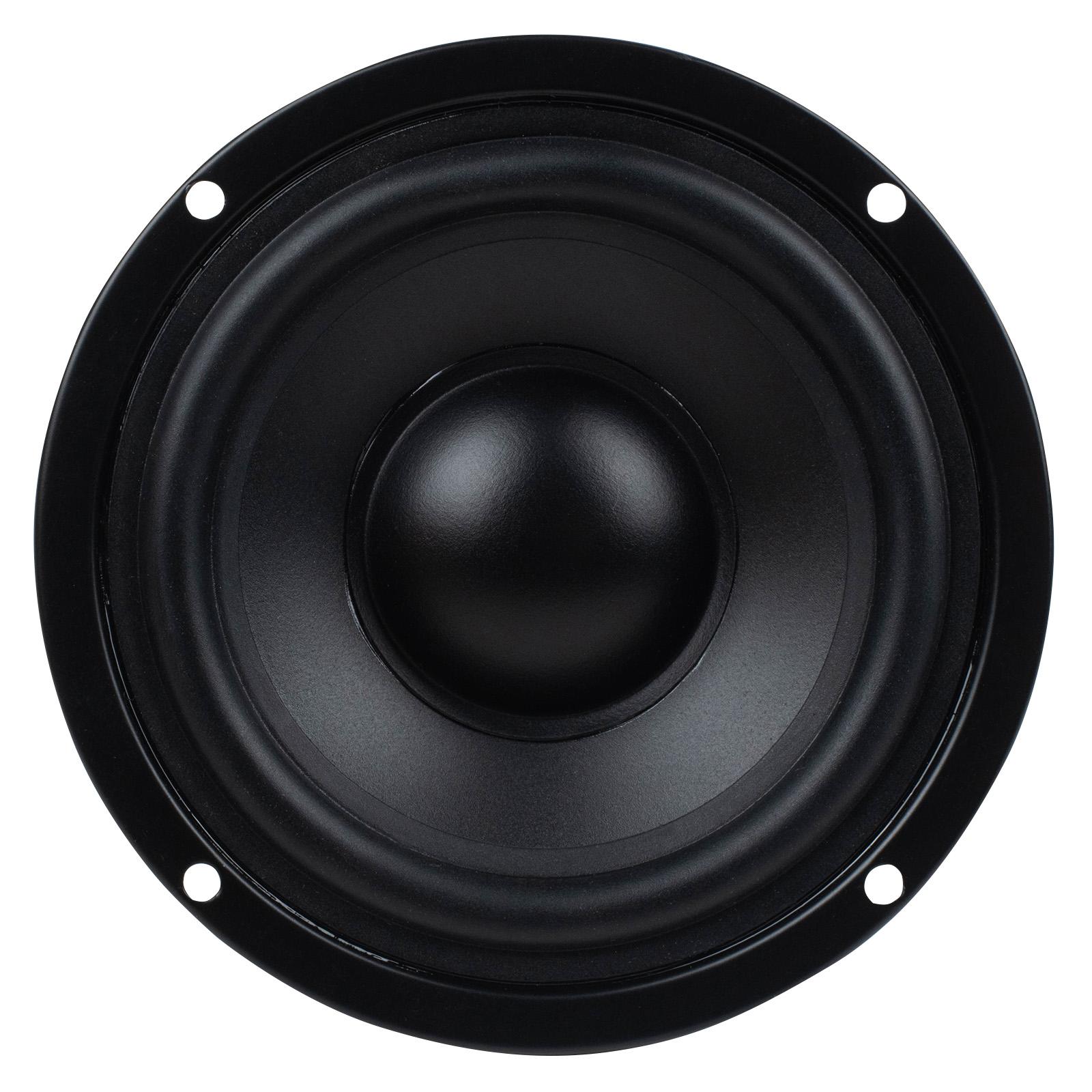

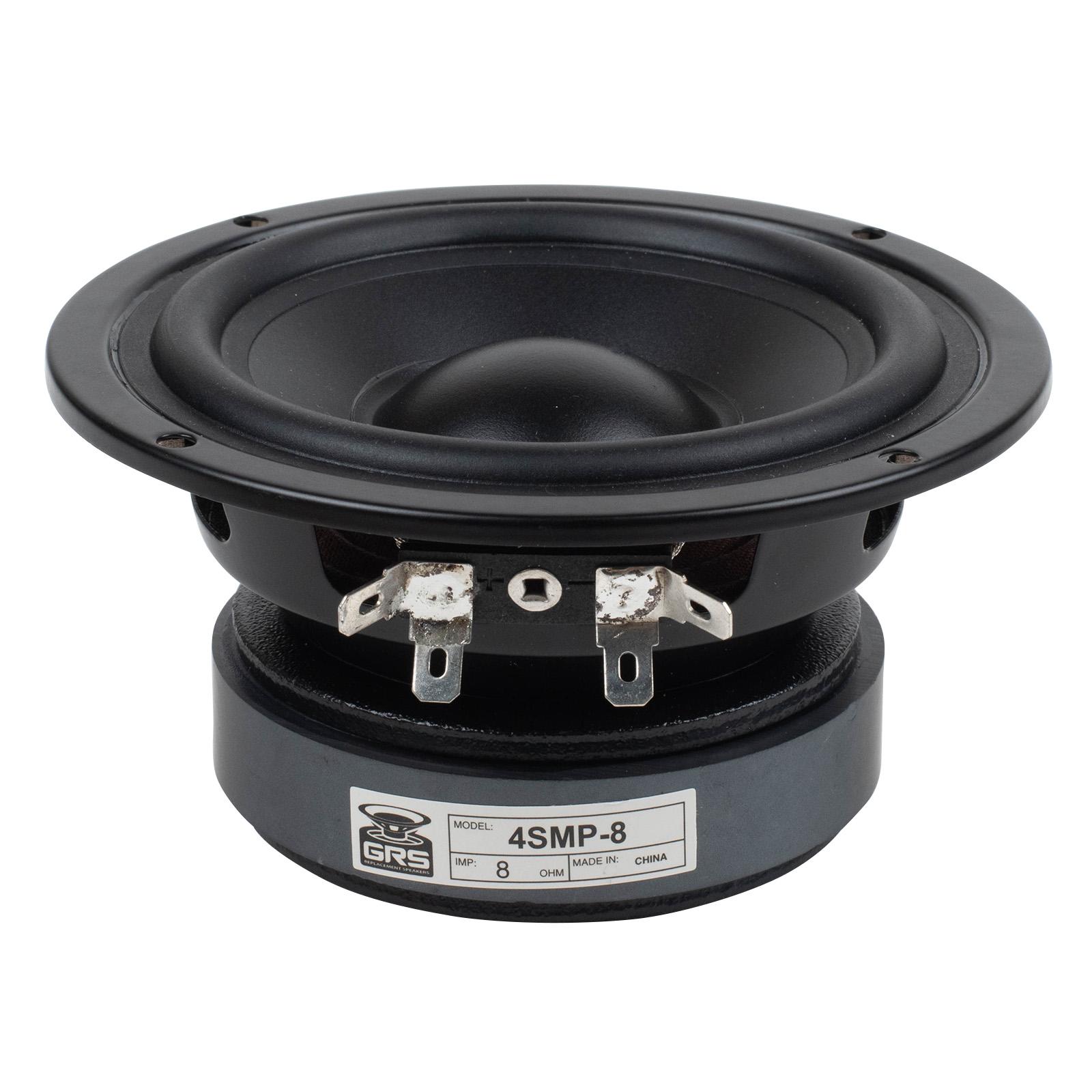

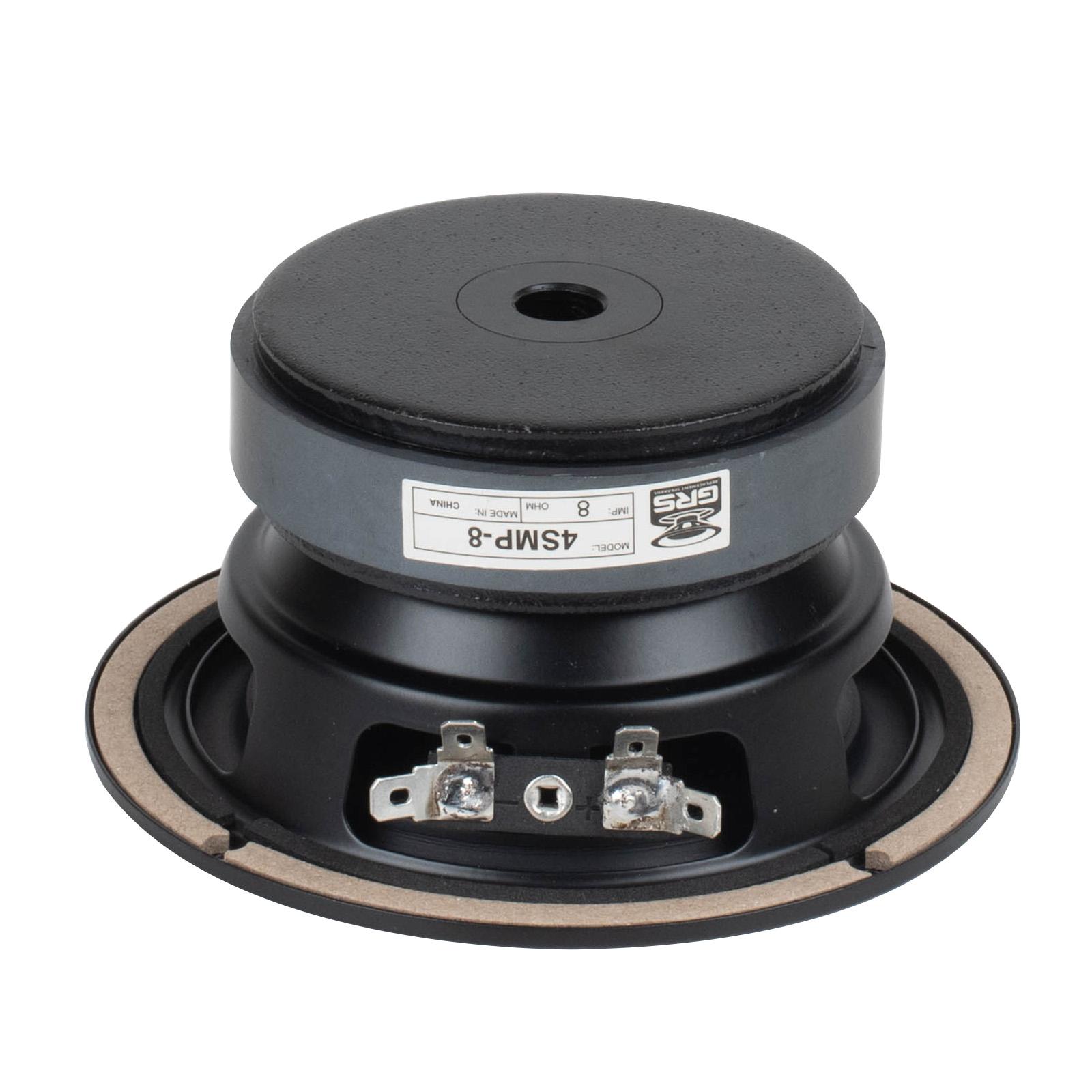

GRS 4SMP-8
4Ω
8Ω
Woofer
| Nominal diameter | 4″ / 115 mm |
| Resonance | 63 Hz |
| Q factor | 0.65 |
| Sensitivity | 82.7 dB |
| Linear excursion | ± 4 mm |
| Program power | 60 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 82.7dB

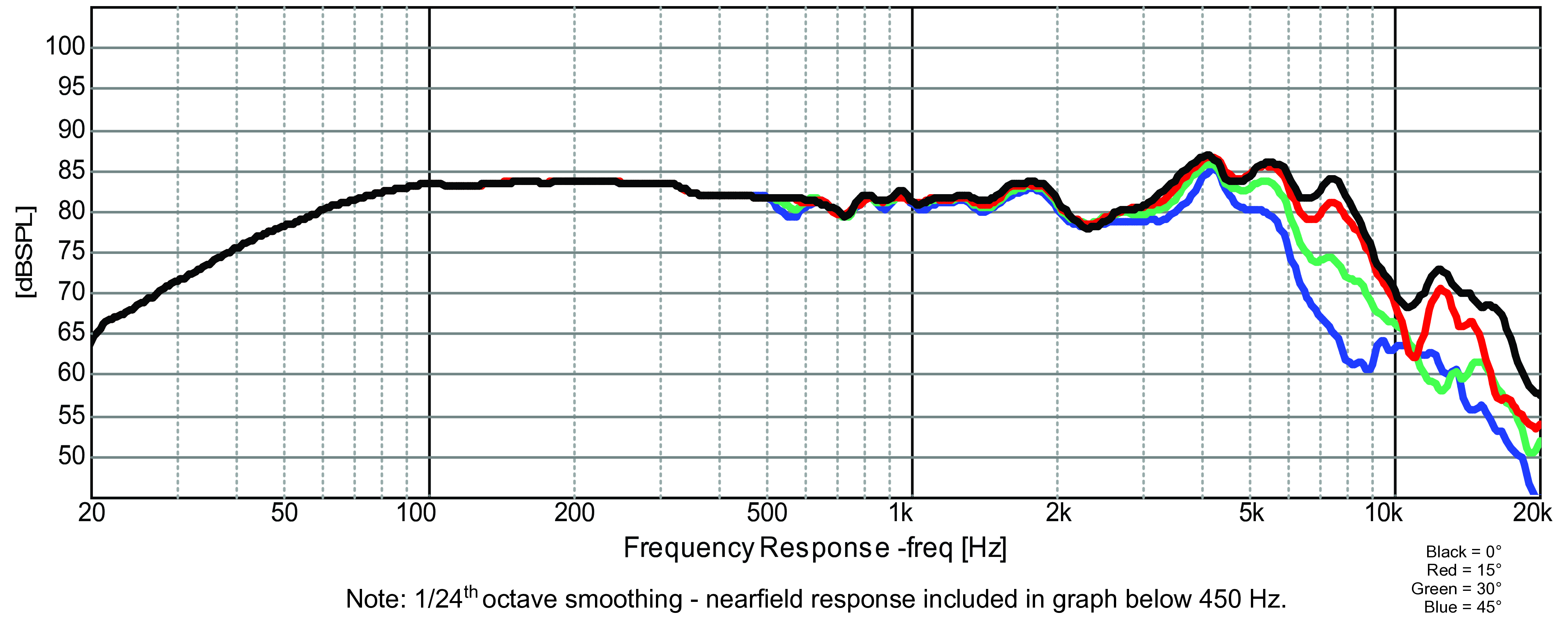

- Frequency response 50 - 6000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 63Hz
- Mechanical quality factor QMS 3.00
- Electrical quality factor QES 0.83
- Total quality factor QTS 0.65
Large signal parameters
- Maximum linear excursion (one way) xmax 4mm
- Air volume displaced at xmax VD 22cm³
- Power handling P 30W
- Program power Pmax 60W
Voice Coil

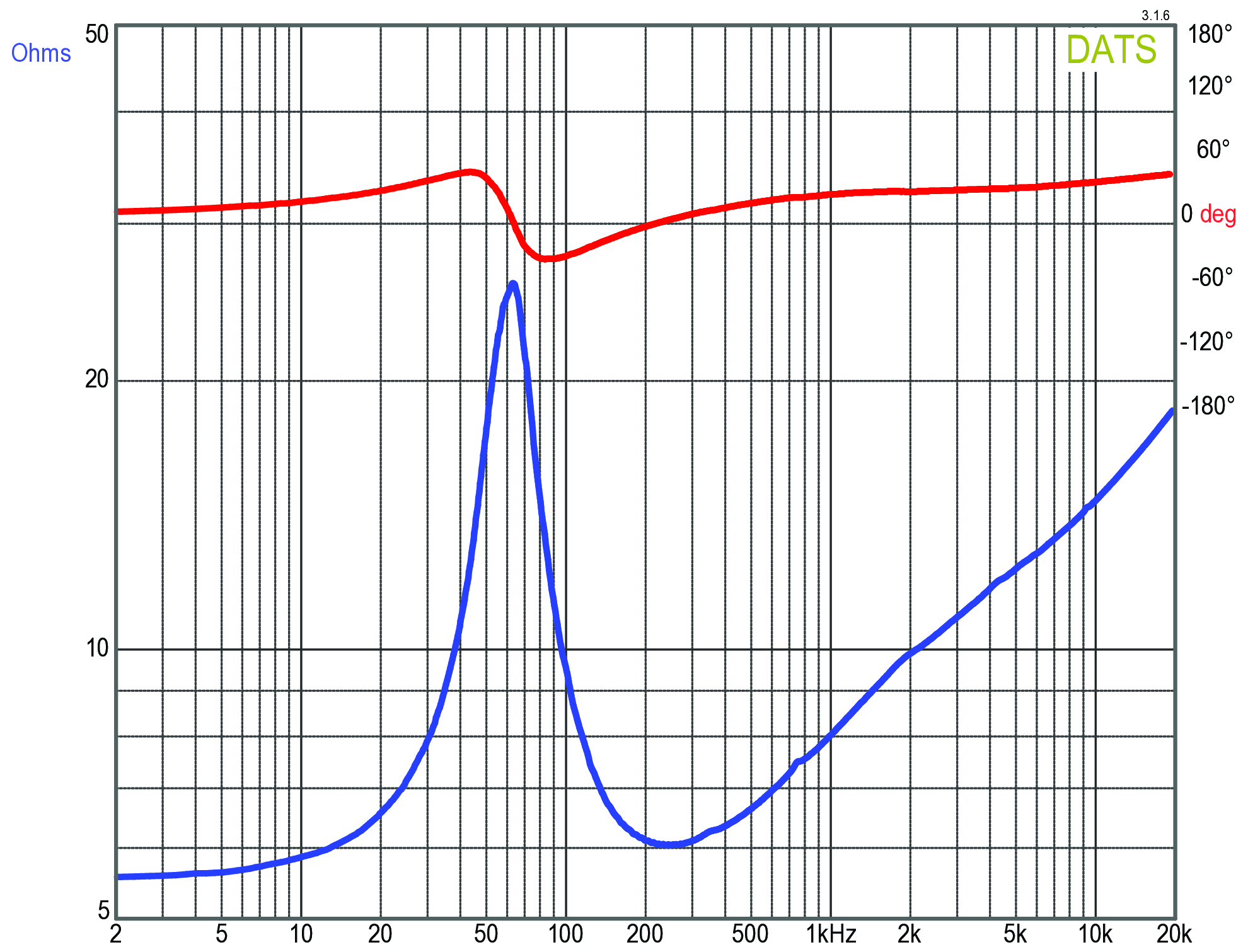

- Nominal impedance Z 8Ω
- DC resistance RE 5.5Ω
- Inductance (1kHz) LE 0.58mH
- VC Diameter 26mm
- Former material Aluminum
Magnet
- Force factor Bl 4.2N/A
- Motor constant Bl/√RE 1.79N/√W
- Diameter 80mm
- Height 15mm
Diaphragm
- Effective diameter 83mm
- Effective area SD 54cm²
- Moving mass (including air load) MMS 6.6g
- Moving mass MMD 6.3g
- Material Damped poly cone
Suspensions
- Stiffness KMS 1.03N/mm
- Compliance CMS 970µm/N
- Equivalent volume to the compliance VAS 4L
- Mechanical resistance RMS 0.87N·s/m
- Surround material Rubber

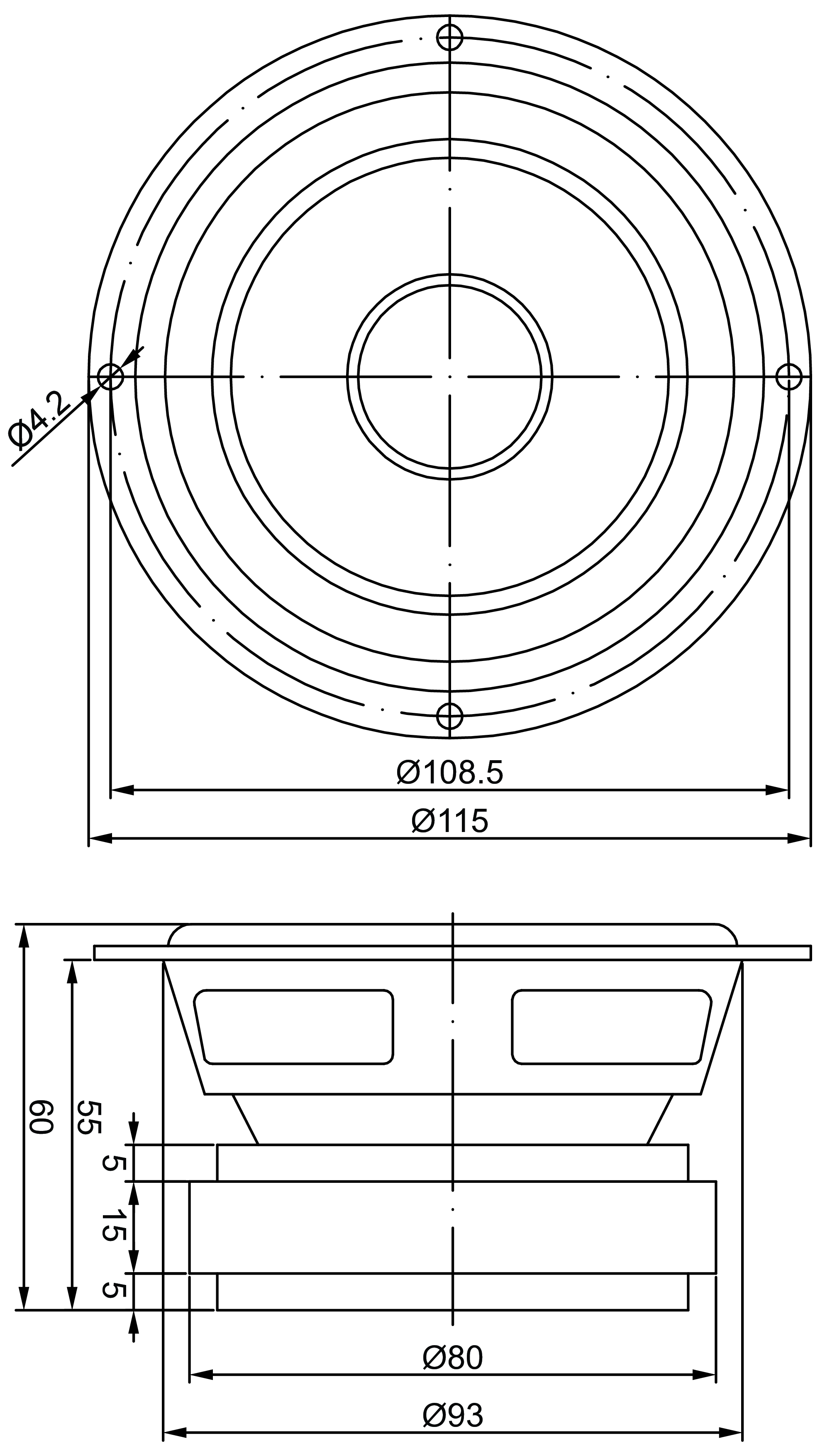

Dimensions
- Nominal diameter 4″
- 115mm
- Overall diameter 115mm
- Baffle cutout diameter 93mm
- Overall depth 60mm
- Flange thickness 5mm
- Mounting depth 55mm
- Volume occupied by the driver (estimated) 0.2L
