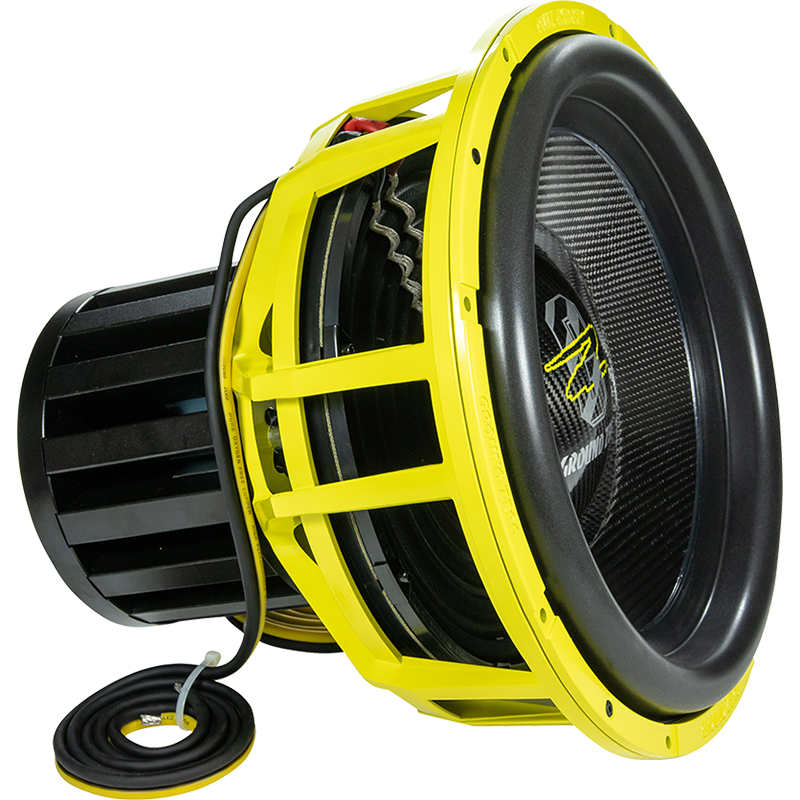

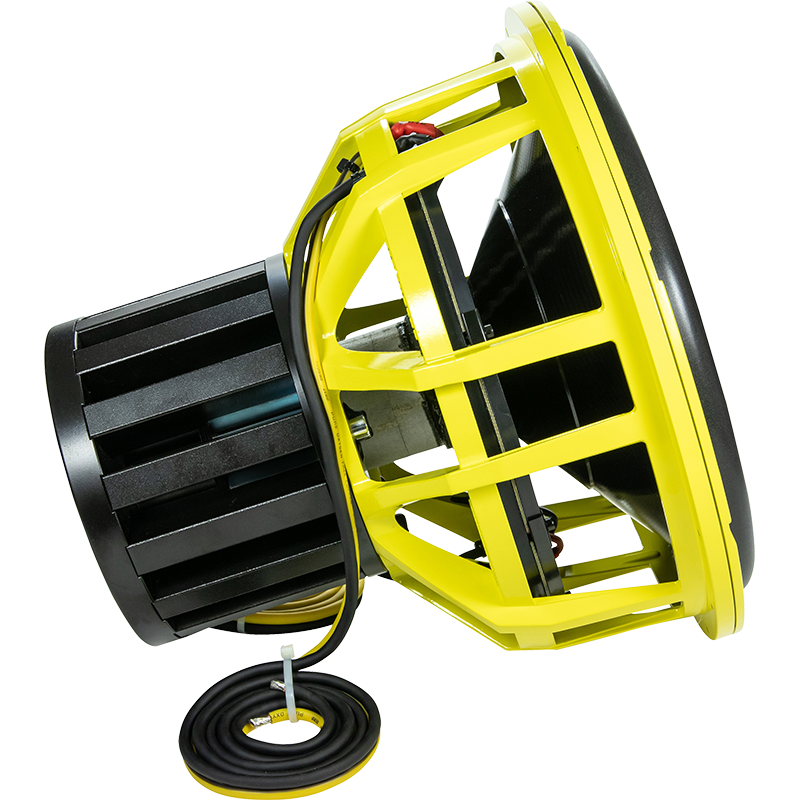

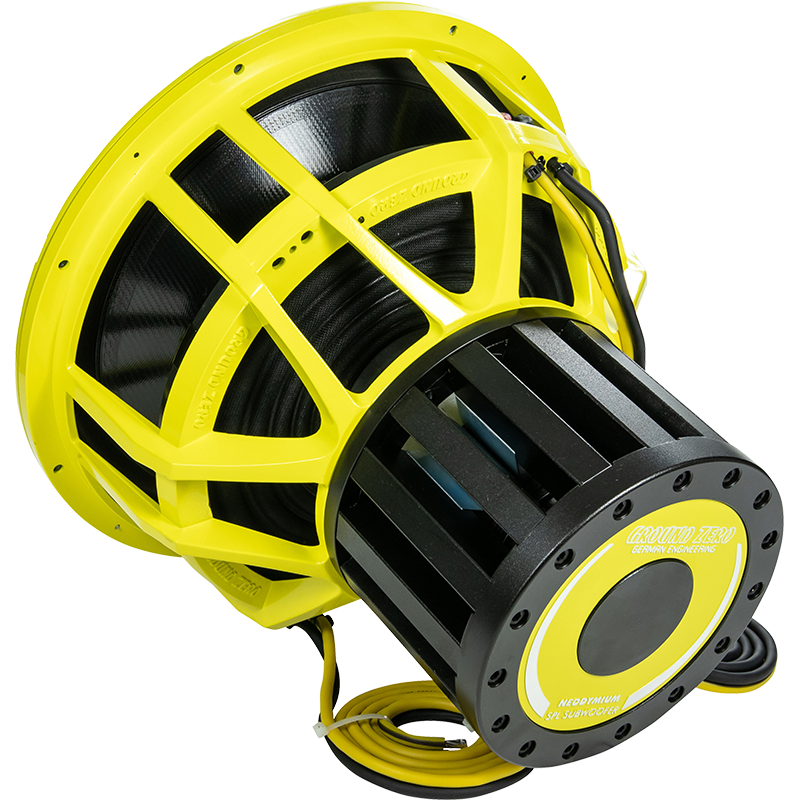

Ground Zero NUCLEAR GZNW 38NEO-XSPL
2x1Ω
Subwoofer
| Nominal diameter | 15″ / 380 mm |
| Resonance | 31 Hz |
| Q factor | 0.16 |
| Sensitivity | 88.3 dB |
| Linear excursion | ± 40 mm |
| Program Power | 12000 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.3dB
Thiele & Small parameters
- Resonance frequency (free air) fS 31Hz
- Mechanical quality factor QMS 5.85
- Electrical quality factor QES 0.16
- Total quality factor QTS 0.16
Large signal parameters
- Maximum linear excursion (one way) xmax 40mm
- Air volume displaced at xmax VD 3318cm³
- Power handling P 6000W
- Program power Pmax 12000W
- Peak power Ppeak 25000W
Voice Coil
- Nominal impedance Z 2 x 1Ω
- DC resistance (in series) RE 1.5Ω
- Inductance (1kHz, in series) LE 2.44mH
- VC Diameter 75mm
- Winding material CCA
Magnet
- Force factor (in series) Bl 43.9N/A
- Motor constant Bl/√RE 35.8N/√W
- Diameter 200mm
- Material Neodymium
Diaphragm
- Effective diameter 325mm
- Effective area SD 830cm²
- Moving mass MMS 1049g
- Moving mass (without air load) MMD 1032g
- Material Carbon
Suspensions
- Stiffness KMS 41.7N/mm
- Compliance CMS 24µm/N
- Equivalent volume to the compliance VAS 24.5L
- Mechanical resistance RMS 35N·s/m
- Surround material ConeGrip
Dimensions
- Nominal diameter 15″
- 380mm
- Overall diameter 390mm
- Baffle cutout diameter 360mm
- Overall depth 332mm
- Flange thickness 17mm
- Mounting depth 315mm
- Volume occupied by the driver (estimated) 10L
- Frame material Aluminium
