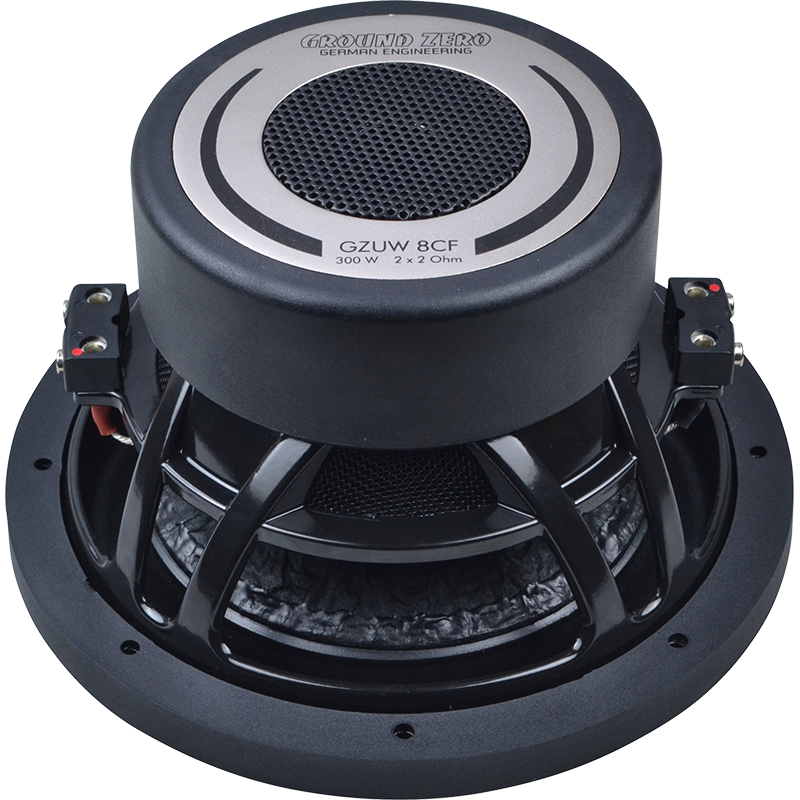

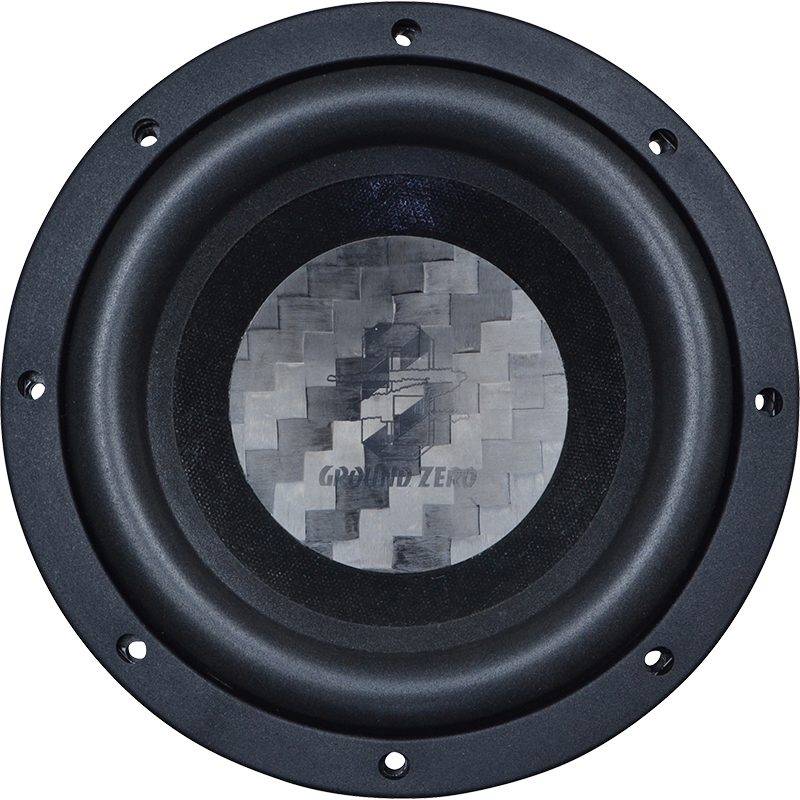

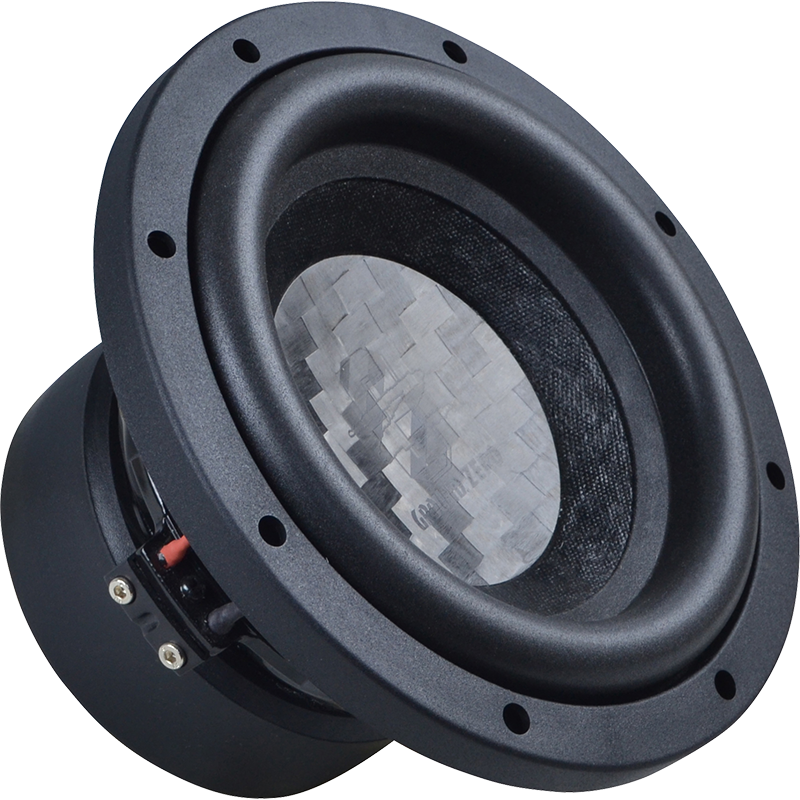

Ground Zero URANIUM GZUW 8CF
2x2Ω
Subwoofer
| Nominal diameter | 8″ / 200 mm |
| Resonance | 57 Hz |
| Q factor | 0.70 |
| Sensitivity | 83.7 dB |
| Linear excursion | ± 10 mm |
| Program Power | 600 W |
.png)
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.7dB
Thiele & Small parameters
- Resonance frequency (free air) fS 57Hz
- Mechanical quality factor QMS 11.92
- Electrical quality factor QES 0.74
- Total quality factor QTS 0.70
Large signal parameters
- Maximum linear excursion (one way) xmax 10mm
- Air volume displaced at xmax VD 201cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.1Ω
- Inductance (1kHz, in series) LE 1.57mH
- VC Diameter 50mm
- Winding material Copper
Magnet
- Force factor (in series) Bl 13.6N/A
- Motor constant Bl/√RE 6.72N/√W
Diaphragm
- Effective diameter 160mm
- Effective area SD 201cm²
- Moving mass MMS 91g
- Moving mass (without air load) MMD 88.8g
- Material Pressed and coated paper cone
Suspensions
- Stiffness KMS 11.9N/mm
- Compliance CMS 84µm/N
- Equivalent volume to the compliance VAS 4.8L
- Mechanical resistance RMS 2.73N·s/m
- Spider material Polycot
Dimensions
- Nominal diameter 8″
- 200mm
- Overall diameter 215mm
- Baffle cutout diameter 181mm
- Mounting depth 108mm
- Volume occupied by the driver (estimated) 0.99L
- Frame material Aluminium cast
