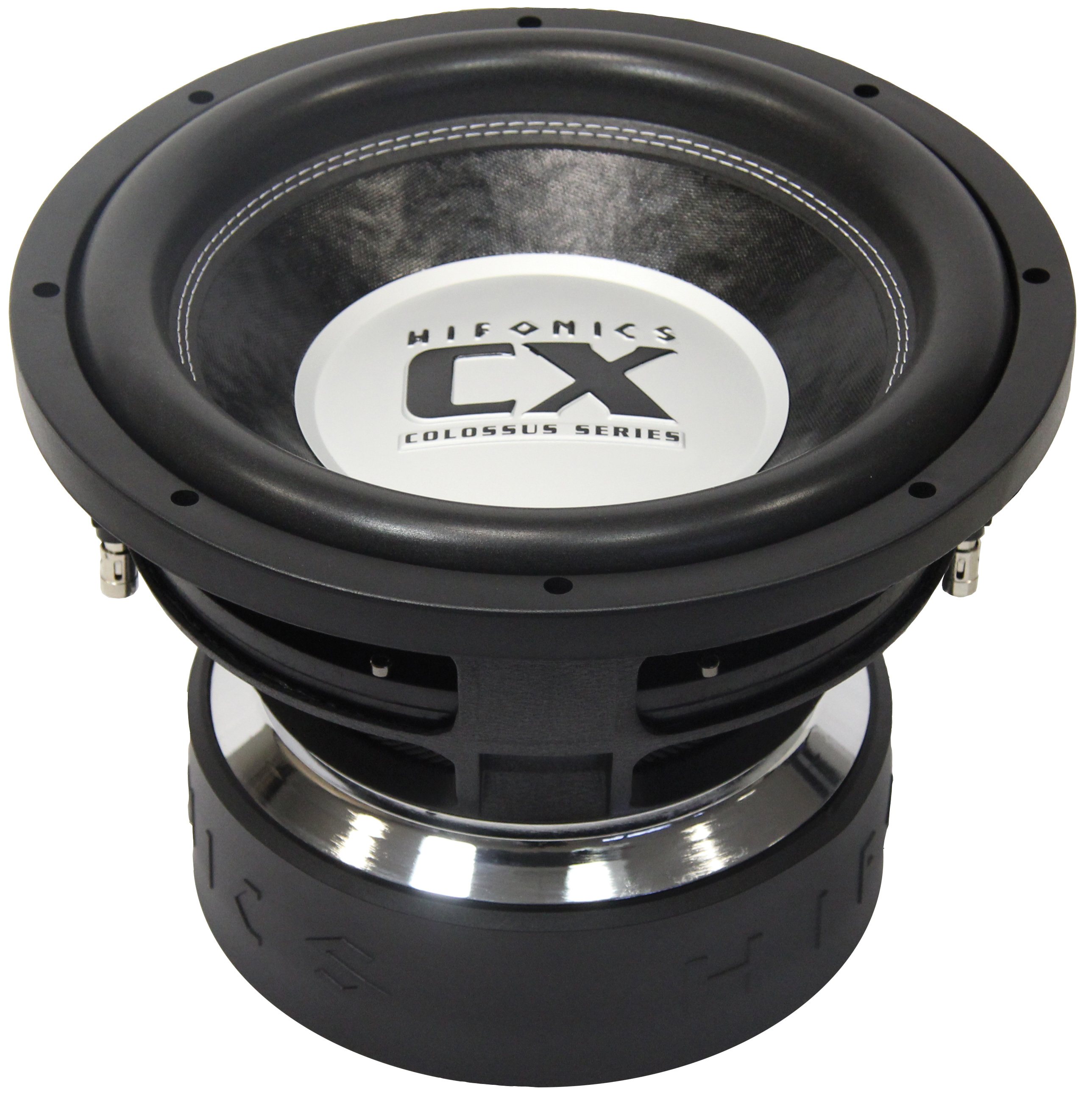

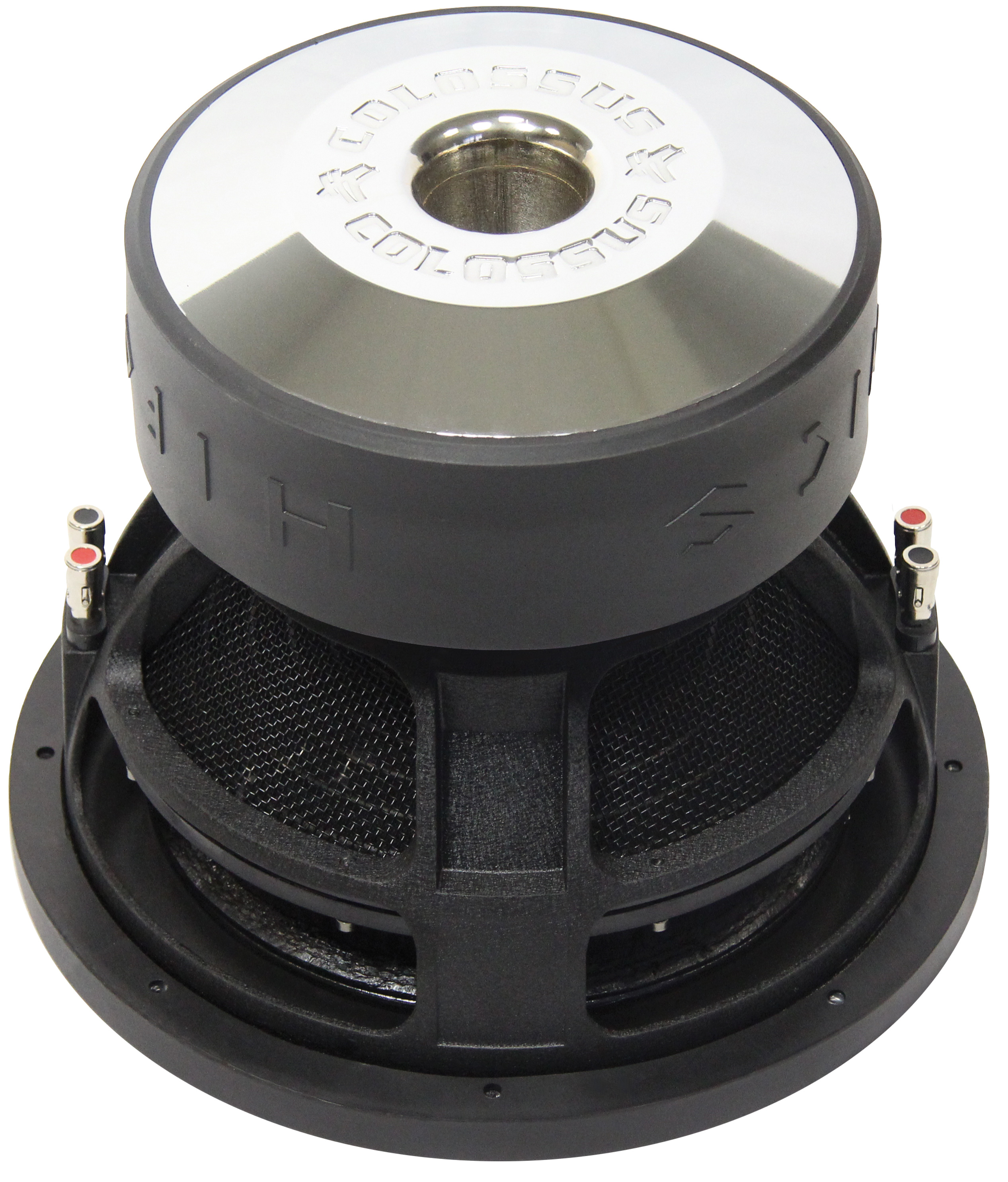

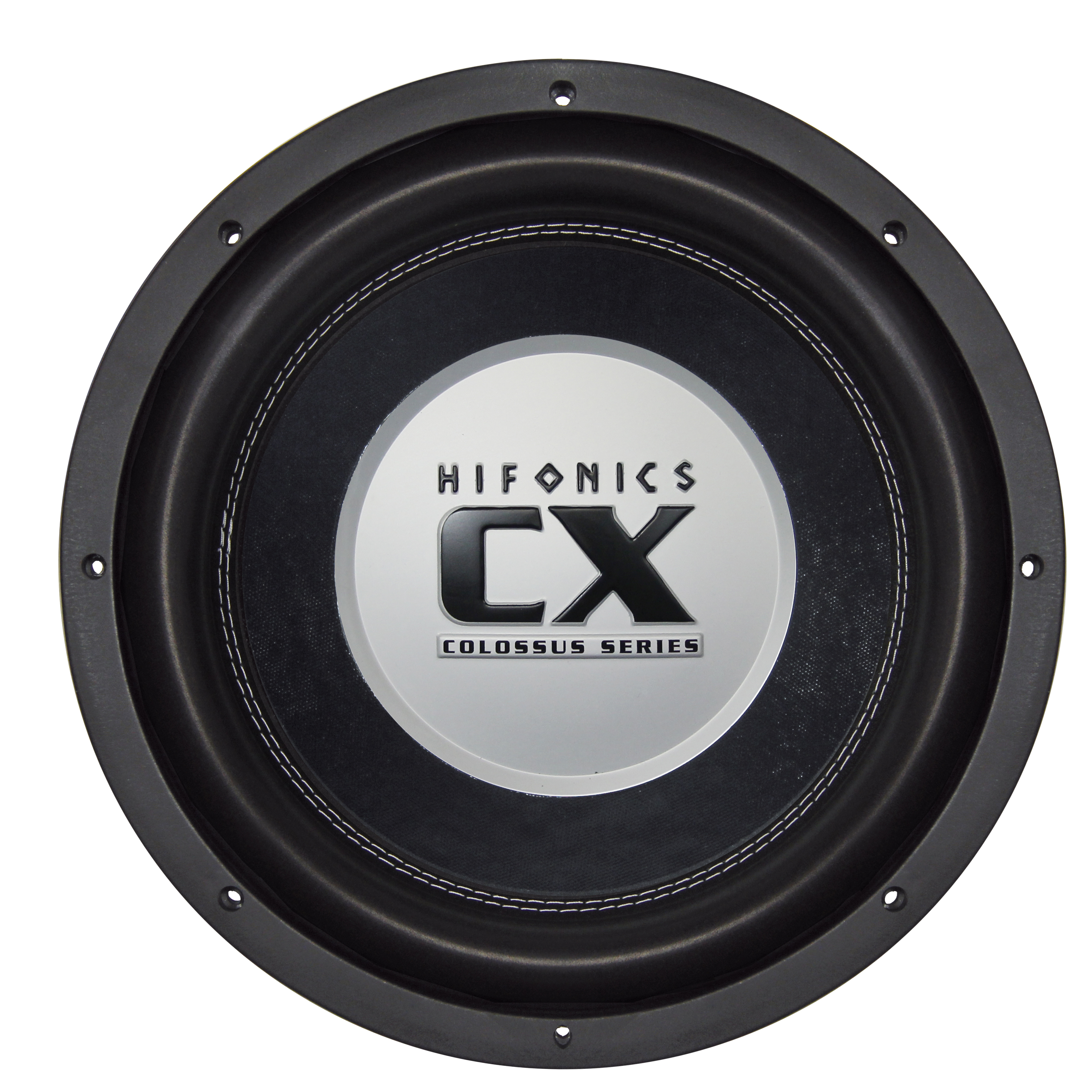

HiFonics COLOSSUS CX12D2
2x2Ω
Subwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 36 Hz |
| Q factor | 0.34 |
| Sensitivity | 87 dB |
| Linear excursion | ± 17.5 mm |
| Program Power | 8000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 87dB
Thiele & Small parameters
- Resonance frequency (free air) fS 36Hz
- Mechanical quality factor QMS 4.93
- Electrical quality factor QES 0.36
- Total quality factor QTS 0.34
Large signal parameters
- Maximum linear excursion (one way) xmax 17.5mm
- Maximum excursion before damage xlim 25mm
- Air volume displaced at xmax VD 893cm³
- Power handling P 4000W
- Program power Pmax 8000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.0Ω
- Inductance (1kHz, in series) LE 2.3mH
- VC Diameter 100mm
- Winding height HVC 50mm
- Former material BASV
Magnet
- Force factor (in series) Bl 26.8N/A
- Motor constant Bl/√RE 13.4N/√W
- Diameter 220mm
- Height 60mm
- Weight 8.08kg
Diaphragm
- Effective diameter 255mm
- Effective area SD 510cm²
- Moving mass MMS 285g
- Moving mass (without air load) MMD 277g
- Material Non-pressed Paper
Suspensions
- Stiffness KMS 14.7N/mm
- Compliance CMS 68µm/N
- Equivalent volume to the compliance VAS 25L
- Mechanical resistance RMS 13.1N·s/m
- Surround material Foam
- Spider material Nomex
Dimensions
- Nominal diameter 12″
- 300mm
- Overall diameter 317mm
- Baffle cutout diameter 284mm
- Mounting depth 224mm
- Volume occupied by the driver (estimated) 2.7L
- Frame material Diecast Aluminium
