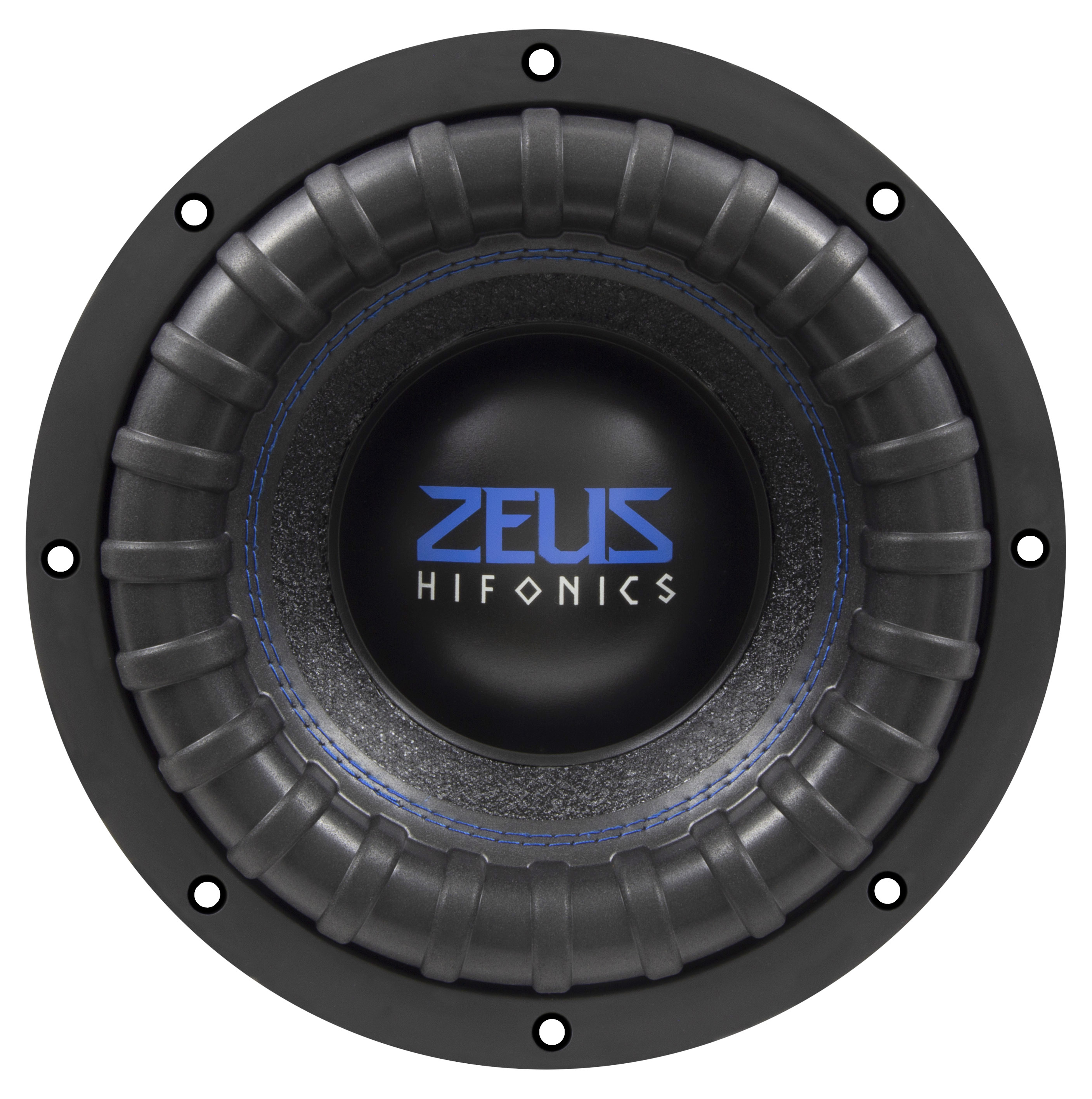

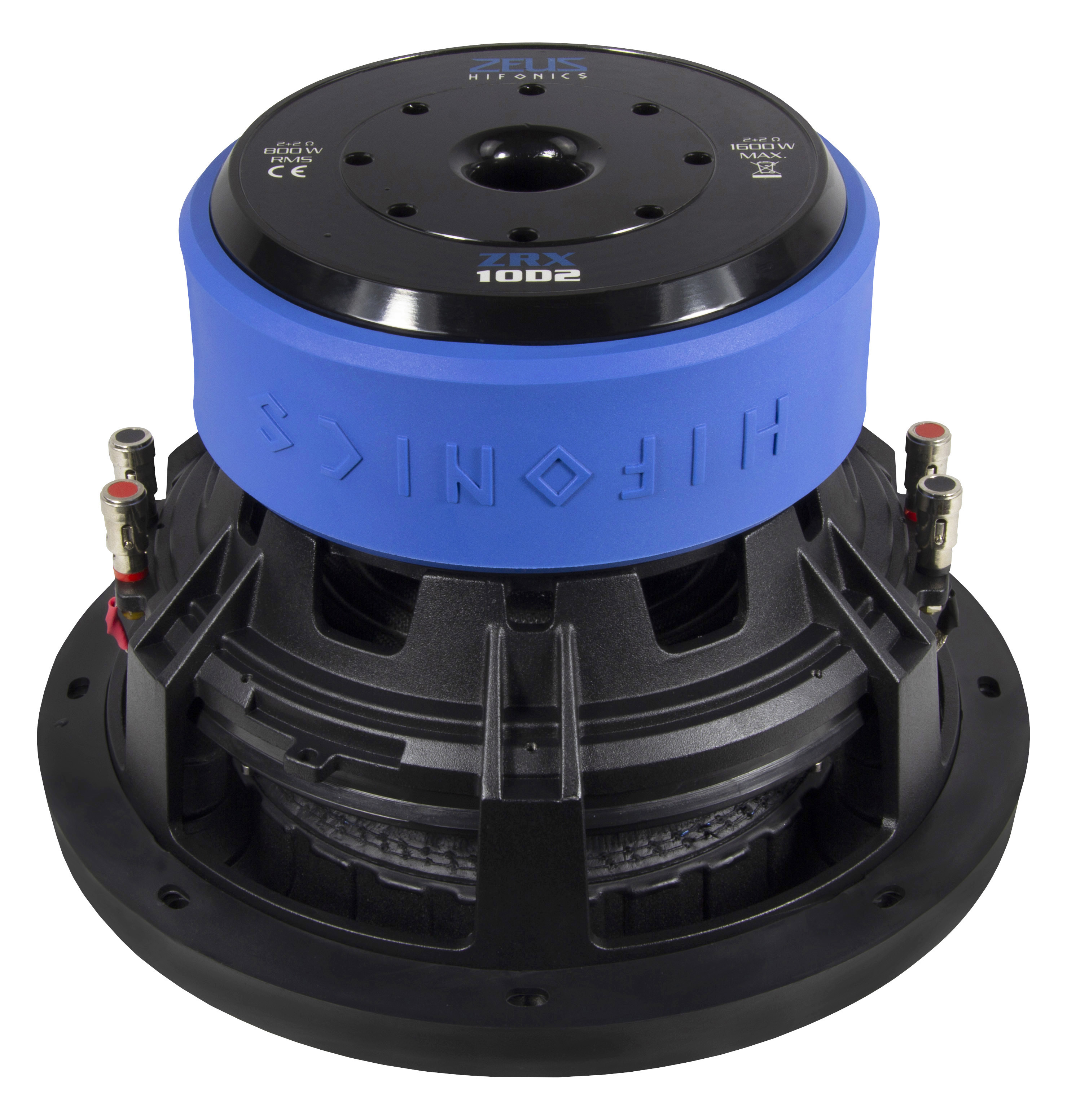

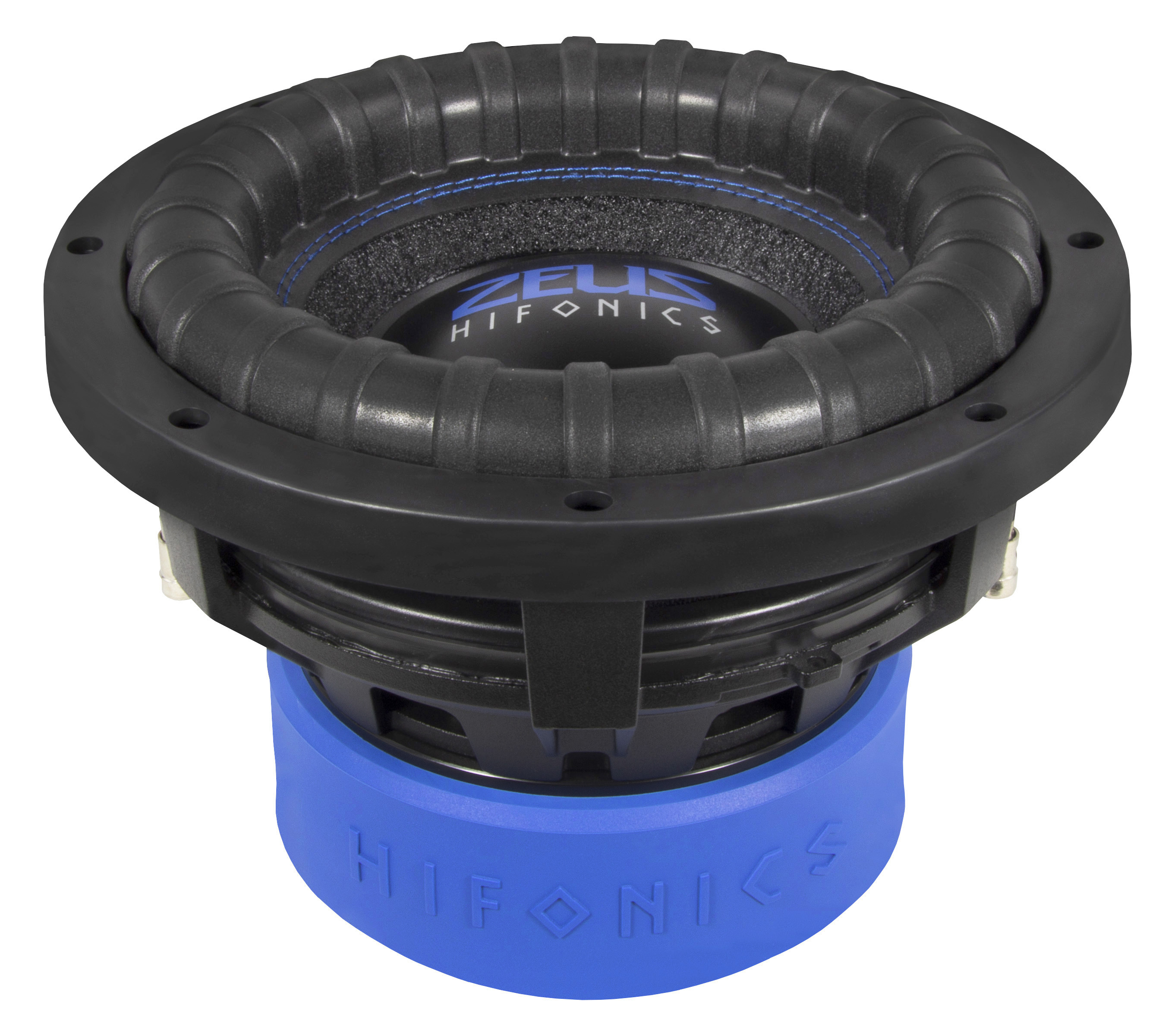

HiFonics ZEUS POWER ZRX10D2
2x2Ω
Subwoofer
| Nominal diameter | 10″ / 250 mm |
| Resonance | 37.6 Hz |
| Q factor | 0.52 |
| Sensitivity | 83.2 dB |
| Linear excursion | ± 12.5 mm |
| Program Power | 1600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 83.2dB
Thiele & Small parameters
- Resonance frequency (free air) fS 37.6Hz
- Mechanical quality factor QMS 6.59
- Electrical quality factor QES 0.56
- Total quality factor QTS 0.52
Large signal parameters
- Maximum linear excursion (one way) xmax 12.5mm
- Maximum excursion before damage xlim 18mm
- Air volume displaced at xmax VD 415cm³
- Power handling P 800W
- Program power Pmax 1600W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.0Ω
- Inductance (1kHz, in series) LE 2.6mH
- VC Diameter 76mm
- Winding height HVC 35mm
Magnet
- Force factor (in series) Bl 19.1N/A
- Motor constant Bl/√RE 9.56N/√W
- Diameter 170mm
- Height 50mm
- Weight 3.969kg
Diaphragm
- Effective diameter 206mm
- Effective area SD 332cm²
- Moving mass MMS 218g
- Moving mass (without air load) MMD 213g
- Material Non-pressed Paper
Suspensions
- Stiffness KMS 12.3N/mm
- Compliance CMS 81µm/N
- Equivalent volume to the compliance VAS 12.7L
- Mechanical resistance RMS 7.81N·s/m
- Surround material Foam
- Spider material Polycot
Dimensions
- Nominal diameter 10″
- 250mm
- Overall diameter 274mm
- Baffle cutout diameter 240mm
- Mounting depth 166mm
- Volume occupied by the driver (estimated) 1.8L
- Frame material Diecast Aluminium
