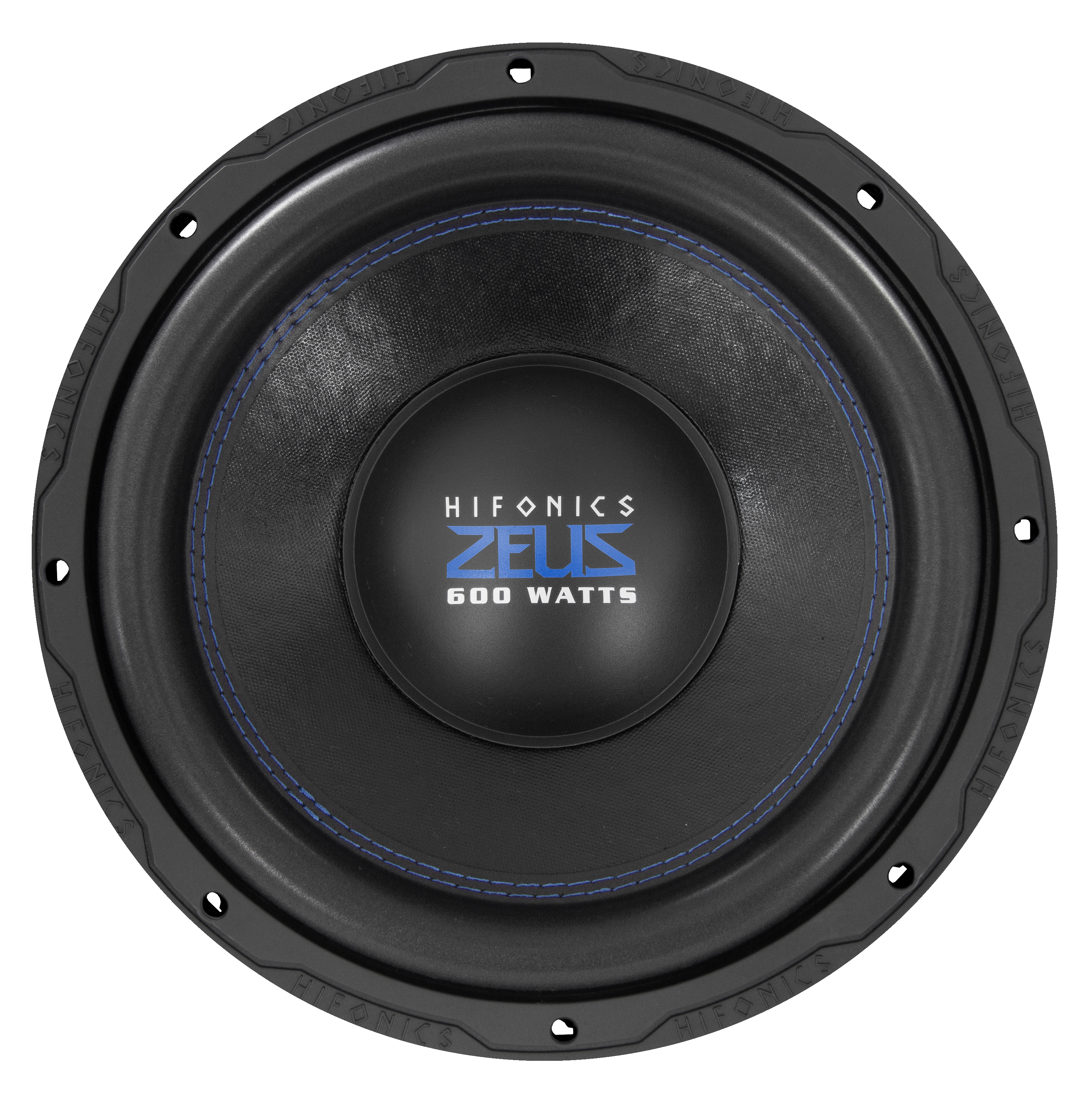

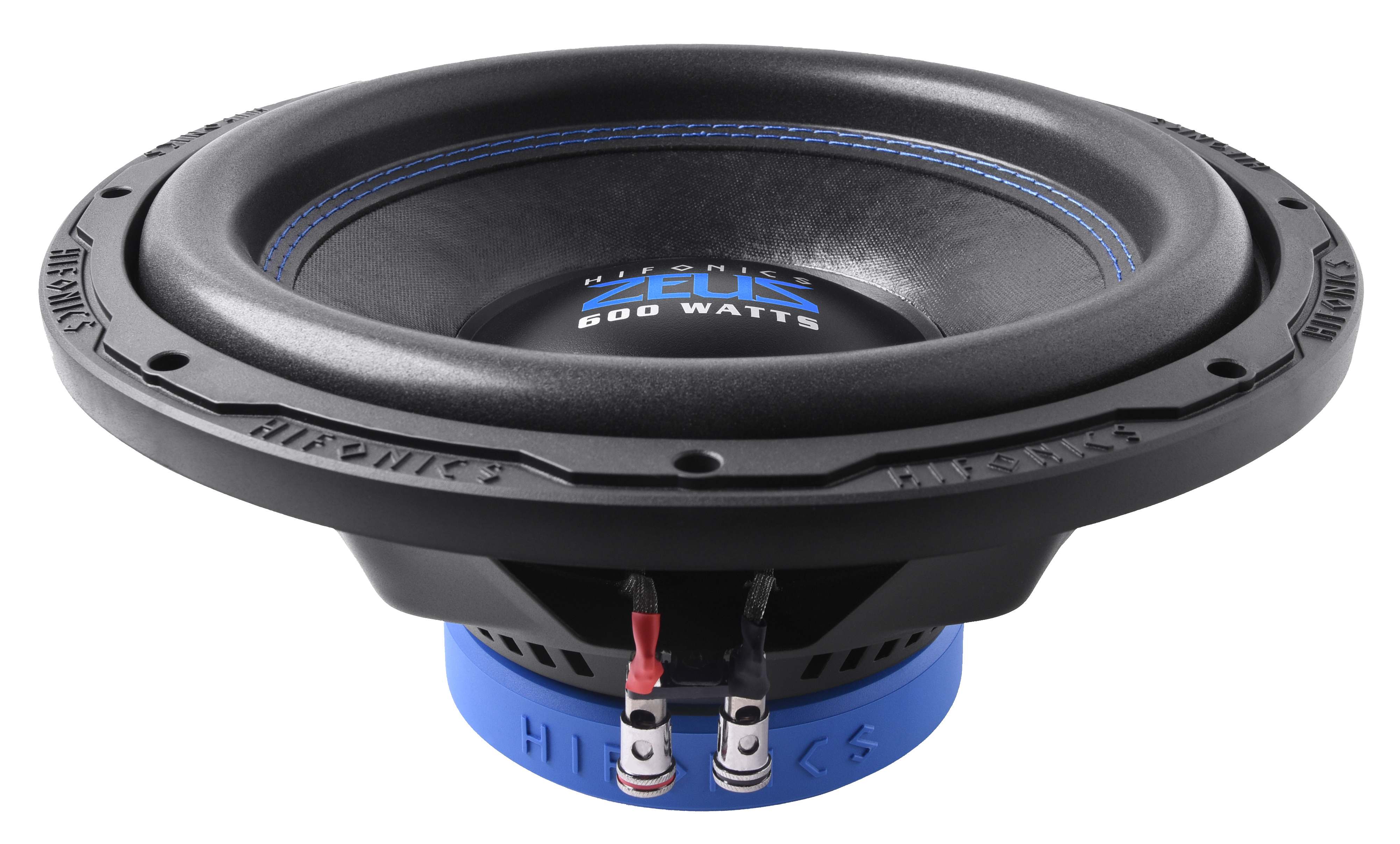

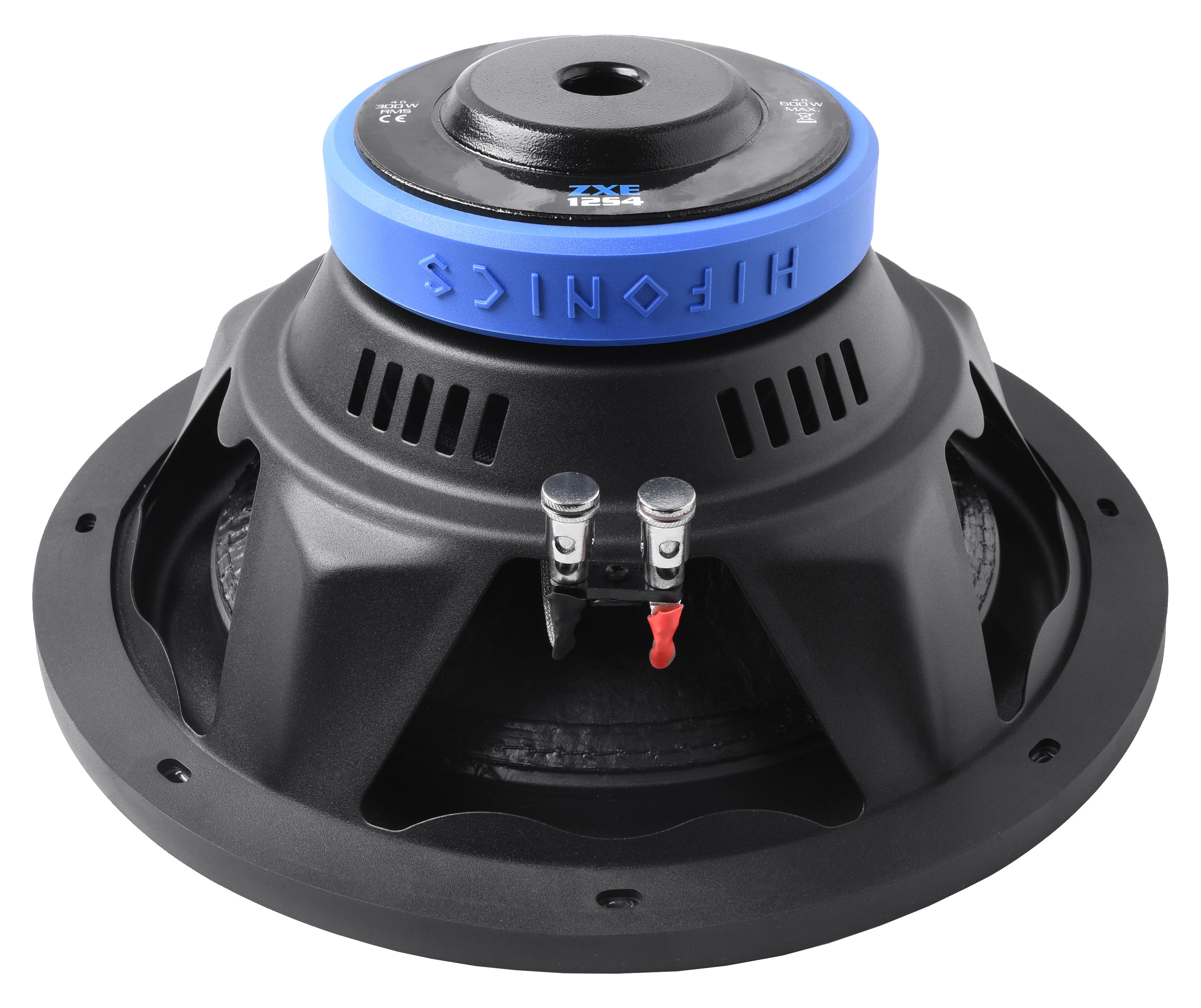

HiFonics ZEUS EVOLUTION ZXE12S4
4Ω
Subwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 38 Hz |
| Q factor | 0.61 |
| Sensitivity | 88.1 dB |
| Linear excursion | ± 3.5 mm |
| Program Power | 600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.1dB
Thiele & Small parameters
- Resonance frequency (free air) fS 38Hz
- Mechanical quality factor QMS 3.44
- Electrical quality factor QES 0.72
- Total quality factor QTS 0.61
Large signal parameters
- Maximum linear excursion (one way) xmax 3.5mm
- Maximum excursion before damage xlim 17mm
- Air volume displaced at xmax VD 177cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 2.6Ω
- Inductance (1kHz, estimated) LE 1.37mH
- VC Diameter 64mm
- Winding height HVC 15mm
- Former material Aluminium
Magnet
- Force factor Bl 10.1N/A
- Motor constant Bl/√RE 6.26N/√W
- Diameter 140mm
- Height 20mm
- Weight 1.134kg
- Material Y35 Magnet
Diaphragm
- Effective diameter 254mm
- Effective area SD 505cm²
- Moving mass MMS 117g
- Moving mass (without air load) MMD 109g
- Material Non-pressed Paper
Suspensions
- Stiffness KMS 6.76N/mm
- Compliance CMS 148µm/N
- Equivalent volume to the compliance VAS 53.4L
- Mechanical resistance RMS 8.12N·s/m
- Surround material Foam
- Spider material Polycot
Dimensions
- Nominal diameter 12″
- 300mm
- Overall diameter 320mm
- Baffle cutout diameter 276mm
- Mounting depth 135mm
- Volume occupied by the driver (estimated) 2.4L
- Net weight 5.6kg
- Frame material Steel
