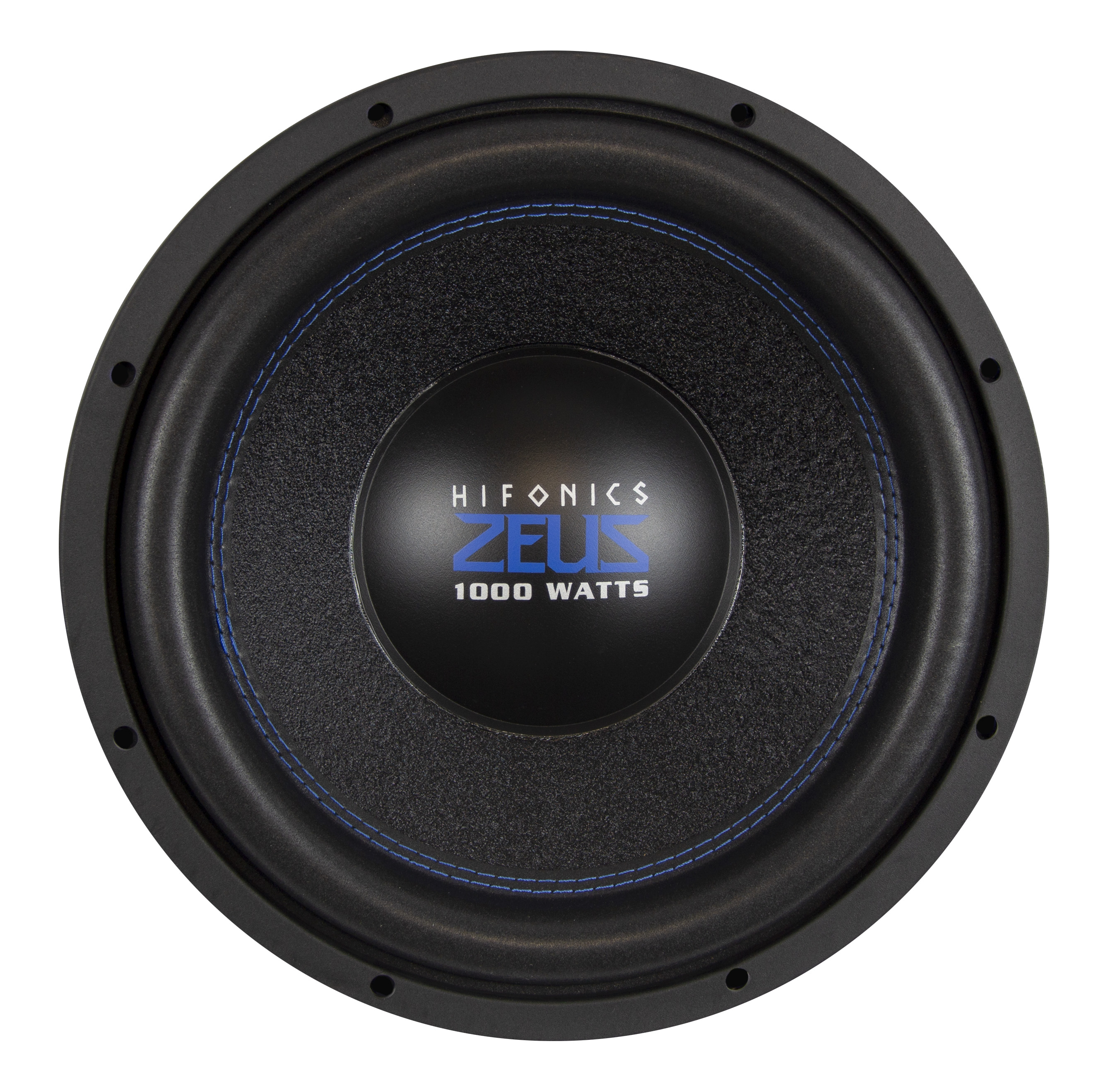

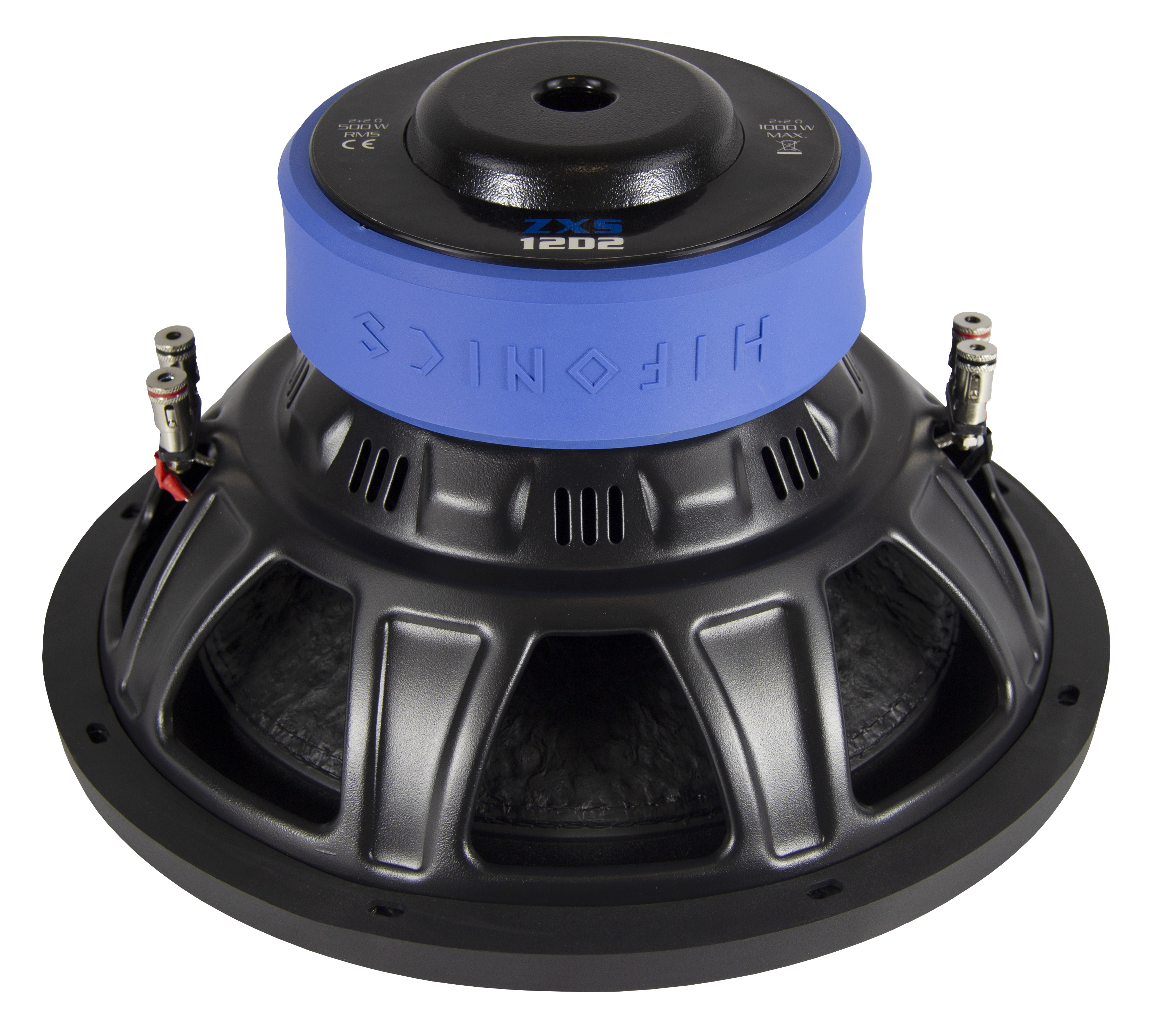

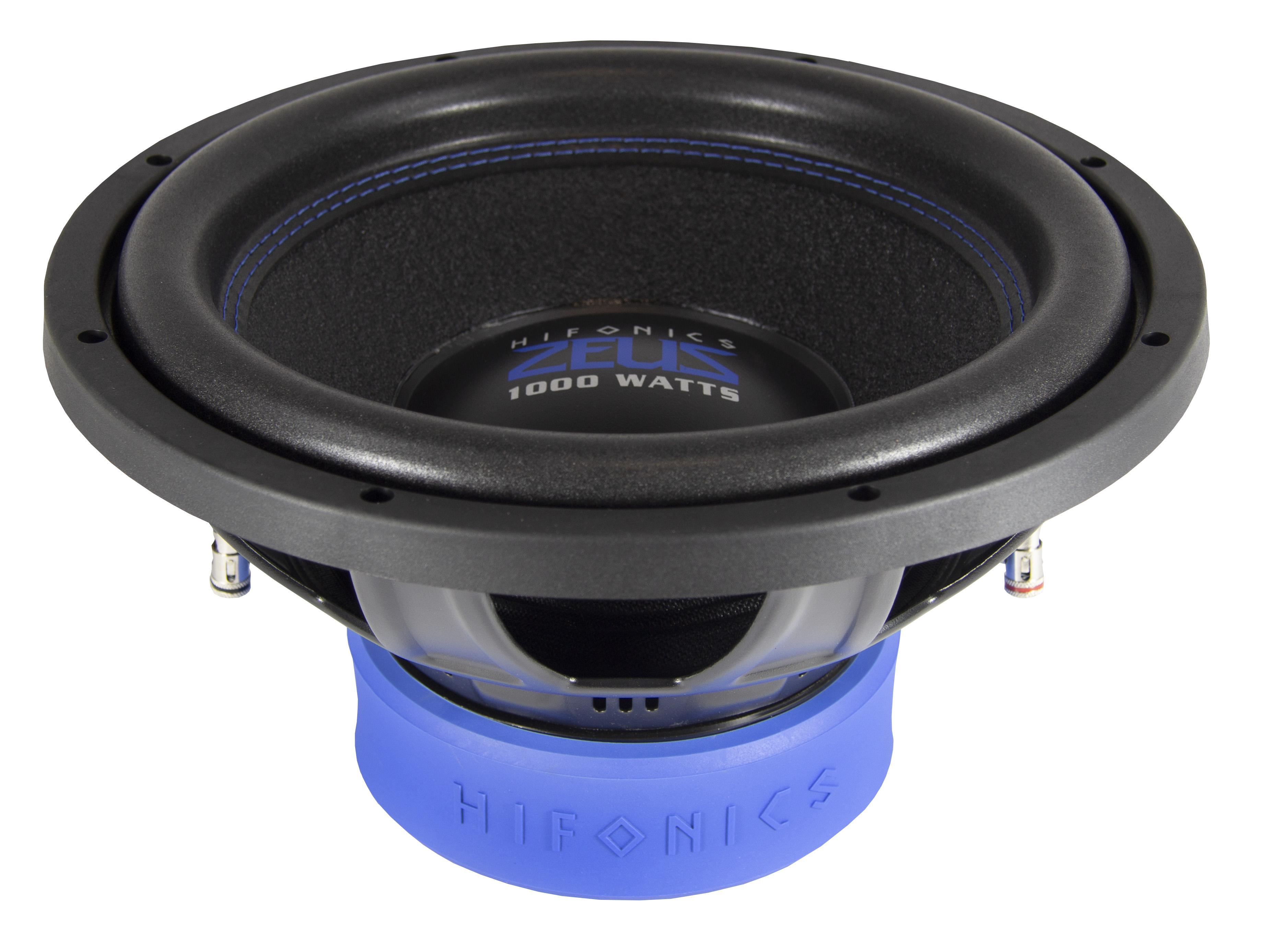

HiFonics ZEUS STREET ZXS12D2
2x2Ω
Subwoofer
| Nominal diameter | 12″ / 300 mm |
| Resonance | 28.5 Hz |
| Q factor | 0.48 |
| Sensitivity | 85.8 dB |
| Linear excursion | ± 14 mm |
| Program Power | 1000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 85.8dB
Thiele & Small parameters
- Resonance frequency (free air) fS 28.5Hz
- Mechanical quality factor QMS 3.46
- Electrical quality factor QES 0.55
- Total quality factor QTS 0.48
Large signal parameters
- Maximum linear excursion (one way) xmax 14mm
- Maximum excursion before damage xlim 24mm
- Air volume displaced at xmax VD 714cm³
- Power handling P 500W
- Program power Pmax 1000W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 3.9Ω
- Inductance (1kHz, in series, estimated) LE 2.92mH
- VC Diameter 64mm
- Winding height HVC 35mm
- Former material Aluminium
Magnet
- Force factor (in series) Bl 15.9N/A
- Motor constant Bl/√RE 8.05N/√W
- Diameter 156mm
- Height 40mm
- Weight 2.778kg
Diaphragm
- Effective diameter 255mm
- Effective area SD 510cm²
- Moving mass MMS 197g
- Moving mass (without air load) MMD 189g
- Material Non-pressed Paper
Suspensions
- Stiffness KMS 6.33N/mm
- Compliance CMS 158µm/N
- Equivalent volume to the compliance VAS 58.4L
- Mechanical resistance RMS 10.2N·s/m
- Surround material Foam
- Spider material Polycot
Dimensions
- Nominal diameter 12″
- 300mm
- Overall diameter 317mm
- Baffle cutout diameter 284mm
- Mounting depth 166mm
- Volume occupied by the driver (estimated) 2.7L
- Frame material Steel
