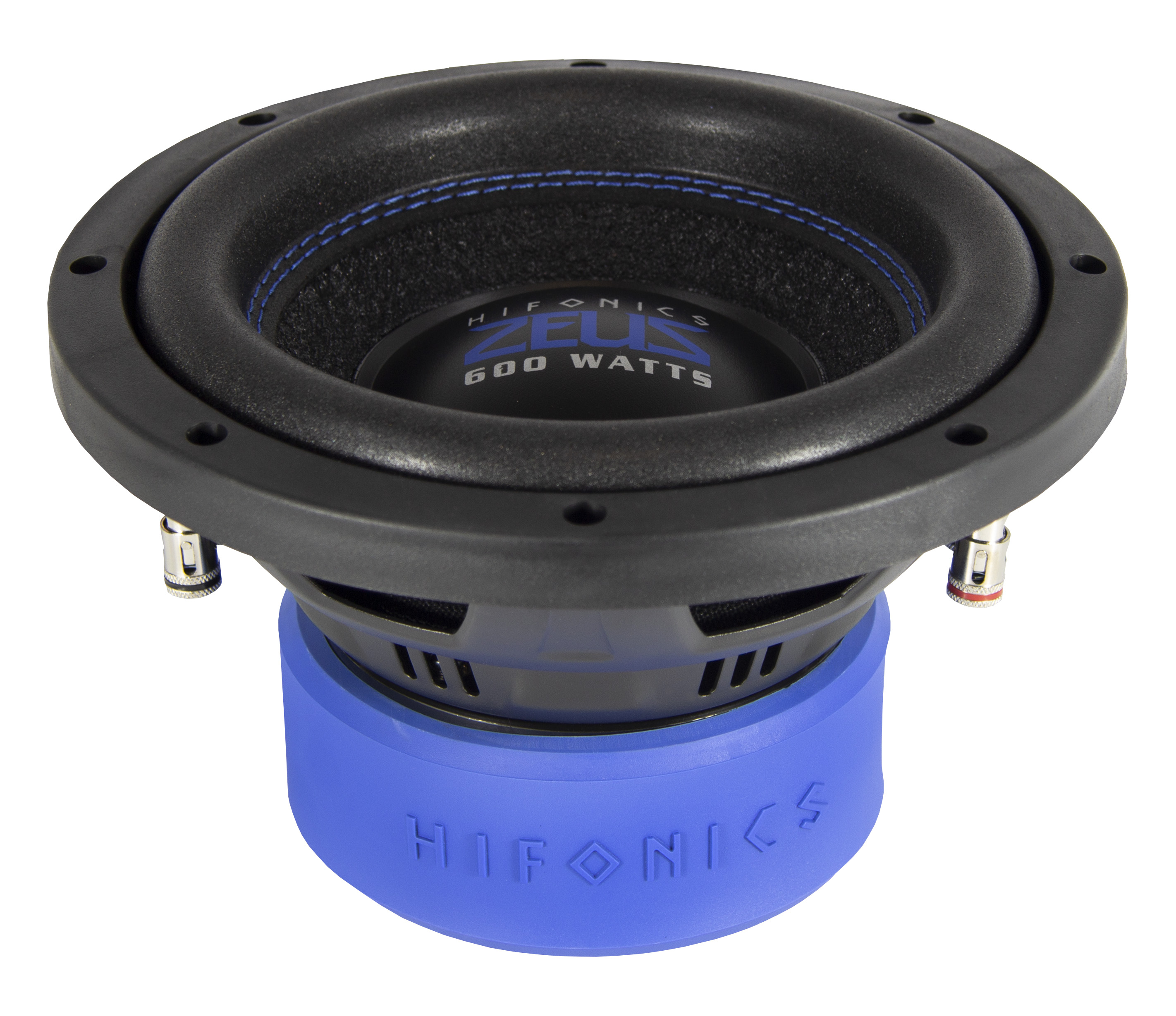

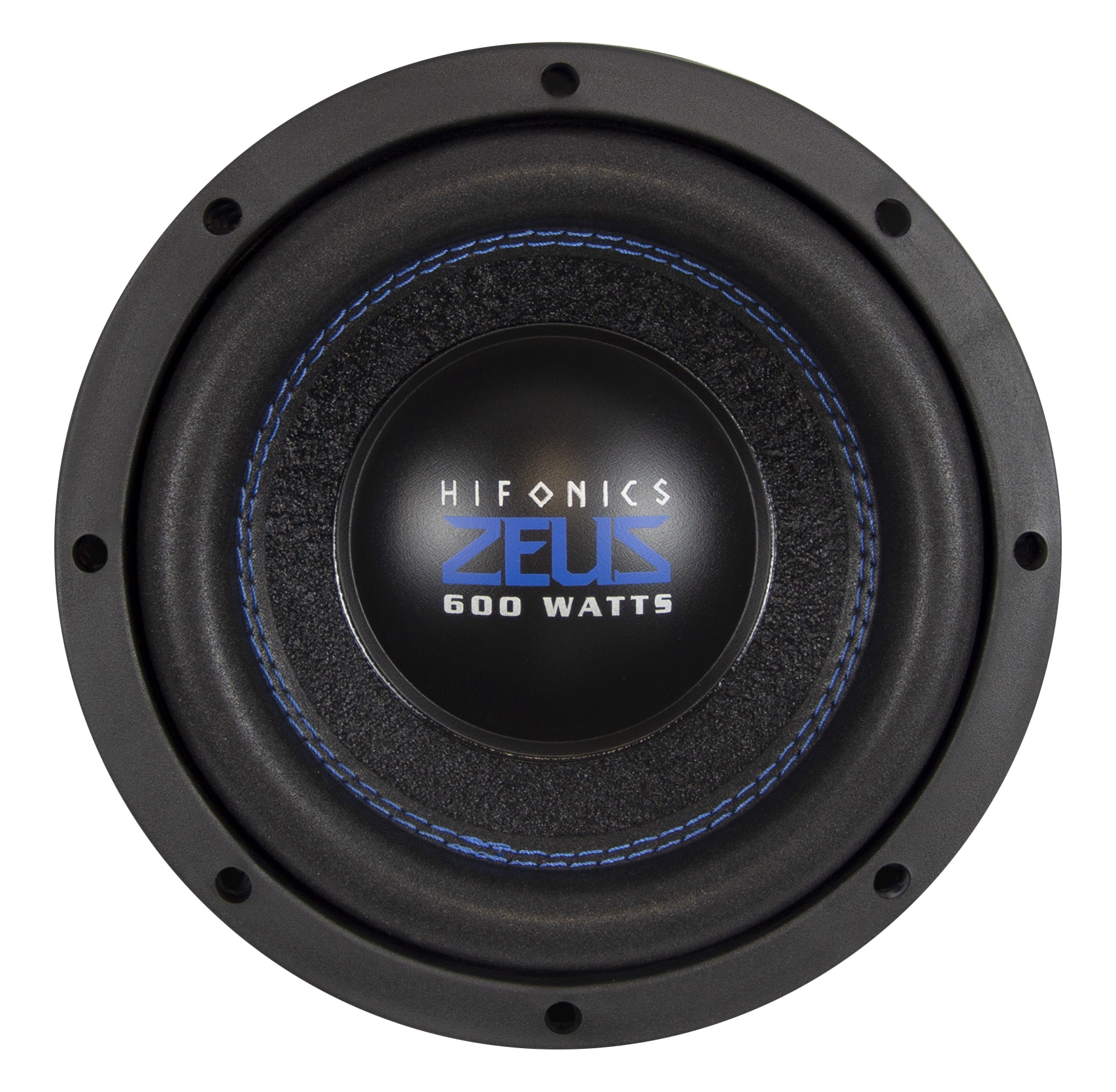

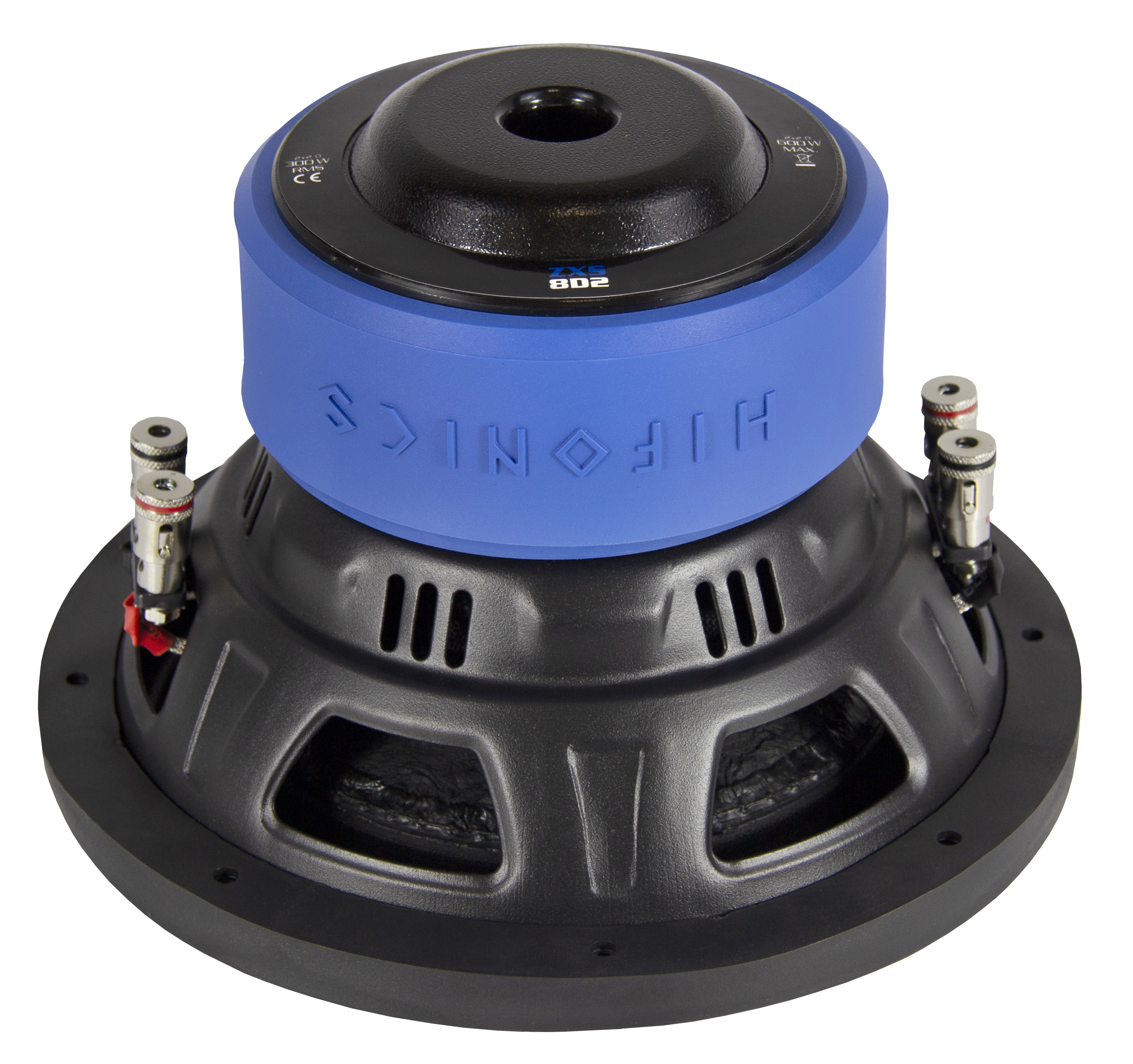

HiFonics ZEUS STREET ZXS8D2
2x2Ω
Subwoofer
| Nominal diameter | 8″ / 200 mm |
| Resonance | 31.3 Hz |
| Q factor | 0.44 |
| Sensitivity | 80.7 dB |
| Linear excursion | ± 11 mm |
| Program Power | 600 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 80.7dB
Thiele & Small parameters
- Resonance frequency (free air) fS 31.3Hz
- Mechanical quality factor QMS 3.25
- Electrical quality factor QES 0.51
- Total quality factor QTS 0.44
Large signal parameters
- Maximum linear excursion (one way) xmax 11mm
- Maximum excursion before damage xlim 16mm
- Air volume displaced at xmax VD 222cm³
- Power handling P 300W
- Program power Pmax 600W
Voice Coil
- Nominal impedance Z 2 x 2Ω
- DC resistance (in series) RE 4.0Ω
- Inductance (1kHz, in series, estimated) LE 2.14mH
- VC Diameter 50mm
- Winding height HVC 30mm
- Former material Aluminium
Magnet
- Force factor (in series) Bl 13.6N/A
- Motor constant Bl/√RE 6.78N/√W
- Diameter 120mm
- Height 40mm
- Weight 1.701kg
Diaphragm
- Effective diameter 160mm
- Effective area SD 202cm²
- Moving mass MMS 119g
- Moving mass (without air load) MMD 117g
- Material Non-pressed paper
Suspensions
- Stiffness KMS 4.67N/mm
- Compliance CMS 214µm/N
- Equivalent volume to the compliance VAS 12.4L
- Mechanical resistance RMS 7.21N·s/m
- Surround material Foam
- Spider material Polycot
Dimensions
- Nominal diameter 8″
- 200mm
- Overall diameter 214mm
- Baffle cutout diameter 182mm
- Mounting depth 125mm
- Volume occupied by the driver (estimated) 0.98L
- Frame material Steel
