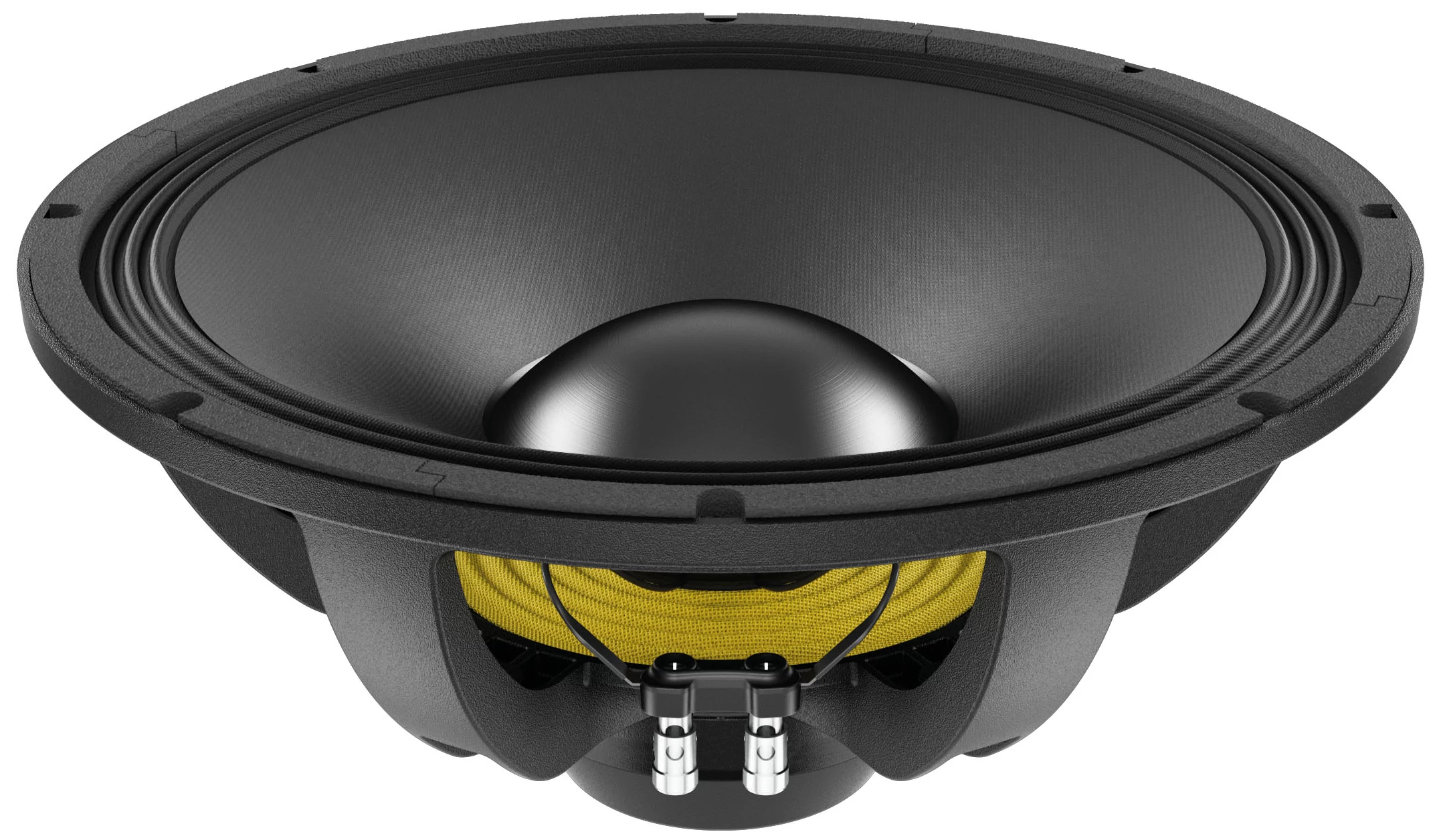

LaVoce WAN153.01-4
4Ω
8ΩWoofer
| Nominal diameter | 15″ / 380 mm |
| Resonance | 43 Hz |
| Q factor | 0.22 |
| Sensitivity | 97.4 dB |
| Linear excursion | ± 6.8 mm |
| Program Power | 1200 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 97.4dB

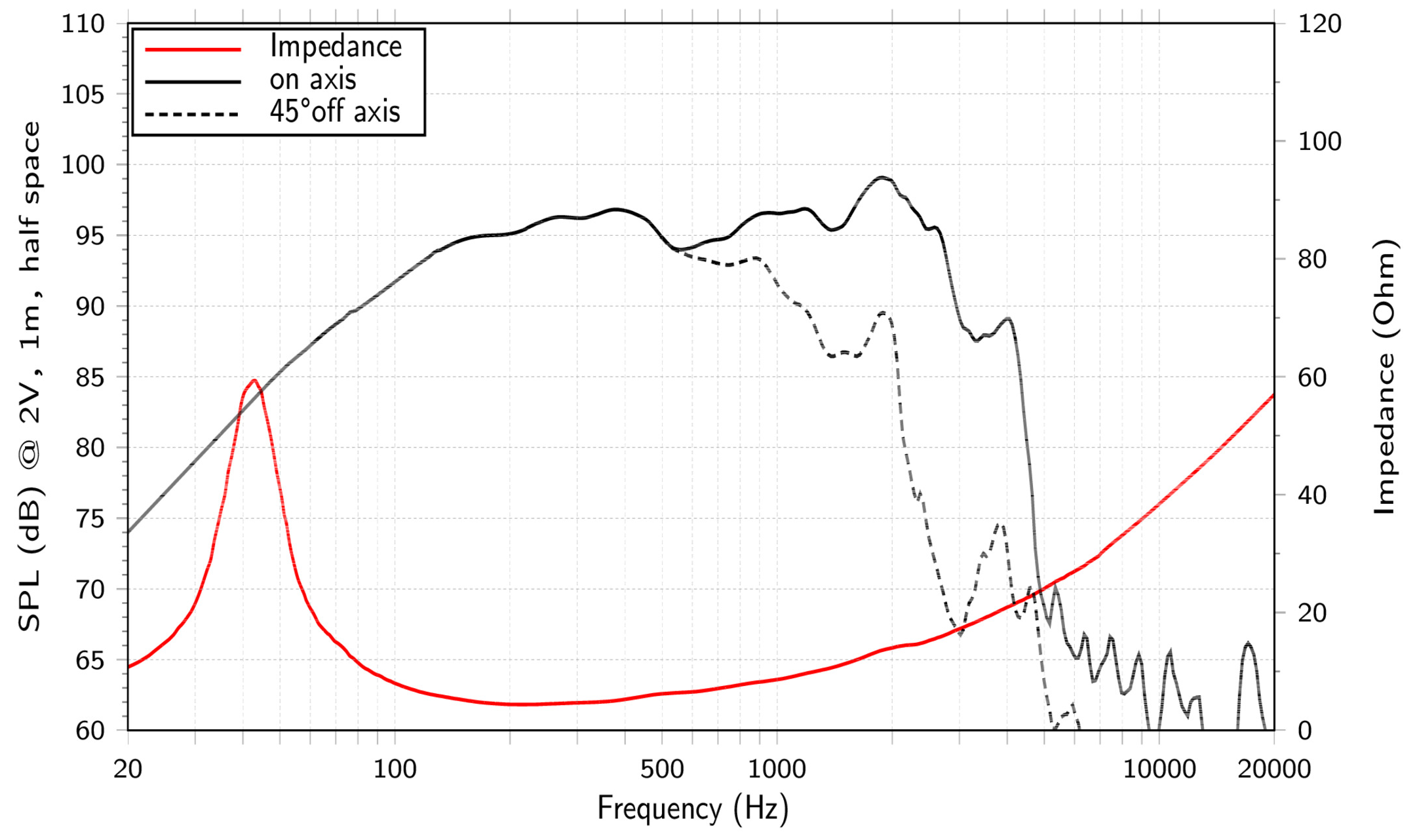

- Frequency response 40 - 2000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 43Hz
- Mechanical quality factor QMS 4.26
- Electrical quality factor QES 0.23
- Total quality factor QTS 0.22
Large signal parameters
- Maximum linear excursion (one way) xmax 6.8mm
- Maximum excursion before damage xlim 13.4mm
- Air volume displaced at xmax VD 581cm³
- Power handling P 600W
- Program power Pmax 1200W
Voice Coil
- Nominal impedance Z 4Ω
- DC resistance RE 3.4Ω
- Inductance (1kHz) LE 0.81mH
- VC Diameter 75mm
- Winding height HVC 19.3mm
- Winding material Copper
- Former material Glass fiber
Magnet
- Force factor Bl 21.4N/A
- Motor constant Bl/√RE 11.6N/√W
- Air gap height HAG 11.5mm
- Diameter 131mm
- Height 8mm
- Material Neodymium
Diaphragm
- Effective diameter 330mm
- Effective area SD 855cm²
- Moving mass MMS 114g
- Moving mass (without air load) MMD 97g
Suspensions
- Stiffness KMS 8.33N/mm
- Compliance CMS 120µm/N
- Equivalent volume to the compliance VAS 124L
- Mechanical resistance RMS 7.24N·s/m
- Surround material Polycotton

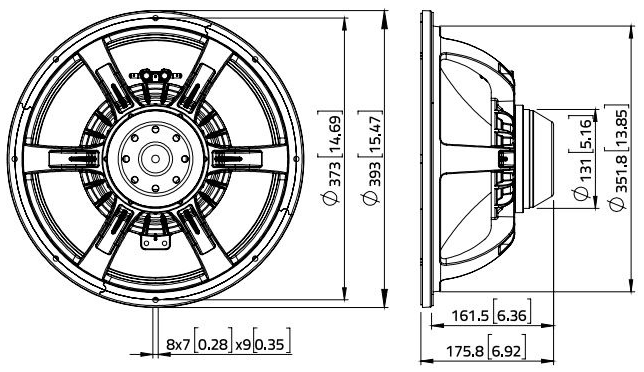

Dimensions
- Nominal diameter 15″
- 380mm
- Volume occupied by the driver 4.3L
- Net weight 6.1kg
- Frame material Aluminium
.webp)
.webp)
