LaVoce WSF051.02-16
8Ω
16Ω
Woofer
| Nominal diameter | 5″ / 130 mm |
| Resonance | 98 Hz |
| Q factor | 0.66 |
| Sensitivity | 88.8 dB |
| Linear excursion | ± 3.2 mm |
| Program Power | 120 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 88.8dB

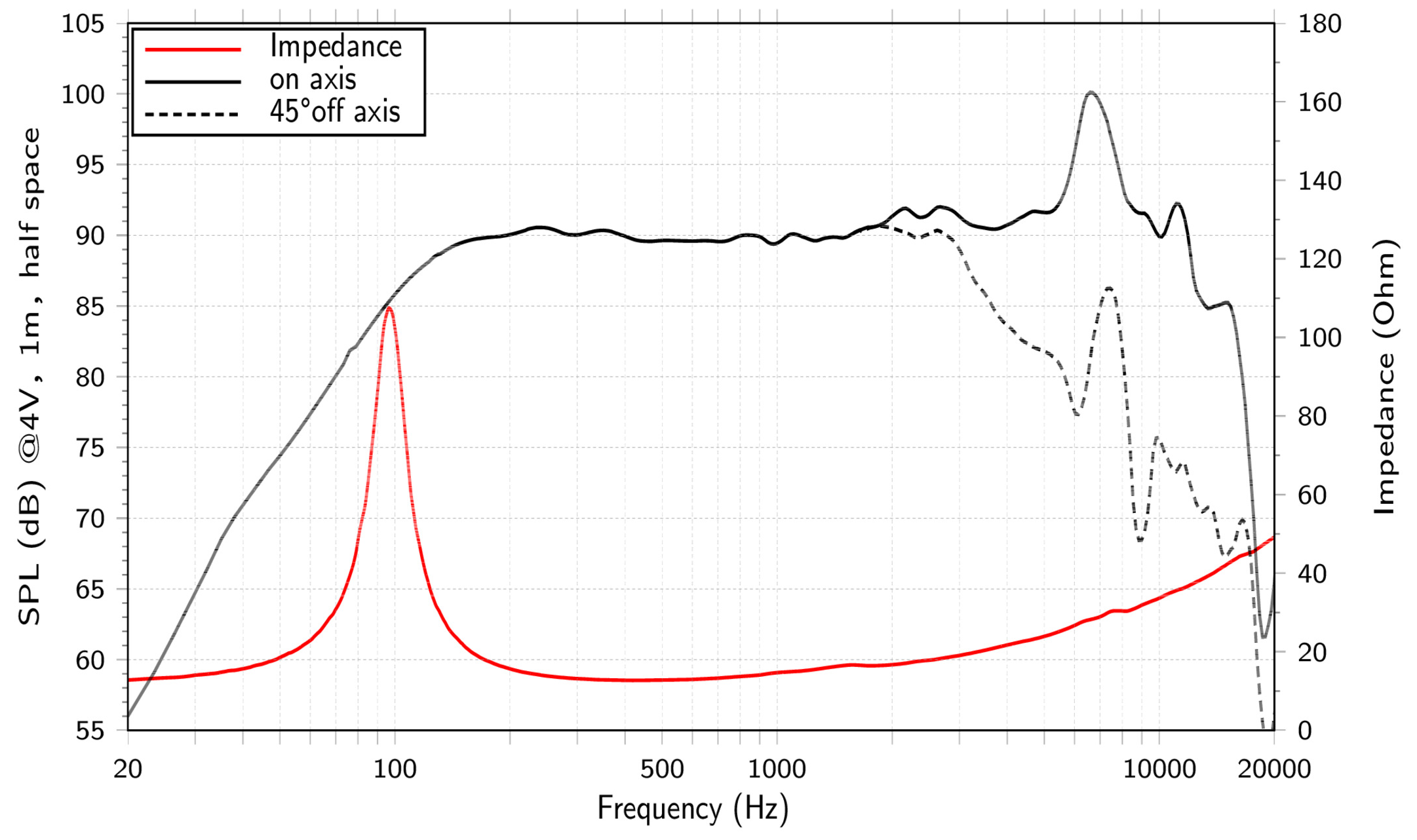

- Frequency response 100 - 5000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 98Hz
- Mechanical quality factor QMS 6.54
- Electrical quality factor QES 0.74
- Total quality factor QTS 0.66
Large signal parameters
- Maximum linear excursion (one way) xmax 3.2mm
- Maximum excursion before damage xlim 4.9mm
- Air volume displaced at xmax VD 28cm³
- Power handling P 60W
- Program power Pmax 120W
Voice Coil
- Nominal impedance Z 16Ω
- DC resistance RE 11.9Ω
- Inductance (1kHz) LE 0.44mH
- VC Diameter 25mm
- Winding height HVC 8.8mm
- Winding material Copper
- Former material Polyimide
Magnet
- Force factor Bl 8.27N/A
- Motor constant Bl/√RE 2.4N/√W
- Air gap height HAG 5mm
- Diameter 90mm
- Height 15mm
- Material Ferrite
Diaphragm
- Effective diameter 105mm
- Effective area SD 86cm²
- Moving mass MMS 6.9g
- Moving mass (without air load) MMD 6.3g
- Material Water resistant treated paper
Suspensions
- Stiffness KMS 2.62N/mm
- Compliance CMS 382µm/N
- Equivalent volume to the compliance VAS 4.02L
- Mechanical resistance RMS 0.65N·s/m
- Surround material Rubber

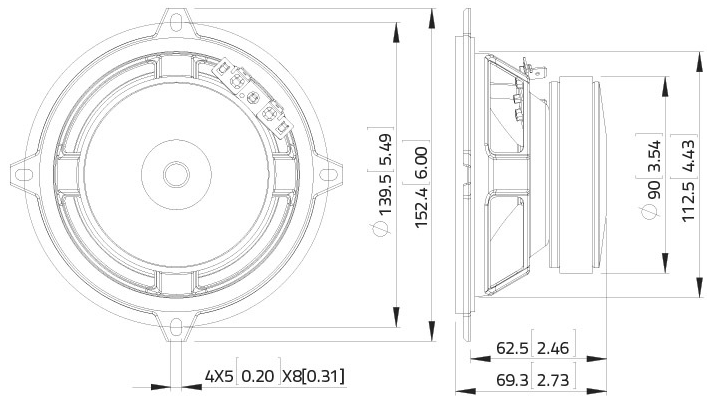

Dimensions
- Nominal diameter 5″
- 130mm
- Volume occupied by the driver 0.3L
- Net weight 0.9kg
- Frame material Steel
.webp)
.webp)
