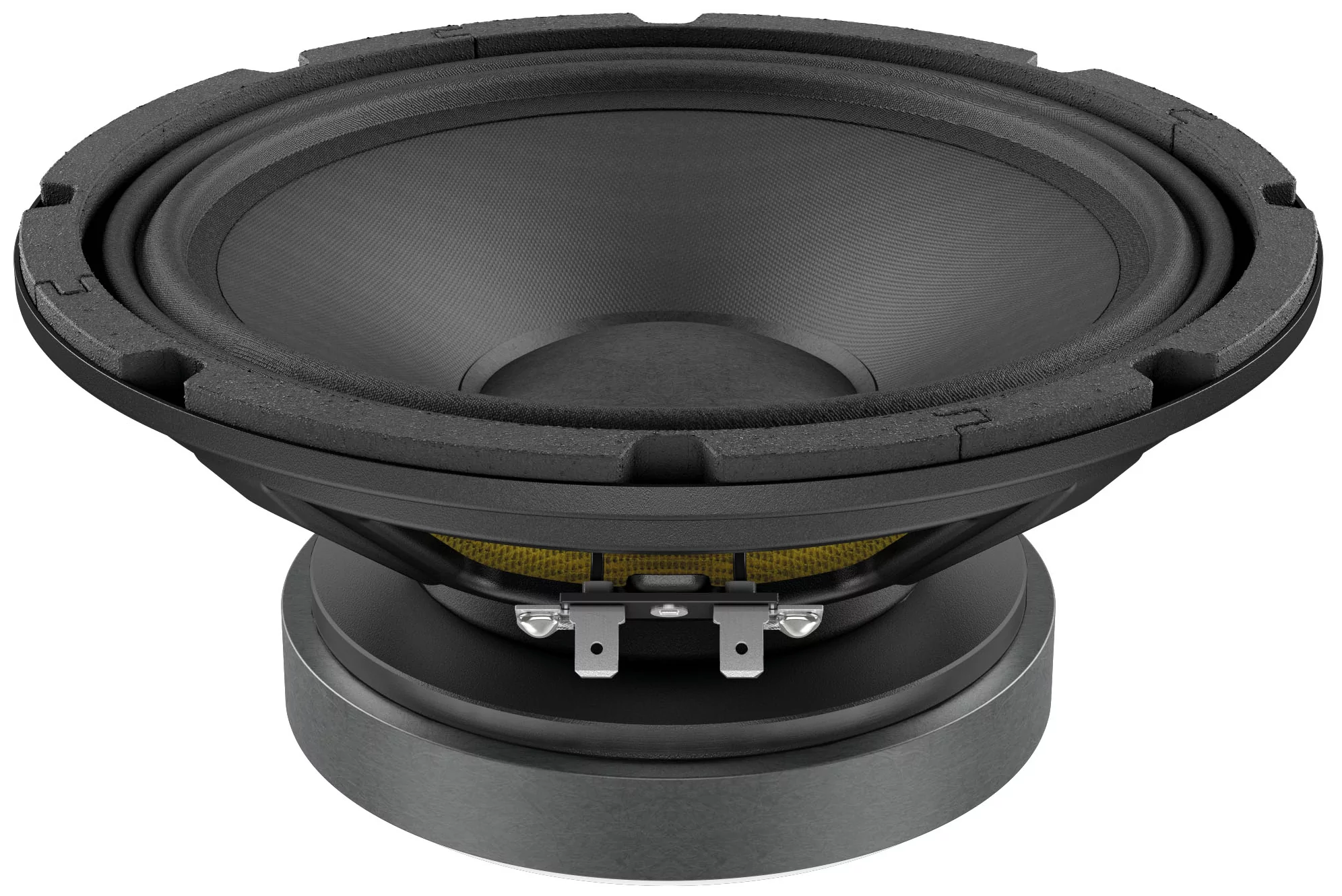

LaVoce WSF081.82-16
8Ω
16Ω
Woofer
| Nominal diameter | 8″ / 200 mm |
| Resonance | 81 Hz |
| Q factor | 0.44 |
| Sensitivity | 93.3 dB |
| Linear excursion | ± 4.5 mm |
| Program Power | 300 W |
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 93.3dB

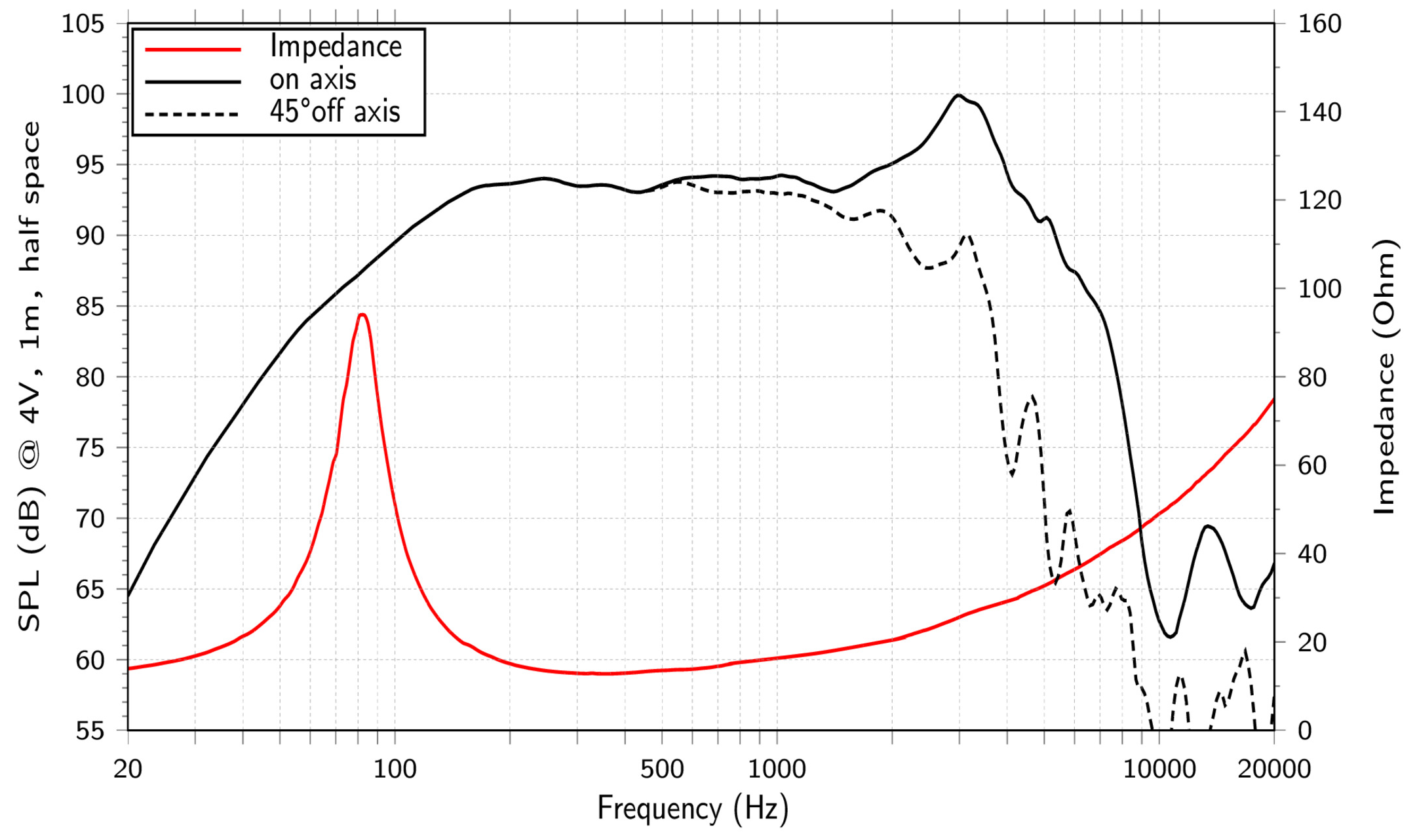

- Frequency response 80 - 5000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 81Hz
- Mechanical quality factor QMS 3.70
- Electrical quality factor QES 0.50
- Total quality factor QTS 0.44
Large signal parameters
- Maximum linear excursion (one way) xmax 4.5mm
- Maximum excursion before damage xlim 7mm
- Air volume displaced at xmax VD 99cm³
- Power handling P 150W
- Program power Pmax 300W
Voice Coil
- Nominal impedance Z 16Ω
- DC resistance RE 11.3Ω
- Inductance (1kHz) LE 0.76mH
- VC Diameter 45mm
- Winding height HVC 11.9mm
- Winding material Copper
- Former material Glass fiber
Magnet
- Force factor Bl 14.7N/A
- Motor constant Bl/√RE 4.37N/√W
- Air gap height HAG 6mm
- Diameter 130mm
- Height 18mm
- Material Ferrite
Diaphragm
- Effective diameter 167mm
- Effective area SD 220cm²
- Moving mass MMS 18.7g
- Moving mass (without air load) MMD 16.4g
- Material Water resistant treated paper
Suspensions
- Stiffness KMS 4.83N/mm
- Compliance CMS 207µm/N
- Equivalent volume to the compliance VAS 14.2L
- Mechanical resistance RMS 2.57N·s/m
- Surround material Polycotton

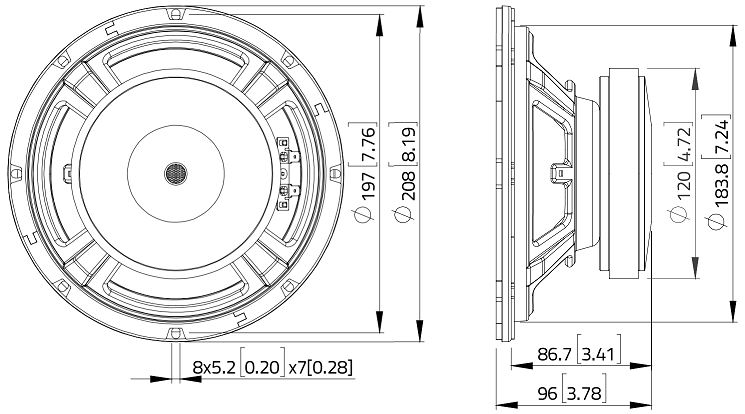

Dimensions
- Nominal diameter 8″
- 200mm
- Volume occupied by the driver 0.8L
- Net weight 2.3kg
- Frame material Steel
.webp)
.webp)
