11 results
Brand
ATOHMAcoustic EleganceAudesAurum CantusB&C SpeakerBMSBRAXBeymaBlack HydraCT SoundsCelestionCerwin VegaCiareCube AudioD.A.S. AudioDB DriveDayton AudioESXETONEighteen SoundEminenceFaitalPROFaneFi Car AudioFocalFostexFountekGRSGoldwoodHELIXHertzJL AudioJensenKICKERKICXKartesianLaVoceLii AudioLowtherMATCHMD LabMONACORMTX AudioMicro-PrecisionMorelObertonP.AudioPHL audioPRV AudioPUNKTKILDEPeerlessPioneerPowerBassPrecision DevicesPrideRCFRadianReckhornRockford FosgateSB AcousticsSB AudienceSEASSICASONYSUPRAVOXScan-SpeakSkar AudioTang BandVISATONVOLTWVLWavecoraccutonmivoc
Type
SubwooferWooferMid BassMid-rangeFull-rangeCoaxial2 Way2 Way Kit3 WayBass Guitar SpeakerGuitar SpeakerLow frequencyMiniatureShallow SubwooferShallow WooferShallow Mid-WooferTriaxial
Available on
Amazon.comParts Express
•
Nominal diameter
″
•
SensitivitySPL1W
dB

Thiele & Small parameters

•
Resonance frequencyfS
Hz
•
Mechanical quality factorQMS
•
Electrical quality factorQES
•
Total quality factorQTS

Large signal parameters

•
Maximum linear excursionxmax
mm
•
Air volume displaced at xmaxVD
cm³
•
Program powerPmax
W

Voice Coil & Magnet

•
Nominal impedanceZ
Ω
•
DC resistanceRE
Ω
•
Force factorBl
N/A
•
Motor constantBl/√RE
N/√W
•
InductanceLE
mH
•
VC Diameter
mm

Diaphragm

•
Effective diameter
mm
•
Effective areaSD
cm²
•
Moving massMMS
g

Suspensions

•
StiffnessKMS
N/mm
•
ComplianceCMS
µm/N
•
Equivalent volume to CMSVAS
L
•
Mechanical resistanceRMS
N·s/m

Dimensions

•
Overall size
mm
•
Baffle cutout diameter
mm
•
Overall depth
mm
•
Mounting depth
mm
•
Volume occupied
L
•
Net weight
kg

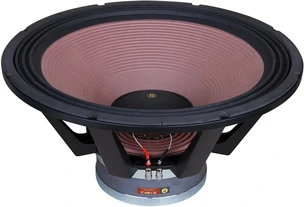

Lii Audio W 21 Subwoofer

Lii Audio W 21

8 Ω
21″ Subwoofer
fS25 Hz
SD1810 cm²
25 - 3000 Hz
QTS0.46
xmax8 mm
SPL1W95 dB
Bl/√RE6.39
Pmax500 W
Lii Audio ST-6 Full-range

Lii Audio ST-6

8 Ω
6.5″ Full-range
fS42.7 Hz
SD133 cm²
42 - 20000 Hz
QTS0.41
SPL1W90.7 dB
Bl/√RE3.68
Pmax50 W
Lii Audio ST-5 Full-range

Lii Audio ST-5

8 Ω
5″ Full-range
fS55.8 Hz
SD108 cm²
56 - 20000 Hz
QTS0.66
xmax4 mm
SPL1W87.4 dB
Bl/√RE2.16
Pmax40 W

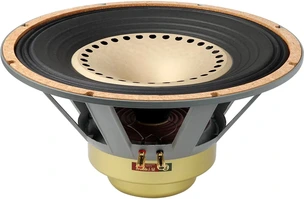

Lii Audio H 1802 Coaxial

Lii Audio H 1802

8 Ω
18″ Coaxial
fS27.8 Hz
SD1224 cm²
28 - 20000 Hz
QTS1.20
xmax5 mm
SPL1W94.9 dB
Bl/√RE2.94
Pmax100 W
Lii Audio Fast 6 Full-range

Lii Audio Fast 6

4 Ω
6.5″ Full-range
fS62.9 Hz
SD133 cm²
75 - 20000 Hz
QTS0.46
xmax6 mm
SPL1W91.7 dB
Bl/√RE2.31
Pmax50 W
Lii Audio Fast 15 Full-range

Lii Audio Fast 15

8 Ω
15″ Full-range
fS45.5 Hz
SD881 cm²
46 - 15000 Hz
QTS0.99
xmax5 mm
SPL1W95.1 dB
Bl/√RE2.33
Pmax80 W
Lii Audio FC-18W Full-range

Lii Audio FC-18W

8 Ω
18″ Full-range
fS27 Hz
SD1225 cm²
27 - 12000 Hz
QTS0.73
xmax5 mm
SPL1W93.7 dB
Bl/√RE3.98
Pmax100 W
Lii Audio Crystal 8 Full-range

Lii Audio Crystal 8

4 Ω
8″ Full-range
fS37.5 Hz
SD227 cm²
38 - 20000 Hz
QTS0.63
xmax6 mm
SPL1W90.1 dB
Bl/√RE1.85
Pmax50 W
Lii Audio Crystal 6 Full-range

Lii Audio Crystal 6

4 Ω
6.5″ Full-range
fS65 Hz
SD141 cm²
65 - 20000 Hz
QTS0.46
xmax6 mm
SPL1W91.5 dB
Bl/√RE1.85
Pmax40 W
Lii Audio Crystal 4 Full-range

Lii Audio Crystal 4

8 Ω
4″ Full-range
fS114 Hz
SD58 cm²
QTS0.72
SPL1W89.6 dB
Bl/√RE1.63
Pmax30 W
Lii Audio Crystal 10 Full-range

Lii Audio Crystal 10

8 Ω
10″ Full-range
fS37.2 Hz
SD346 cm²
37 - 20000 Hz
QTS0.41
xmax6 mm
SPL1W94.6 dB
Bl/√RE3.12
Pmax80 W
