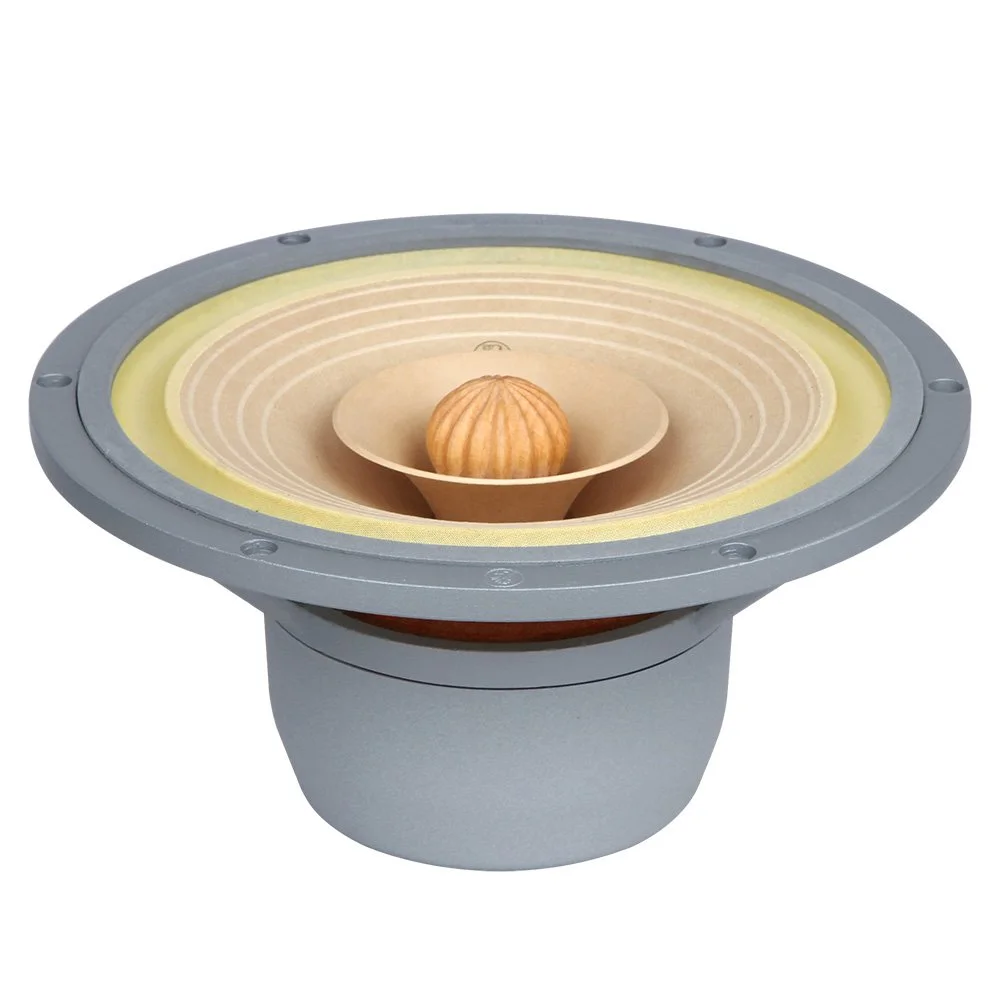

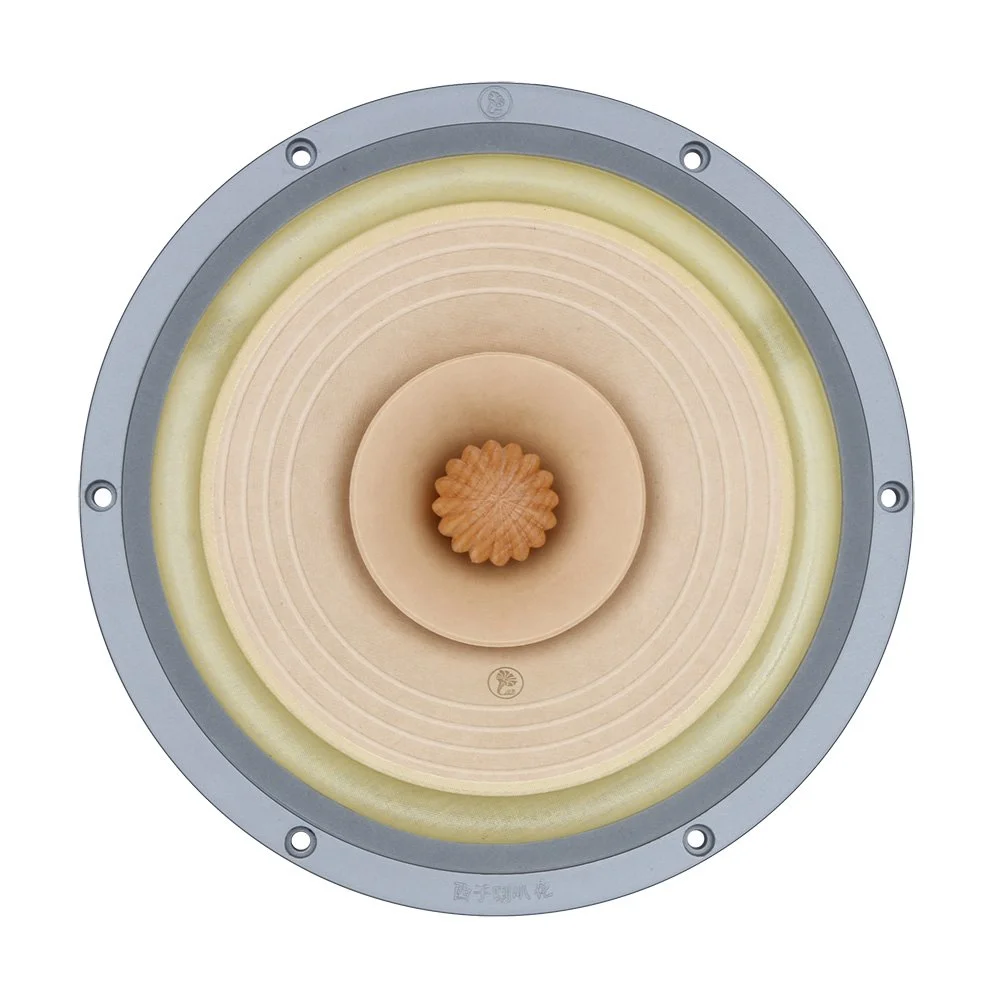

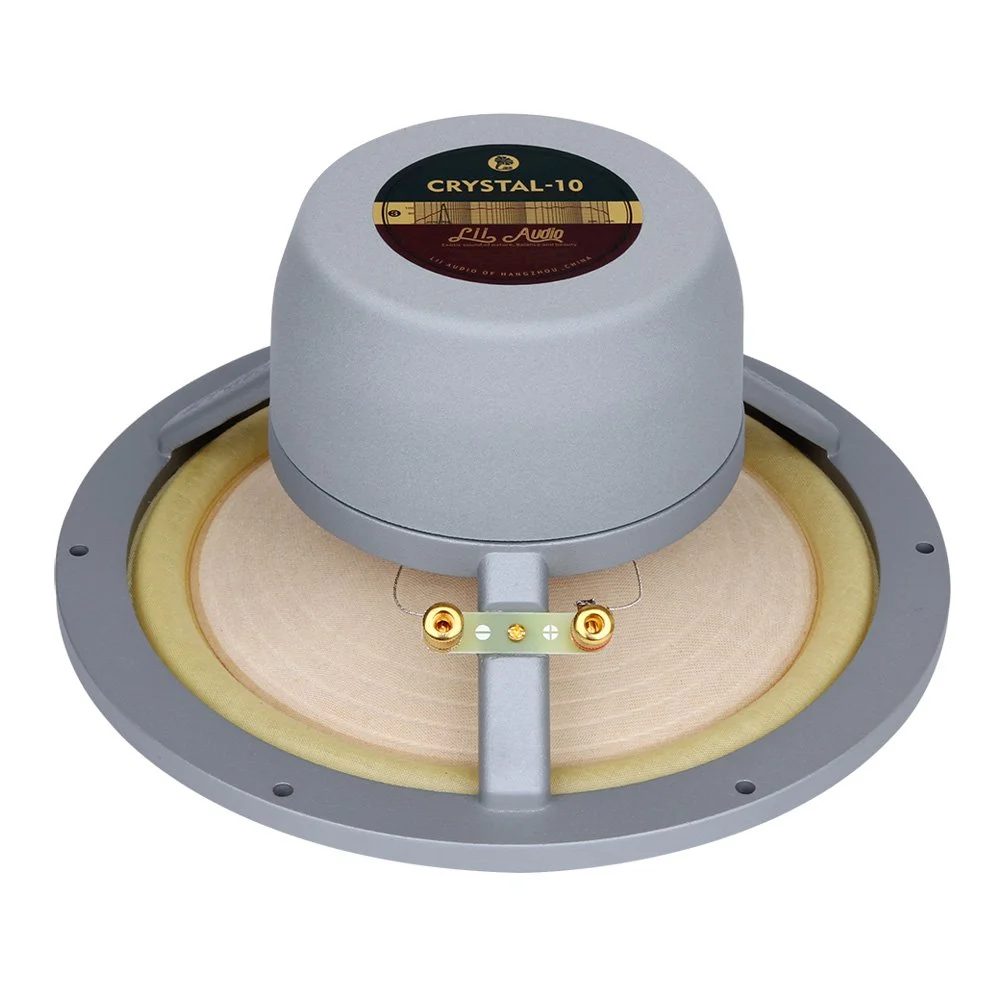

Lii Audio Crystal 10
8Ω
Full-range
| Nominal diameter | 10″ / 273 mm |
| Resonance | 37.2 Hz |
| Q factor | 0.41 |
| Sensitivity | 94.6 dB |
| Linear excursion | ± 6 mm |
| Program Power | 80 W |
.webp)
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94.6dB

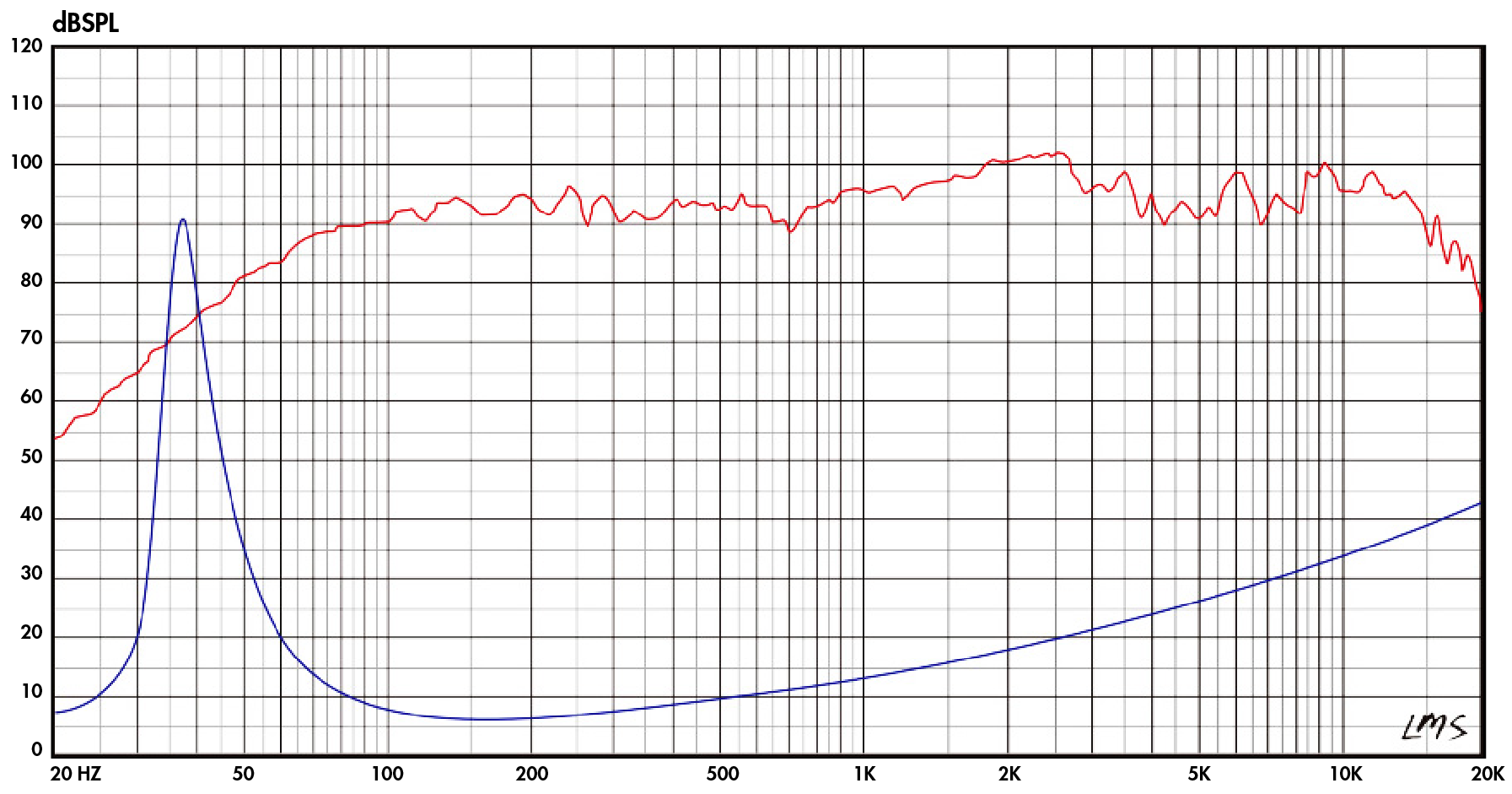

- Frequency response 37 - 20000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 37.2Hz
- Mechanical quality factor QMS 6.10
- Electrical quality factor QES 0.44
- Total quality factor QTS 0.41
Large signal parameters
- Maximum linear excursion xmax 6mm
- Air volume displaced at xmax VD 208cm³
- Power handling P 40W
- Program power Pmax 80W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 6.0Ω
- Inductance (1kHz, estimated) LE 0.86mH
- VC Diameter 30mm
Magnet
- Force factor Bl 7.64N/A
- Motor constant Bl/√RE 3.12N/√W
- Diameter 135mm
- Material Ceramic Y38
Diaphragm
- Effective diameter 210mm
- Effective area SD 346cm²
- Moving mass MMS 16.5g
- Moving mass (without air load) MMD 11.6g
- Material Yellow wood pulp paper
Suspensions
- Stiffness KMS 1.03N/mm
- Compliance CMS 968µm/N
- Equivalent volume to the compliance VAS 165L
- Mechanical resistance RMS 1.28N·s/m
Dimensions
- Nominal diameter 10″
- 273mm
- Overall diameter 273mm
- Volume occupied by the driver (estimated) 1.8L
.webp)
.webp)
Export this driver to a simulation software:
Closed Box Simulator·
Speakerbench
WinISD
Basta!
Hornresp
QSpeakers
SpeakerSim
