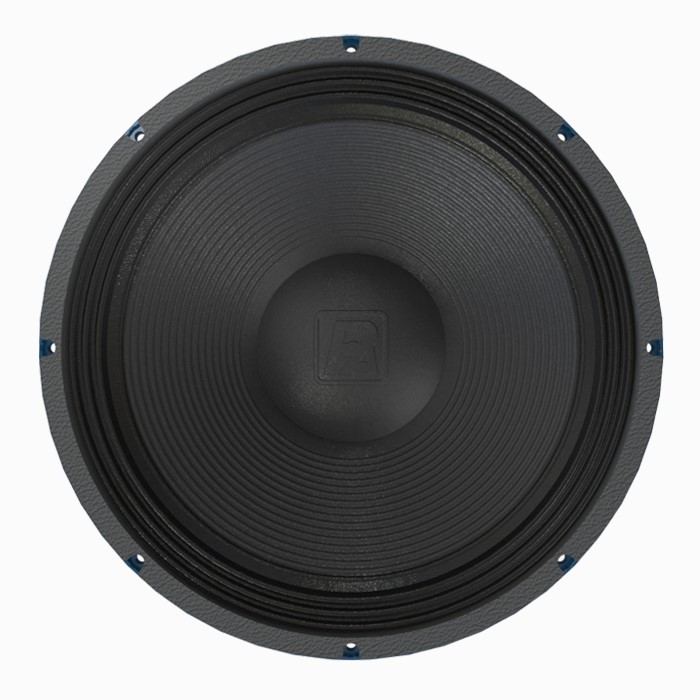

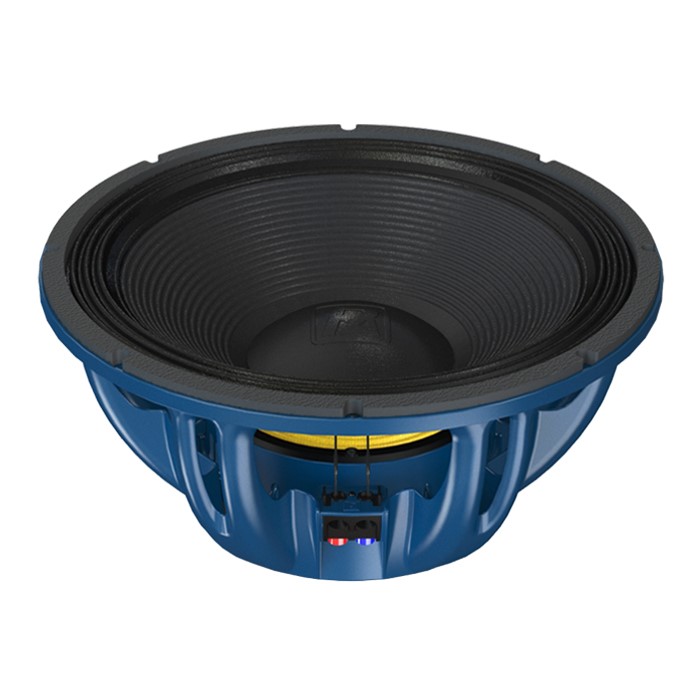

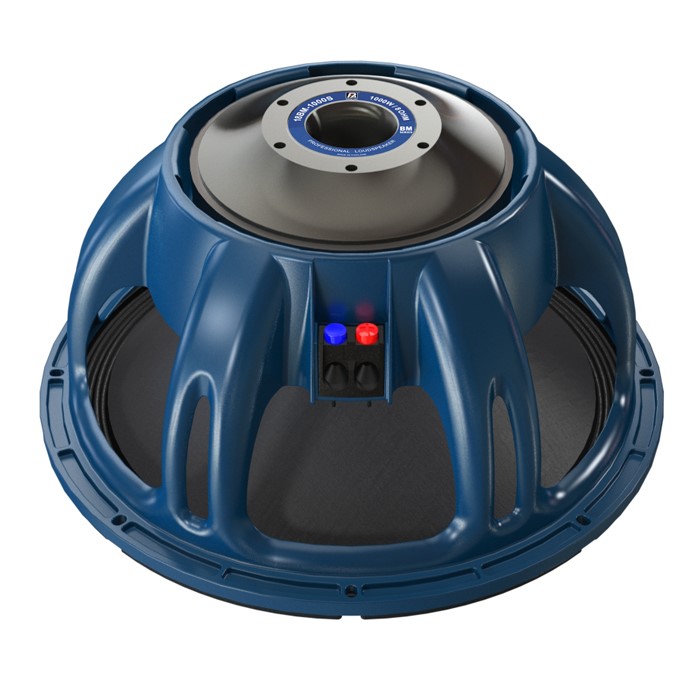

P.Audio 18BM-1000S
8Ω
Low frequency
| Nominal diameter | 18″ / 457 mm |
| Resonance | 35 Hz |
| Q factor | 0.40 |
| Sensitivity | 94.7 dB |
| Linear excursion | ± 8 mm |
| Program Power | 2000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 94.7dB

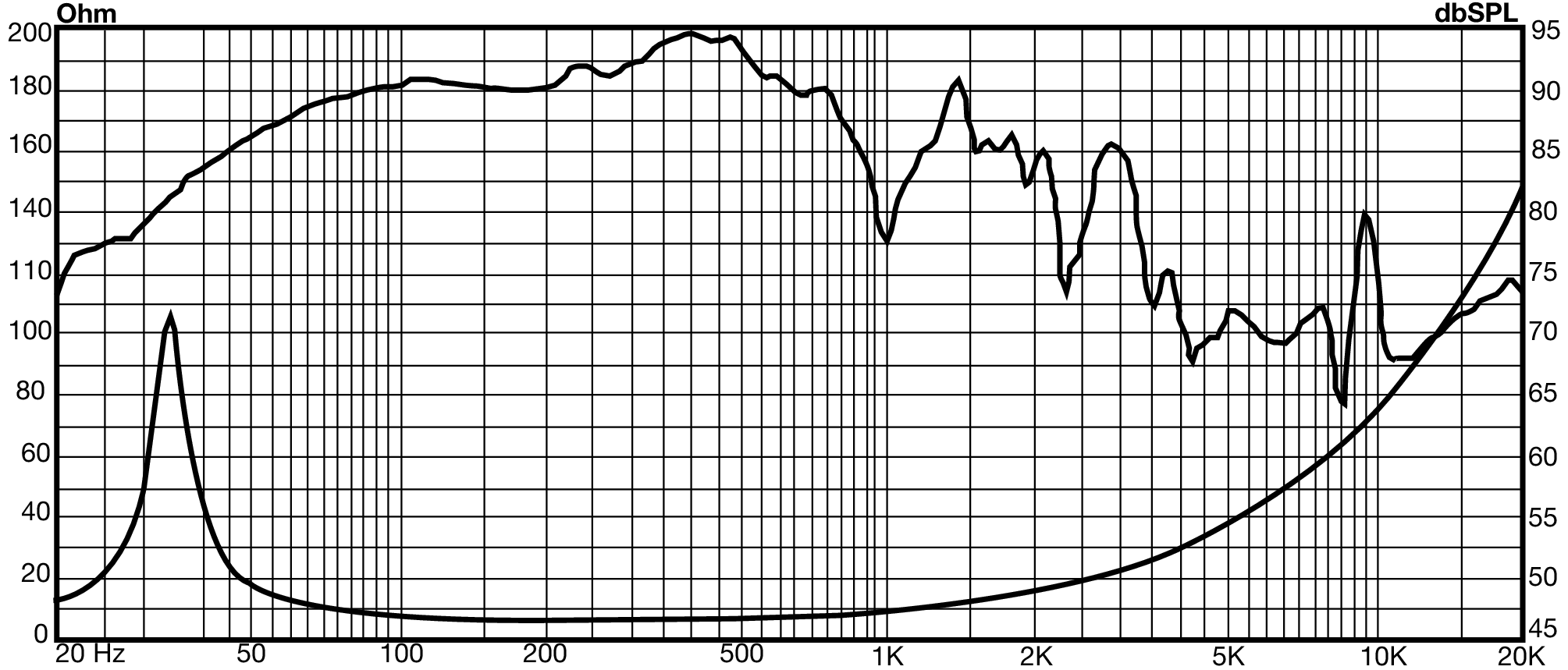

- Frequency response 35 - 1000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 35Hz
- Mechanical quality factor QMS 8.30
- Electrical quality factor QES 0.43
- Total quality factor QTS 0.40
Large signal parameters
- Maximum linear excursion xmax 8mm
- Air volume displaced at xmax VD 980cm³
- Power handling P 1000W
- Program power Pmax 2000W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.5Ω
- Inductance (1kHz) LE 1.17mH
- VC Diameter 101.6mm
- Winding height HVC 28mm
- Winding material Round Copper Wire
- Former material Glass Fiber
Magnet
- Flux density B 0.9T
- Force factor Bl 23.8N/A
- Motor constant Bl/√RE 10.1N/√W
- Air gap height HAG 12mm
- Material Ferrite
Diaphragm
- Effective diameter 396mm
- Effective area SD 1225cm²
- Moving mass MMS 201g
- Moving mass (without air load) MMD 171g
- Material Paper
Suspensions
- Stiffness KMS 9.71N/mm
- Compliance CMS 103µm/N
- Equivalent volume to the compliance VAS 212L
- Mechanical resistance RMS 5.33N·s/m
- Surround material Cloth
- Spider material Double Silicone

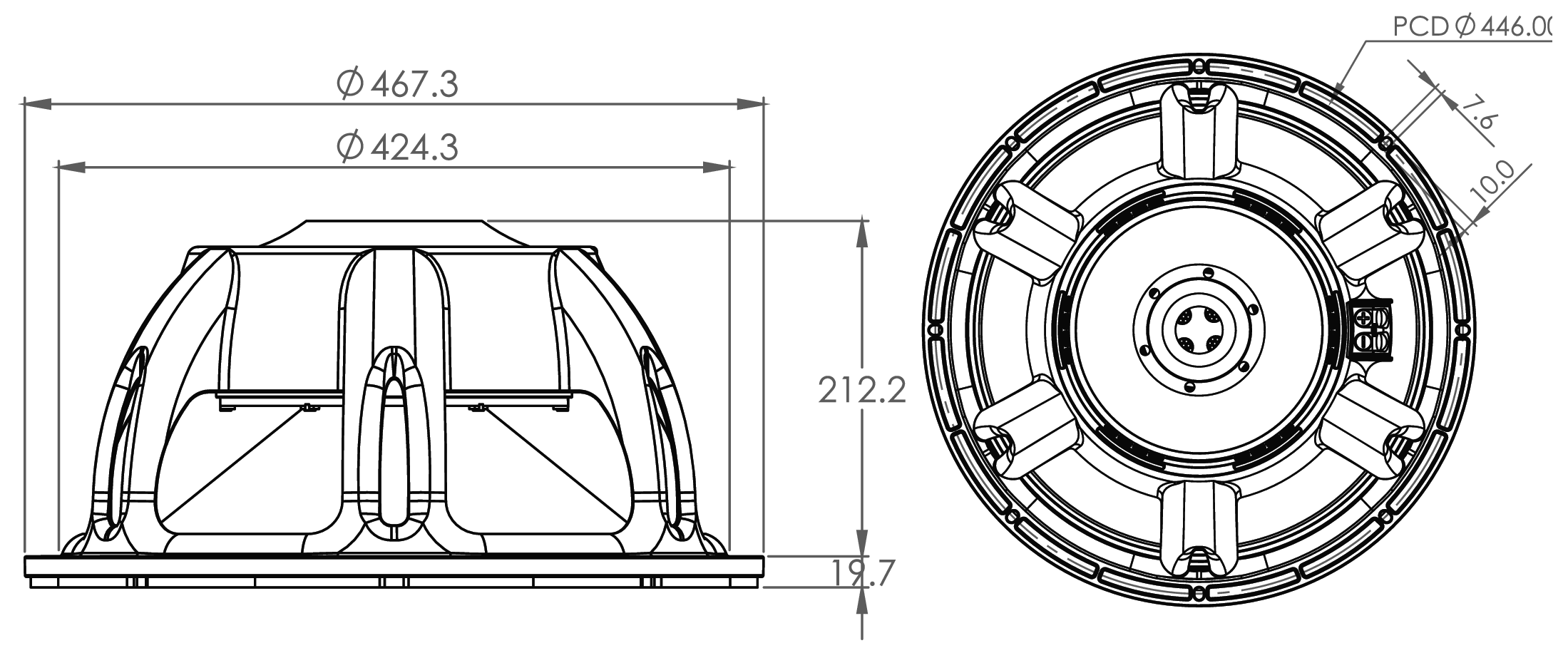

Dimensions
- Nominal diameter 18″
- 457mm
- Overall diameter 467mm
- Baffle cutout diameter 425mm
- Overall depth 232mm
- Flange thickness 20mm
- Mounting depth 212mm
- Volume occupied by the driver (estimated) 8L
- Net weight 13.7kg
- Frame material Aluminium
.png)
.png)
