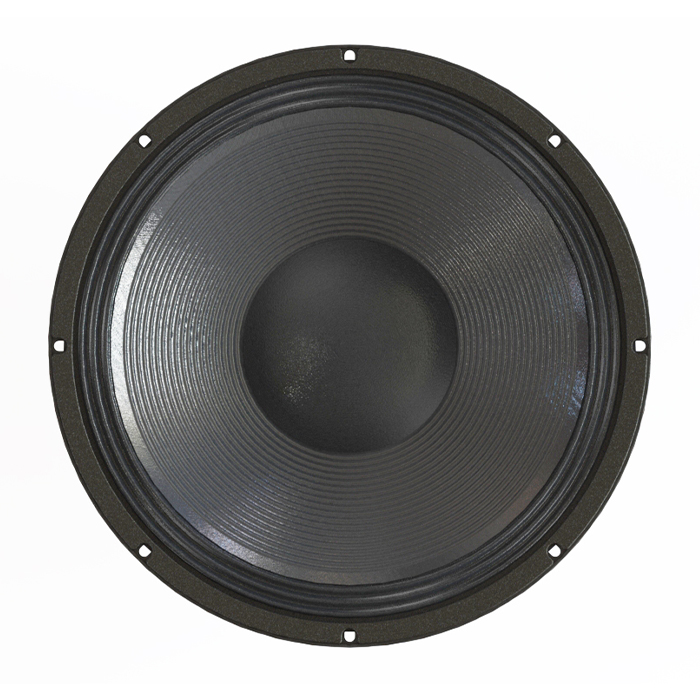

P.Audio GST-181200 v3

Low frequency

Nominal diameter18″ / 457 mm
Resonance35 Hz
Q factor0.54
Sensitivity93.2 dB
Linear excursion± 6 mm
Program Power2400 W
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply
  • Sensitivity (1W, 1m, infinite baffle) SPL1W 93.2dB
  • Frequency response 30 - 1000Hz

Thiele & Small parameters

  • Resonance frequency (free air) fS 35Hz
  • Mechanical quality factor QMS 13.73
  • Electrical quality factor QES 0.57
  • Total quality factor QTS 0.54

Large signal parameters

  • Maximum linear excursion xmax 6mm
  • Air volume displaced at xmax VD 735cm³
  • Power handling P 1200W
  • Program power Pmax 2400W

Voice Coil

  • Nominal impedance Z 8Ω
  • DC resistance RE 5.6Ω
  • Inductance (1kHz) LE 0.76mH
  • VC Diameter 101.6mm
  • Winding height HVC 27mm
  • Winding material Copper
  • Former material Glass fiber

Magnet

  • Flux density B 1.1T
  • Force factor Bl 22.8N/A
  • Motor constant Bl/√RE 9.63N/√W
  • Air gap height HAG 15mm
  • Material Ferrite

Diaphragm

  • Effective diameter 397mm
  • Effective area SD 1225cm²
  • Moving mass MMS 239g
  • Moving mass (without air load) MMD 209g
  • Material Waterproof Paper

Suspensions

  • Stiffness KMS 11.8N/mm
  • Compliance CMS 85µm/N
  • Equivalent volume to the compliance VAS 180L
  • Mechanical resistance RMS 3.83N·s/m
  • Surround material Cloth
  • Spider material Cotton (Silicone Impregnated)

Dimensions

  • Nominal diameter 18
  • 457mm
  • Overall diameter 467mm
  • Baffle cutout diameter 425mm
  • Overall depth 235mm
  • Flange thickness 21mm
  • Mounting depth 214mm
  • Volume occupied by the driver (estimated) 8.9L
  • Net weight 16.0kg
  • Frame material Aluminium
P.Audio GST-181200 v3 SPL & Impedance
P.Audio GST-181200 v3 Dimensions
