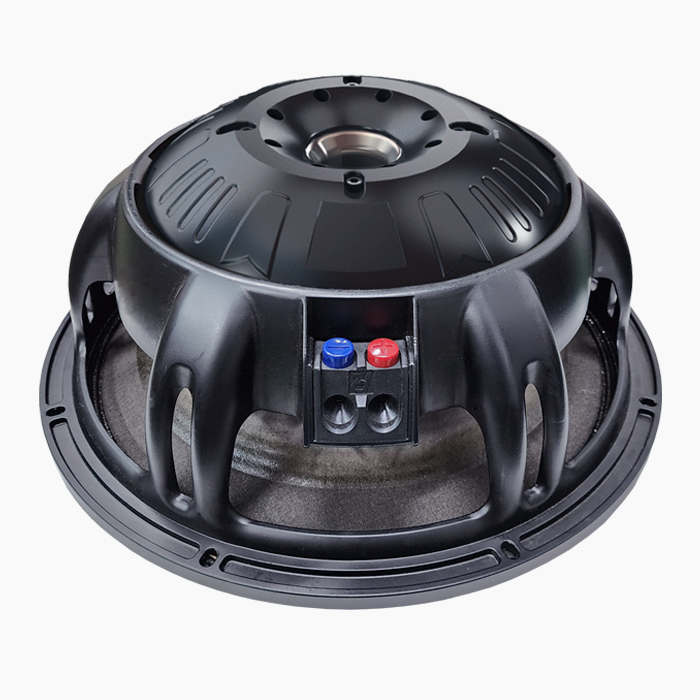

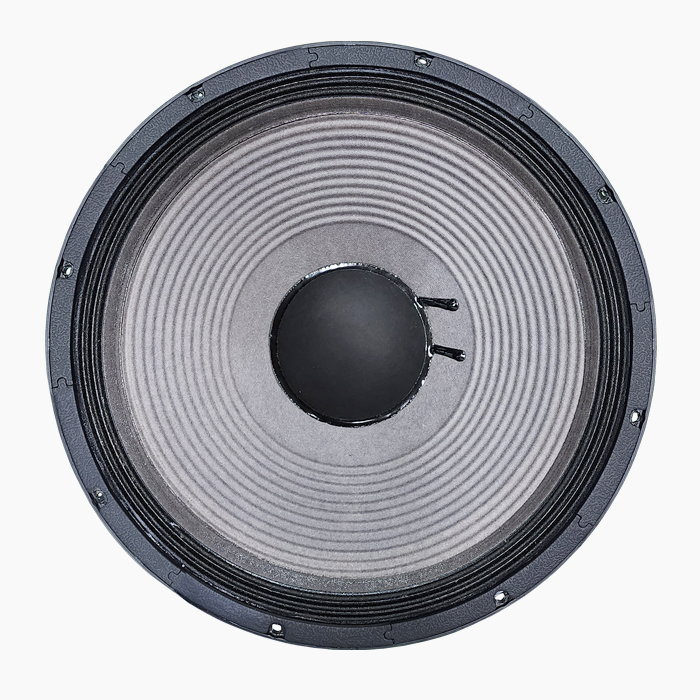

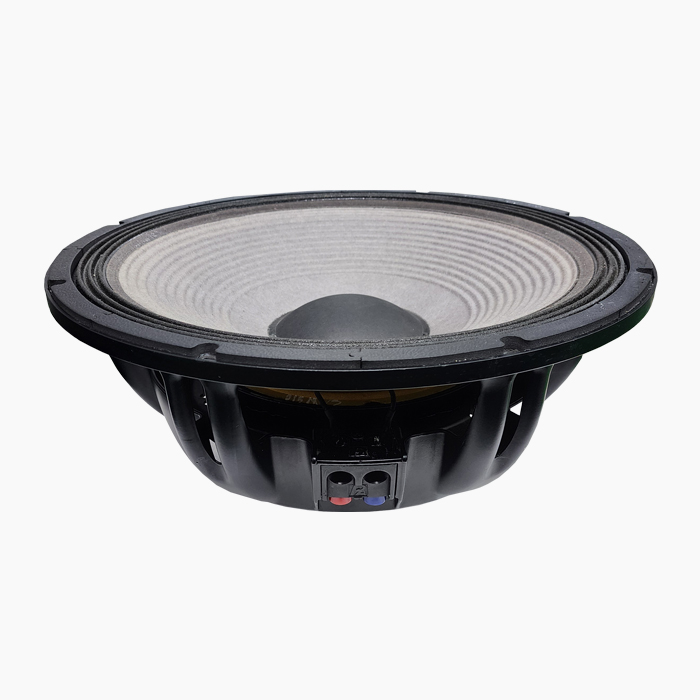

P.Audio P-15N v3
8Ω
Low frequency
| Nominal diameter | 15″ / 381 mm |
| Resonance | 45 Hz |
| Q factor | 0.31 |
| Sensitivity | 95.6 dB |
| Linear excursion | ± 5 mm |
| Program Power | 2000 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.6dB

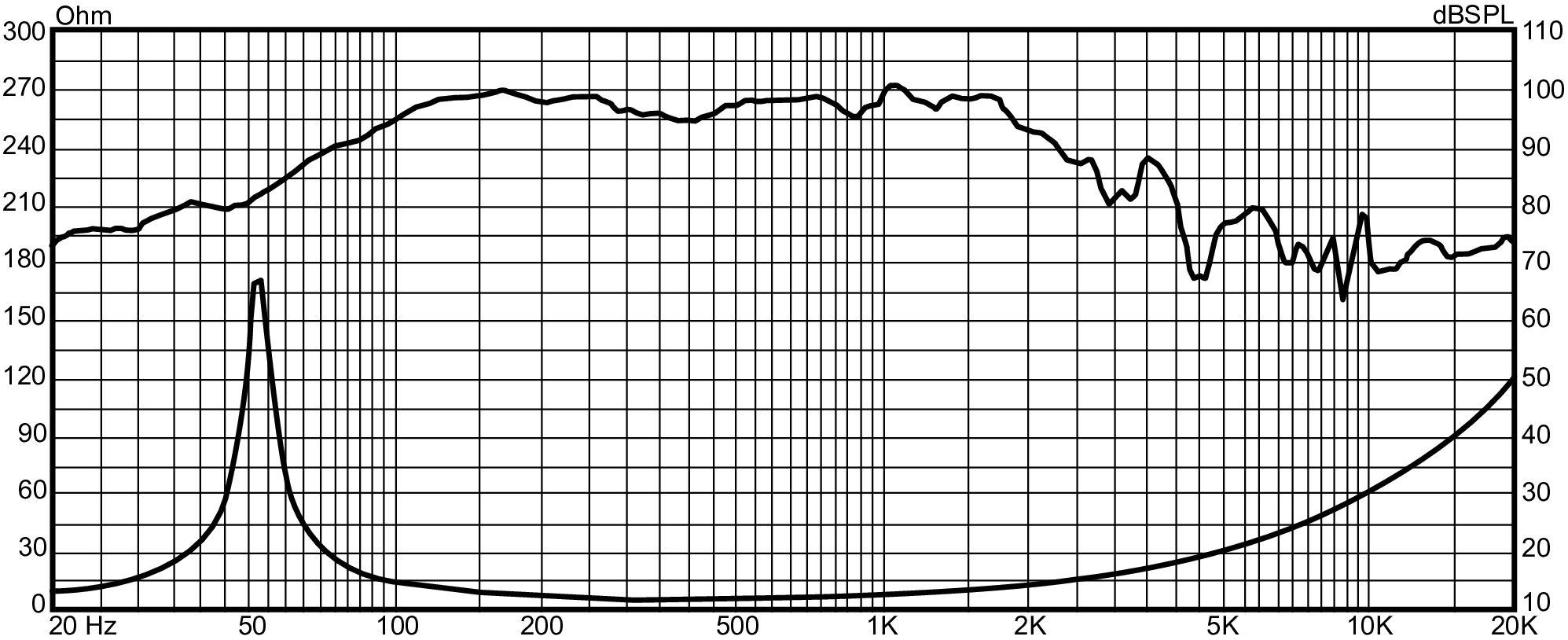

- Frequency response 45 - 2500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 45Hz
- Mechanical quality factor QMS 6.90
- Electrical quality factor QES 0.32
- Total quality factor QTS 0.31
Large signal parameters
- Maximum linear excursion xmax 5mm
- Air volume displaced at xmax VD 441cm³
- Power handling P 1000W
- Program power Pmax 2000W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.3Ω
- Inductance (1kHz) LE 0.75mH
- VC Diameter 99.3mm
- Winding height HVC 21mm
- Winding material Flat Aluminium Wire
- Former material Glass Fiber
Magnet
- Flux density B 1.3T
- Force factor Bl 25.3N/A
- Motor constant Bl/√RE 11N/√W
- Air gap height HAG 11mm
- Material Neodymium
Diaphragm
- Effective diameter 340mm
- Effective area SD 881cm²
- Moving mass MMS 146g
- Moving mass (without air load) MMD 127g
- Material Paper
Suspensions
- Stiffness KMS 10.9N/mm
- Compliance CMS 92µm/N
- Equivalent volume to the compliance VAS 102L
- Mechanical resistance RMS 5.97N·s/m
- Surround material Cloth
- Spider material Double Silicone

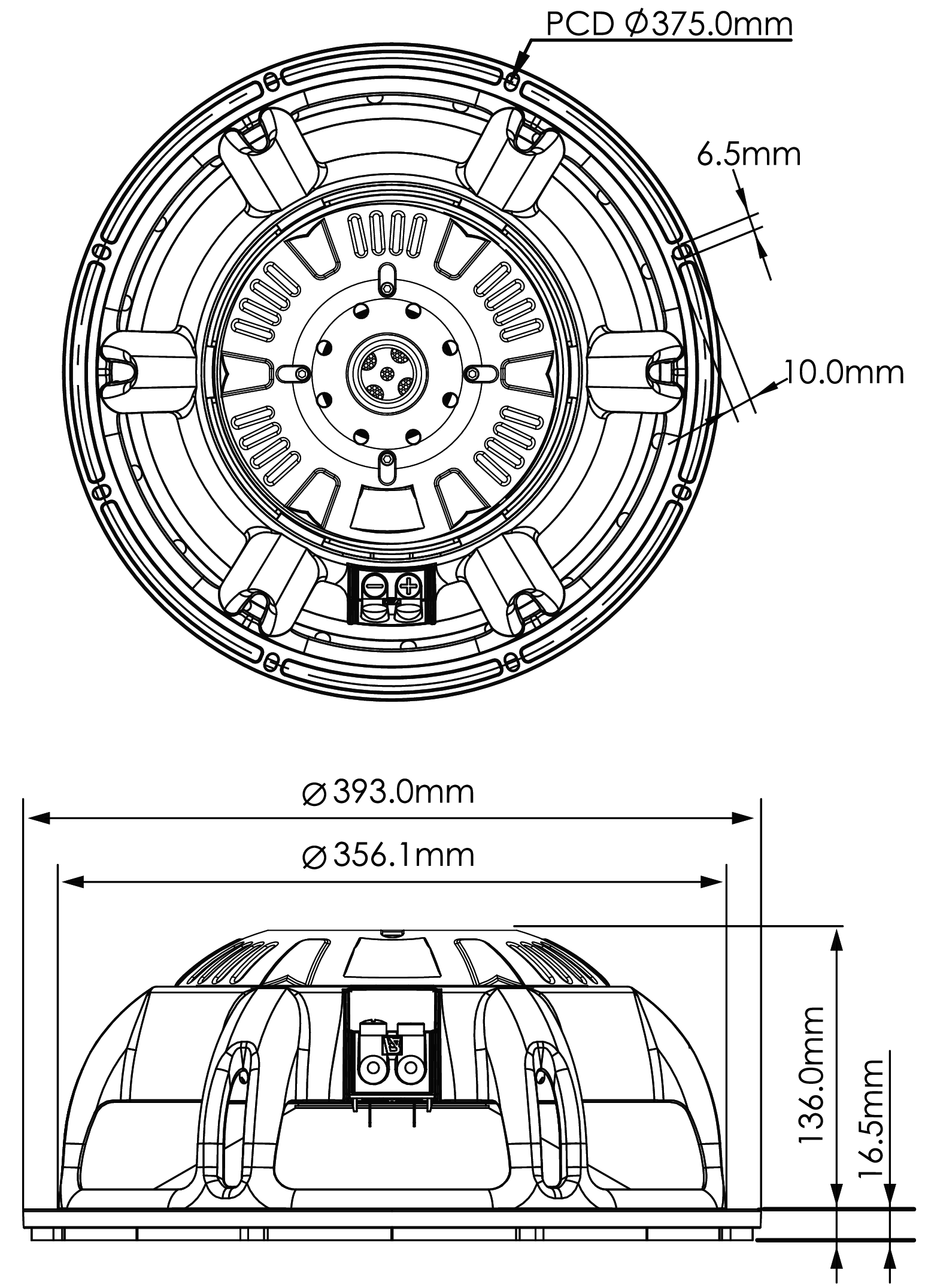

Dimensions
- Nominal diameter 15″
- 381mm
- Overall diameter 393mm
- Baffle cutout diameter 357mm
- Overall depth 153mm
- Flange thickness 17mm
- Mounting depth 136mm
- Volume occupied by the driver (estimated) 3.6L
- Frame material Aluminium
.png)
.png)
Export this driver to a simulation software:
Closed Box Simulator·
Speakerbench
WinISD
Basta!
Hornresp
QSpeakers
SpeakerSim
