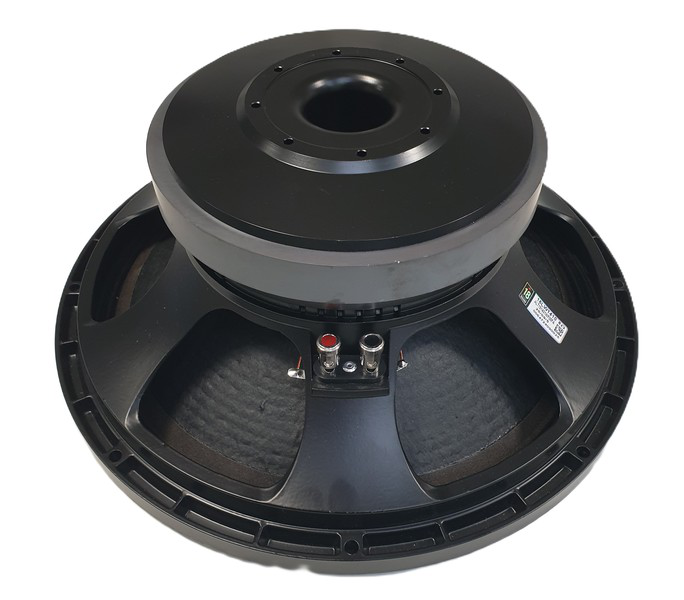

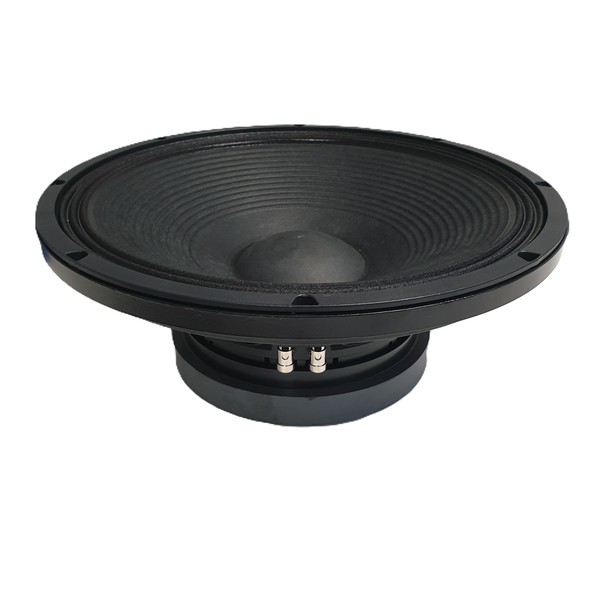

Eighteen Sound 15LW1410
8Ω
Subwoofer
| Nominal diameter | 15″ / 380 mm |
| Resonance | 42 Hz |
| Q factor | 0.27 |
| Sensitivity | 95.3 dB |
| Linear excursion | ± 8.5 mm |
| Program Power | 2000 W |
.png)
.png)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.3dB

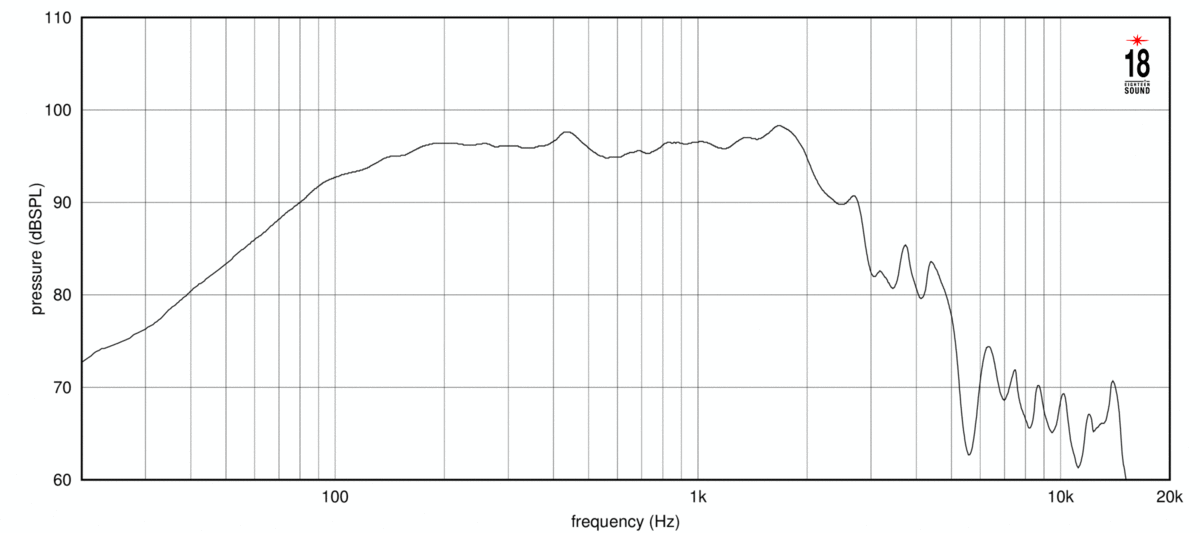

- Frequency response 40 - 2400Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 42Hz
- Mechanical quality factor QMS 5.36
- Electrical quality factor QES 0.28
- Total quality factor QTS 0.27
Large signal parameters
- Maximum linear excursion xmax 8.5mm
- Air volume displaced at xmax VD 723cm³
- Power handling P 1000W
- Program power Pmax 2000W

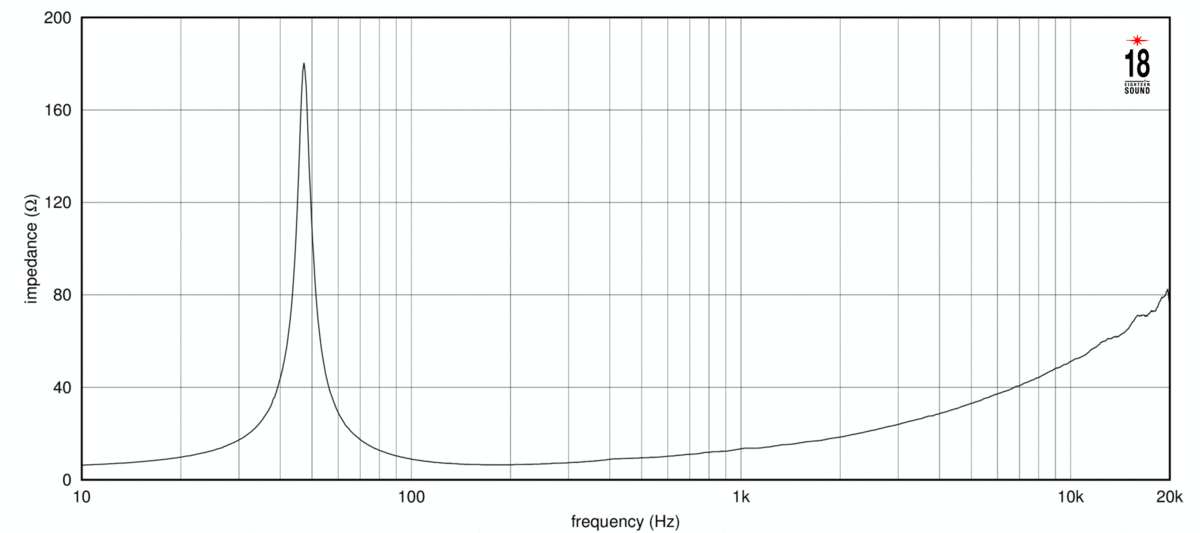

Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.0Ω
- Inductance (1kHz) LE 1mH
- VC Diameter 100mm
- Winding height HVC 24mm
- Winding material Copper
Magnet
- Force factor Bl 24.1N/A
- Motor constant Bl/√RE 10.8N/√W
- Air gap height HAG 14mm
- Material Ferrite
Diaphragm
- Effective diameter 329mm
- Effective area SD 850cm²
- Moving mass MMS 138g
- Moving mass (without air load) MMD 121g
- Material Weather protected
Suspensions
- Stiffness KMS 8.55N/mm
- Compliance CMS 117µm/N
- Equivalent volume to the compliance VAS 131L
- Mechanical resistance RMS 6.79N·s/m

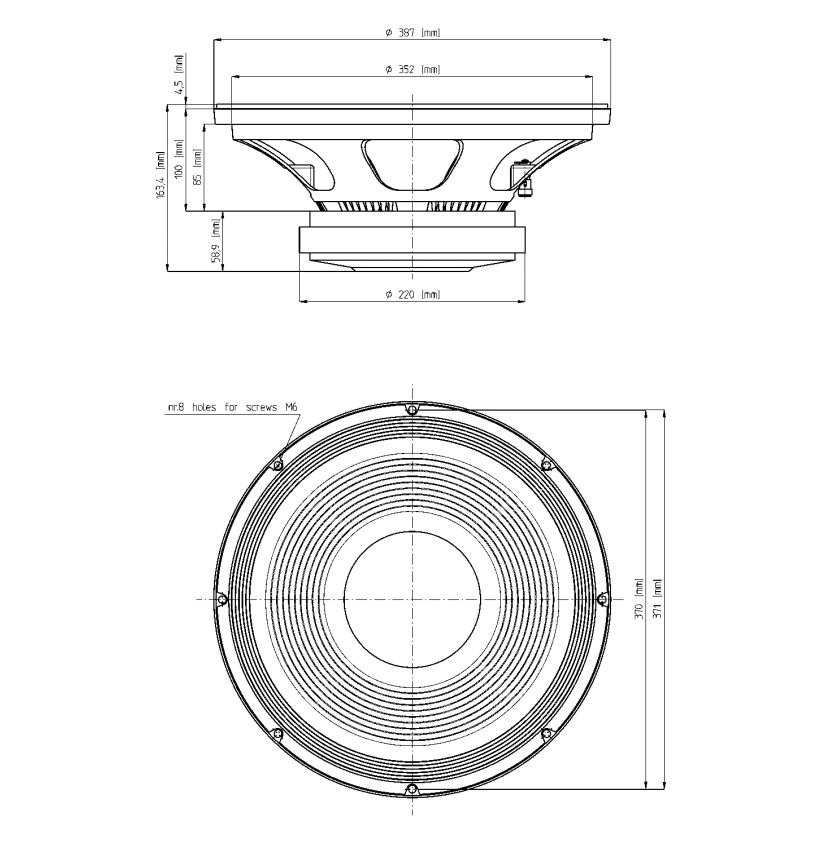

Dimensions
- Nominal diameter 15″
- 380mm
- Overall diameter 387mm
- Baffle cutout diameter 353mm
- Overall depth 163mm
- Flange thickness 19mm
- Mounting depth 144mm
- Volume occupied by the driver (estimated) 5.4L
- Net weight 12.9kg
