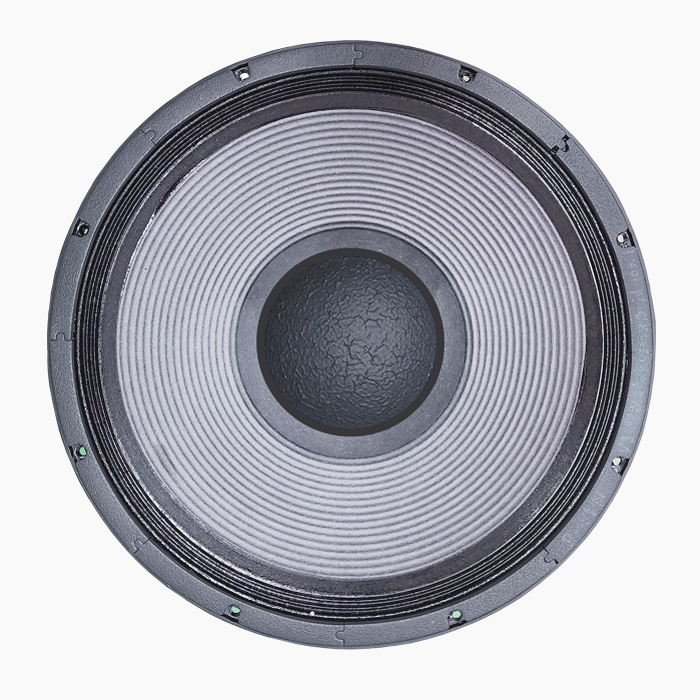

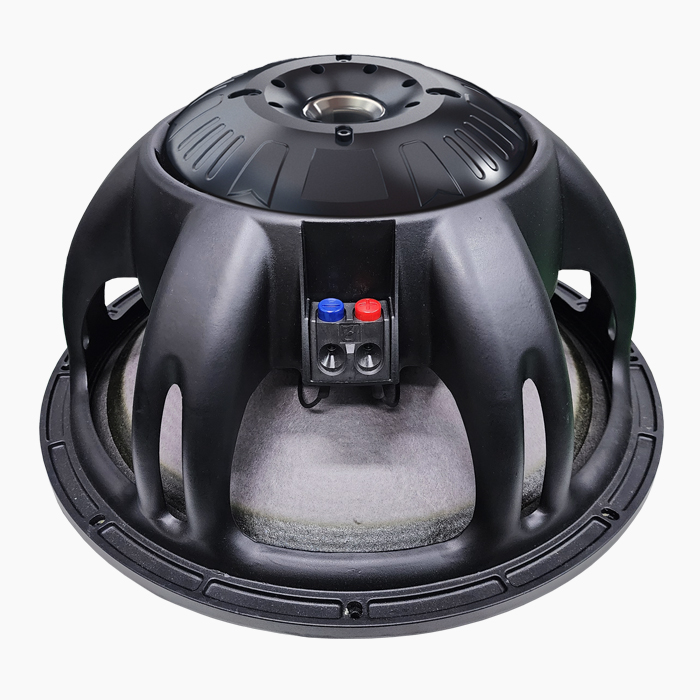

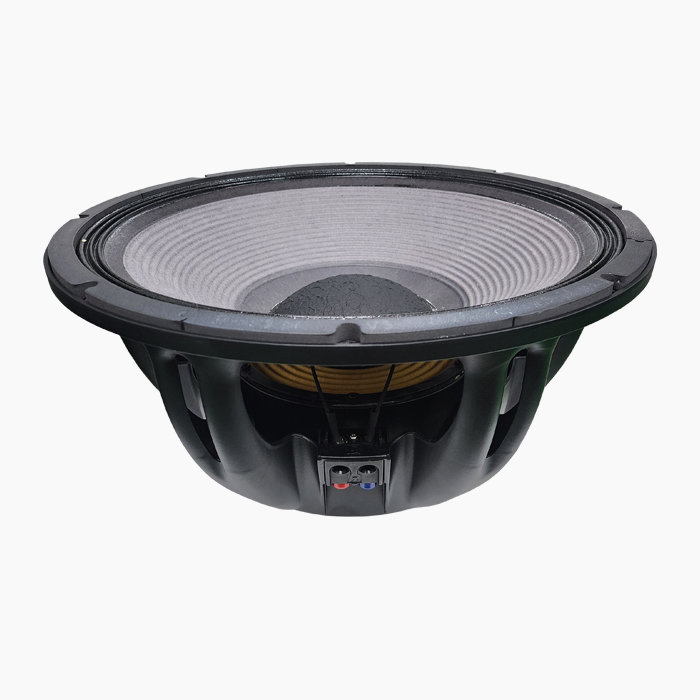

P.Audio P-18N v3
8Ω
Low frequency
| Nominal diameter | 18″ / 457 mm |
| Resonance | 35 Hz |
| Q factor | 0.40 |
| Sensitivity | 95.6 dB |
| Linear excursion | ± 9 mm |
| Program Power | 2400 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.6dB

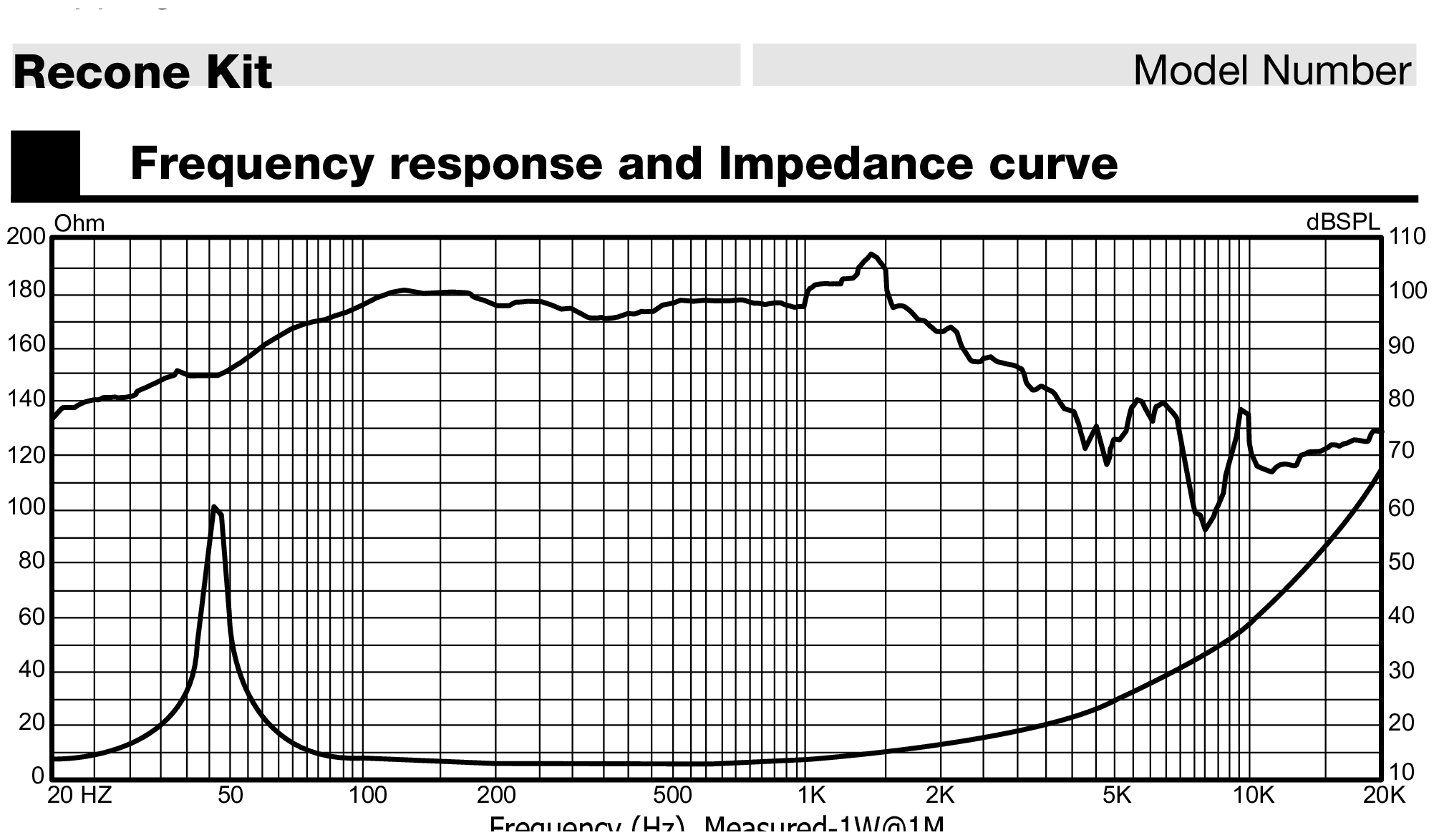

- Frequency response 35 - 1000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 35Hz
- Mechanical quality factor QMS 9.05
- Electrical quality factor QES 0.42
- Total quality factor QTS 0.40
Large signal parameters
- Maximum linear excursion xmax 9mm
- Air volume displaced at xmax VD 1097cm³
- Power handling P 1200W
- Program power Pmax 2400W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.2Ω
- Inductance (1kHz) LE 0.92mH
- VC Diameter 99.3mm
- Winding height HVC 29mm
- Winding material Flat Aluminium Wire
- Former material Glass Fiber
Magnet
- Flux density B 1.3T
- Force factor Bl 24.1N/A
- Motor constant Bl/√RE 10.6N/√W
- Air gap height HAG 11mm
- Material Neodymium
Diaphragm
- Effective diameter 405mm
- Effective area SD 1219cm²
- Moving mass MMS 193g
- Moving mass (without air load) MMD 163g
- Material Paper
Suspensions
- Stiffness KMS 10.3N/mm
- Compliance CMS 97µm/N
- Equivalent volume to the compliance VAS 180L
- Mechanical resistance RMS 4.68N·s/m
- Surround material Cloth
- Spider material Double Silicone

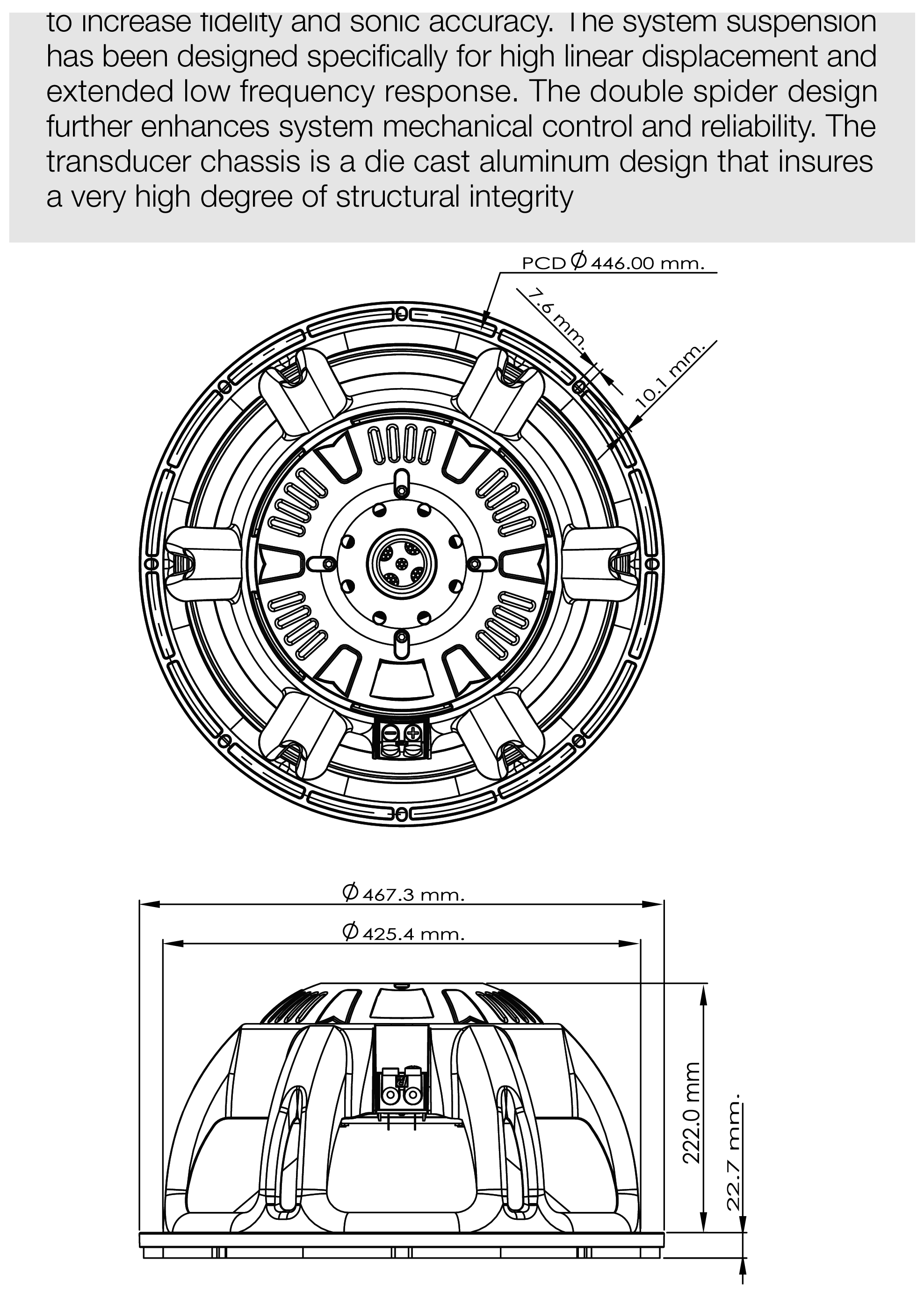

Dimensions
- Nominal diameter 18″
- 457mm
- Overall diameter 467mm
- Baffle cutout diameter 427mm
- Overall depth 245mm
- Flange thickness 23mm
- Mounting depth 222mm
- Volume occupied by the driver (estimated) 8.5L
- Frame material Aluminium
