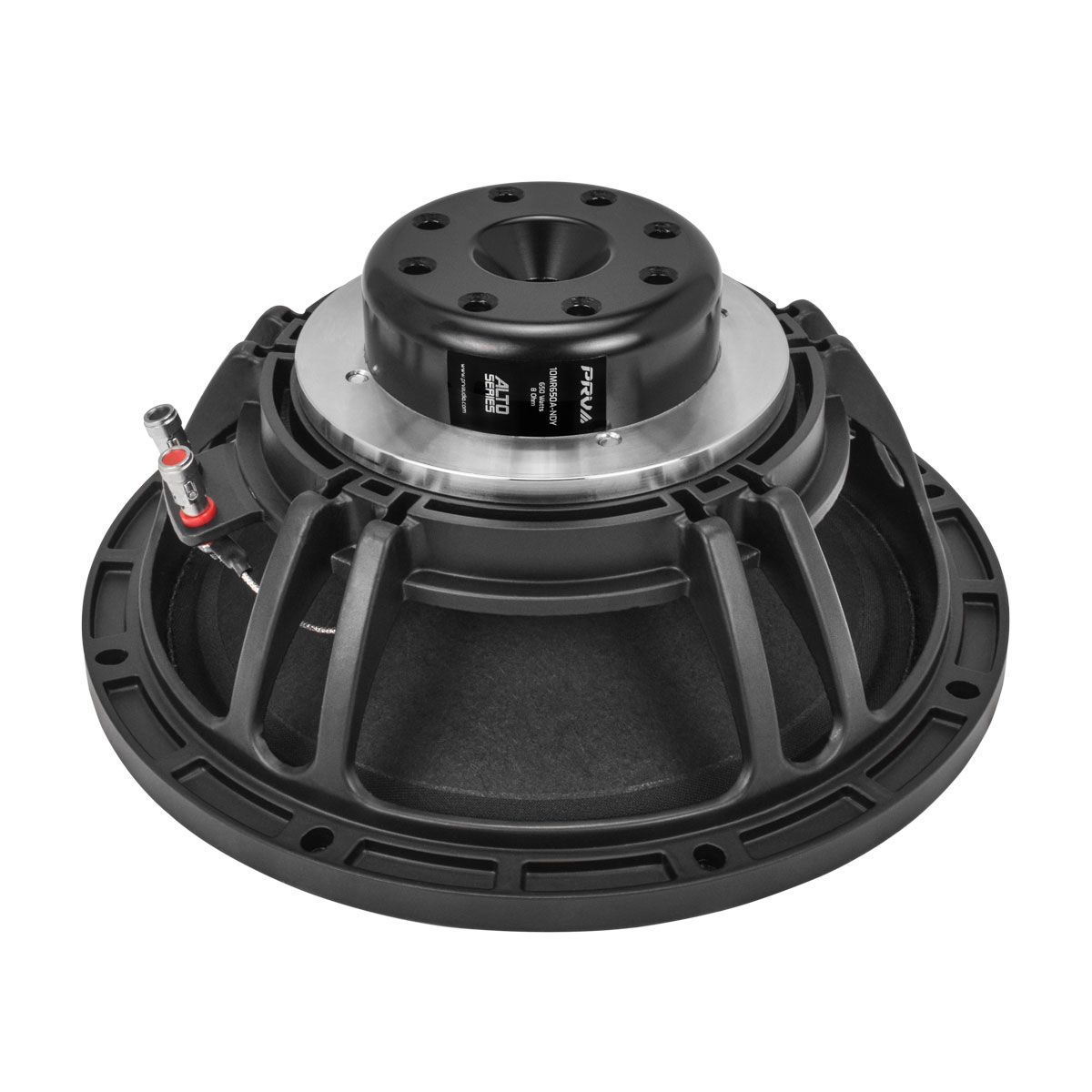

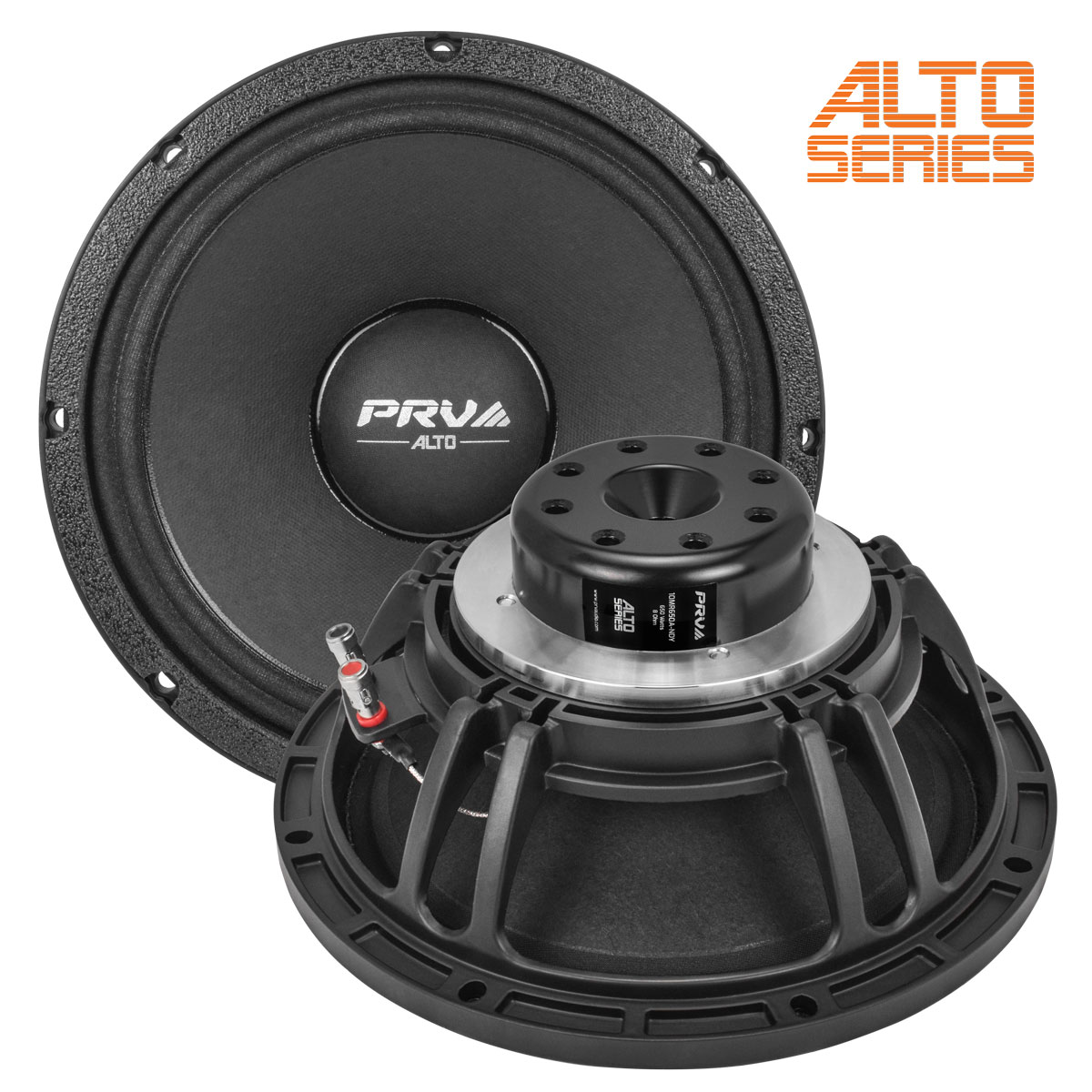

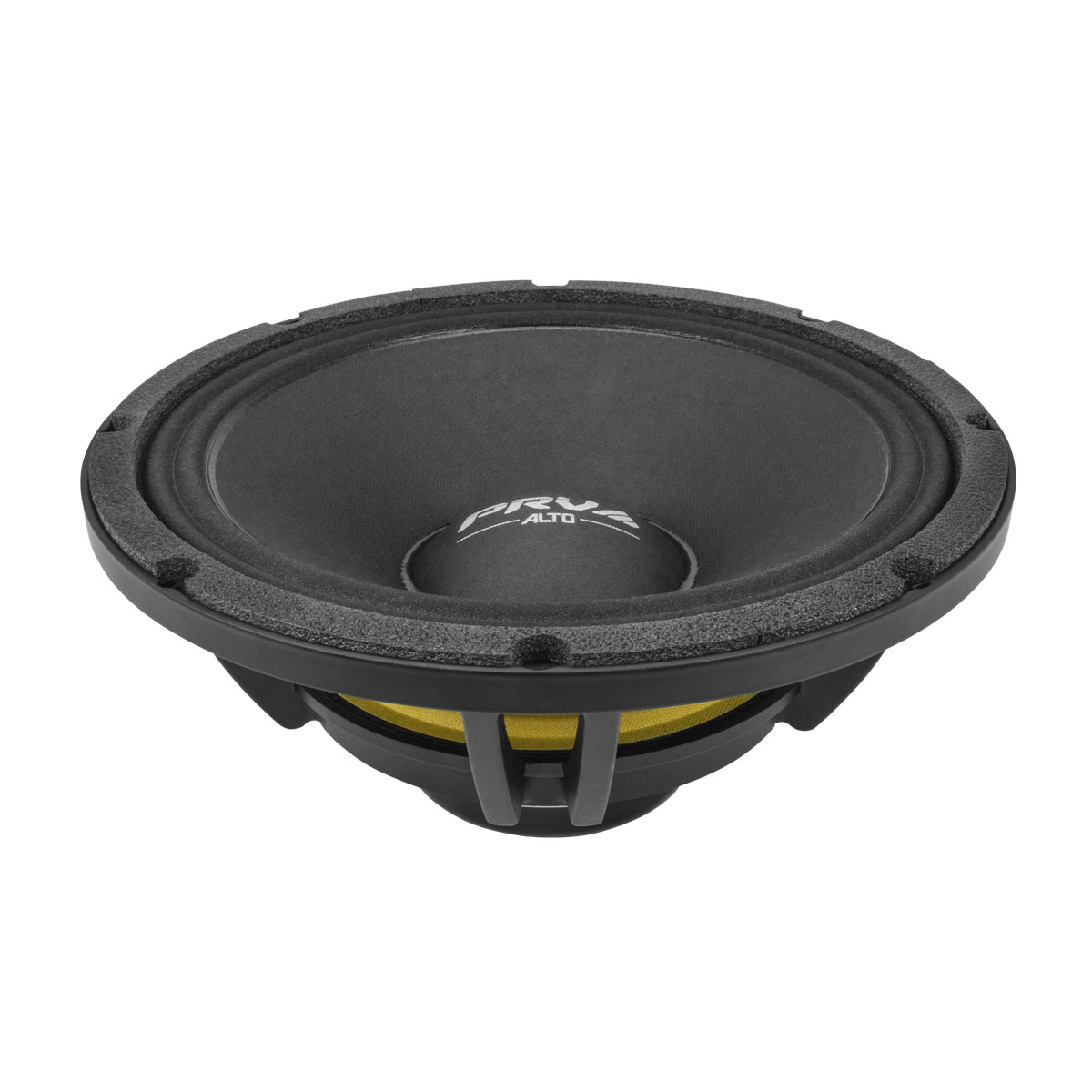

PRV Audio 10MR650A-NDY
8Ω
Low frequency
| Nominal diameter | 10″ / 254 mm |
| Resonance | 62.4 Hz |
| Q factor | 0.38 |
| Sensitivity | 96 dB |
| Linear excursion | ± 3.5 mm |
| Program Power | 650 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 96dB

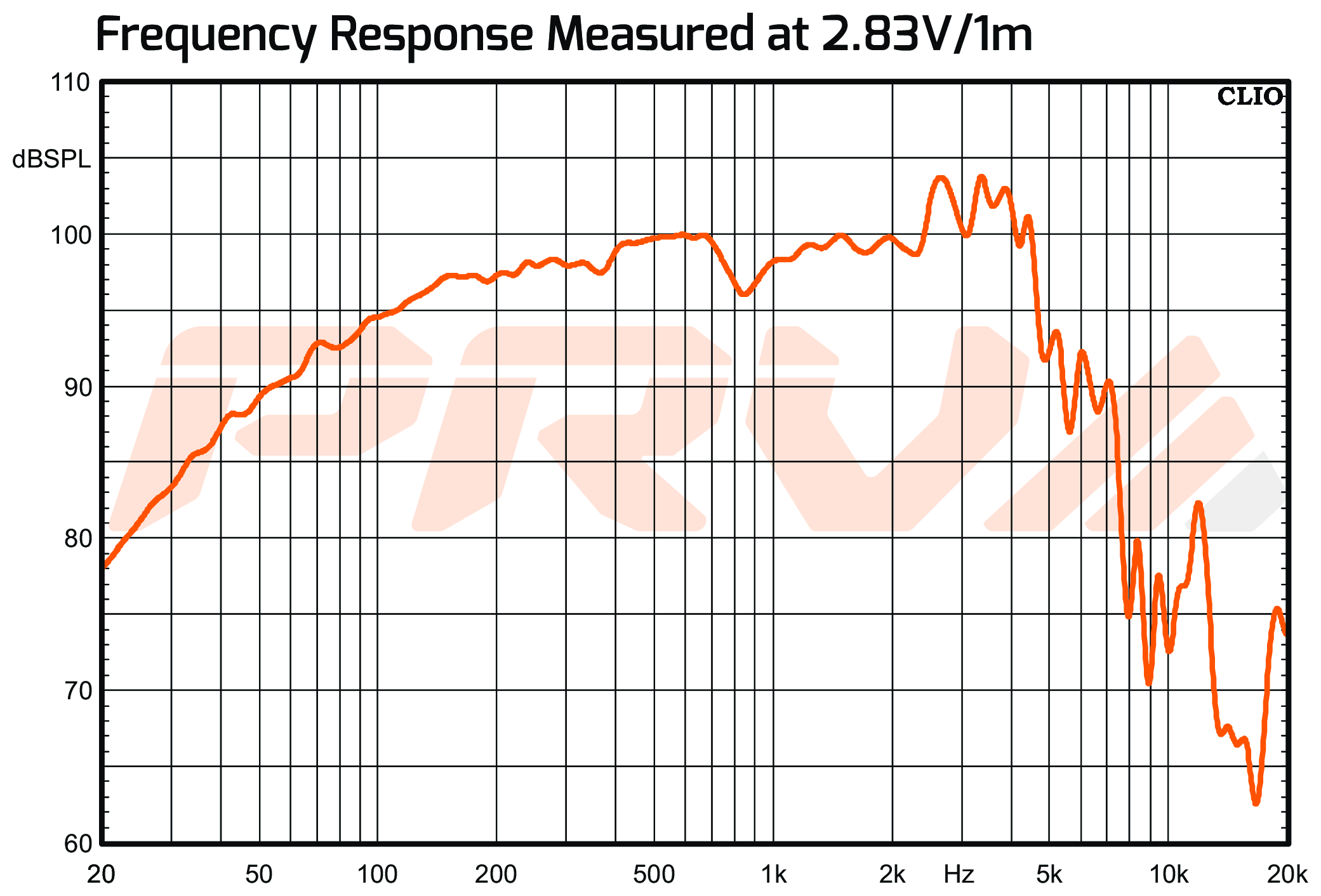

- Frequency response 70 - 6500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 62.4Hz
- Mechanical quality factor QMS 10.23
- Electrical quality factor QES 0.40
- Total quality factor QTS 0.38
Large signal parameters
- Maximum linear excursion xmax 3.5mm
- Air volume displaced at xmax VD 133cm³
- Power handling P 325W
- Program power Pmax 650W
- Peak power Ppeak 1300W
Voice Coil

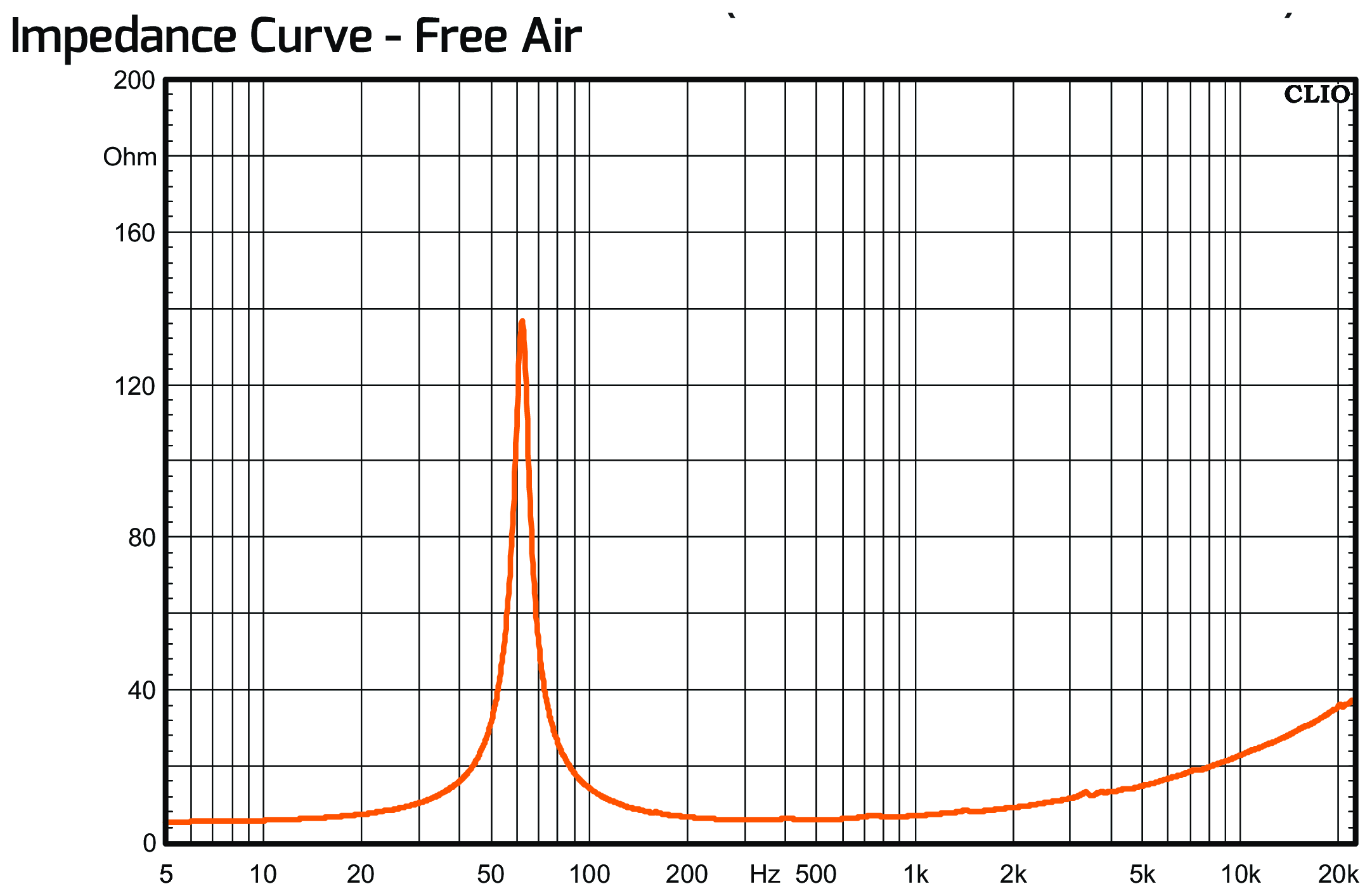

- Nominal impedance Z 8Ω
- DC resistance RE 5.1Ω
- Inductance (1kHz) LE 0.39mH
- VC Diameter 65mm
- Winding height HVC 11mm
- Winding material Copper Clad Aluminium
- Former material Glass fiber
Magnet
- Force factor Bl 12.7N/A
- Motor constant Bl/√RE 5.64N/√W
- Air gap height HAG 8mm
Diaphragm
- Effective diameter 220mm
- Effective area SD 380cm²
- Moving mass MMS 32.2g
- Moving mass (without air load) MMD 27g
Suspensions
- Stiffness KMS 4.95N/mm
- Compliance CMS 202µm/N
- Equivalent volume to the compliance VAS 40.7L
- Mechanical resistance RMS 1.24N·s/m

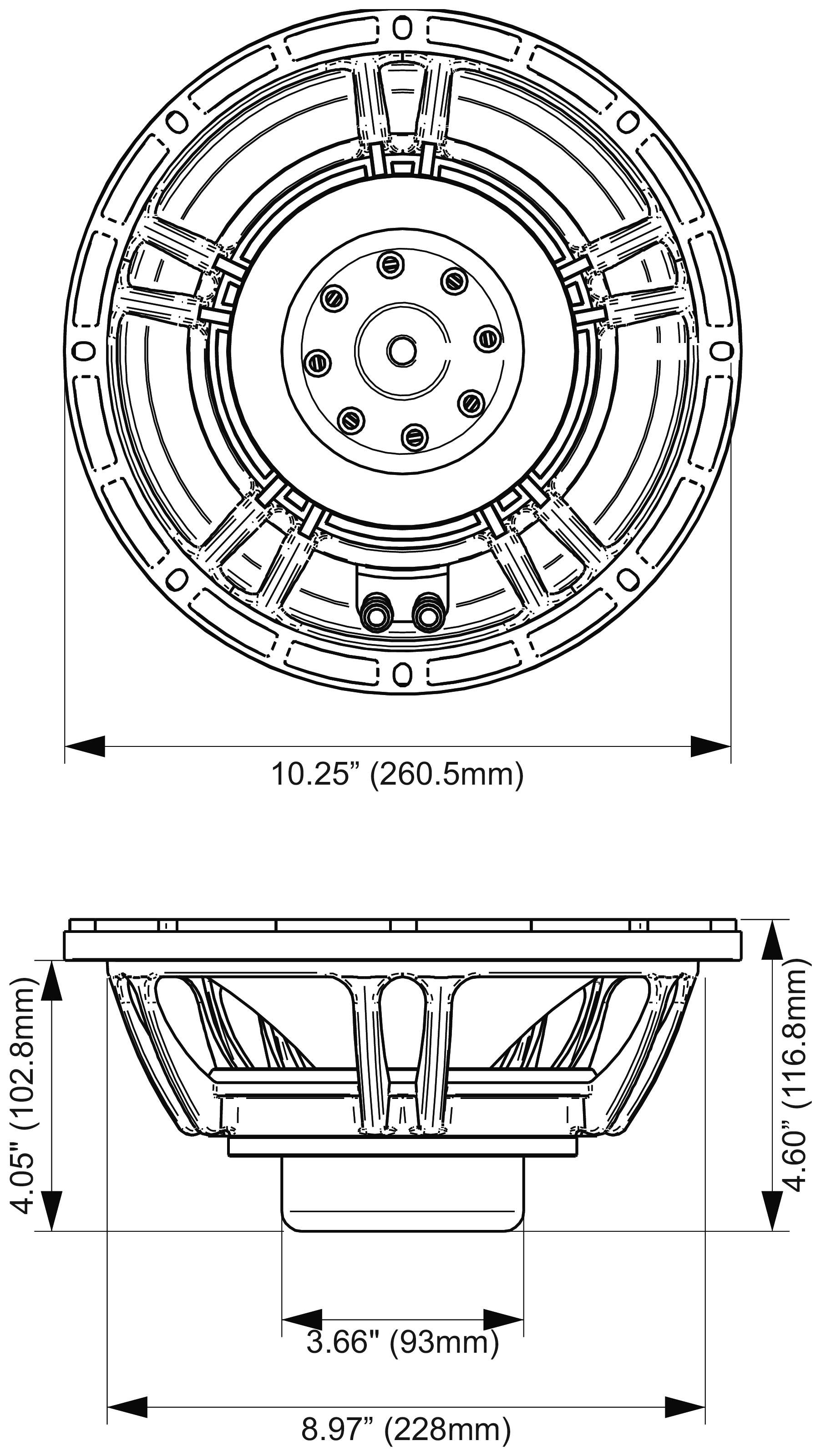

Dimensions
- Nominal diameter 10″
- 254mm
- Overall diameter 261mm
- Baffle cutout diameter 228mm
- Overall depth 117mm
- Flange thickness 14mm
- Mounting depth 103mm
- Volume occupied by the driver (estimated) 1.2L
- Net weight 2.6kg
- Frame material Die Cast Aluminium
.png)
.png)
.png)
