PRV Audio 10MR800 PRO
8Ω
Low frequency
| Nominal diameter | 10″ / 254 mm |
| Resonance | 96.4 Hz |
| Q factor | 0.50 |
| Sensitivity | 95.2 dB |
| Linear excursion | ± 2.5 mm |
| Program Power | 800 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 95.2dB

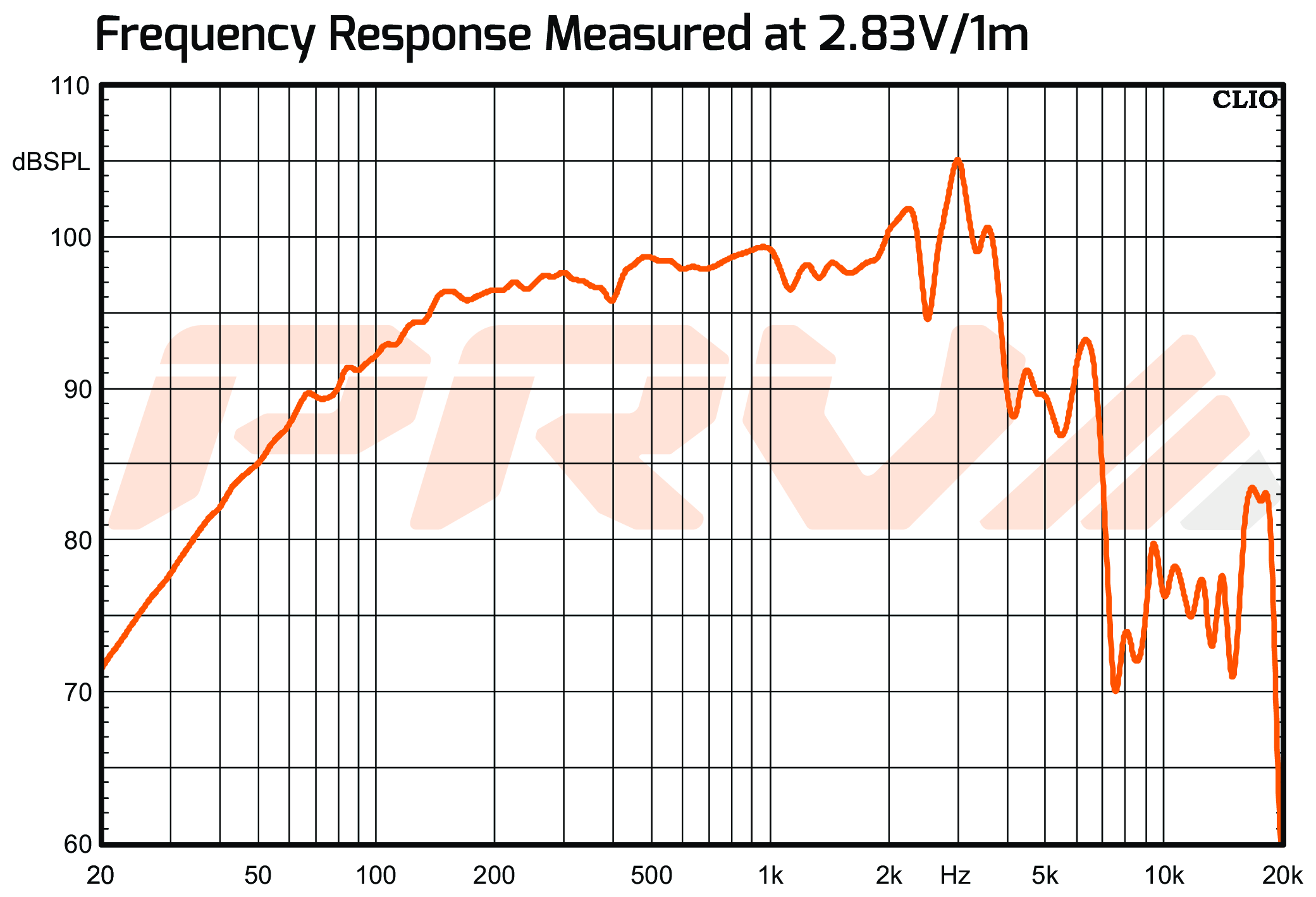

- Frequency response 100 - 6500Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 96.4Hz
- Mechanical quality factor QMS 11.30
- Electrical quality factor QES 0.52
- Total quality factor QTS 0.50
Large signal parameters
- Maximum linear excursion (one way) xmax 2.5mm
- Air volume displaced at xmax VD 87cm³
- Power handling P 400W
- Program power Pmax 800W
- Peak power Ppeak 1600W
Voice Coil

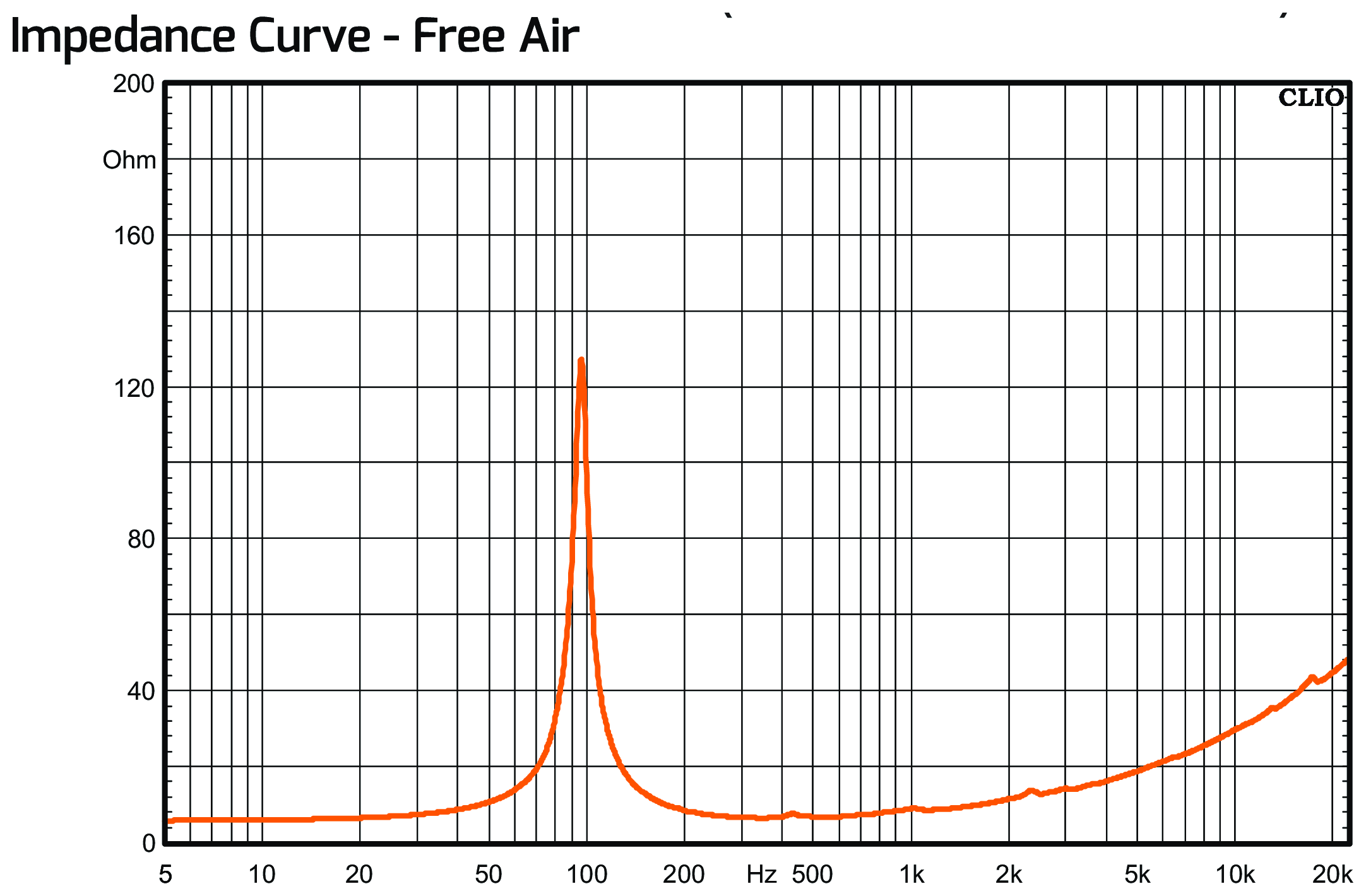

- Nominal impedance Z 8Ω
- DC resistance RE 5.6Ω
- Inductance (1kHz) LE 0.56mH
- VC Diameter 75mm
- Winding height HVC 10mm
- Winding material Copper Clad Aluminium
- Former material Glass fiber
Magnet
- Force factor Bl 15.1N/A
- Motor constant Bl/√RE 6.37N/√W
- Air gap height HAG 10mm
Diaphragm
- Effective diameter 210mm
- Effective area SD 346cm²
- Moving mass MMS 34.9g
- Moving mass (without air load) MMD 30.2g
Suspensions
- Stiffness KMS 12.8N/mm
- Compliance CMS 78µm/N
- Equivalent volume to the compliance VAS 13.1L
- Mechanical resistance RMS 1.87N·s/m

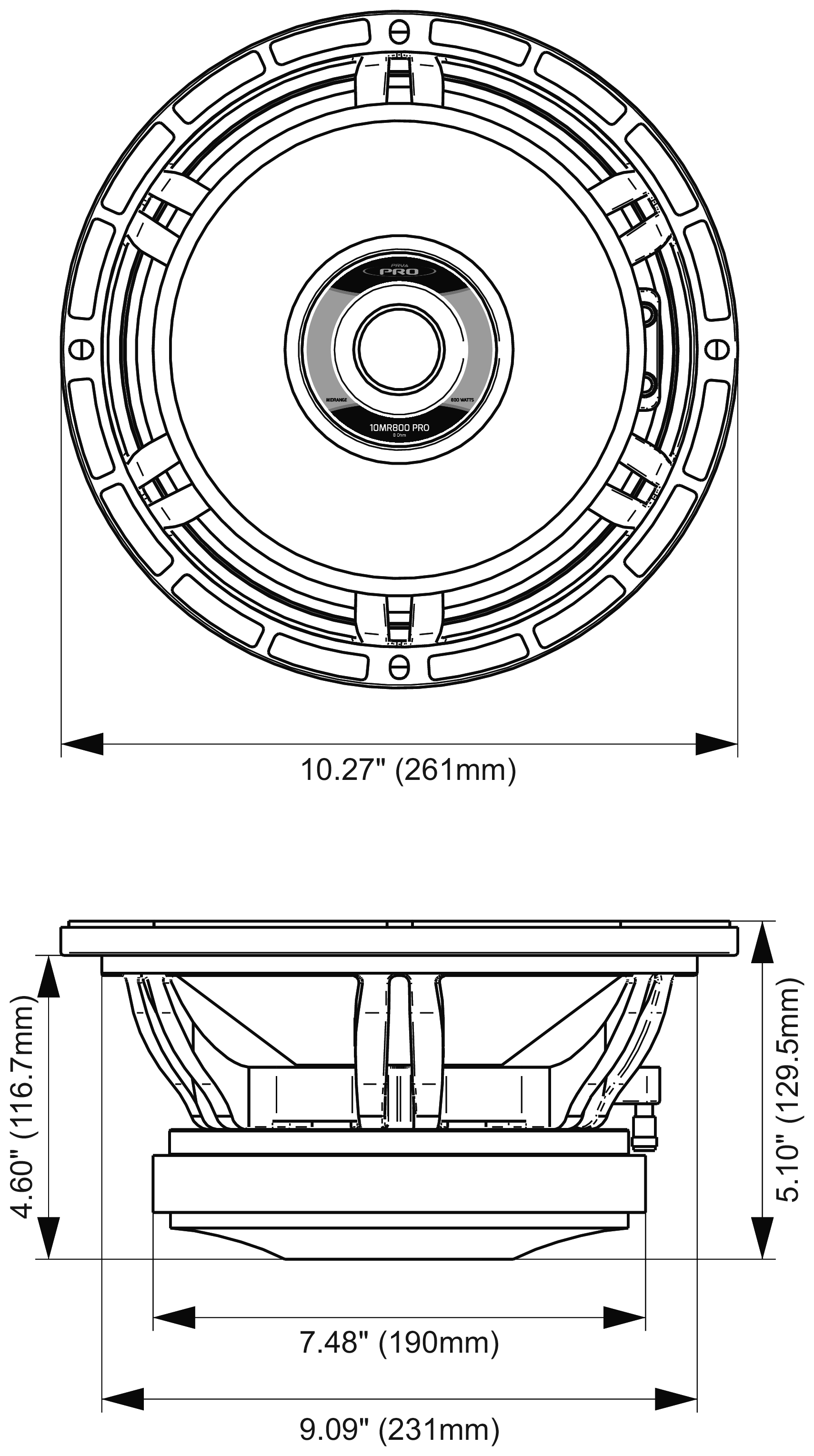

Dimensions
- Nominal diameter 10″
- 254mm
- Overall diameter 261mm
- Baffle cutout diameter 231mm
- Overall depth 130mm
- Flange thickness 13mm
- Mounting depth 117mm
- Volume occupied by the driver (estimated) 2.5L
- Net weight 7.1kg
- Frame material Die Cast Aluminium
.png)
.png)
.png)
