PRV Audio 6FR200

Name: PRV Audio 6FR200
Brand: PRV Audio

Full-range

6″ / 152 mm

Nominal diameter

112 Hz

Resonance

1.29

Q factor

93 dB

Sensitivity

± 3.5 mm

Linear excursion

200 W

Program Power

Parts Express
: $$
Sensitivity (1W, 1m, infinite baffle)
SPL_1W: 92.7; dB
Frequency response: 80 - 20000; Hz

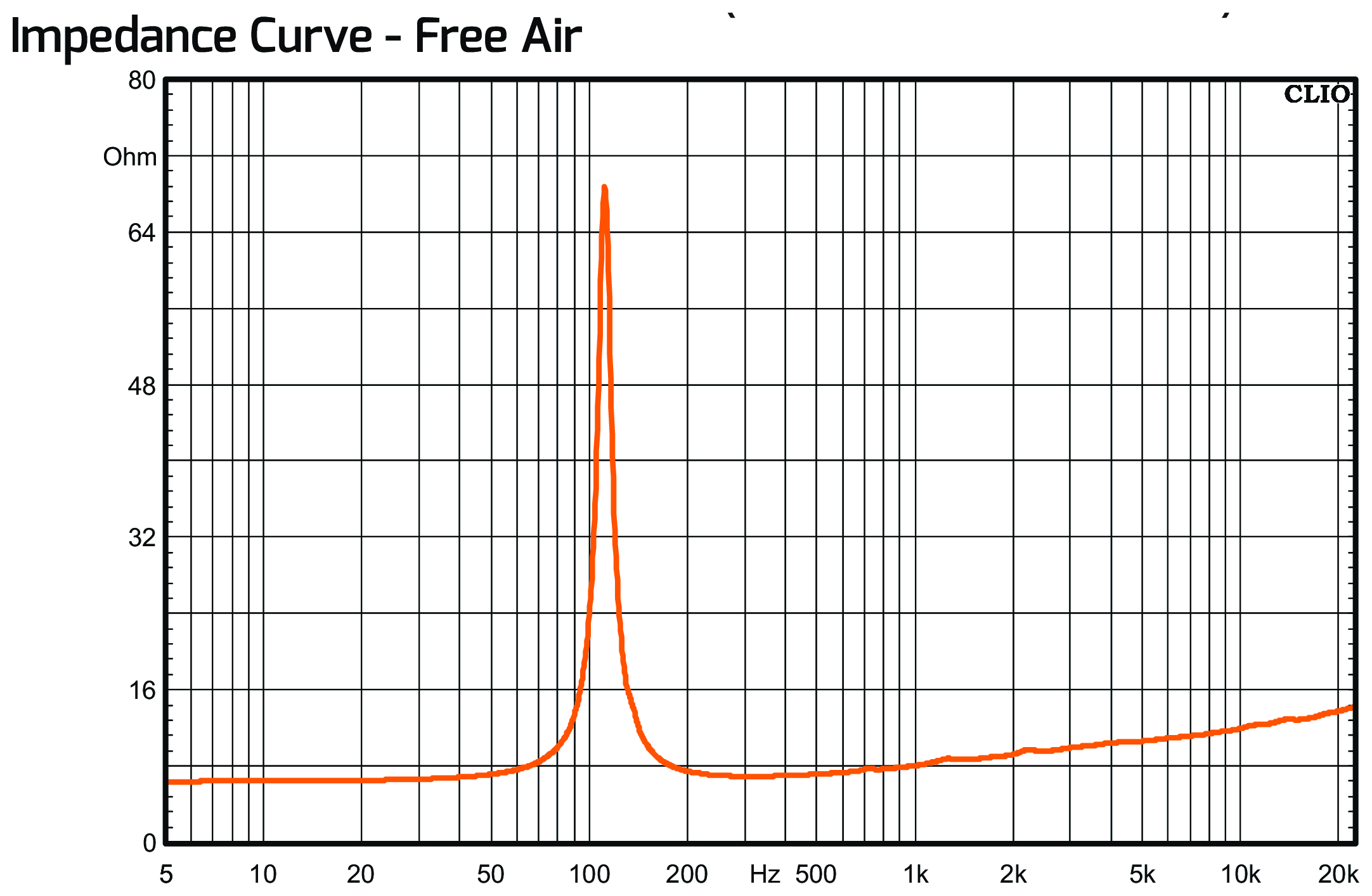

Resonance frequency (free air)
f_S: 112; Hz
Mechanical quality factor
Q_MS: 15.69
Electrical quality factor
Q_ES: 1.40
Total quality factor
Q_TS: 1.29
Maximum linear excursion
x_max: 3.5; mm
Air volume displaced at x_max
V_D: 50; cm³
Power handling
P: 100; W
Program power
P_max: 200; W
Nominal impedance
Z: 8; Ω
DC resistance
R_E: 6.4; Ω
Inductance (1kHz)
L_E: 0.26; mH
VC Diameter: 38; mm
Winding height
H_VC: 10; mm
Winding material: Copper Clad Aluminium
Former material: Kapton
Force factor
Bl: 5.17; N/A
Motor constant
Bl/√R_E: 2.04; N/√W
Air gap height
H_AG: 6; mm
Effective diameter: 135; mm
Effective area
S_D: 143; cm²
Moving mass
M_MS: 8.4; g
Moving mass (without air load)
M_MD: 7.1; g
Stiffness
K_MS: 4.13; N/mm
Compliance
C_MS: 242; µm/N
Equivalent volume to the compliance
V_AS: 6.93; L
Mechanical resistance
R_MS: 0.37; N·s/m
Nominal diameter: 6; ″
: 152; mm
Overall diameter: 167; mm
Baffle cutout diameter: 146; mm
Overall depth: 79; mm
Flange thickness: 7; mm
Mounting depth: 72; mm
Volume occupied by the driver (estimated): 0.45; L
Net weight: 1.27; kg
Frame material: Stamped Steel

Datasheet
