PRV Audio MT6CX580CF-NDY-4
4Ω
Coaxial
| Nominal diameter | 6.5″ / 165 mm |
| Resonance | 112 Hz |
| Q factor | 0.47 |
| Sensitivity | 93.5 dB |
| Linear excursion | ± 3.5 mm |
| Program Power | 500 W |
.jpg)
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 93.5dB
- Frequency response 100 - 11000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 112Hz
- Mechanical quality factor QMS 15.90
- Electrical quality factor QES 0.48
- Total quality factor QTS 0.47
Large signal parameters
- Maximum linear excursion xmax 3.5mm
- Air volume displaced at xmax VD 50cm³
- Power handling P 250W
- Program power Pmax 500W
- Peak power Ppeak 1000W
Voice Coil

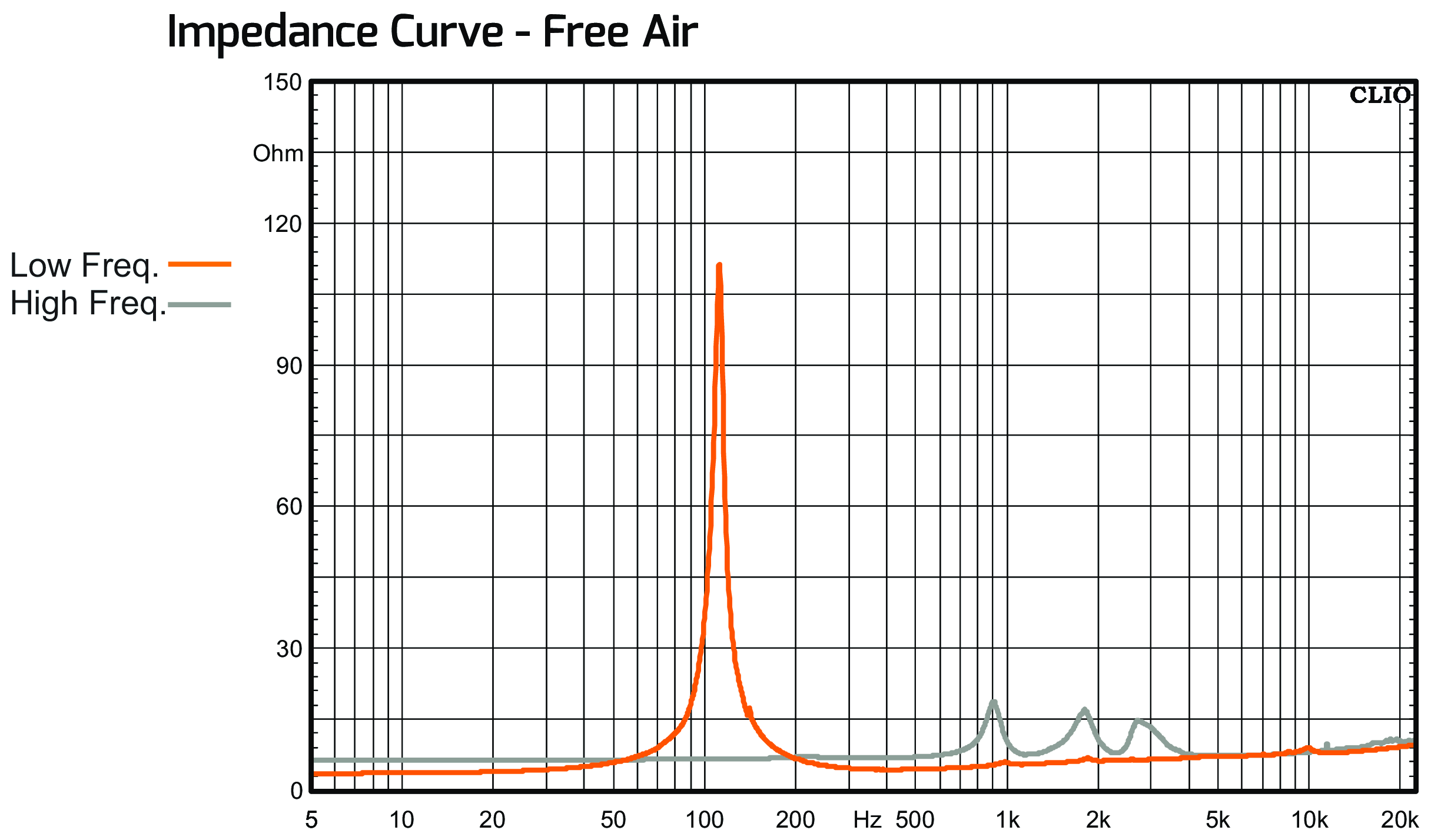

- Nominal impedance Z 4Ω
- DC resistance RE 3.3Ω
- Inductance (1kHz) LE 0.119mH
- VC Diameter 51mm
- Winding height HVC 11mm
- Winding material Copper Clad Aluminium
- Former material Kapton
Magnet
- Force factor Bl 7.52N/A
- Motor constant Bl/√RE 4.14N/√W
- Air gap height HAG 8mm
Diaphragm
- Effective diameter 135mm
- Effective area SD 143cm²
- Moving mass MMS 11.9g
- Moving mass (without air load) MMD 10.7g
Suspensions
- Stiffness KMS 5.92N/mm
- Compliance CMS 169µm/N
- Equivalent volume to the compliance VAS 4.98L
- Mechanical resistance RMS 0.53N·s/m

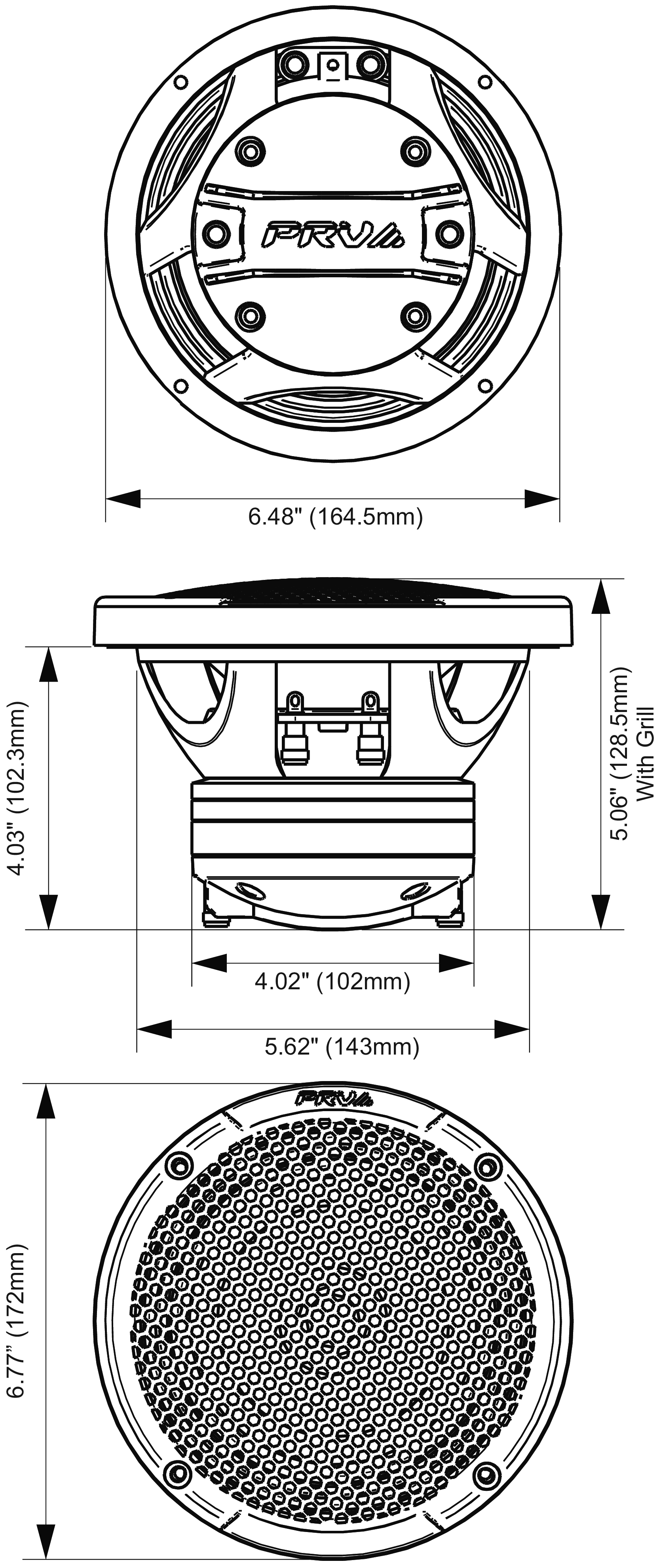

Dimensions
- Nominal diameter 6.5″
- 165mm
- Overall diameter 165mm
- Baffle cutout diameter 143mm
- Overall depth 129mm
- Flange thickness 27mm
- Mounting depth 102mm
- Volume occupied by the driver (estimated) 0.79L
- Net weight 1.9kg
- Frame material Aluminium
.png)
.png)
.png)
