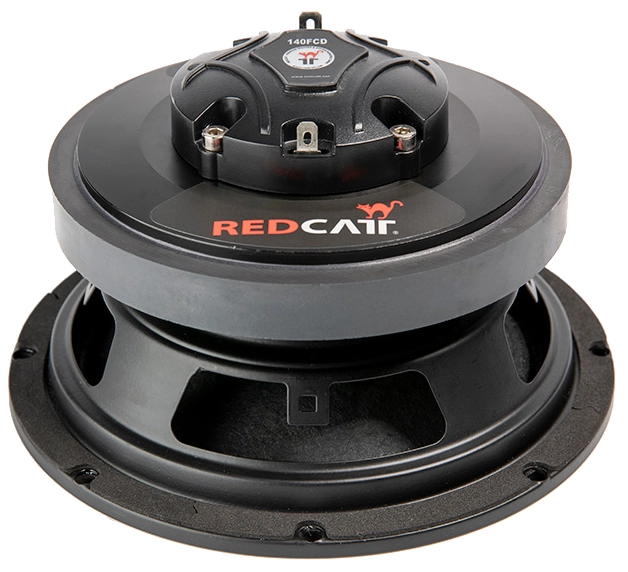

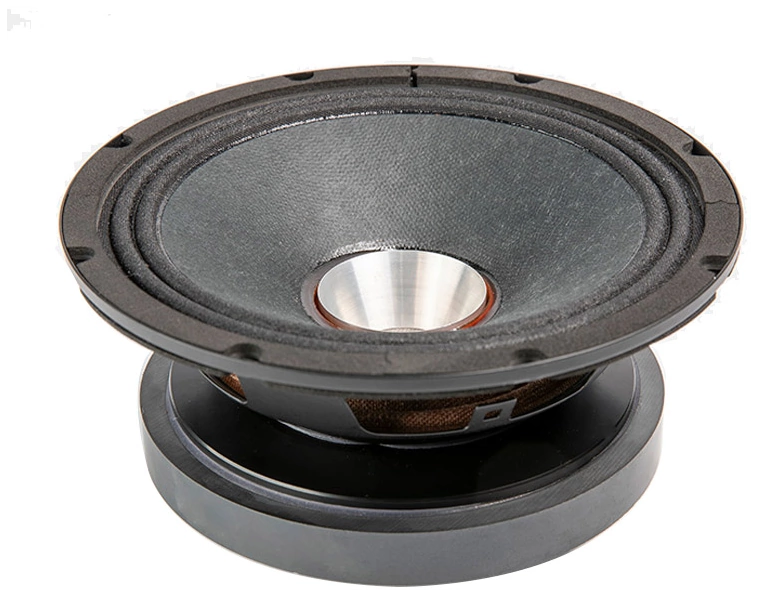

REDCATT CX6F140
8Ω
Coaxial
| Nominal diameter | 6″ / 165 mm |
| Resonance | 121 Hz |
| Q factor | 0.47 |
| Sensitivity | 93.3 dB |
| Linear excursion | ± 4.6 mm |
| Program Power | 200 W |
.webp)
.webp)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 93.3dB
Thiele & Small parameters
- Resonance frequency (free air) fS 121Hz
- Mechanical quality factor QMS 4.73
- Electrical quality factor QES 0.52
- Total quality factor QTS 0.47
Large signal parameters
- Maximum linear excursion (one way) xmax 4.6mm
- Air volume displaced at xmax VD 65cm³
- Power handling P 100W
- Program power Pmax 200W
- Peak power Ppeak 400W
Voice Coil
- Nominal impedance Z 8Ω
- DC resistance RE 5.4Ω
- Inductance (1kHz) LE 0.45mH
- VC Diameter 44.4mm
- Winding height HVC 10mm
- Winding material CCAW / CCAW
- Former material kapton / kapton
Magnet
- Force factor Bl 9.27N/A
- Motor constant Bl/√RE 3.99N/√W
- Air gap height HAG 6mm
- Material Ferrite
Diaphragm
- Effective diameter 134mm
- Effective area SD 141cm²
- Moving mass MMS 10.9g
- Moving mass (without air load) MMD 9.7g
- Material Paper / Polymer
Suspensions
- Stiffness KMS 6.29N/mm
- Compliance CMS 159µm/N
- Equivalent volume to the compliance VAS 4.4L
- Mechanical resistance RMS 1.75N·s/m
- Surround material Fabric / Polymer
- Spider material Nomex
Dimensions
- Nominal diameter 6″
- 165mm
- Overall diameter 165mm
- Baffle cutout diameter 144mm
- Mounting depth 86mm
- Volume occupied by the driver (estimated) 0.87L
- Net weight 2.1kg
.webp)
.webp)
