Peerless TC6BD10-16
16Ω
Full-range
| Nominal diameter | 2″ / 51 mm |
| Resonance | 155 Hz |
| Q factor | 0.69 |
| Sensitivity | 81.9 dB |
| Linear excursion | ± 1.1 mm |
| Program Power | 20 W |
Discontinued
.jpg)
.jpg)
Specifications
- Sensitivity (1W, 1m, infinite baffle) SPL1W 81.9dB

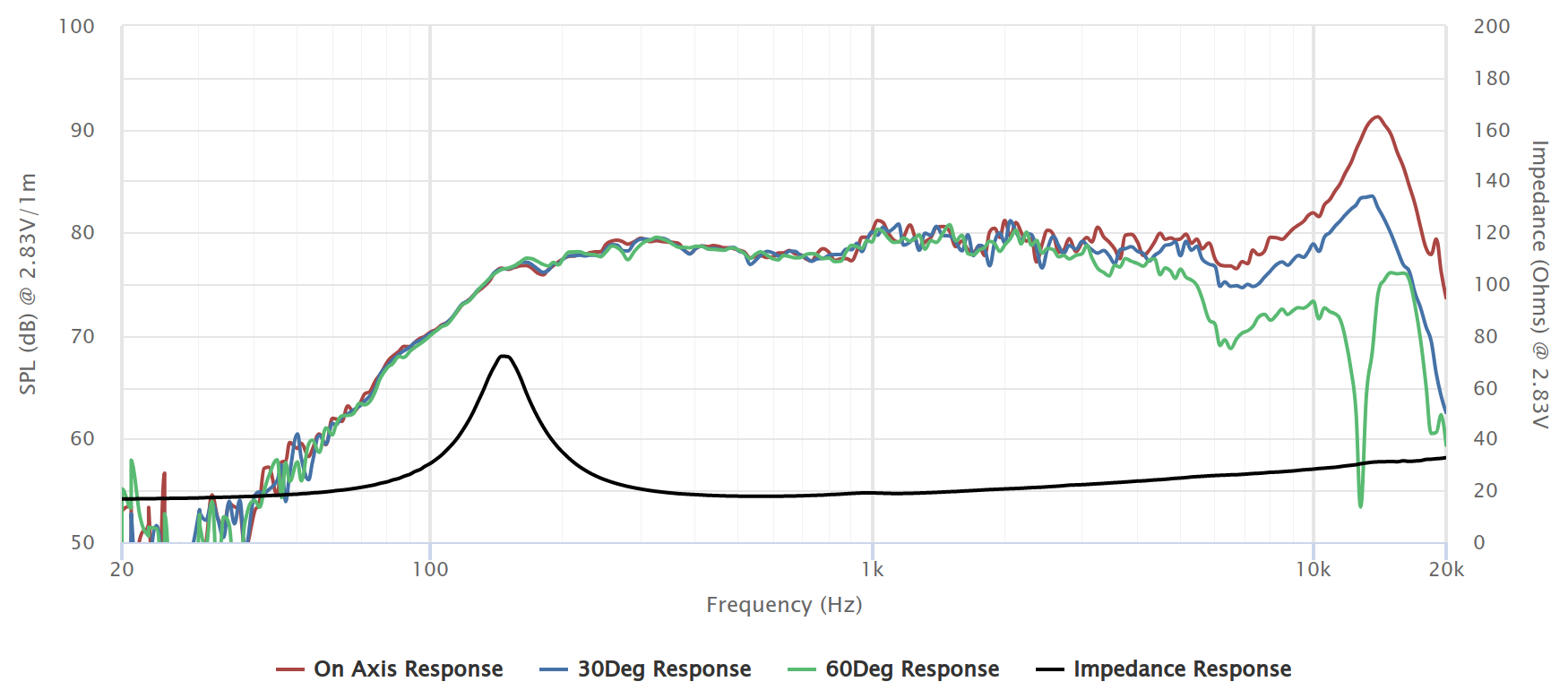

- Frequency response 150 - 20000Hz
Thiele & Small parameters
- Resonance frequency (free air) fS 155Hz
- Mechanical quality factor QMS 3.63
- Electrical quality factor QES 0.85
- Total quality factor QTS 0.69
Large signal parameters
- Maximum linear excursion xmax 1.1mm
- Air volume displaced at xmax VD 1.7cm³
- Power handling P 10W
- Program power Pmax 20W
Voice Coil
- Nominal impedance Z 16Ω
- DC resistance RE 15.2Ω
- Inductance (1kHz) LE 0.18mH
- VC Diameter 20.4mm
- Former material Kapton
Magnet
- Force factor Bl 4.92N/A
- Motor constant Bl/√RE 1.26N/√W
- Air gap height HAG 3mm
Diaphragm
- Effective diameter 44mm
- Effective area SD 15.2cm²
- Moving mass MMS 1.4g
- Moving mass (without air load) MMD 1.4g
Suspensions
- Stiffness KMS 1.32N/mm
- Compliance CMS 755µm/N
- Equivalent volume to the compliance VAS 0.25L
- Mechanical resistance RMS 0.38N·s/m

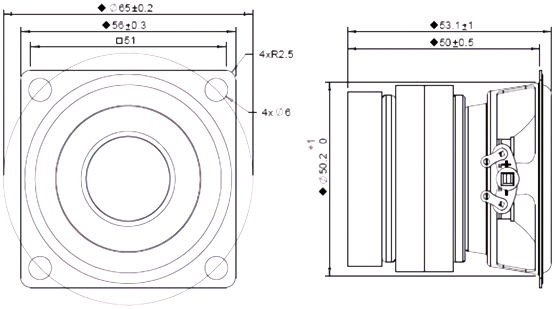

Dimensions
- Nominal diameter 2″
- 51mm
- Volume occupied by the driver (estimated) 0.11L
- Net weight 0.3kg
