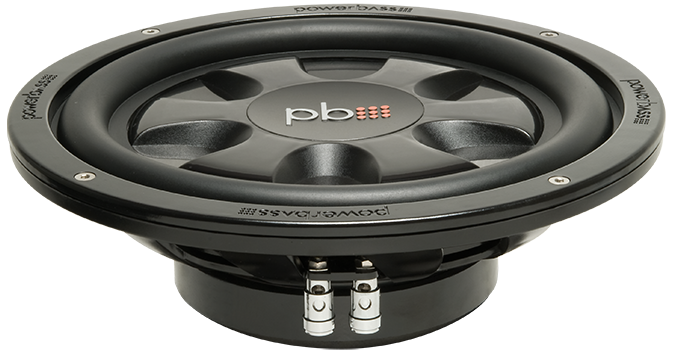

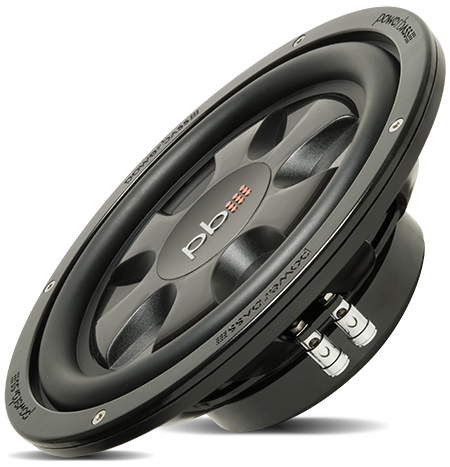

PowerBass S-10T

Shallow Subwoofer

10″ / 254 mm
Nominal diameter
41 Hz
Resonance
0.65
Q factor
84 dB
Sensitivity
± 6.8 mm
Linear excursion
550 W
Program Power
Driver
Port
Combined
Frequency response
Hz
Impedance
Ω
Impedance Phase
°
Excursion
mm
Velocity
m/s
SPL
dB
Acoustical Phase
°
Group Delay
ms
Transient response
ms
Discard
Apply

Available on (affiliate link)

Amazon.com
$$

Specifications

Sensitivity (1W, 1m, infinite baffle)
SPL1W
84.0
dB
Frequency response
34 - 400
Hz

Thiele & Small parameters

Resonance frequency (free air)
fS
40.6
Hz
Mechanical quality factor
QMS
3.40
Electrical quality factor
QES
0.80
Total quality factor
QTS
0.65

Large signal parameters

Maximum linear excursion
xmax
6.8
mm
Air volume displaced at xmax
VD
247
cm³
Power handling
P
275
W
Program power
Pmax
550
W

Voice Coil

Nominal impedance
Z
4
Ω
DC resistance
RE
3.2
Ω
Inductance (1kHz, estimated)
LE
0.97
mH
VC Diameter
51
mm

Magnet

Force factor
Bl
12.6
N/A
Motor constant
Bl/√RE
7.04
N/√W
Weight
3.29
kg

Diaphragm

Effective diameter
215
mm
Effective area
SD
363
cm²
Moving mass
MMS
156.3
g
Moving mass (without air load)
MMD
151.5
g
Material
Injection molded Polypropylene

Suspensions

Stiffness
KMS
10.15
N/mm
Compliance
CMS
98
µm/N
Equivalent volume to the compliance
VAS
18.4
L
Mechanical resistance
RMS
11.73
N·s/m

Dimensions

Nominal diameter
10
254
mm
Baffle cutout diameter
233
mm
Mounting depth
83
mm
Volume occupied by the driver (estimated)
1.5
L
